Specifications:
Product parameters
Input voltage：7-30V
Working frequency：1.2G-1.3G
Available channels：9-CH
Maximum output power：1600mwWMaximum size：37mm*31mm*11mm
Mounting hole：20mm*20mm by M2 screw

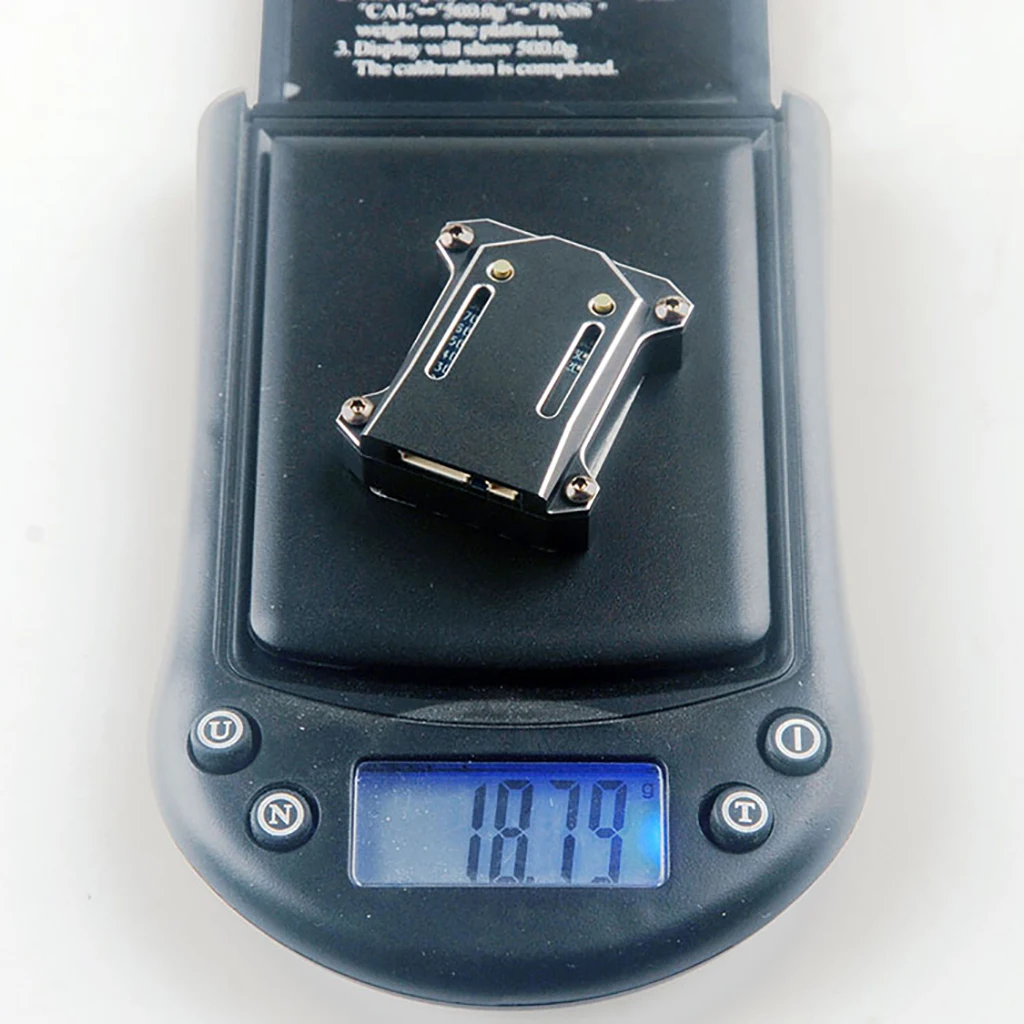

Weight：18.8g
Number of channels：8CH
Frequency：1120/1160/1200/1240/1258/1280/1320/1360(MHz)
Output power：PIT/25MW/200MW/1600MW
S/N(Fo±3MHz)：>70dBc
Antenna Port： 50 Ohms
Input format： NTSC or PAL
Operating Temperature： -10℃~+60℃
Function Description：
1. Power value could controlled by IRC TRAM Protocol "PIT/25/200/1600MW"
2. Press and hold the Band/Channel switch button for 1 second to switch CH 1-8 cycle.
3. Press and hold the Power level switch button for 1 second to switch the power to PIT/25mw/200mw/1600mw cycleS.
4. Once the VTX data wire was connected to betaflight flight controller TX and IRC TRAMP was correctly set， then the Bands/channels/power value can only be controlled by betaflight configurator or OSD menu.
Known issue：
LED indicate on the VTX will not change while switch bands/channel or power value by IRC TRAMP， however the value of bands/channels/power value will really be changed .When using this product， please comply with local regulations and install the antenna before use

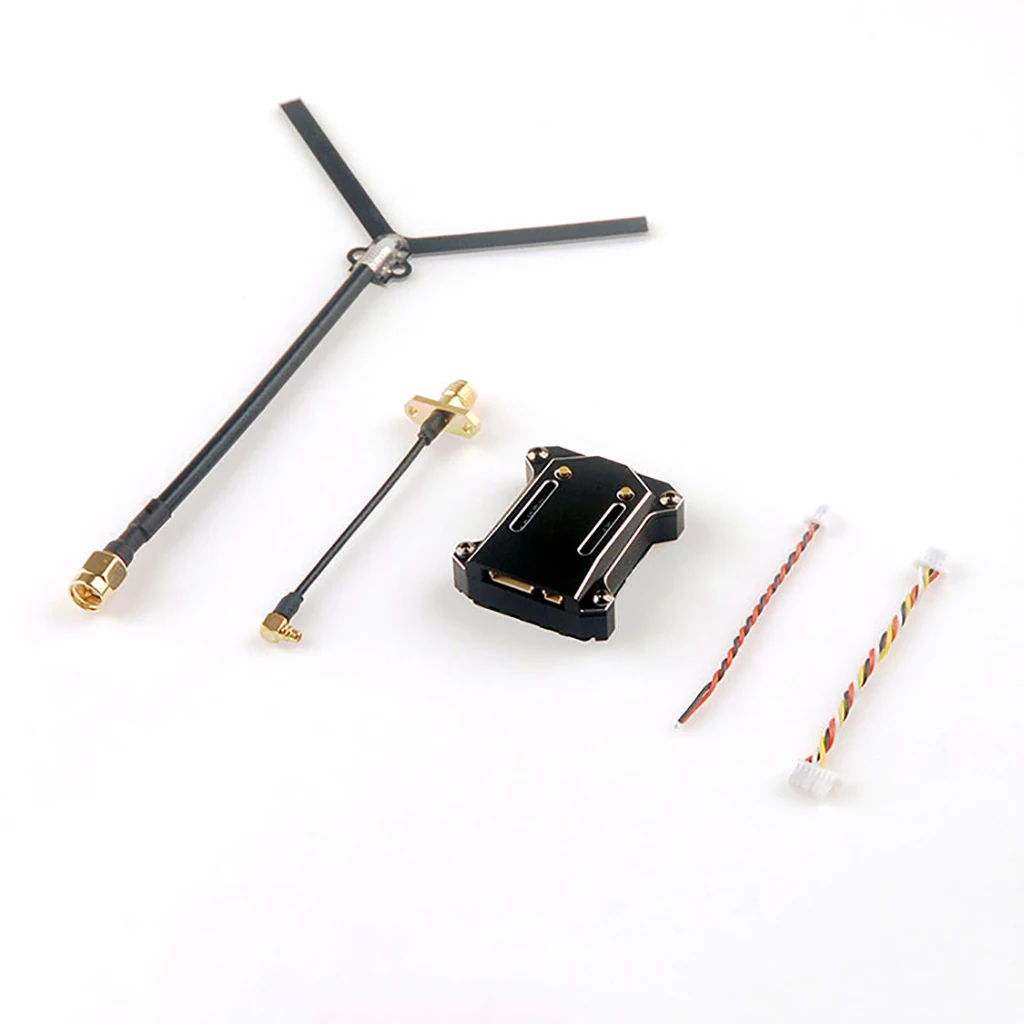

Packing list：

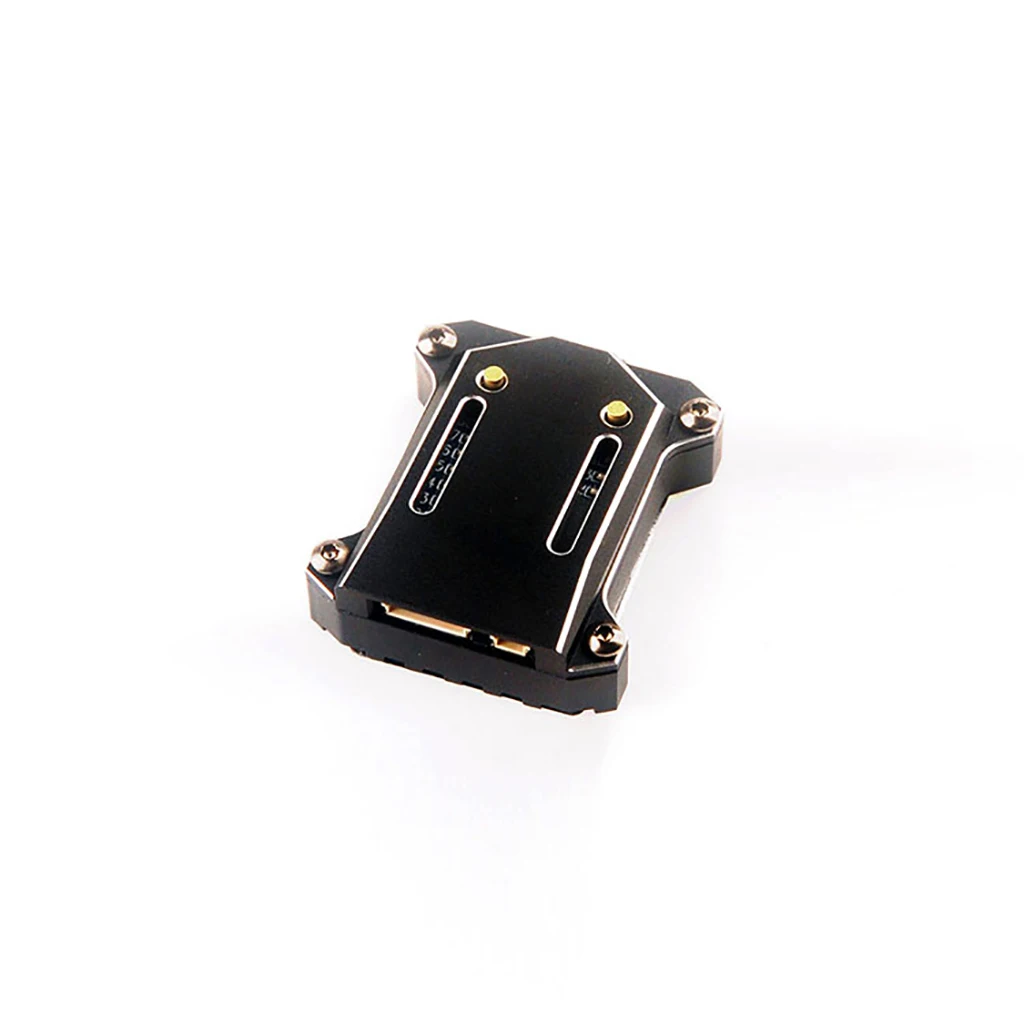

1x1.2G 1.6W Video transmitter module
1x video transmitter module cable

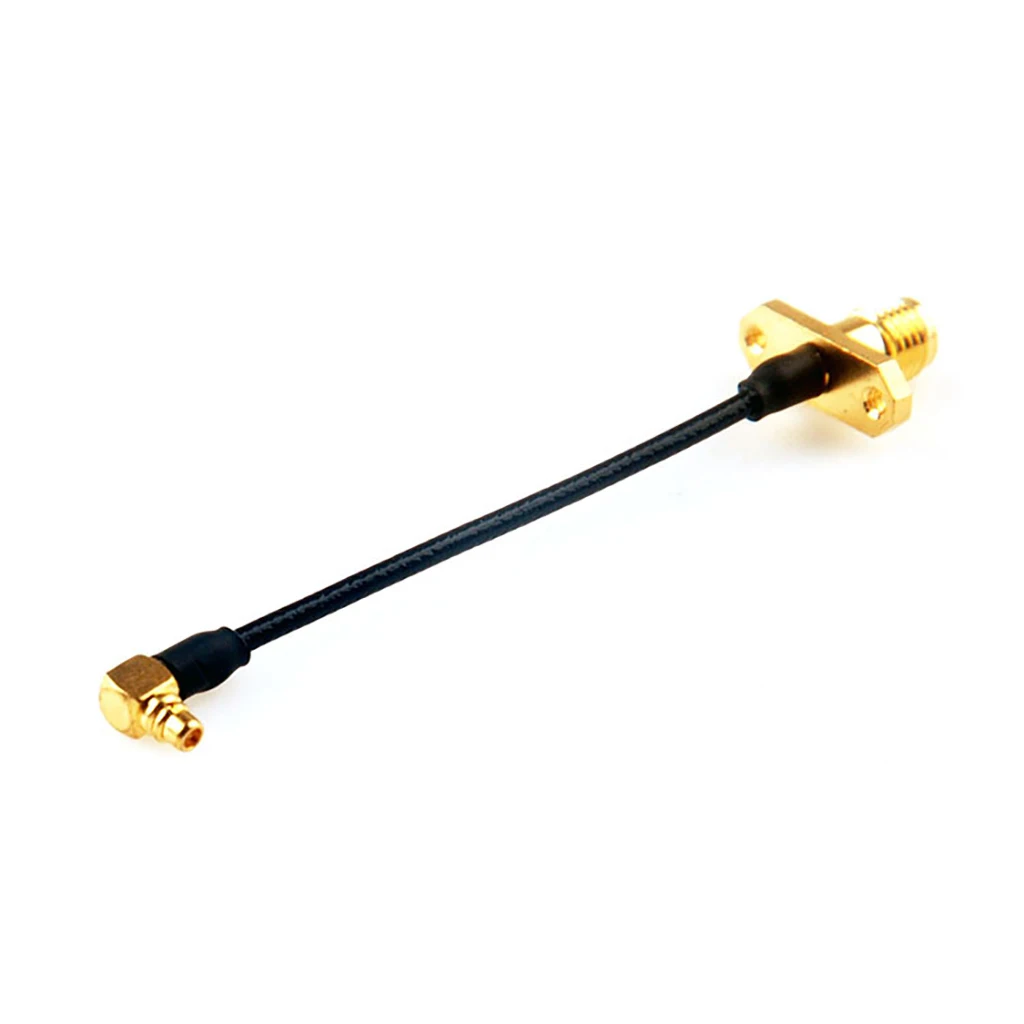

1xMMCX-SMA female adapter cable

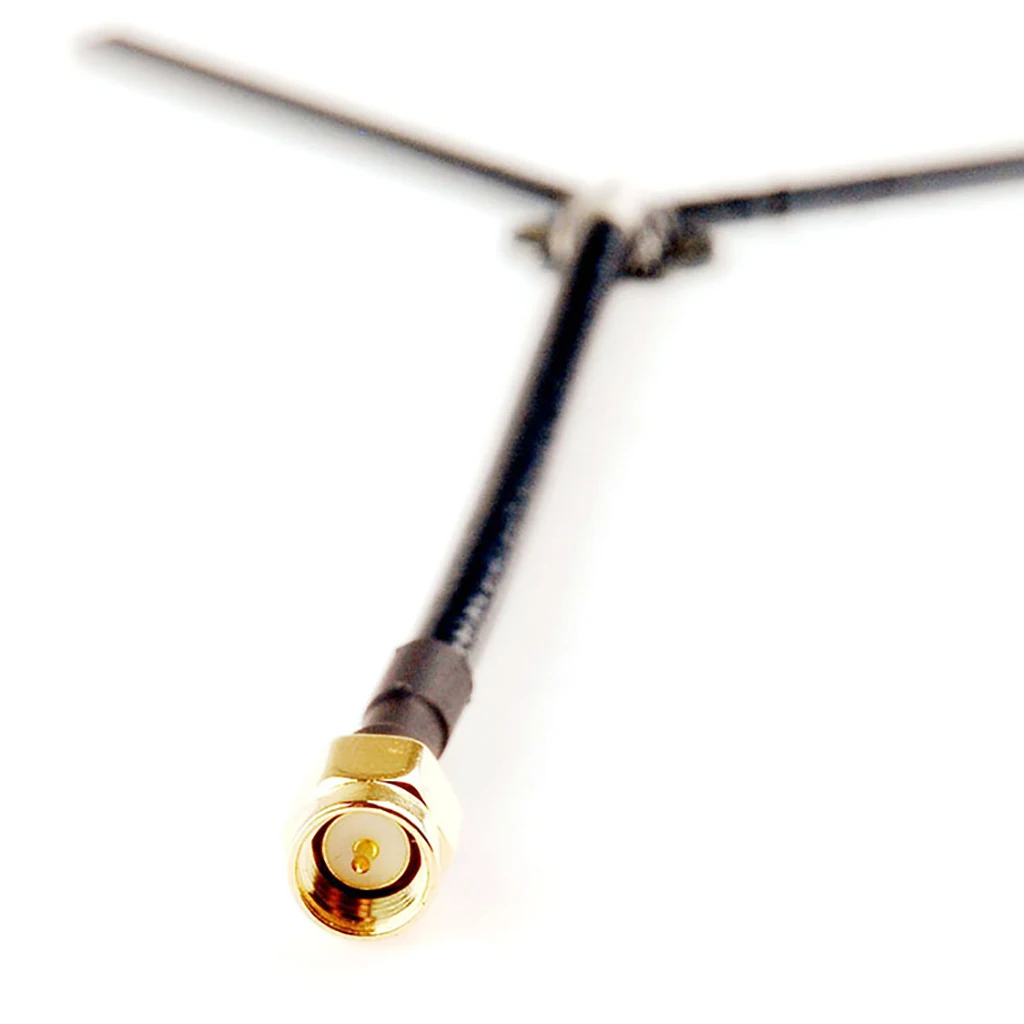

1x1.2G Y-shaped antenna
