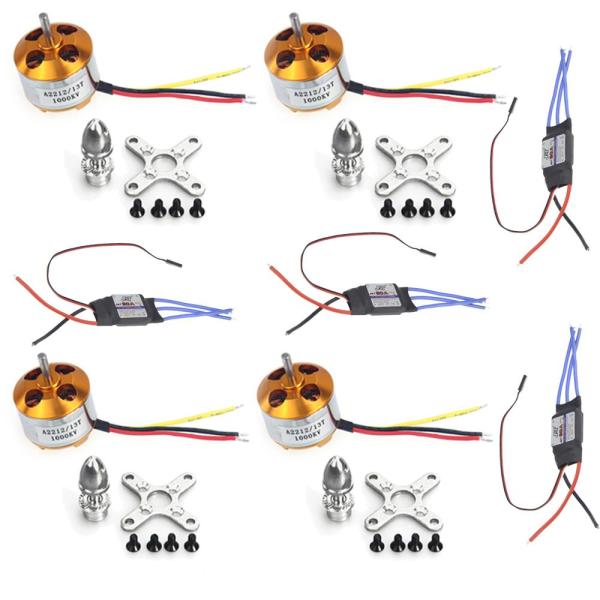

4Sets/lot A2212 1000KV Brushless Motor + 30A Speed Controller ESC For DIY 4 6 axle RC Quadcopter Multirotor Aircraft
Include:
A2212 1000KV*4
30A ESC *4

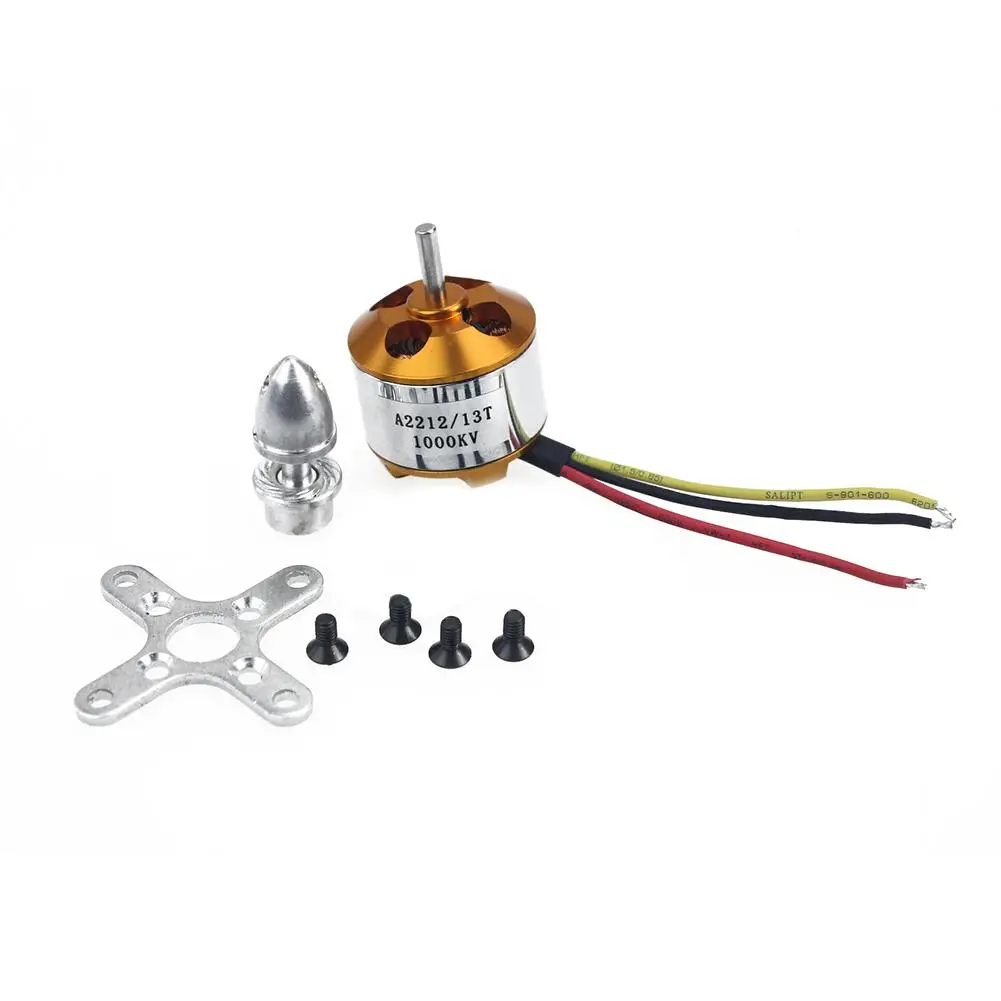

A2212 1000KV MOTOR:
Product Description :
|
Model
|
KV
|
Shaft(m)m
|
Weight
|
Min Current
|
Max Current
|
Max Efficiency
|
Battery
|
Motor Dimensions
|
Class
|
|
A 2212
|
1000
rpm/V
|
3.17
|
47g
|
4A
|
10A
|
80%
|
2-3 Li-Poly
|
27.5 x 30mm
|
4/6 axle copter
|
-
KV: 1000
-
Max Efficiency: 80%
-
Max Efficiency Current: 4-10A (>75%)
-
Current Capacity: 12A/60s
-
No Load Current @ 10V: 0.5A
-
No. Of Cells: 2-3 Li-Poly
-
Motor Dimensions: ?27.5 x 30mm
-
Shaft Diameter: ?3.17mm
-
Weight: 47g
DT-30A Brushless ESC:
ATTENTION:
-
This ESC do not have the English instruction.
-
Before producing, the manufacturer have set up the program, the ESC do not need additional program.
1.1Output:Continuous 30A, Burst 35A up to 10 Secs. 1.2Input Voltage:2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery. 1.3BEC:2A / 5V (Linear mode). 1.4Max Speed:210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor) 1.5Size:45mm (L) * 24mm (W) * 11mm (H). 1.6Weight:22g.
2Features
2.1Safety Arming Feature:Regardless the throttle stick position, the motor will not spin after battery connected. 2.2Throttle Calibration:Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters. 2.3Programmable Items:Brake Setting: brake enabled / brake disabled. Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd). Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power. Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high. Start Mode: normal / soft / very soft. Timing: low / medium / high. Reset: resetall the programmable items totheir default settings. 2.4Full Protection Features:Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.
3Advantages3.1Military standard capacitorof extreme low resistance increases the ability of prevention of unwanted RF noise during flying. 3.2Extreme low resistancePCB is helpful for getting a super current endurance capability. 3.3 Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.
