Features
Large output power, stable output power, long transmission distance;
6-speed switching of transmission power: PIT/25mW/400mW/800mW/1500mW/2500mW;
Quick frequency locking, no interference with companions when turned on;
With self-test function of output power;
Full video format: NTSC/PAL;
All-metal CNC shell, dustproof and explosion-proof, good heat dissipation, stable power.
2.5W Features:
High output power, stable output power, long transmission distance;
Transmit power 6-stop switching: PIT/25mW/400mW/800mW/1500mW/2500mW;
Frequency lock fast, power on without interfering with the companion;
Comes with output power self-test function;
Full standard video format: NTSC/PAL;
All-metal CNC shell, dustproof and bomb-resistant, good heat dissipation, power stability

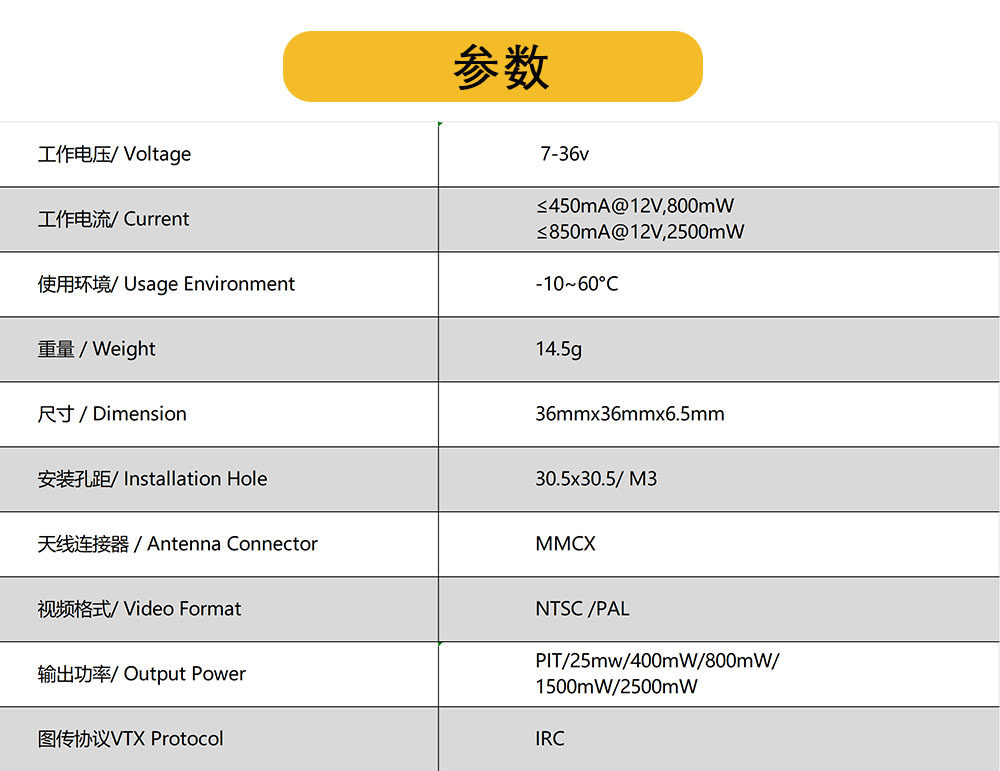

Parameters:
Working voltage / Voltage: 7-36v
Working current/Current ：≤450mA@12V，800mW ≤850mA@12V，2500mW
Usage Environment : -10~60°C
Weight : 14.5g
Dimension : 36mmx36mmx 6.5mm
Installation Hole ：30.5x30.5/M3
Antenna Connector ：MMCX
Video Format ：NTSC/PAL
Output Power ：PIT/25mw/400mW/800mW/1500mW/2500mW
VTX Protocol ： IRC
Thank you for choosing our product , we are trustworthy ,if you have any questions ,please message us freely , we would like to try our best to solve your issue .
