ATTENTION:
-
This ESC do not have the English instruction.(if you need, please contact me for that.)
-
Before producing, the manufacturer have set up the program, the ESC do not need additional program.
1. quantity:1PCS
2. 100% Brand New!
3. No manual.
4. Preview

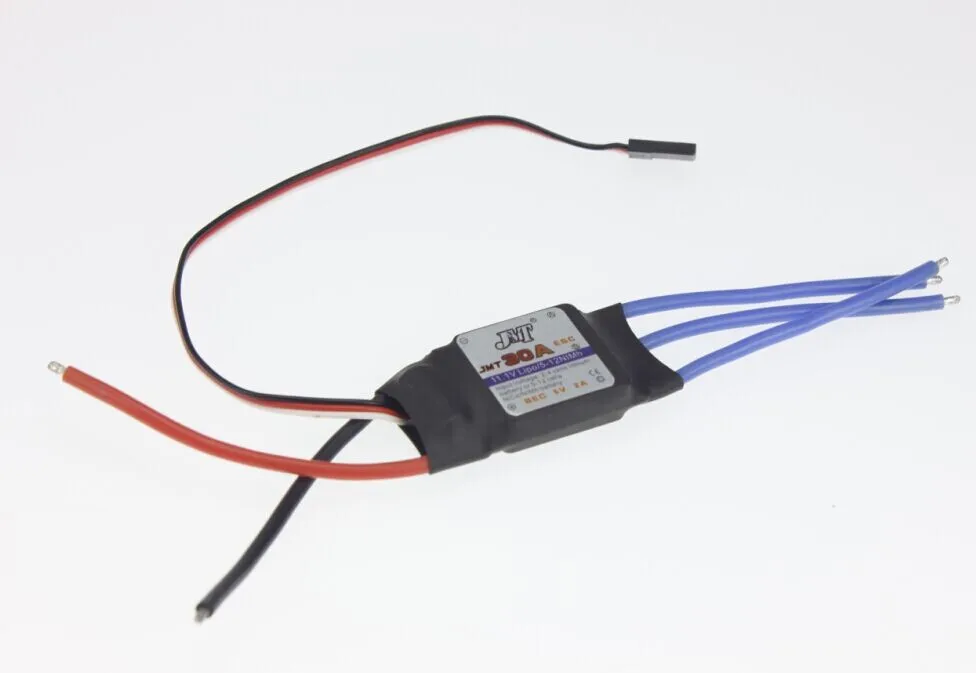

1 Specification
1.1 Output: Continuous 30A, Burst 35A up to 10 Secs. 1.2Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery. 1.3BEC:2A / 5V (Linear mode). 1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor) 1.5 Size: 45mm (L) * 24mm (W) * 11mm (H). 1.6Weight:22g.
2Features
2.1 Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected. 2.2Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters. 2.3 Programmable Items: Brake Setting: brake enabled / brake disabled. Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd). Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power. Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high. Start Mode: normal / soft / very soft. Timing: low / medium / high. Reset: resetall the programmable items totheir default settings. 2.4Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.
3Advantages 3.1Military standard capacitorof extreme low resistance increases the ability of prevention of unwanted RF noise during flying. 3.2Extreme low resistancePCB is helpful for getting a super current endurance capability. 3.3 Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.
Product Description :

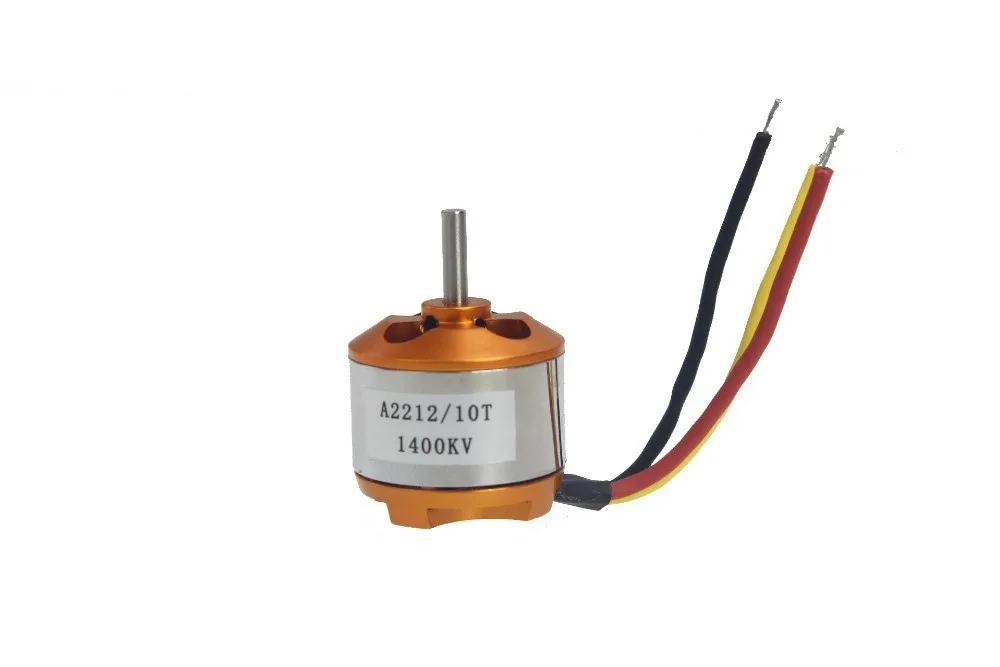

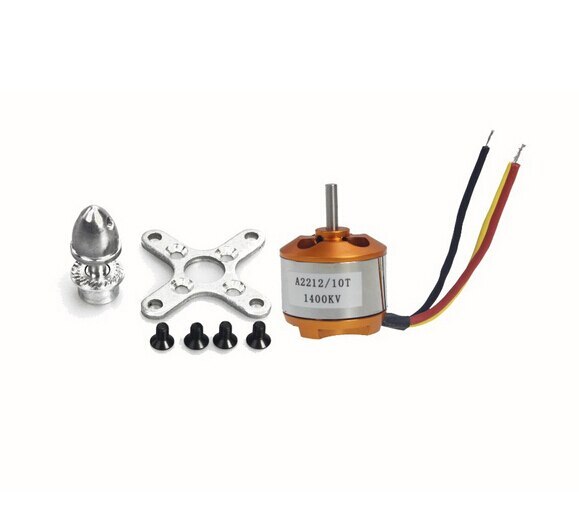

Name: A 2212 A2212 1400KV Brushless Outrunner Motor W/ Mount
For: RC Aircraft / KKmulticopter 4-axle/6-axle Quadcopter UFO
Quantity: 1SET
|
Model
|
KV
|
Shaft(m)m
|
Weight
|
Min Current
|
Max Current
|
Max Efficiency
|
Battery
|
Motor Dimensions
|
Class
|
|
A 2212
|
1400
rpm/V
|
3.17
|
47g
|
4A
|
10A
|
80%
|
2-3 Li-Poly
|
27.5 x 30mm
|
4/6 axle copter
|
100%Brand New
-
KV: 1400
-
Max Efficiency: 80%
-
Max Efficiency Current: 4-10A (>75%)
-
Current Capacity: 12A/60s
-
No Load Current @ 10V: 0.5A
-
No. Of Cells: 2-3 Li-Poly
-
Motor Dimensions: Φ27.5 x 30mm
-
Shaft Diameter: Φ3.17mm
-
Weight: 47g

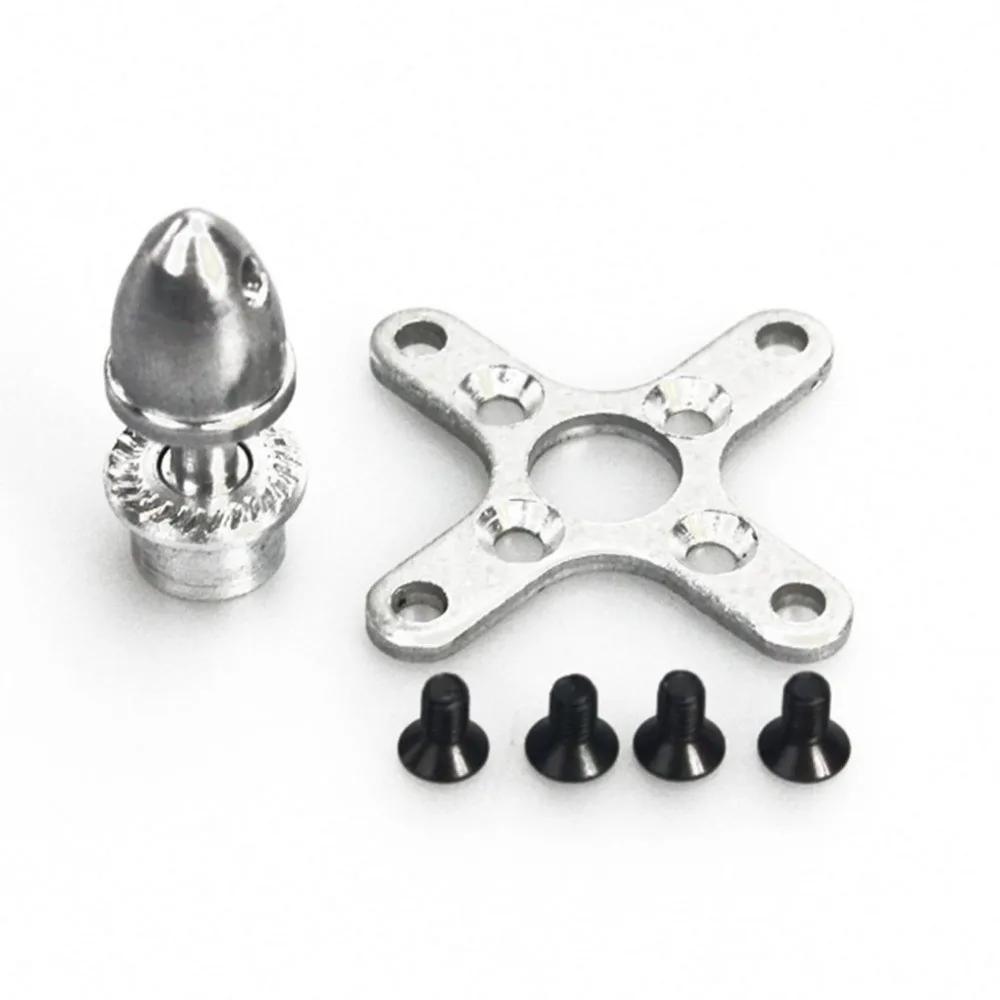

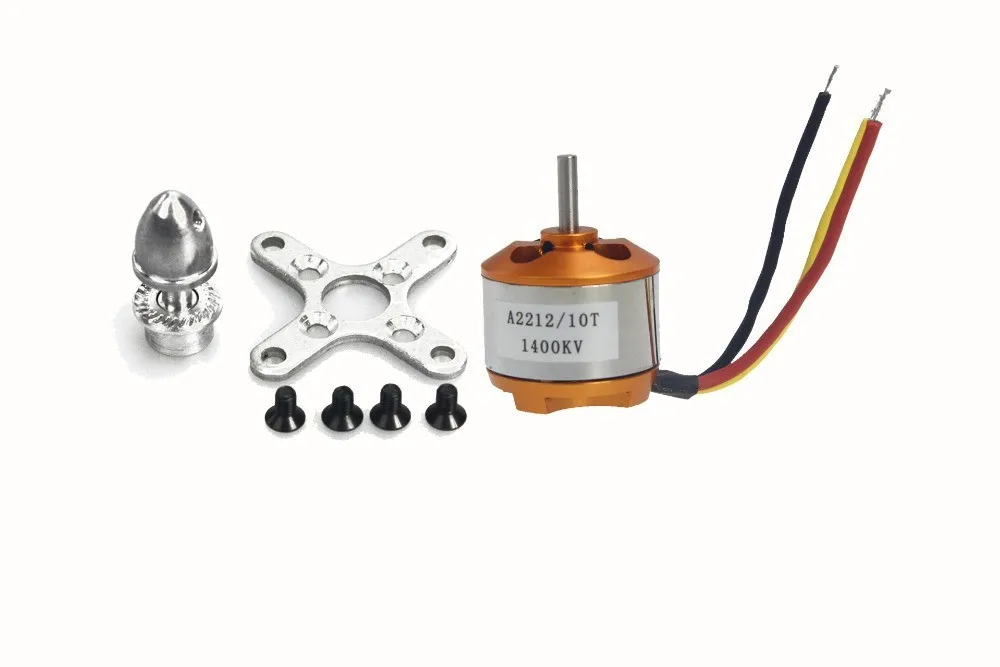

Including: 1 set 2212 1400KV Brushless Outrunner Motor with Mounts
