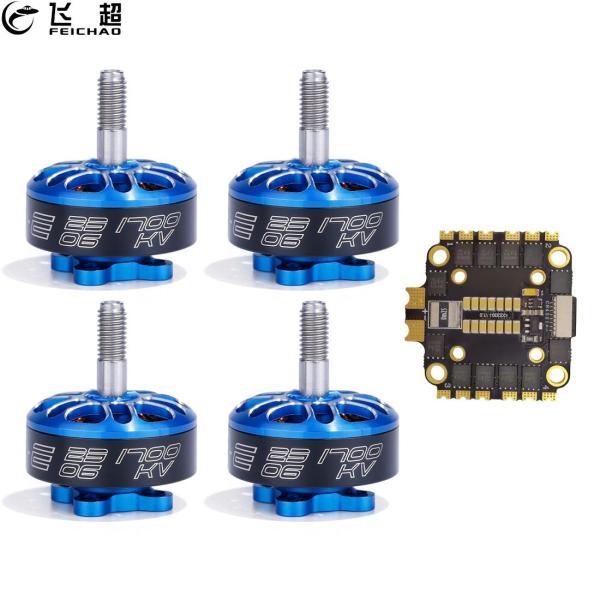

FEICHAO 45A BLheli_32 2-6S 4in1 Brushless ESC with 4PCS 2306-2450kv/2306-1700kv Motor for RC Quadcopter FPV Racing Drone
4in1 ESC:
Features
High-quality hardware
-EMF8BB21F16G main control chip, operating frequency up to 48MHz.
-Imported mosfet,3 in 1 IC driver.
-Imported high-quality high-frequency ceramic capacitors.
-In the high-end PCB production process, the pads are all covered with metal, so that you can avoid the pads falling off during use;
-3 ounces of copper thickness, 6 layers of boards, greatly reducing heat.
Highly integrated and compact
-Integrate 4 high-performance 45A ESCs, built-in ammeter, new advanced SMT, double-hole design, after such a high degree of integration, the volume is only the same size as the flight control, installation and wiring will become very simple.
-This incredible size and volume is tailor-made for the competition-level drone.
Support BLHeli-S
-Use BLHeli-S firmware, powerful performance, rich functions.
-Support multiple ways to set and upgrade ESC parameters (such as by throttle signal line, development boards, or cleanflight /betaflight firmware).
Hardware PWM, Damped Light
-The hardware PWM drives the motor with low noise and smoother throttle response.
-Damped Light technology, regenerative braking function, makes the motor deceleration more sensitive and effective, and the control is more precise.
-Active continuous flow technology, allows the battery to recover power and extend the battery life;
DShot150/300/600 Ready
-It not only supports ordinary PWM throttle signal mode, Oneshot125, Oneshot42 and Multshot ultra-high speed throttle signals, but also supports the latest DShot150/300/600 digital throttle, which has strong anti-interference ability and rapid response.
-The input and output lines use soft silicone wire, which is very durable, high temperature resistant, and convenient for welding.
Specification
-Working voltage: 2-6S
-Maximum continuous working current: 45A
-Maximum instantaneous working current:50A
-Support communication mode: DShot150/300/600 PWM Oneshot125, Oneshot42 and Multshot
-Assistant Software: BLHeliSuite
-Firmware version: BL16.7
-Mounting hole distance: 20*20mm / 30.5*30.5mm
-Product size: 44*44*5.5mm
Packing list:
1 X 45A ESC

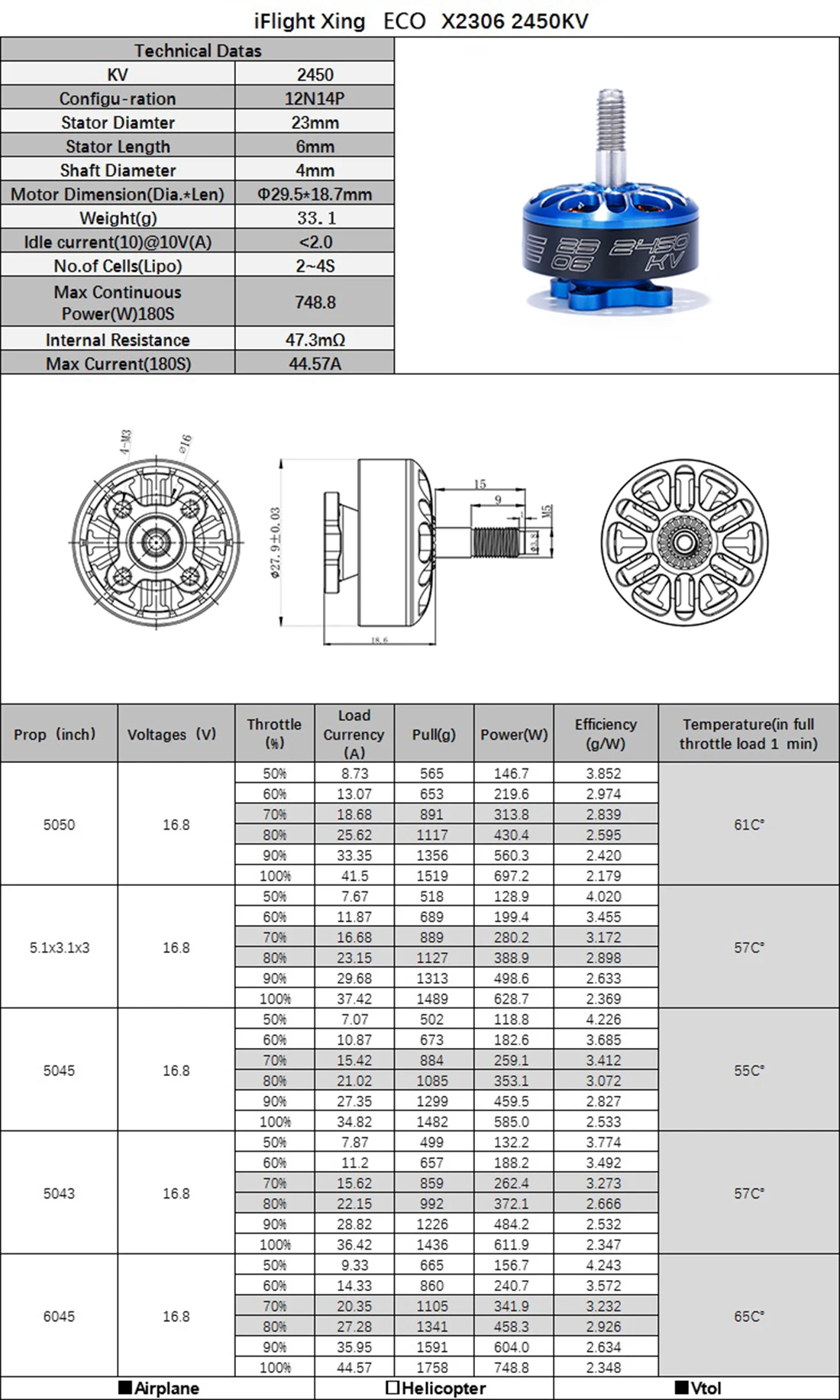

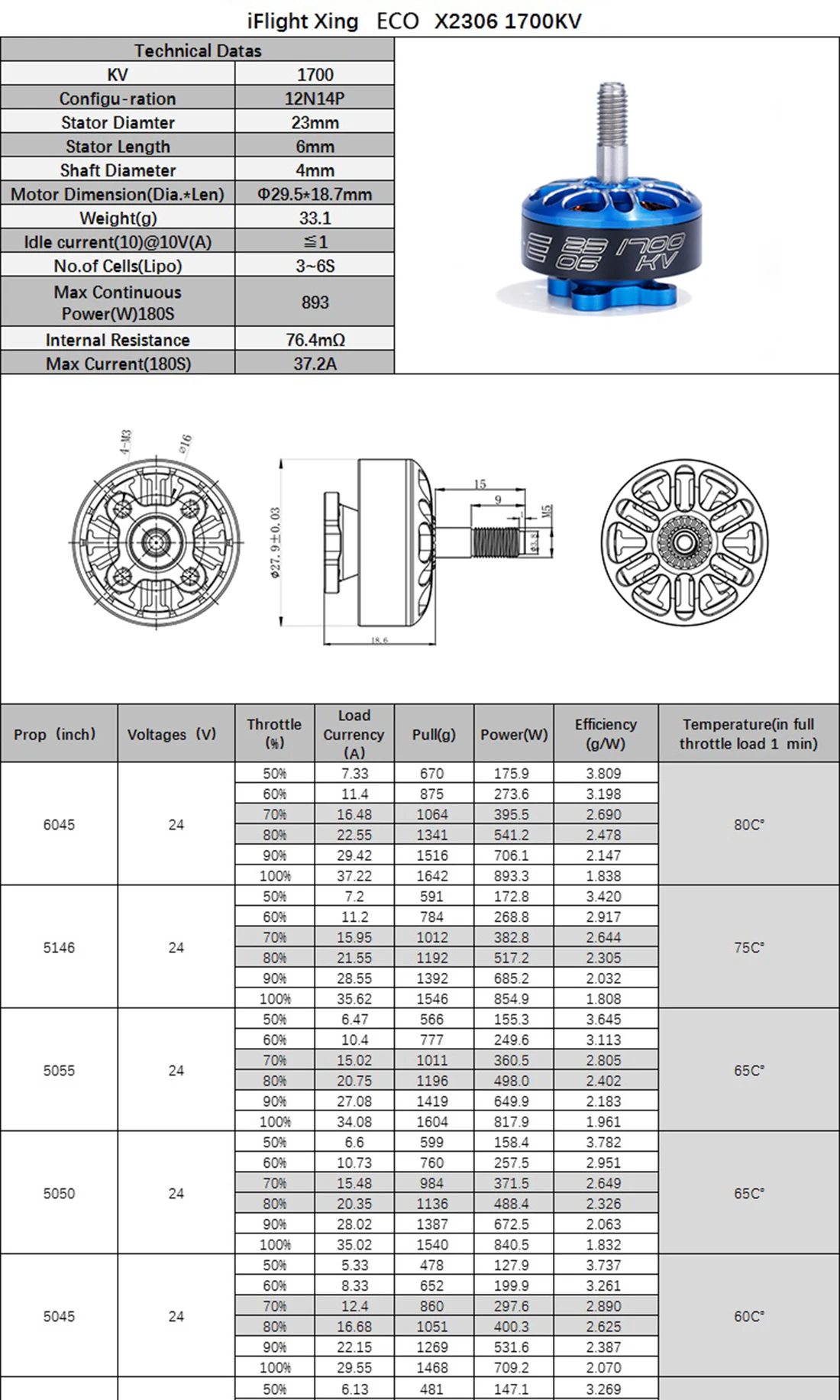

4 X 2450kv or 1700kv motor(optional)
