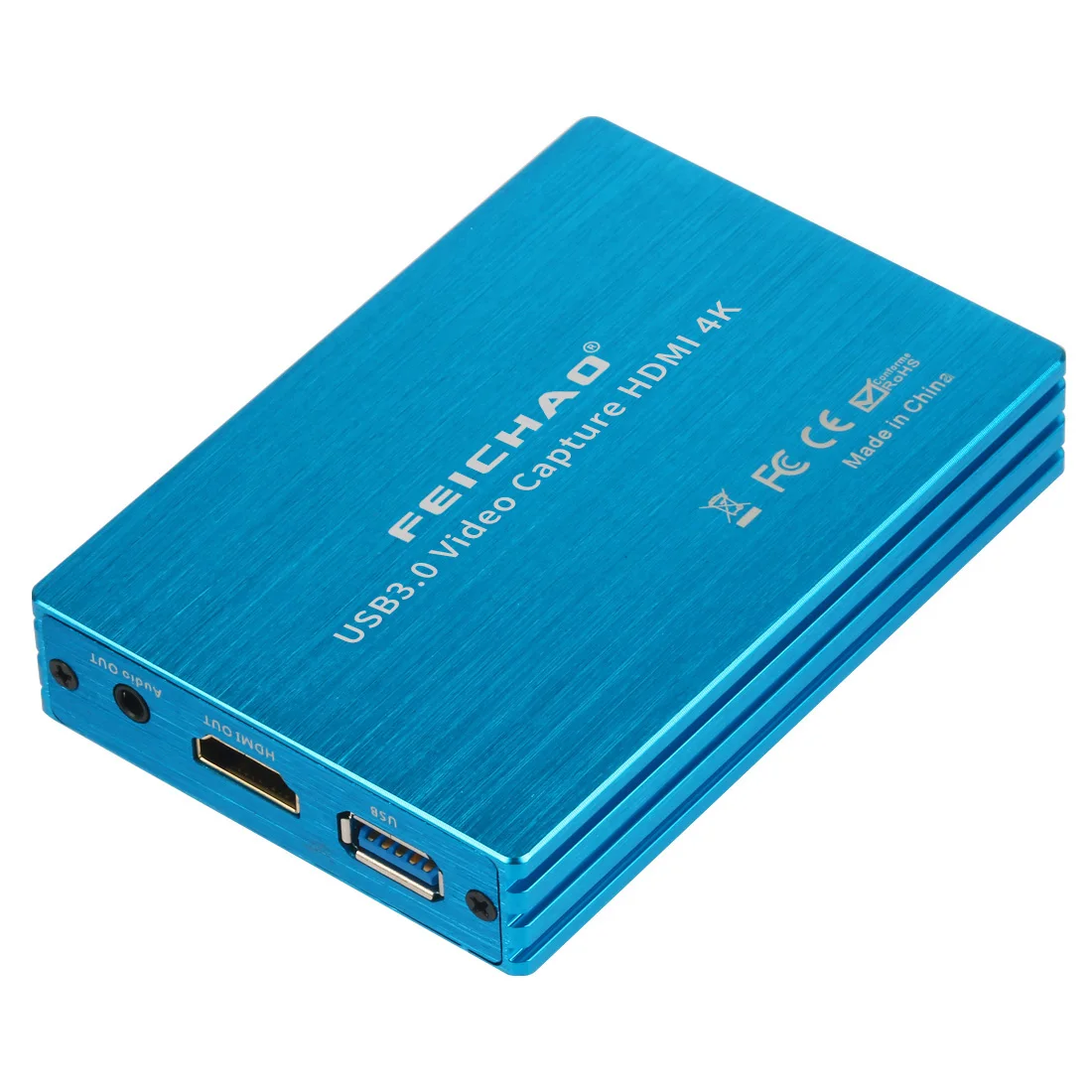

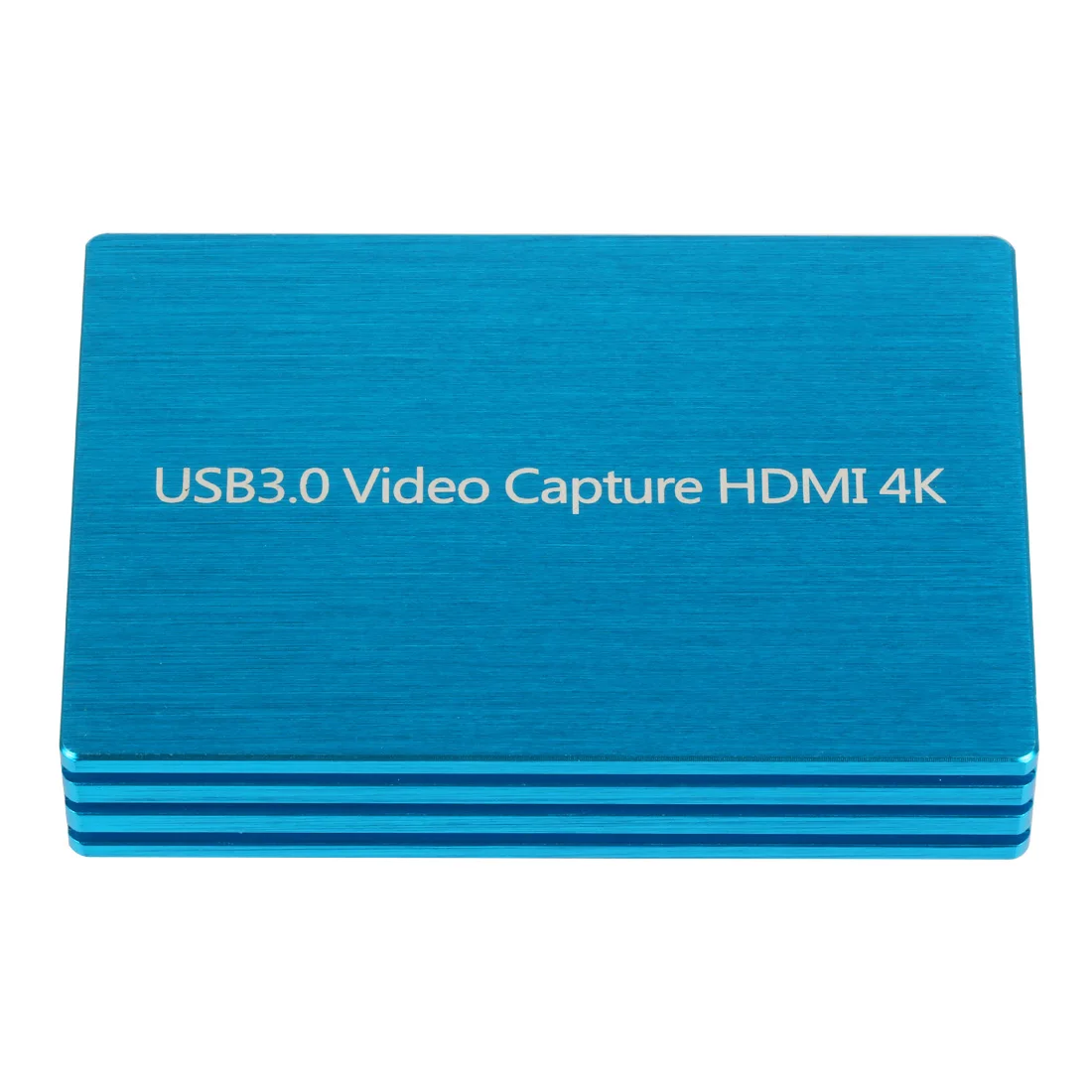

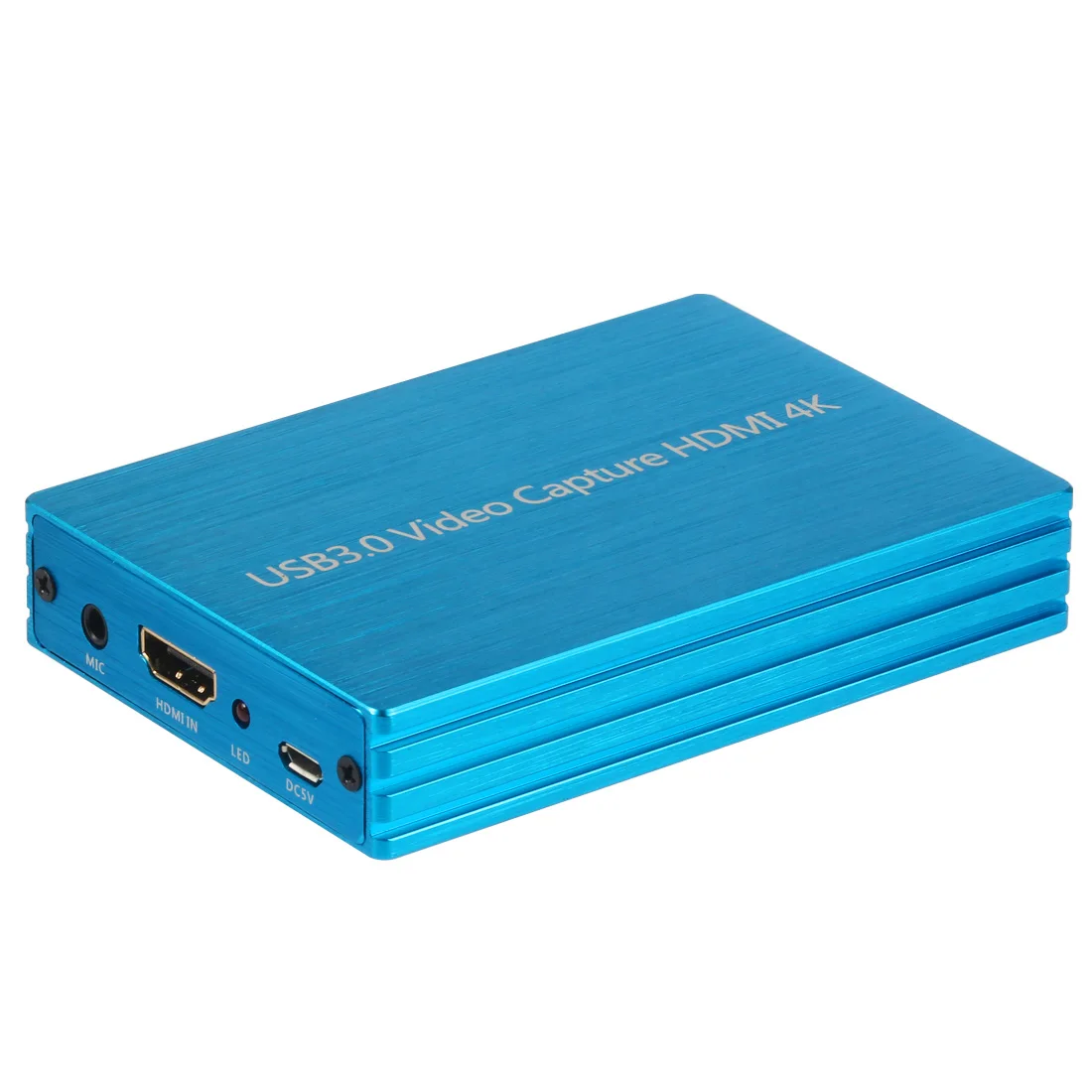

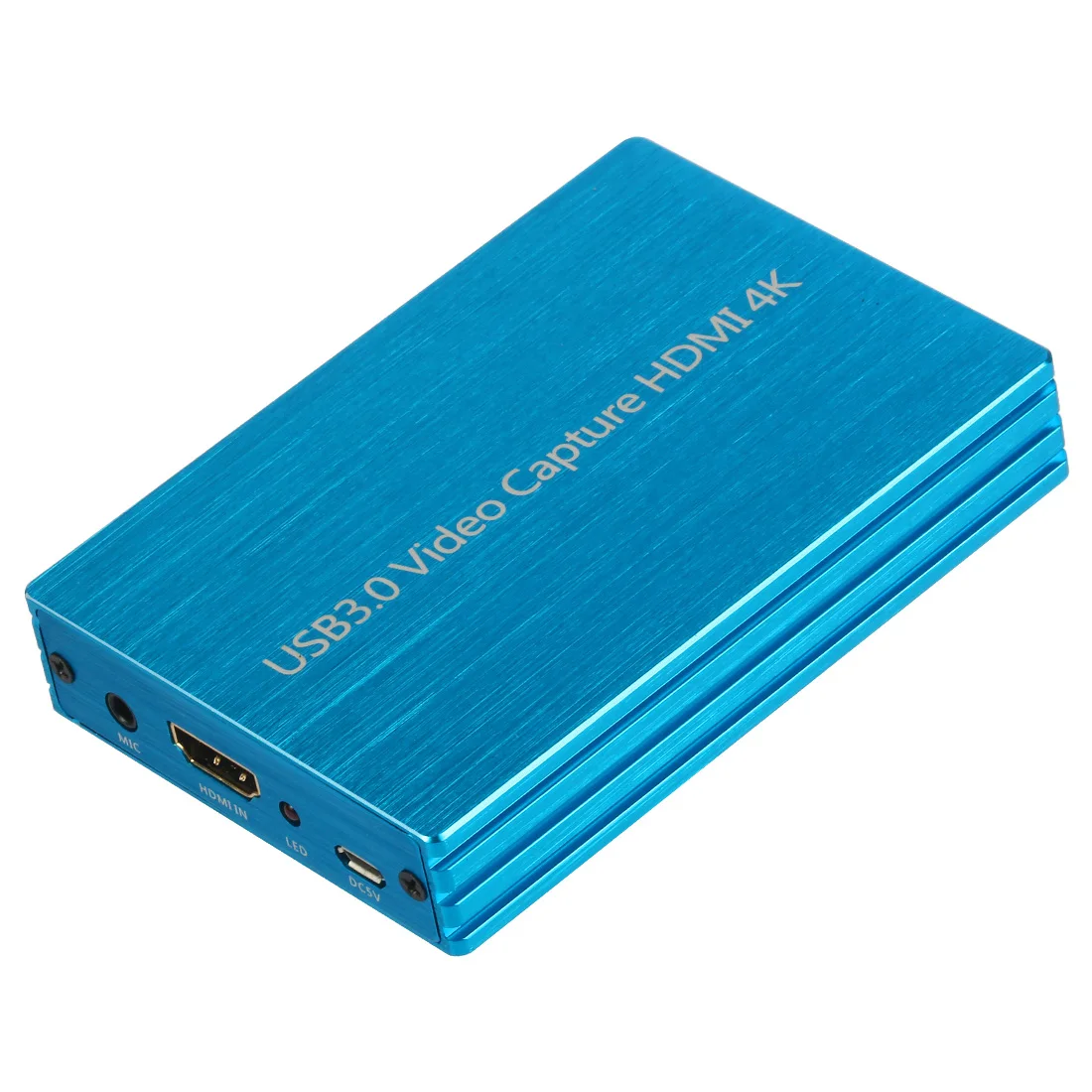

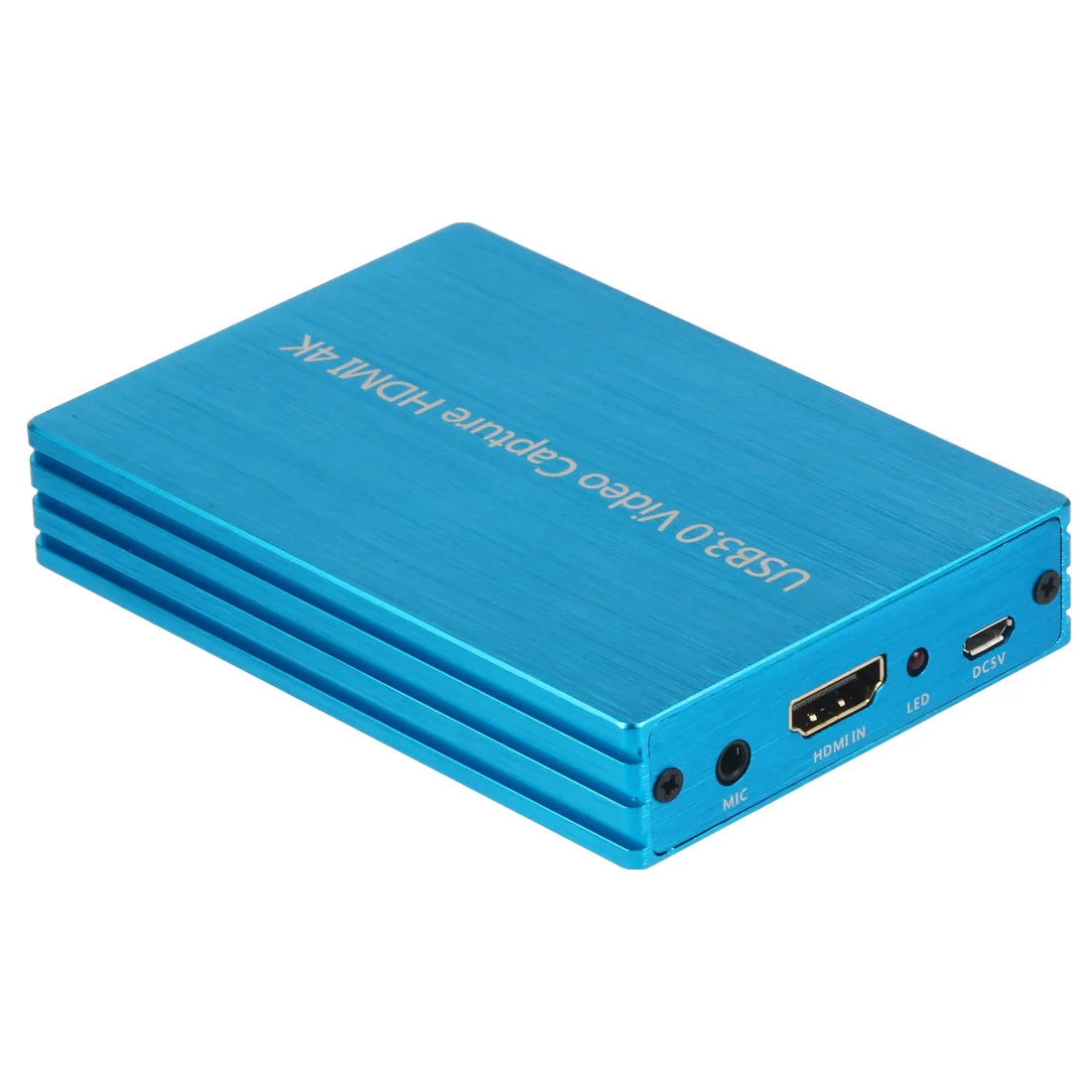

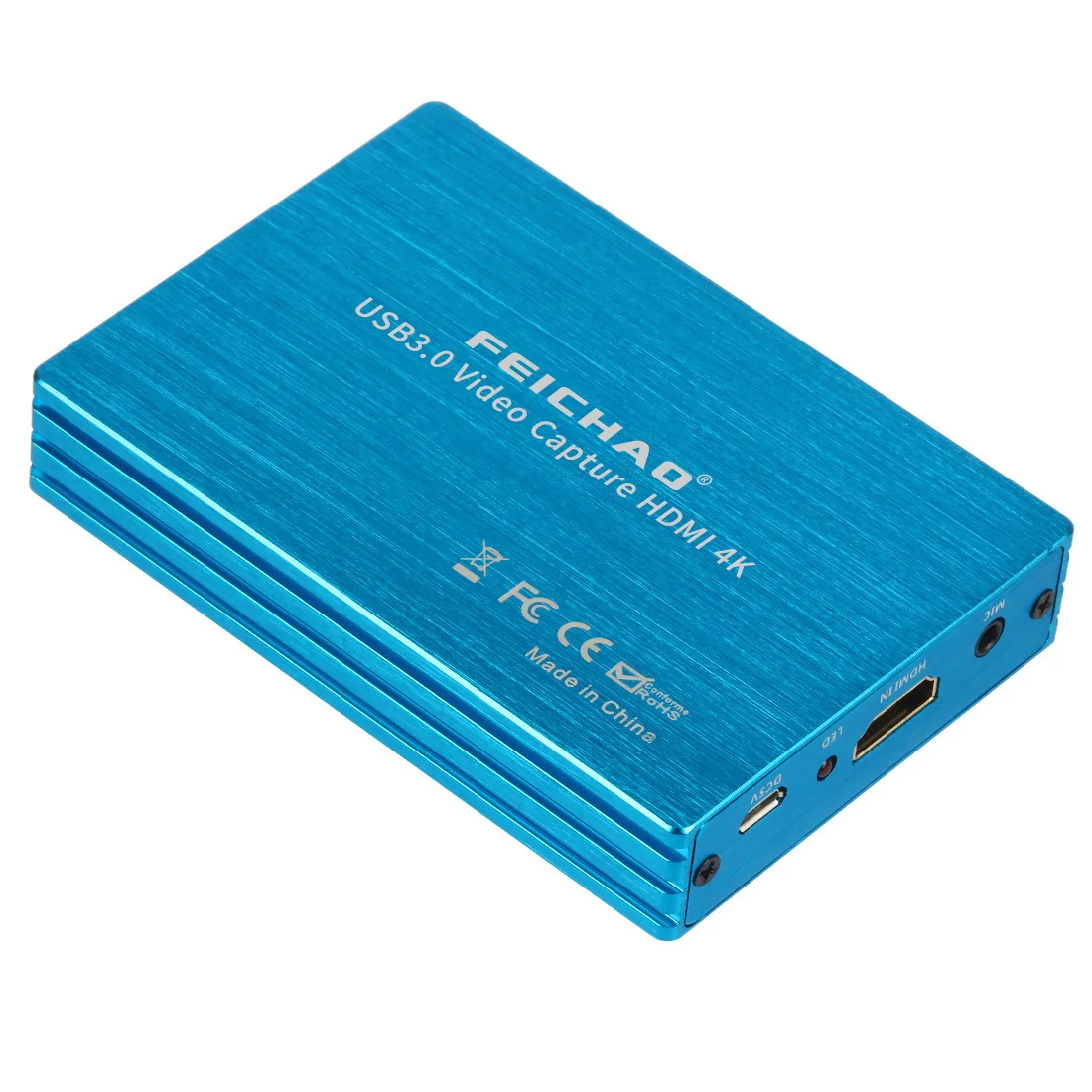

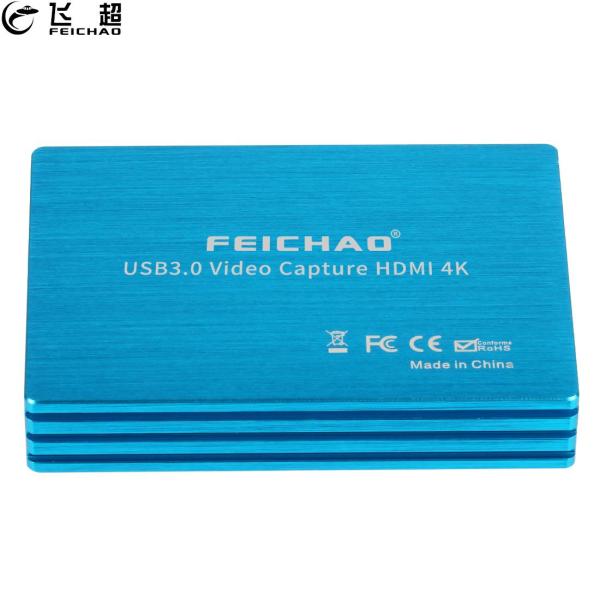

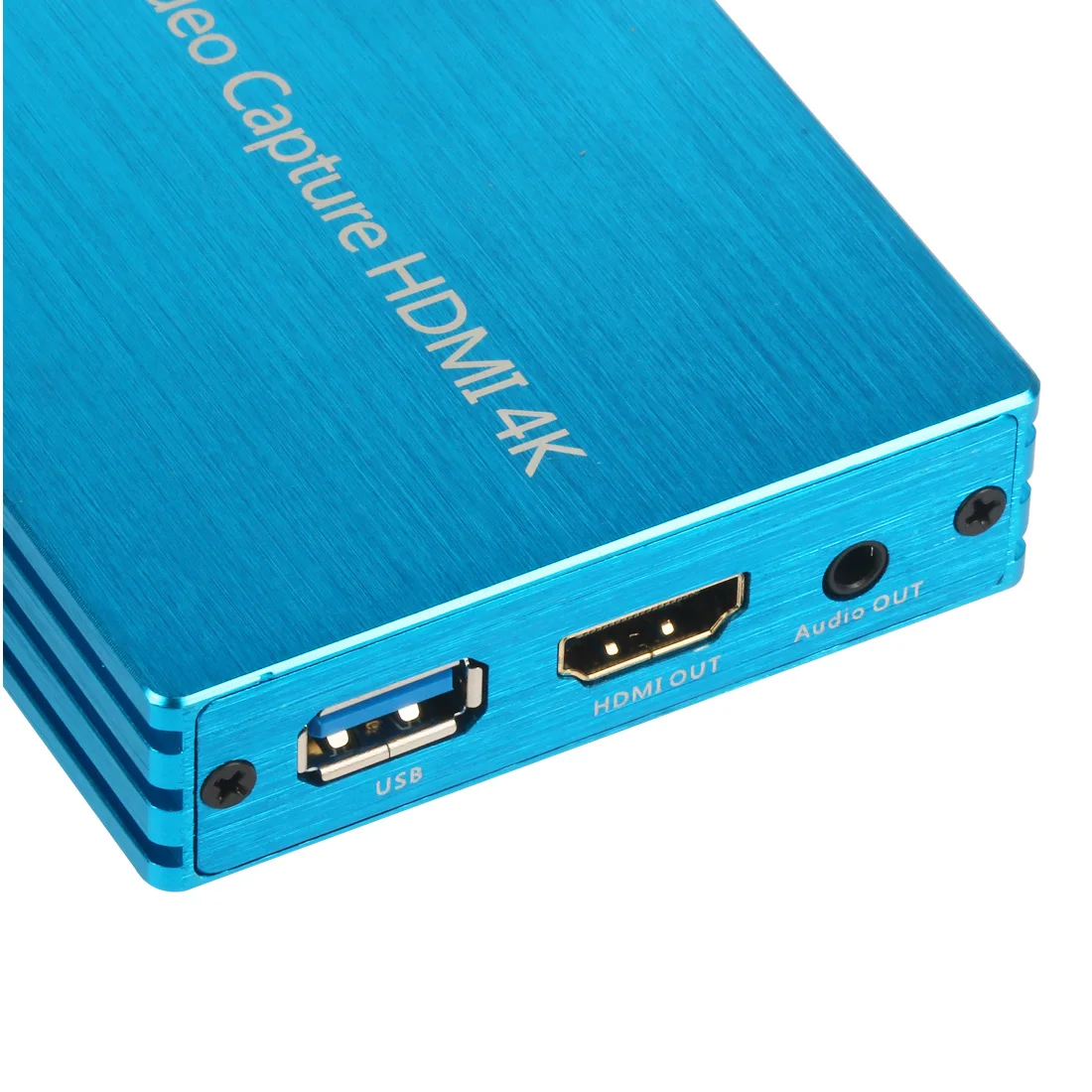

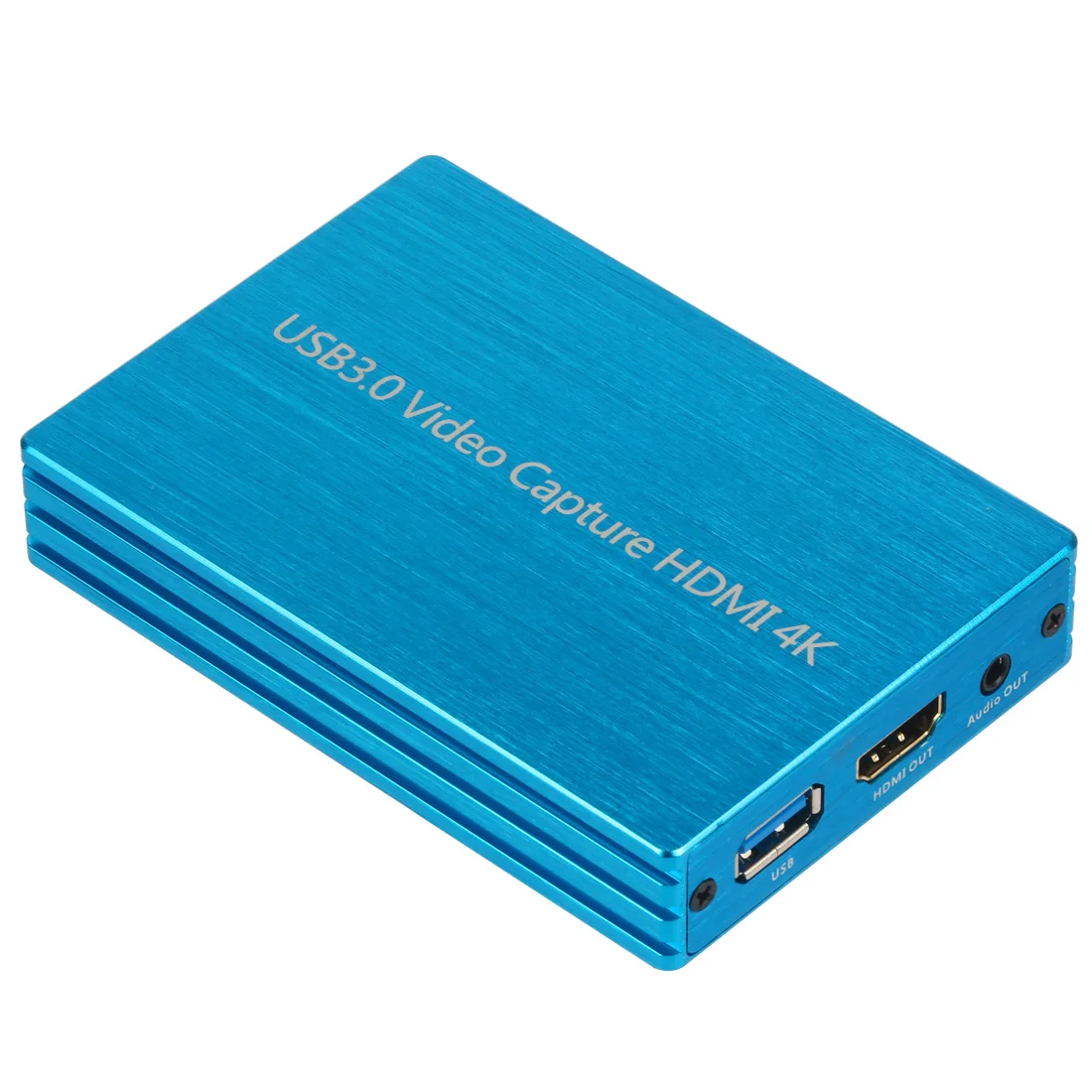

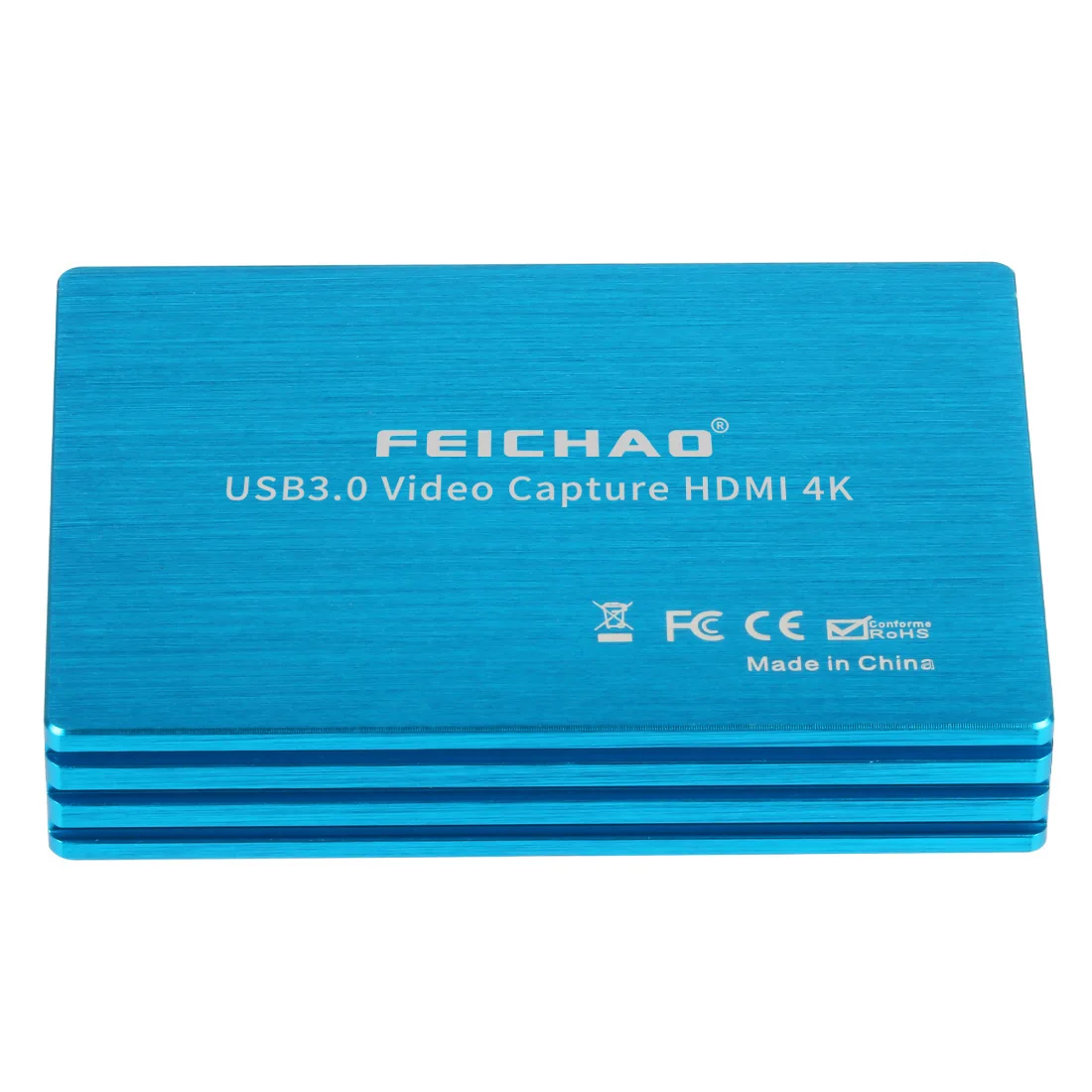

Feichao 4K 1080P for HDMI to USB3.0 Video Capture Card USB Dongle Automatically Adjust Settings Game for OBS Stream Live Broadcast Case
Product Description:
HDMI to USB3.0 video capture dongle, easy to carry, with excellent performance, superior compatibility, simple installation and many other functions.
It captures an HDMI 4K 30Hz input and output signal; Compatible with for Windows, Linux, Mac OS X and USB 3.0 interfaces, compatible with many USB 3.0 chipsets (Intel, Renesas, ASMedia, Fresco Logic), compatible with PCIe Gen1.1 via USB 3.0 interface; HDMI video capture conforms to UVC and UAC standards, no need to install drivers and settings, real PnP.
Feature:
1. No need to install drivers, it is real Pluy and Play.
2. Compatible with for Windows, Linux, OS X operating system.
3. USB3.0, speed 300-350MB/s, compatible with USB 2.0.
4. The video and audio process is done by the dongle and does not occupy the CPU.
5. It can capture a single channel HD HDMI video signal.
6. It can automatically detect the input video format and automatically adjust the set output size and frame rate.
7. Input and output video signals up to 1080p / 60 Hz.
8. It is compatible with UVC video capture and YUV 422 video output.
Specifications:
Brand: Feichao
Color: Blue
Weight: about 130g
Host interface: USB3.0, 300-350MB / s, USB2.0, 40MB / s

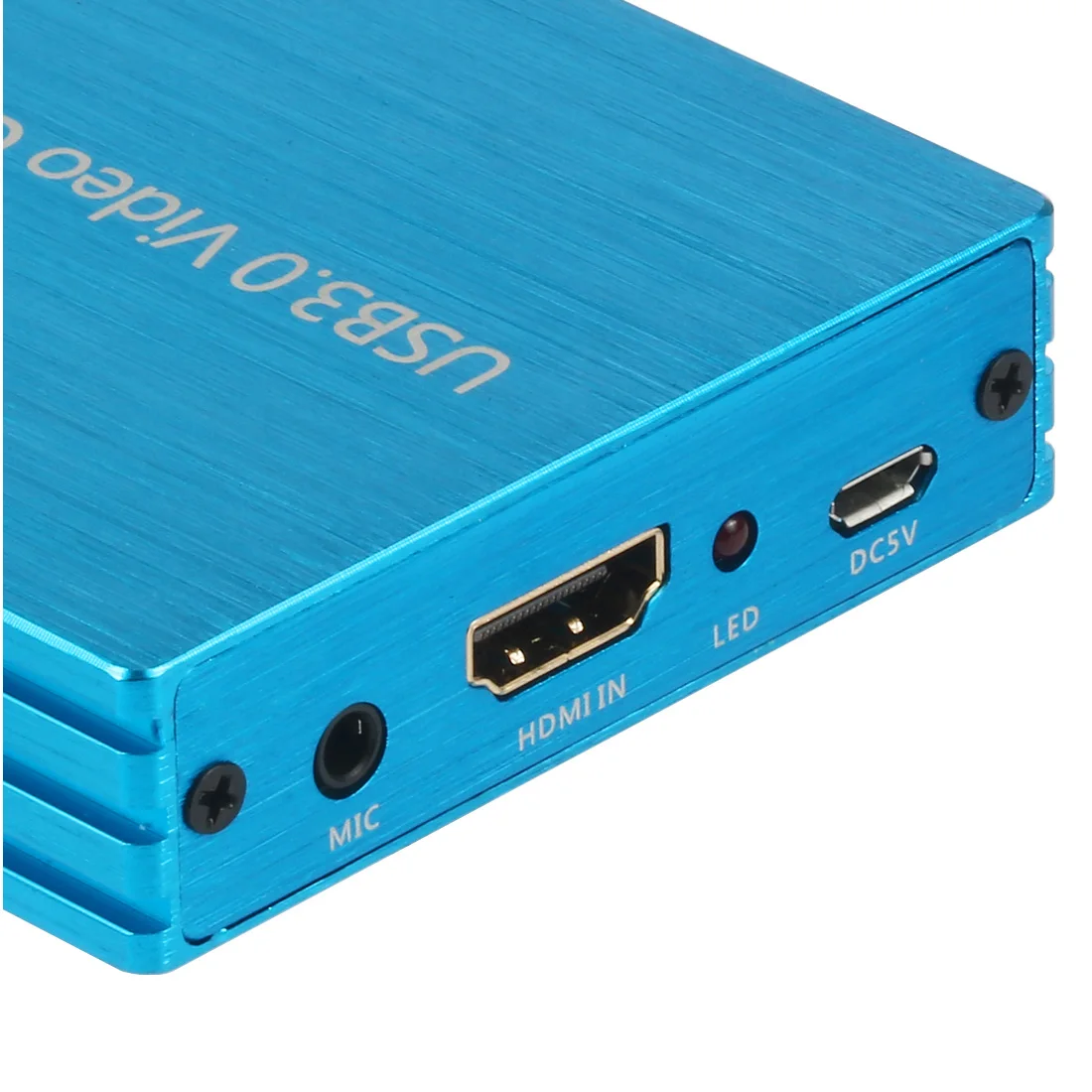

Input interface: HDMI interface
HDMI input format: 4K30HZ 480i, 480p, 576i, 576p, 720p50, 720p60, 1080i50, 1080i60, 1080P24/ 25/30 /60
Output format Supported resolutions:
640x480/720x480/720x576/768x576/800x600/1024x768/1280x720/1280x800/1280x960/1280x1024/1368x768/1440/1600x1200/1680x1050/1920x1080/1920x1200/640x360/856x480/960x540/1024x576
Frame rate: 25 / 29.97 / 30/50 / 59.94 / 60 fps
Audio and video capture standards for UVC and UAC
Support for OS Windows 7 Windows Server 2008 R2 Linux (kernel version 2.6.38 and higher) OS X (10.8 and above)
Software compatibility:
For Windows Media Encoder (Windows) / Adobe Flash / Media Live Encoder (Windows, OS X) / Real Producer Plus (Windows) / VLC (Windows, OS X, Linux) / QuickTime Broadcaster (OS X) / QuickTime playback (OS X)/Wirecast (Windows, OS X)/Potplayer (Windows), etc.
Interface compatibility:
DirectShow (Windows), DirectSound (Windows), V4L2 (Linux), ALSA (Linux) OS X (QuickTime)
Power consumption: ≤2.5W
Working temperature: 0°C ~ 50°C
Storage temperature: -20°C ~ 70°C
Storage humidity: 5%-90%
Product size: 79.5x51x2（L / W / H, mm）
Notes:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
Package included:
1 X Hdmi to USB3.0 Host
1 X USB Power Supply Cable
1 X HDMI Cable
1 X USB 3.0 cable
1 X Manual
