Package include:
1x FPV Monitor
1xFPV Antenna
5.8GHz FPV drone video wireless transmission
5.8GHz RX
Features:
1.4.3inch LCD wireless receiver monitor.
2.48ch, 6-band frequency.
3.CNC aluminum bracket, easy to install remote control.
4. Automatic search frequency.
5. Built-in battery design.
6. Working status OSD display: battery indication and channel indication.
7. Multi-language operation: support Russian, English, Chinese, German, Spanish.
8. Support dual-screen display of flight images, without delaying the flight of the aircraft, synchronizing WIFI video to the mobile phone to share the experience.
Full channel reception, high definition, high receiving sensitivity, support for wearing VR, experience the flight experience of the aircraft.
specification:
Screen size: 4.3 inches
Resolution: 480*22 pixels
Aspect ratio: 16:9
Brightness: 500 discs / M2
Video format: NTSC/PAL
Working voltage: 5V
Work number: 500 mAh
Working status OSD display: battery indication, channel does not work
Built-in rechargeable battery: 650MAH
Working time: 2 hours
Sensitivity: -90DBM
Frequency range: 5645MHZ-5945MHZ
Channel: 48 channels
A key search frequency: button control instead of switch

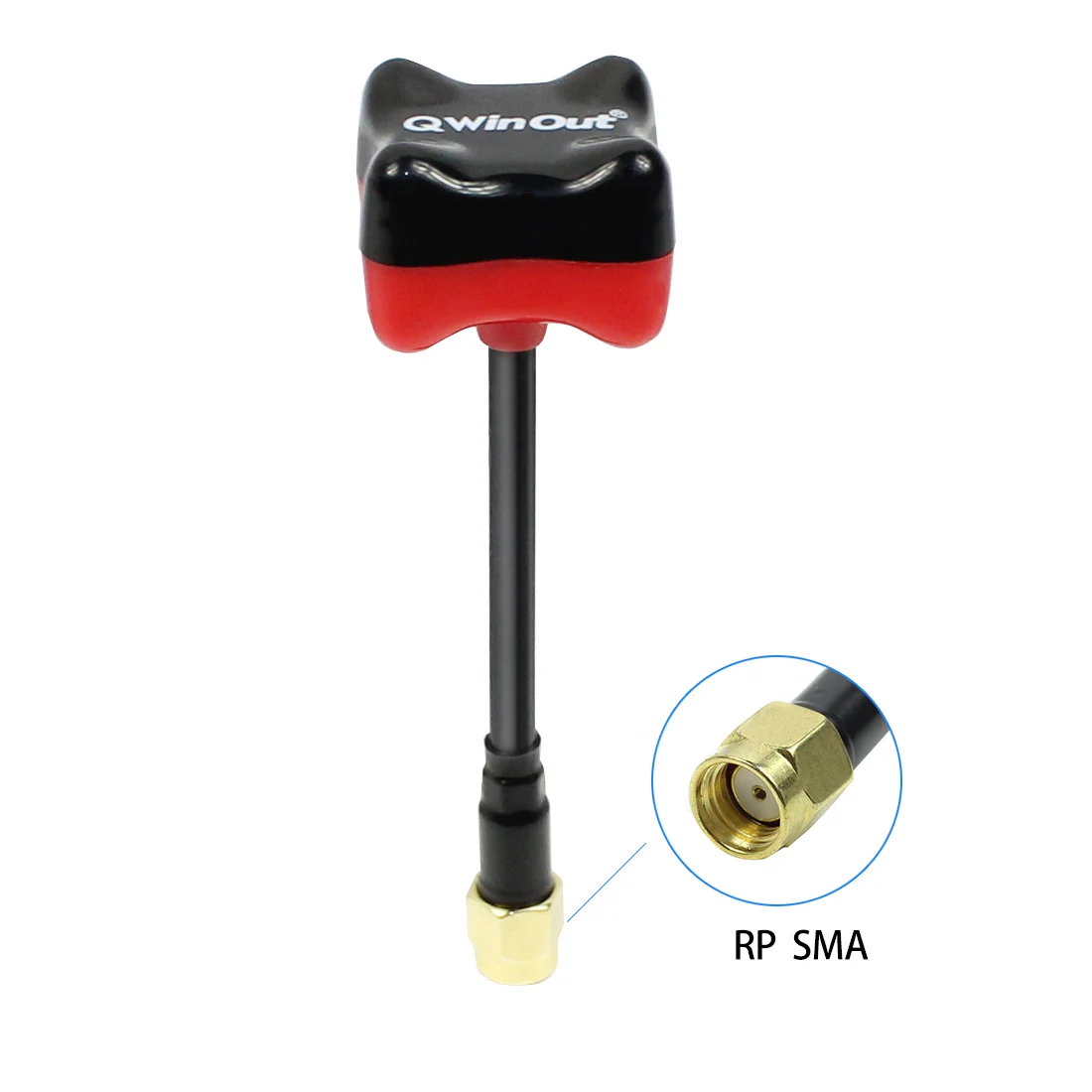

5.8GHz Circular Polarized Triumph FPV Antenna SMA RP-SMA 85mm for FPV Racing Quadcopter Video Glasses Goggles
Modified specifically for FPV use, the Triumph is durable enough to take the toughest abuse and has been extensively tested to ensure it is the best in its class for range and signal quality.
The Triumph utilises a special foam filled and ultrasonically welded enclosure to secure and protect the clover leaf antenna. The signal strength has been maximised by using double-jacket heavy duty Semi-Rigid cable and tin-plated connectors.
This is a perfect choice for an antenna package that will meet or exceed your FPV needs, especially in the drone racing area.
Features:
• Manufactured and tested to highest standards
• Best in class range and signal quality
• Extra compact and low weight
• Ultrasonically welded and foam infused cover for ultimate crash-protection
• Double-jacket semi-rigid cable for heavy impact resistance
Specifications:
Frequency range: 5500-6000MHz
Gain: 1.26dbic
Axial Ratio: 0.74
Cable: RG402 (heavy duty)
Weight: 12g
Height: 85mm
Connector: RP-SMA (inner hole)

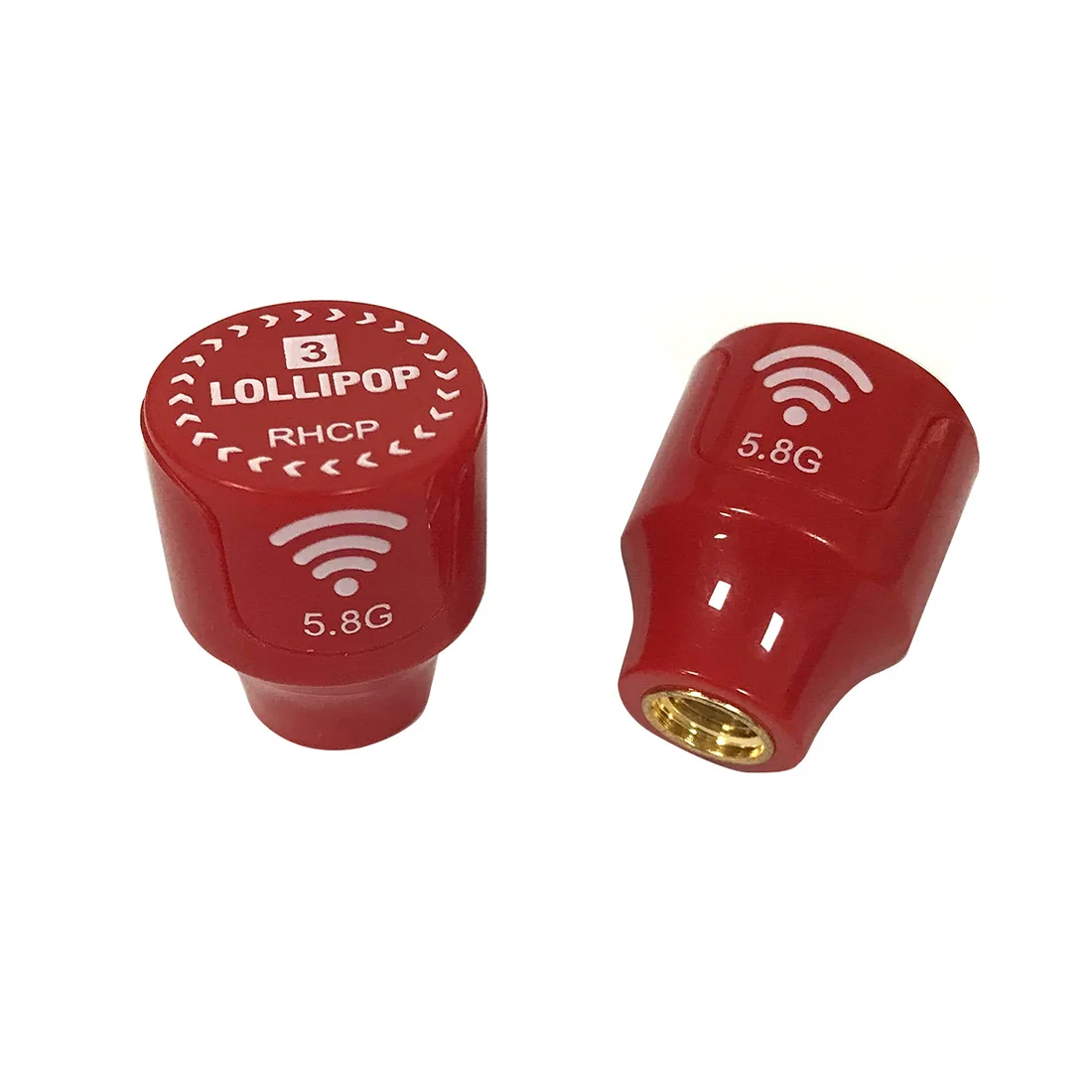

Lollipop 3 Stubby 5.8GHz 2.5Dbi RHCP/LHCP SMA RP-SMA FPV Antenna Mushroom Antenna SMA for FPV RC Racing Drone Models
Description:
Item number: Lollipop 3
Shell material: Imported PC + ABS
Antenna length: 22.7mm
Center frequency: 5750 GHz
Gain: 2.5 Dbi
Bandwidth: 500 MHz (5.5-6.0 GHz)
Matching: VSWR < 1.2 (at center frequency)
Axial ratio: <3db
Center Frequency: 5750MHz
Radiation efficiency: 98%
Polarization: LHCP/ RHCP (Optional)
Connector: SMA/RP-SMA
Color: Black, Red(Optional)
