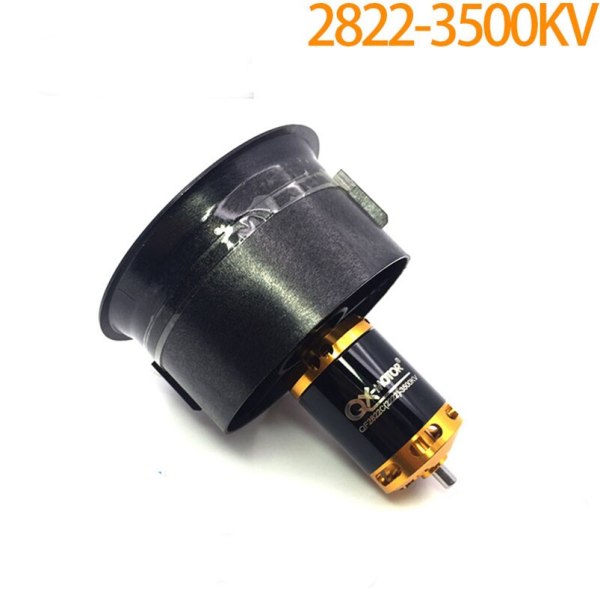

FEICHAO 64mm EDF Set Brushless Motor with 12 paddle Ducted Fan Jet QF2822 3500KV 4S / 4300KV 3S Motor For RC Airplane Item NO.: F22131/F22132

Write a Review

US$ 25.35

Color:
3S 4300KV MOTOR	US$ 25.40	Stock(494)	- +
4S 3500KV MOTOR	US$ 25.35	Stock(490)	- +

Quantity: 0 , Subtotal 0

Product Name	FEICHAO 64mm EDF Set Brushless Motor with 12 paddle Ducted Fan Jet QF2822 3500KV 4S / 4300KV 3S Motor For RC Airplane
Item NO.	F22131/F22132
Weight	0.19 kg = 0.4189 lb = 6.7021 oz
Category	FPV Drone and Part > RC Parts
Brand	FEICHAO
Creation Time	2020-10-14

QX-MOTOR Brushless Motor 64mm EDF with 12 Blades Ducted Fan Jet QF2822 3500KV/ 4300KV 3S/4S Motor For RC Airplane

Ducted fan with motor
The advanced PC material, which is striking resistance and also high temperature resistance that can guarantee the stiffness and toughness, great decrease the damage ratio.
The combination is made by aluminum ,which maks it more stable

KV: 3500
Idle current @ 10V: 3.5A
Configuration: 9N6P
Power supply: 3-4S LiPo
Stator diameter: 22mm
Max continuous current: 55A
Stator length: 22mm
Max continuous power: 850W
Shaft diameter: Φ4mm
Max efficiency: >70%
Interal resistance: 0.033 Ohms
Weight: 134g
