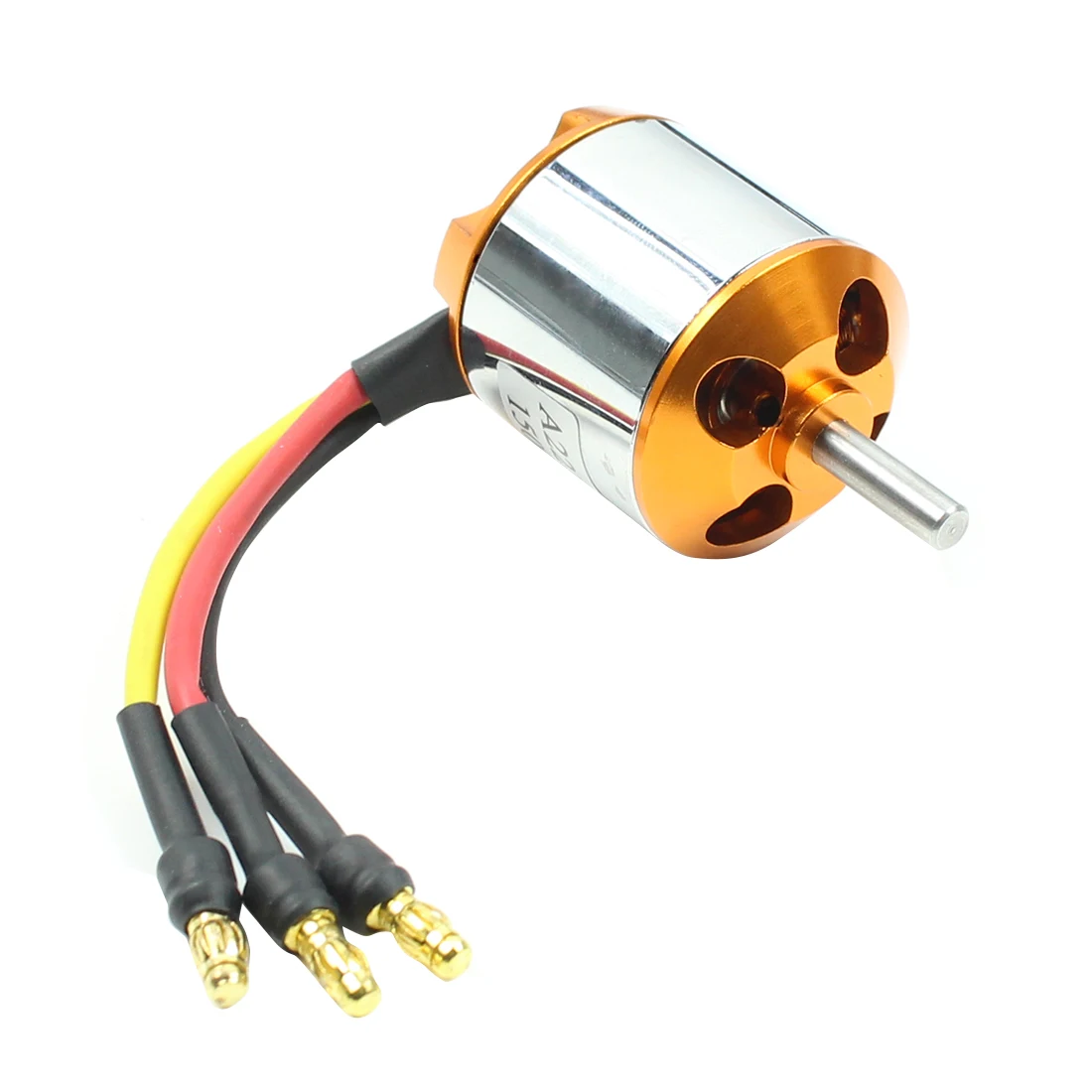

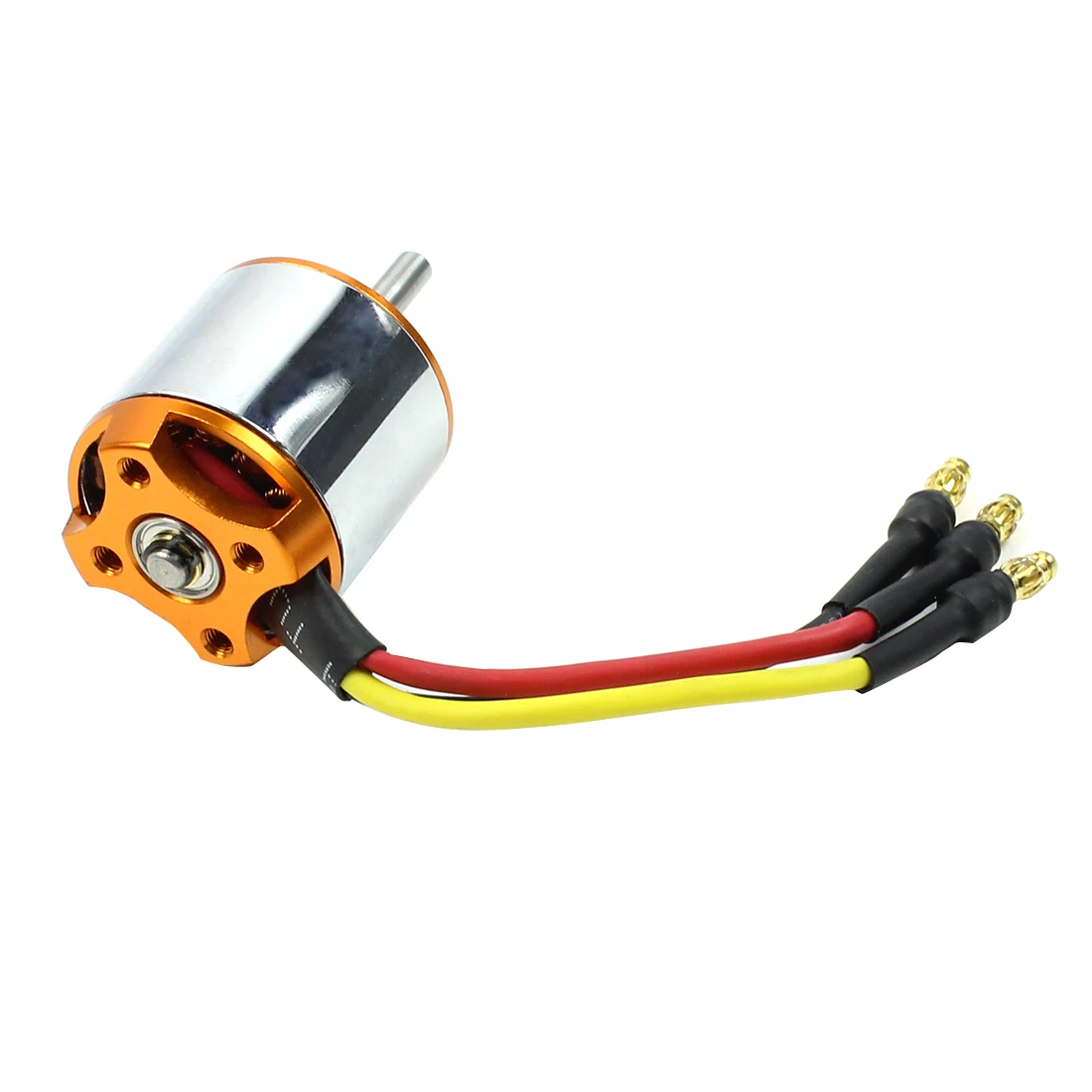

Note:the Soldered version has soldered banana connector,and the Standard version not include banana connector.
Prop Recommendation:
950kv motor is suitable for 11 inch or 10 inch paddles, such as 1155 1070 1050 1060, etc.
1100kv motor is suitable for 10 inch paddles, such as 1070 1050 1060, etc.
1500kv motor is suitable for 8 inch or 9 inch paddles, such as 8040 8060 9045, etc.
1750kv motor is suitable for 7 inch paddles, such as 7050 7035, etc.
2300kv motor is suitable for 6 inch paddles, such as 6040

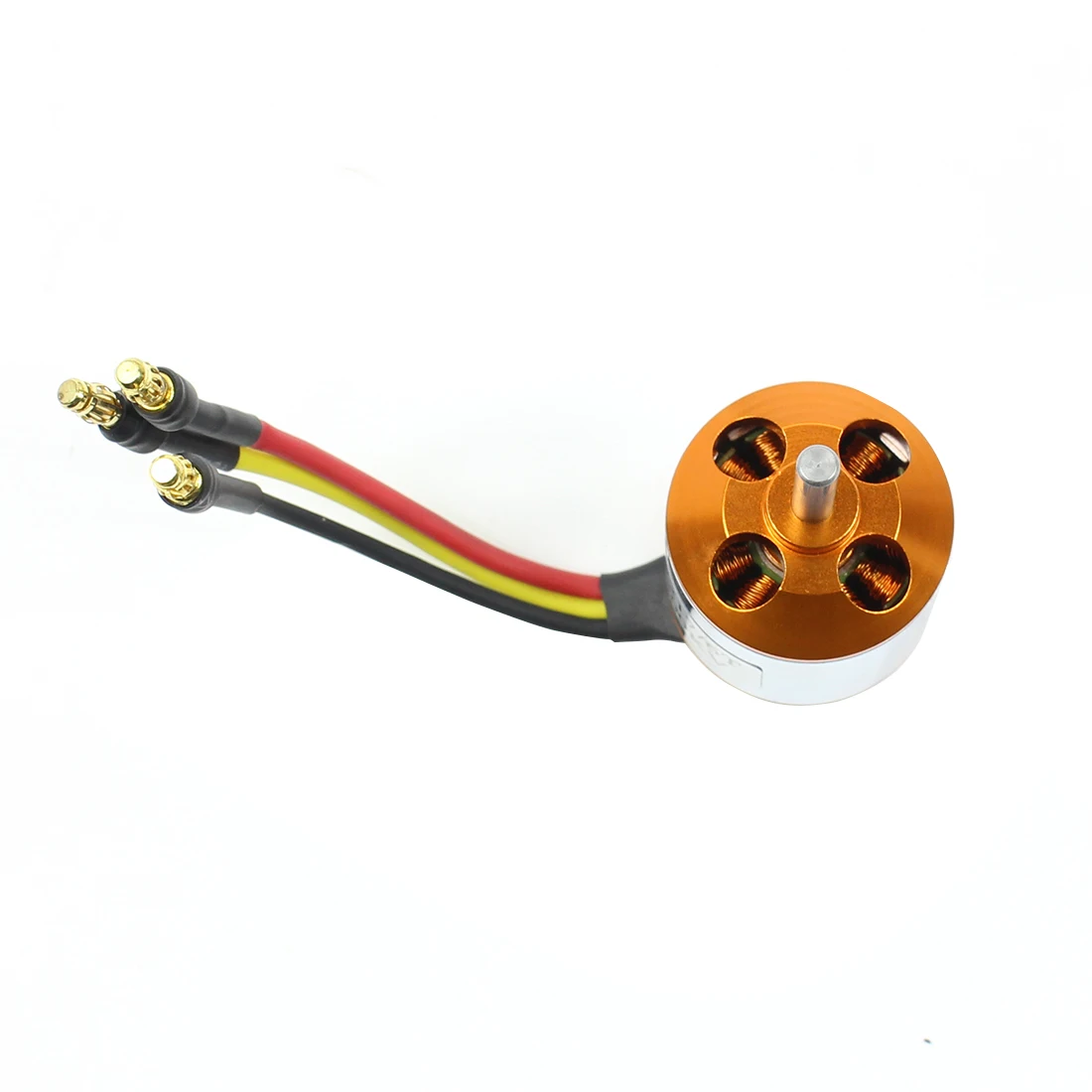

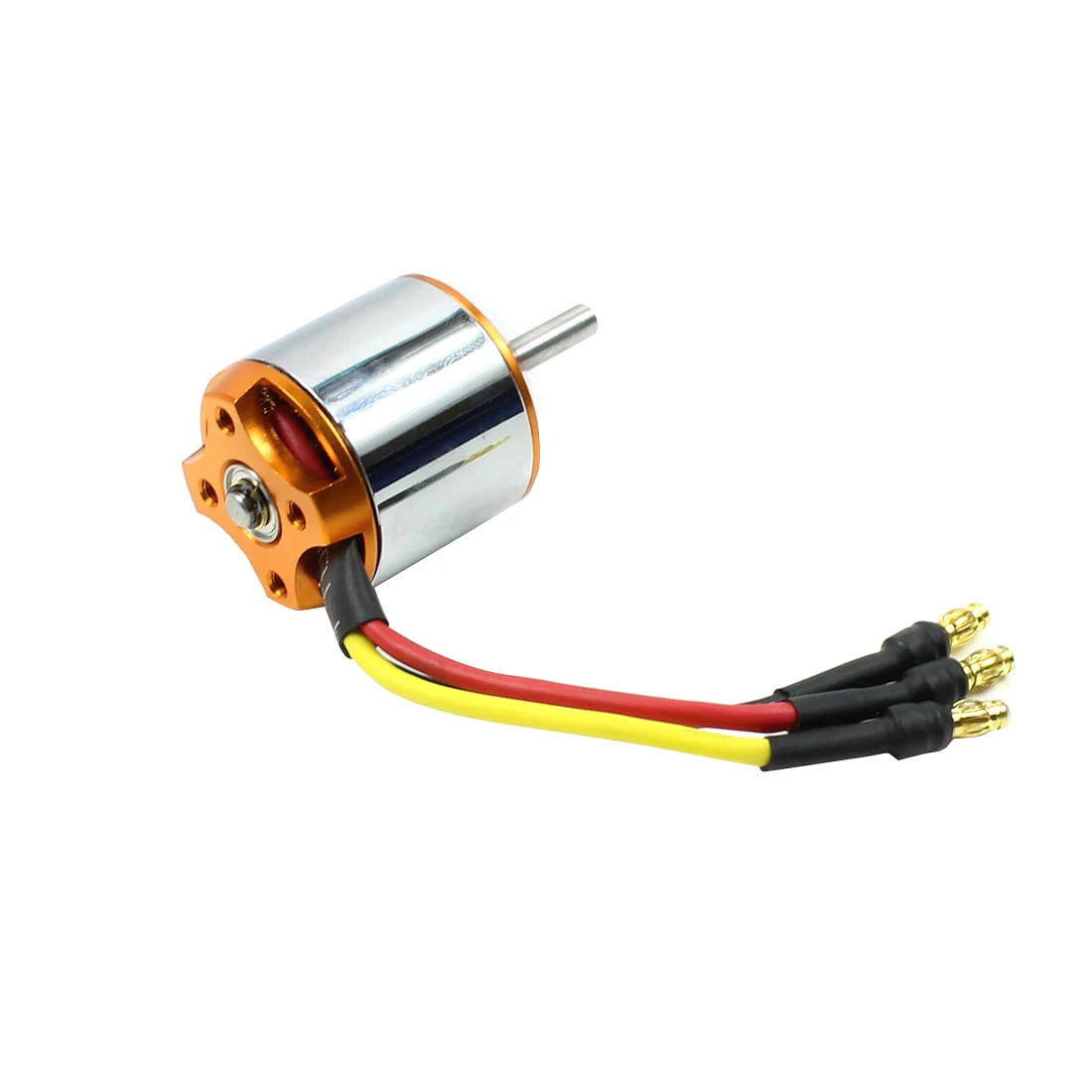

Product Name: A2217 KV950 external brushless motor
Dimensions: 27.8*32mm
Weight: 68 grams
Output shaft diameter: 4.0mm
KV value: 950KV
Test Data:
GWS1047RS:
11V 16.9A 7130 rpm, thrust 955 grams
10.5V 15.8A 6980 rpm, thrust 897 grams
10V 14.9A 6760 rpm, thrust 853 grams
9.5V 13.9A 6580 rpm, thrust 792 grams
Product Name: A2217 KV1100 external brushless motor
Dimensions: 27.8*32mm
Weight: 68 grams
Output shaft diameter: 4.0mm
KV value: 1100KV
Test Data:
GWS1060HD:
11V 19.5A 8450 rpm, thrust 1012 g
10.5V 17.4A 8220 rpm, thrust 953 grams
10V 17.2 8030 turn, thrust 903 g
9.5V 15.9 7730 turn, thrust 830 grams
Product Name: A2217 KV1250 external brushless motor
Dimensions: 27.8*32mm
Weight: 68 grams
Output shaft diameter: 4.0mm
KV value: 1250KV
Test Data:
GWS9050HD:
11V 20.4A 10280 rpm, thrust 1075 g
10.5V 18.9A 9990 rpm, thrust 995 grams
10V 17.8A 9620 rpm, thrust 933 grams
9.5V 16.1A 9320 rpm, thrust 855 grams

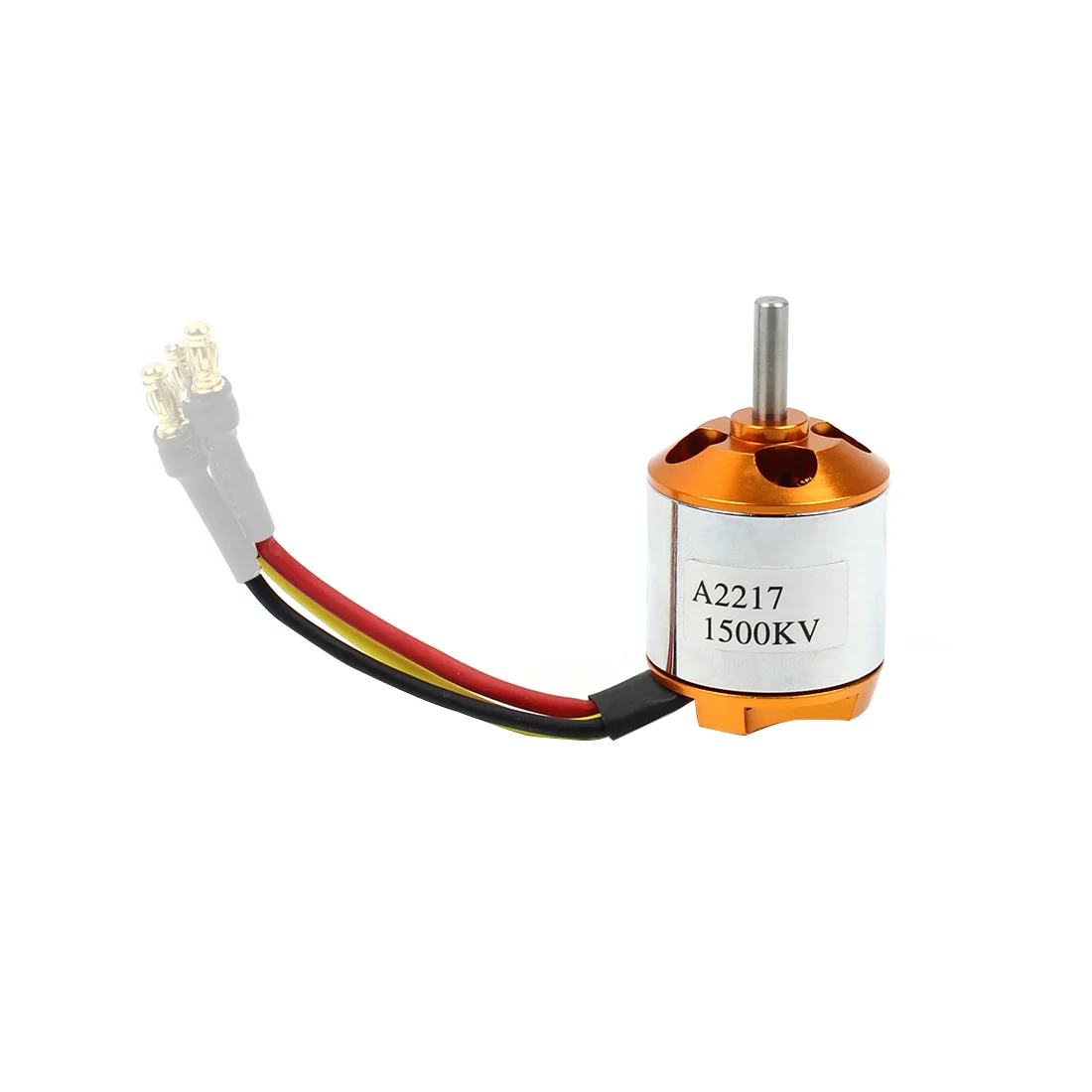

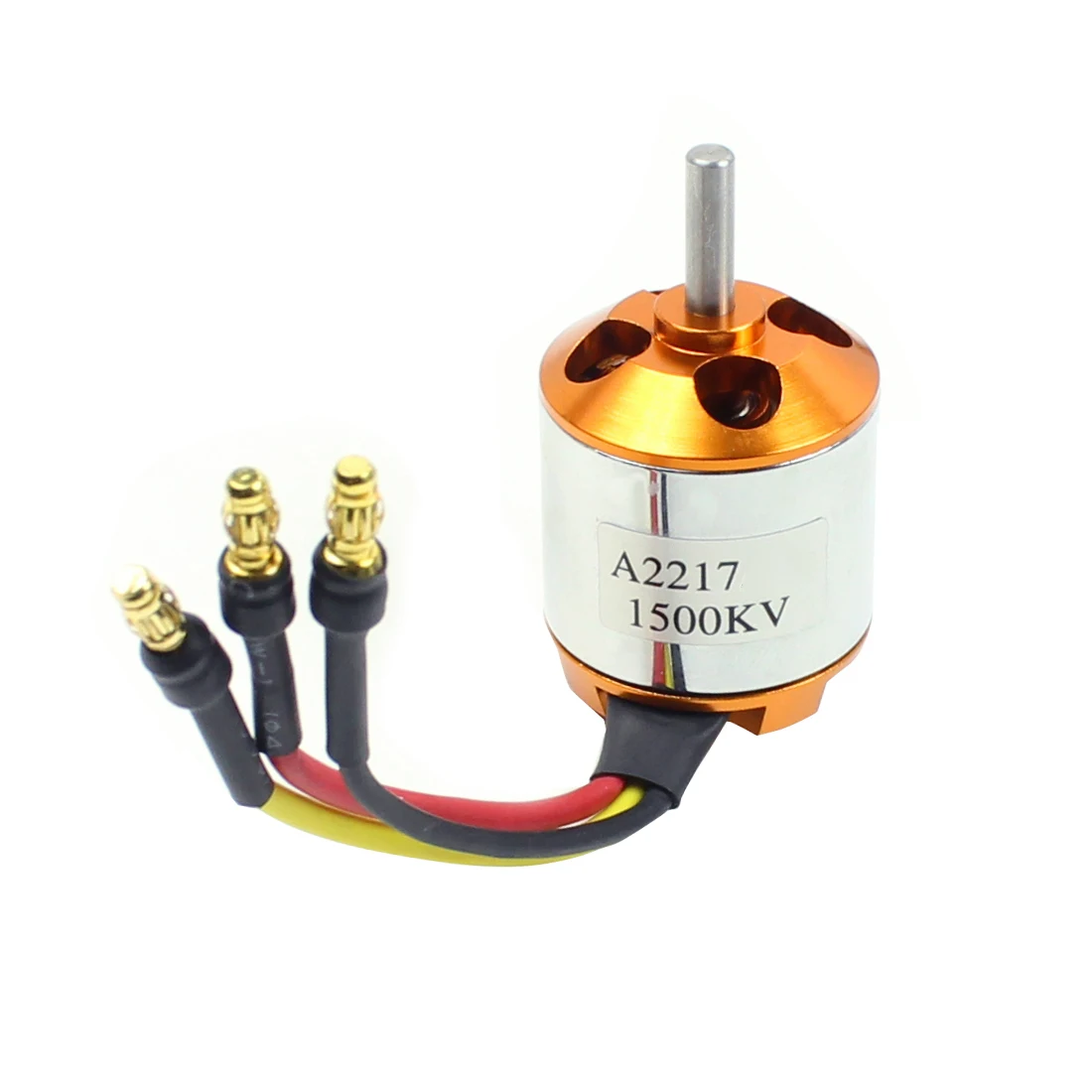

Product Name: A2217 KV1500 external brushless motor
Dimensions: 27.8*32mm
Weight: 68 grams
Output shaft diameter: 4.0mm
KV value: 1500KV
Test Data:
GWS8040HD:
11V 19.5A 13210 turn, thrust 963 grams
10.5V 17.9A 12730 rpm, thrust 894 grams
10V 16.6A 12280 rpm, thrust 816 grams
9.5V 15.2A 11820 rpm, thrust 748 grams
GWS9050HD:
8V 18.6A 9030 turn, 816 g
7.5V 16.9A 8560 rpm, 739
7V 15.1A 8080 turn, 653
6.5V 13.6A 7680 rpm, 578
Product Name: A2217 KV1750 external brushless motor
Dimensions: 27.8*32mm
Weight: 68 grams
Output shaft diameter: 4.0mm
KV value: 1750KV
Test Data:
A2217K/1750: 9050 Paddle:
Voltage current thrust
11.1 V 30A 1000g
8V 18.6A 816g
7.5V 16.9A 739g
7V 15.1A 653 grams
6.5V 13.6A 578g

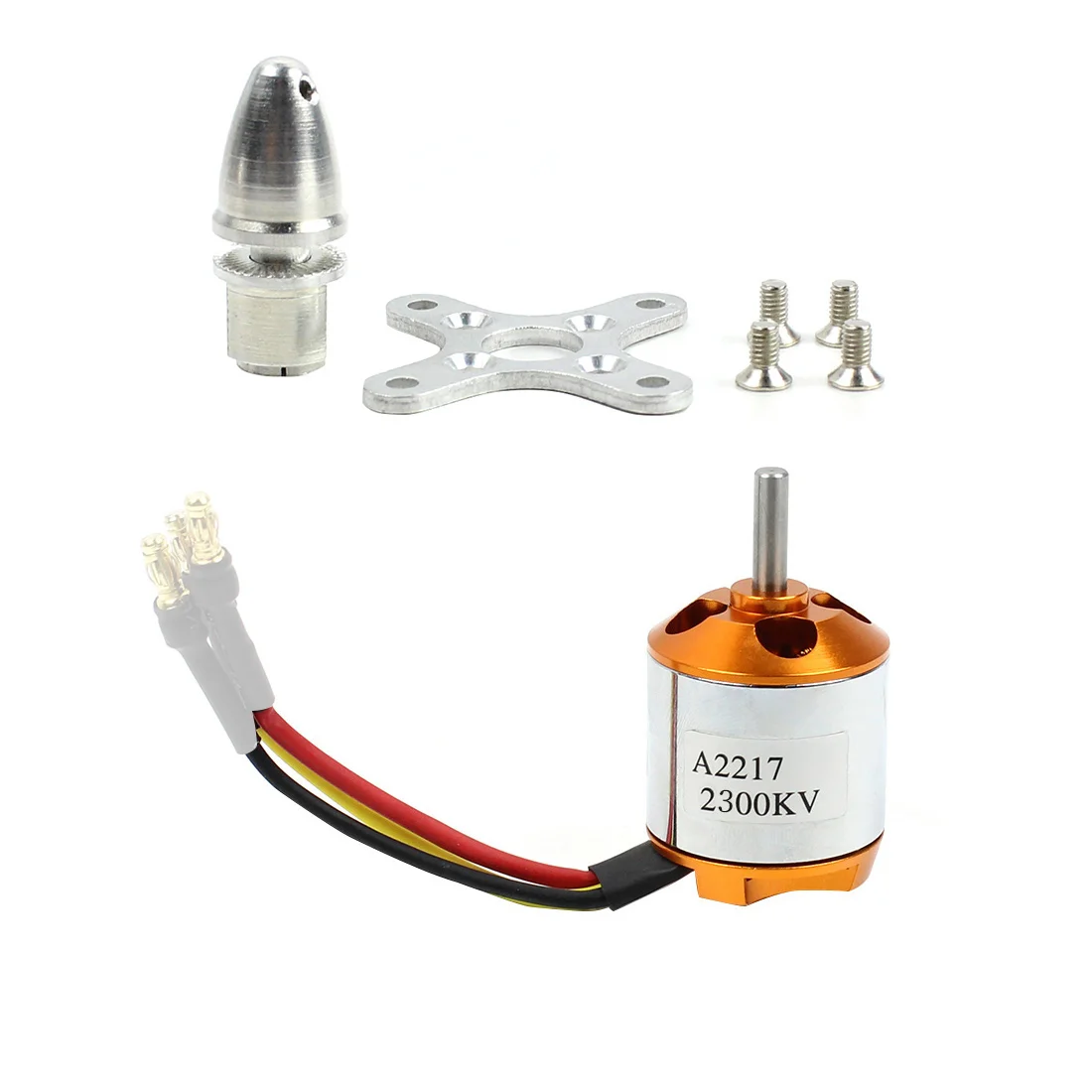

Product Name: A2217KV2300 external brushless motor
Dimensions: 27.8*32mm
Weight: 68 grams
Output shaft diameter: 4.0mm
KV value: 2300
Efficiency: 78%
No load current / 10V: 1.7A
Current: 30A/60S
Efficiency current: 8-28A (>70%)

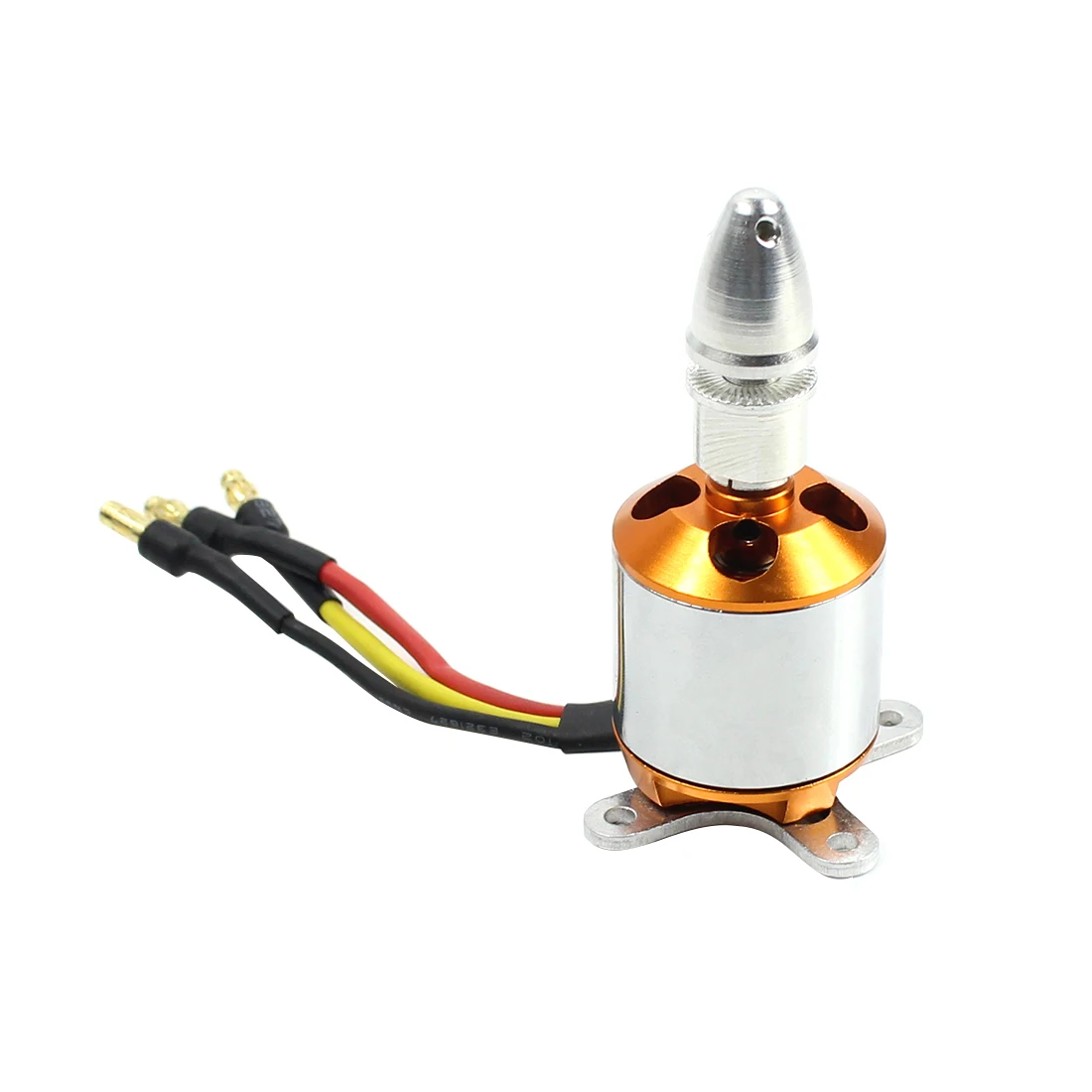

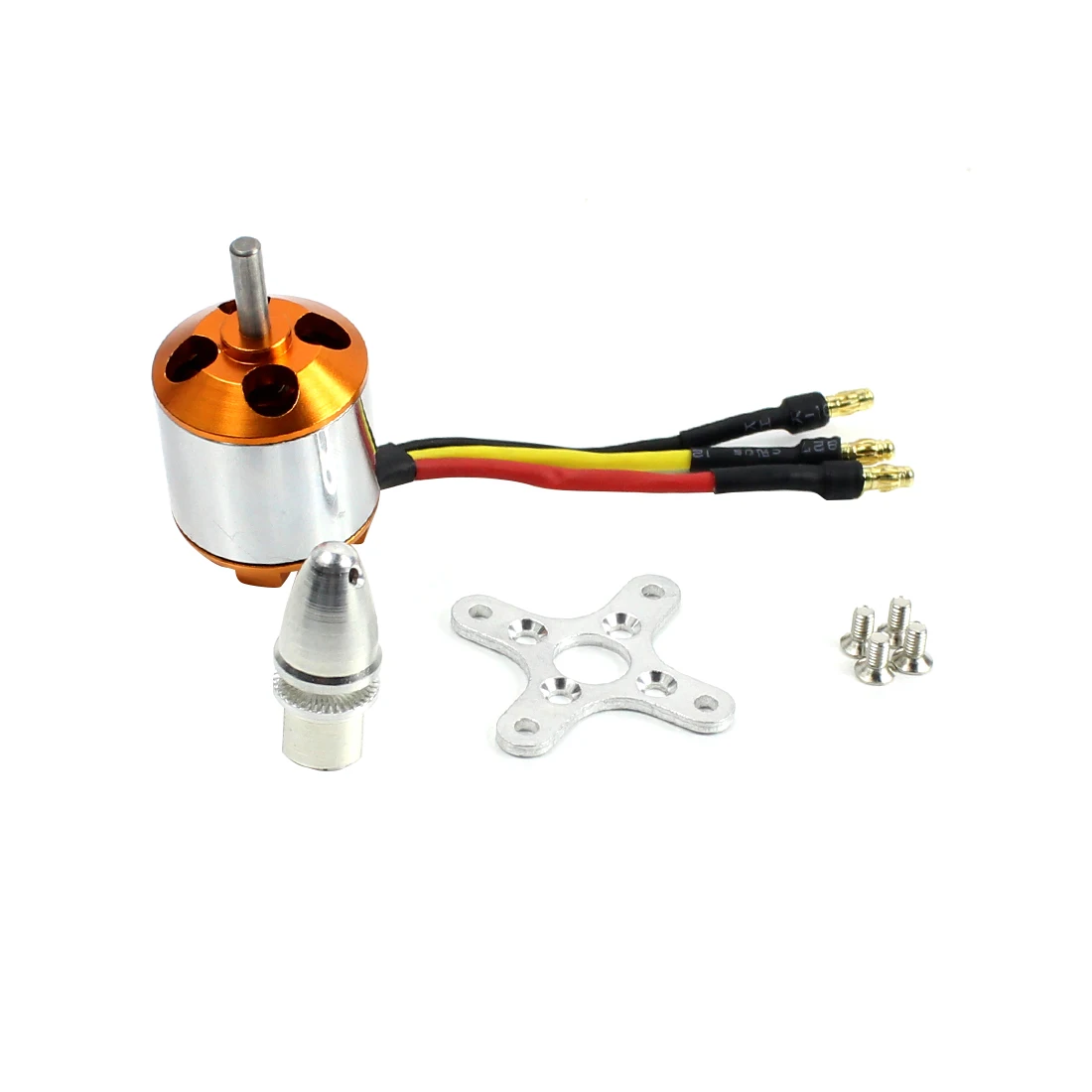

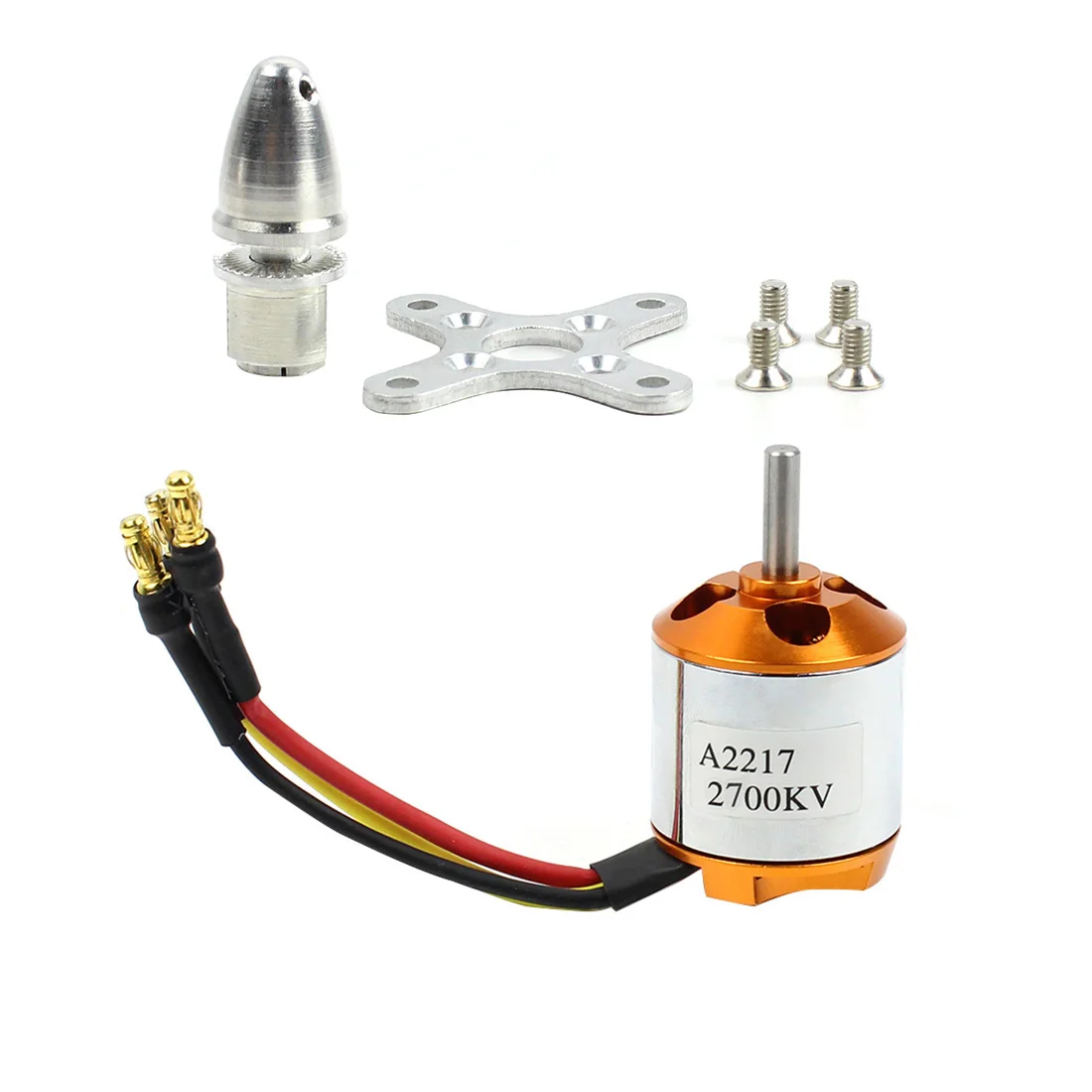

Package list:

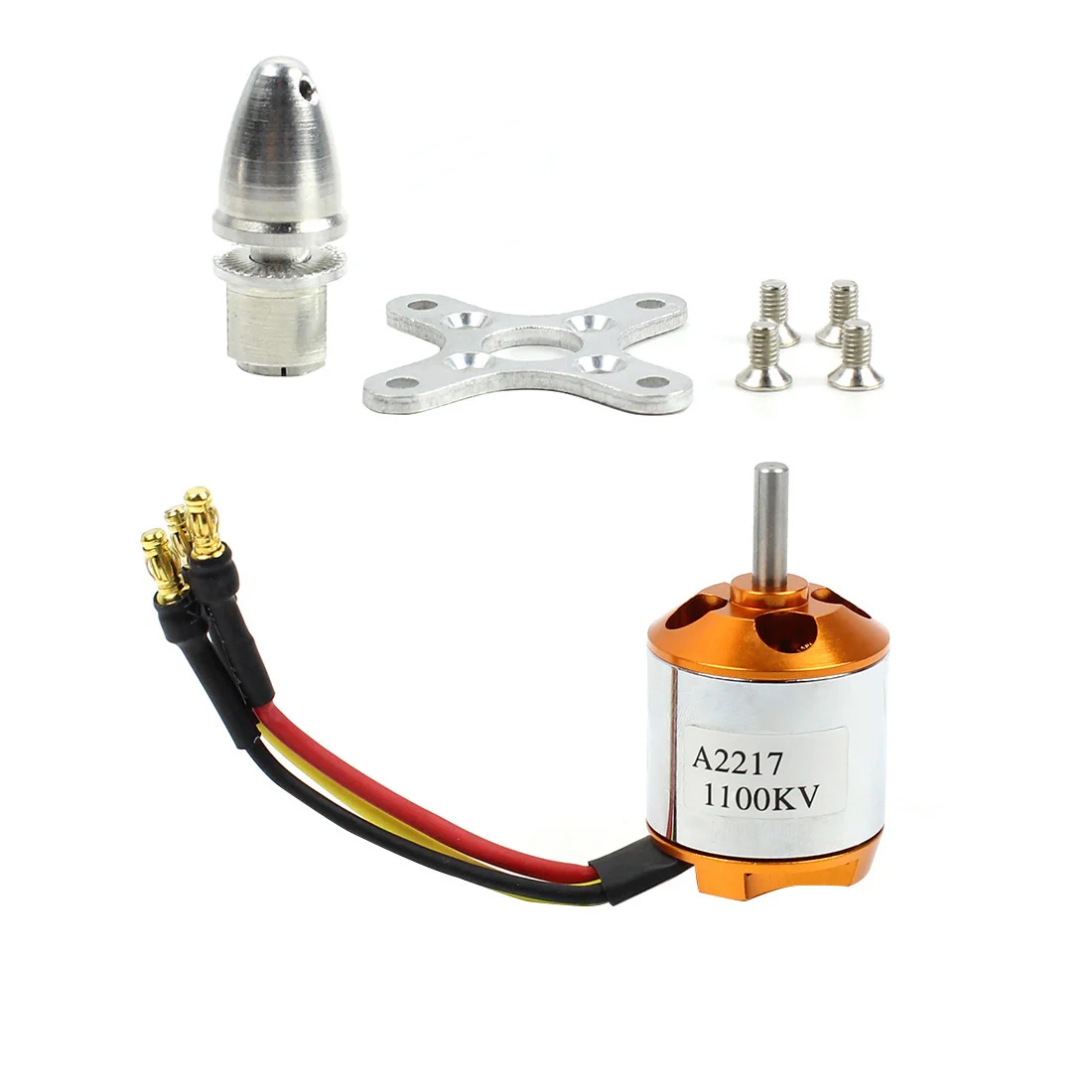

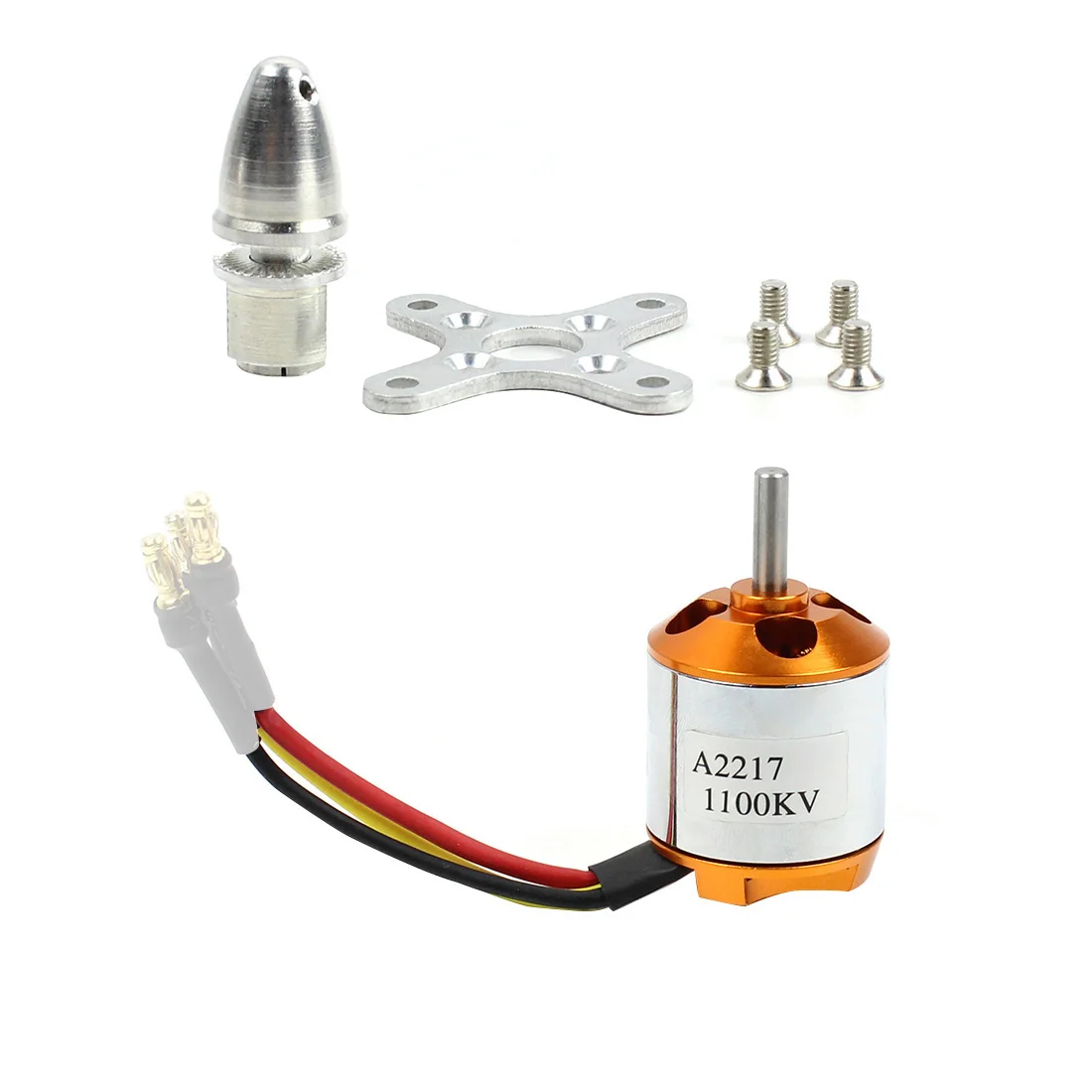

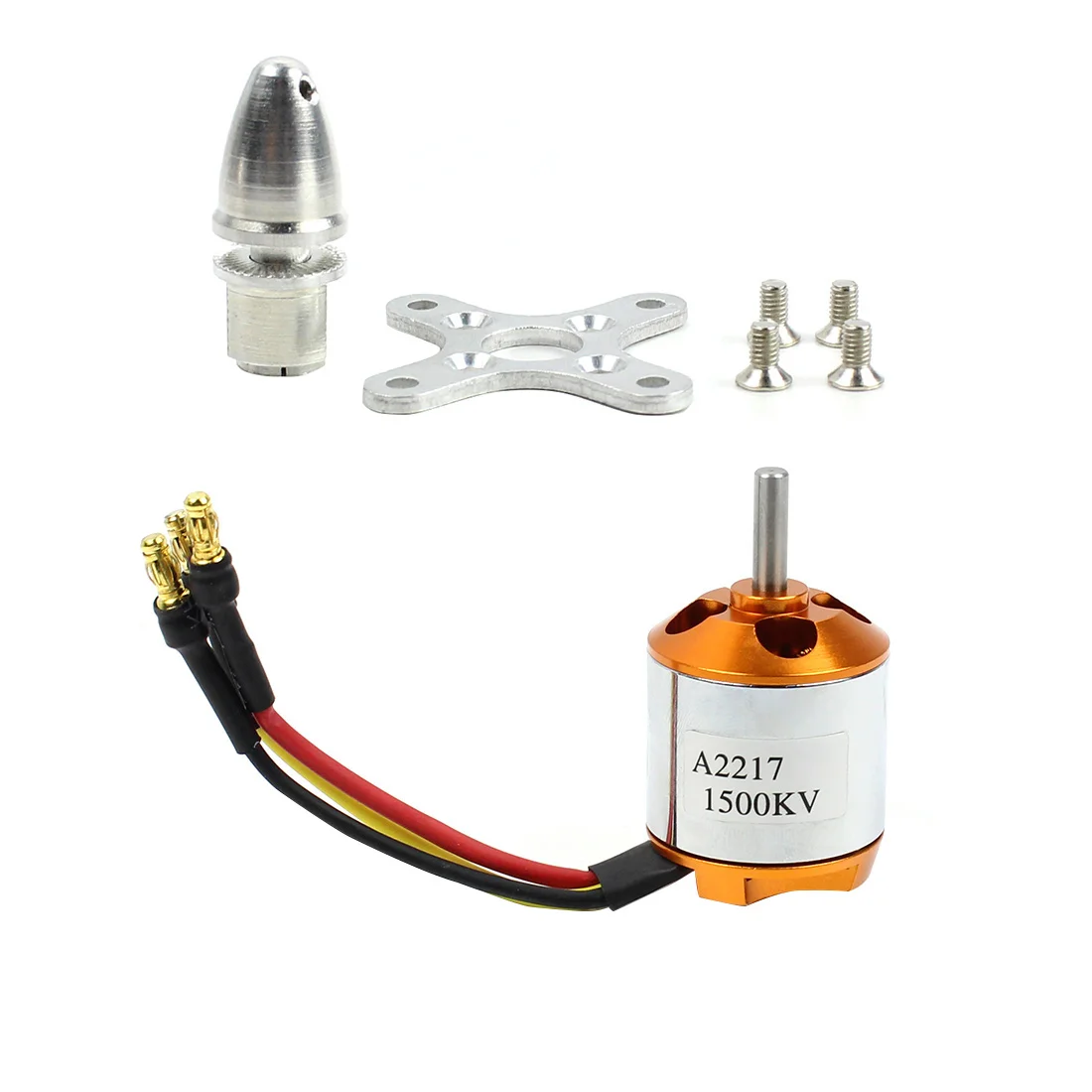

2217 brushless motor (the KV value according to your choice)*1

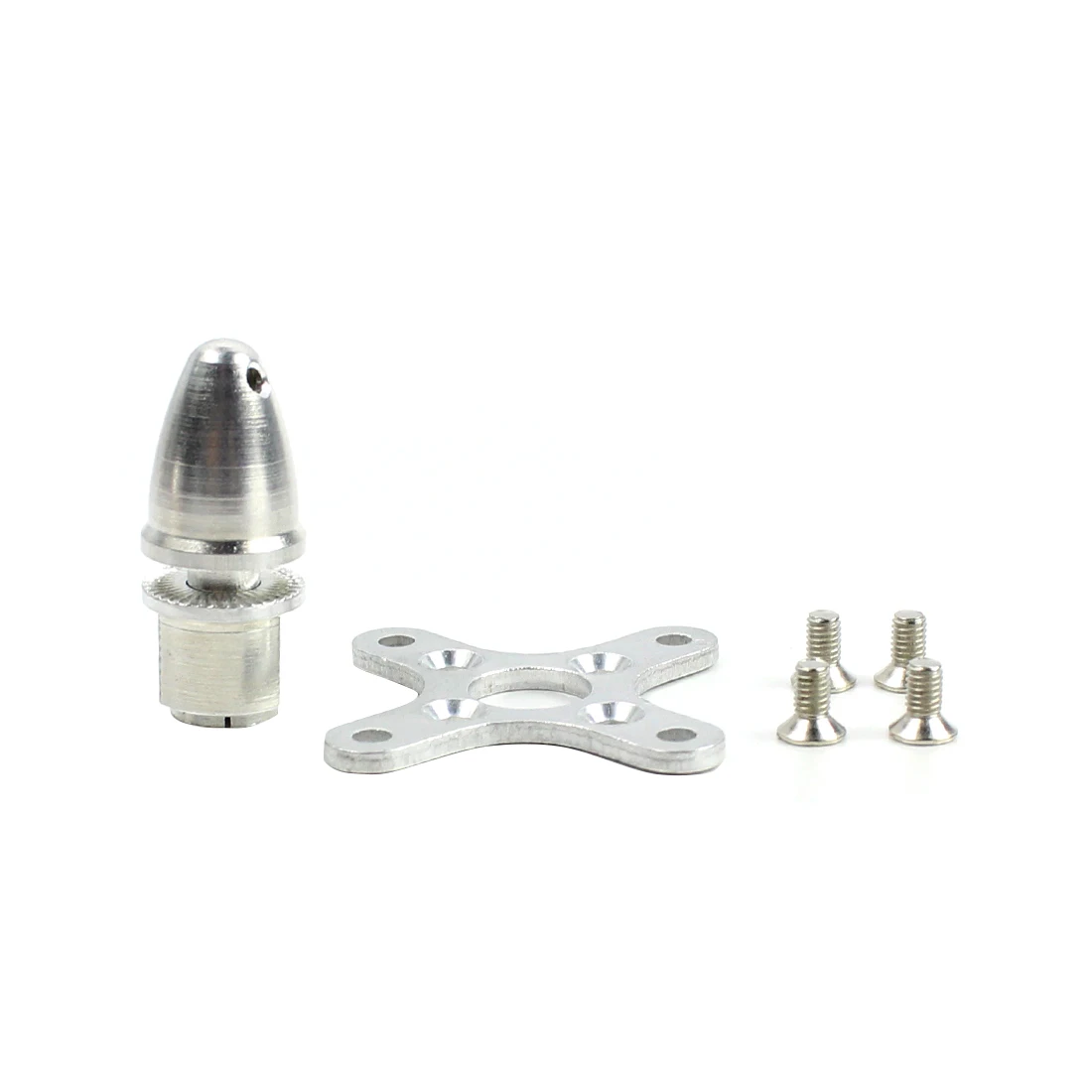

4.0 paddle clamp *1
22 series metal seat *1
Metal seat fixing screws*4.
