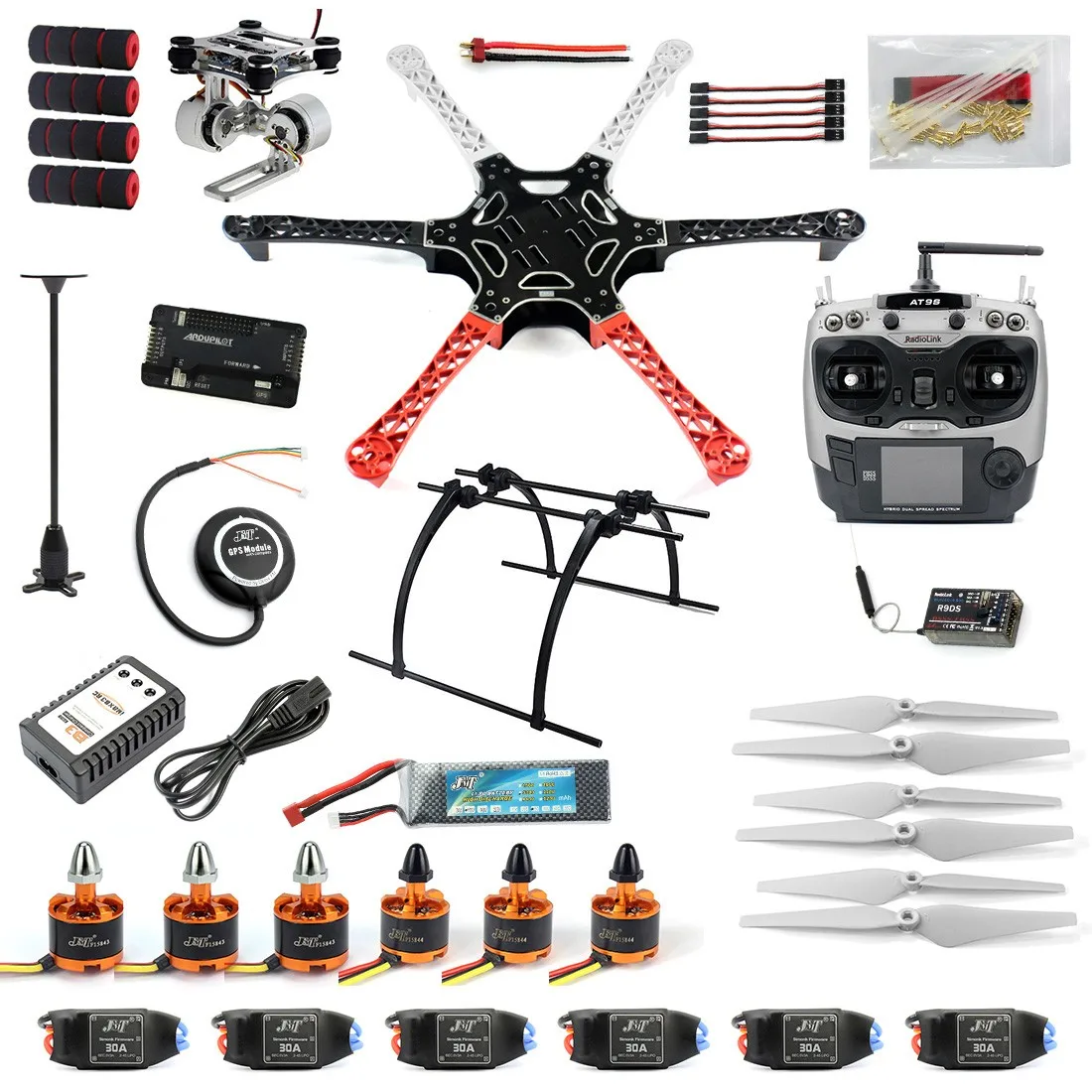

Packing including :
1 X F550 Hexa-Rotor Air Frame FlameWheel
3 X 920KV Clockwise Brushless Motor
3 X 920KV Counter-clockwise Brushless Motor
6 X 30A Brushless ESC
3 X 9443 propellers
1 X APM 2.8 Multicopter Flight Controller
1 X GPS with Compass
1 X Radiolink AT9 2.4GHz 9 Channel Transmitter Radio & Receiver
1 X Tall Landing Skid PTZ
1X Aluminum 2-axis Gimbal Camera Mount PTZ
1 X 11.1V 3300Mah 25C 3S lithium battery
1 X IMAX RC B3 Pro Compact Balance Charger
4 X 65mm Impact Resistance Skid-Proof Sponge Foam Tube Ball
F550 Hexa-Rotor Air Frame FlameWheel Kit
(The color of the Flamewheel arms,will be changed by manufactured.Random shipped,if you have request,please contact in advance to confirm inventory,no negative or dispute accepted for the color reason,thanks understand and help again)
Materials: glass fiber +ABS plastics,
Color: Random as picture
Rack weight: 424 g
Wheelbase symmetrical motor: 550 mm,
Takeoff weight: 1200-2400 grams
Propeller: 10 x 4.5in; 8 x 4.5in
(Not included)
Recommended battery: 3S-4S LiPo,
Recommended motors: 22 x 12 mm
Recommended ESC: 30A or 18A,
Includes connecting arm x 6, top cover x 1, the next cover x 1, x 36 screw

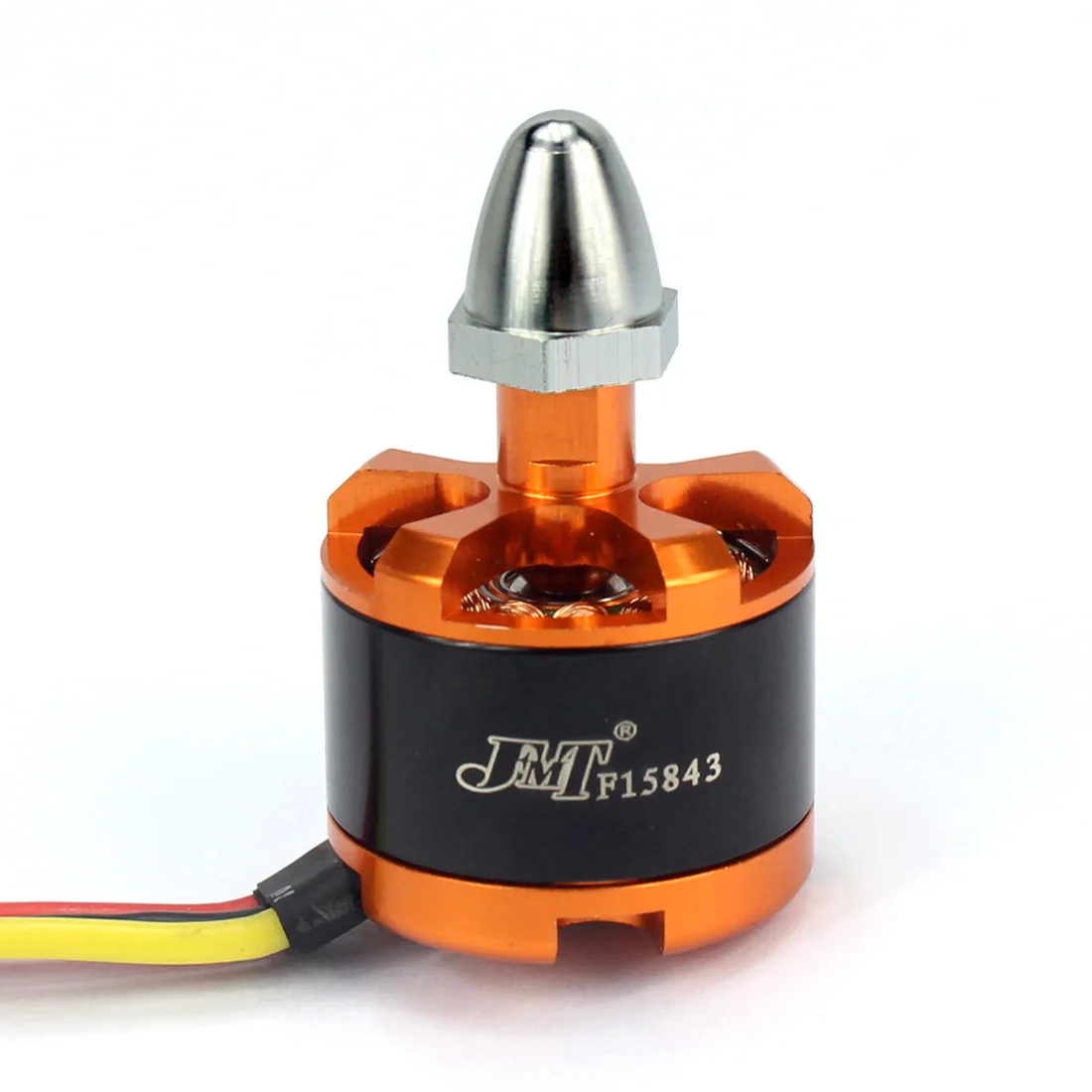

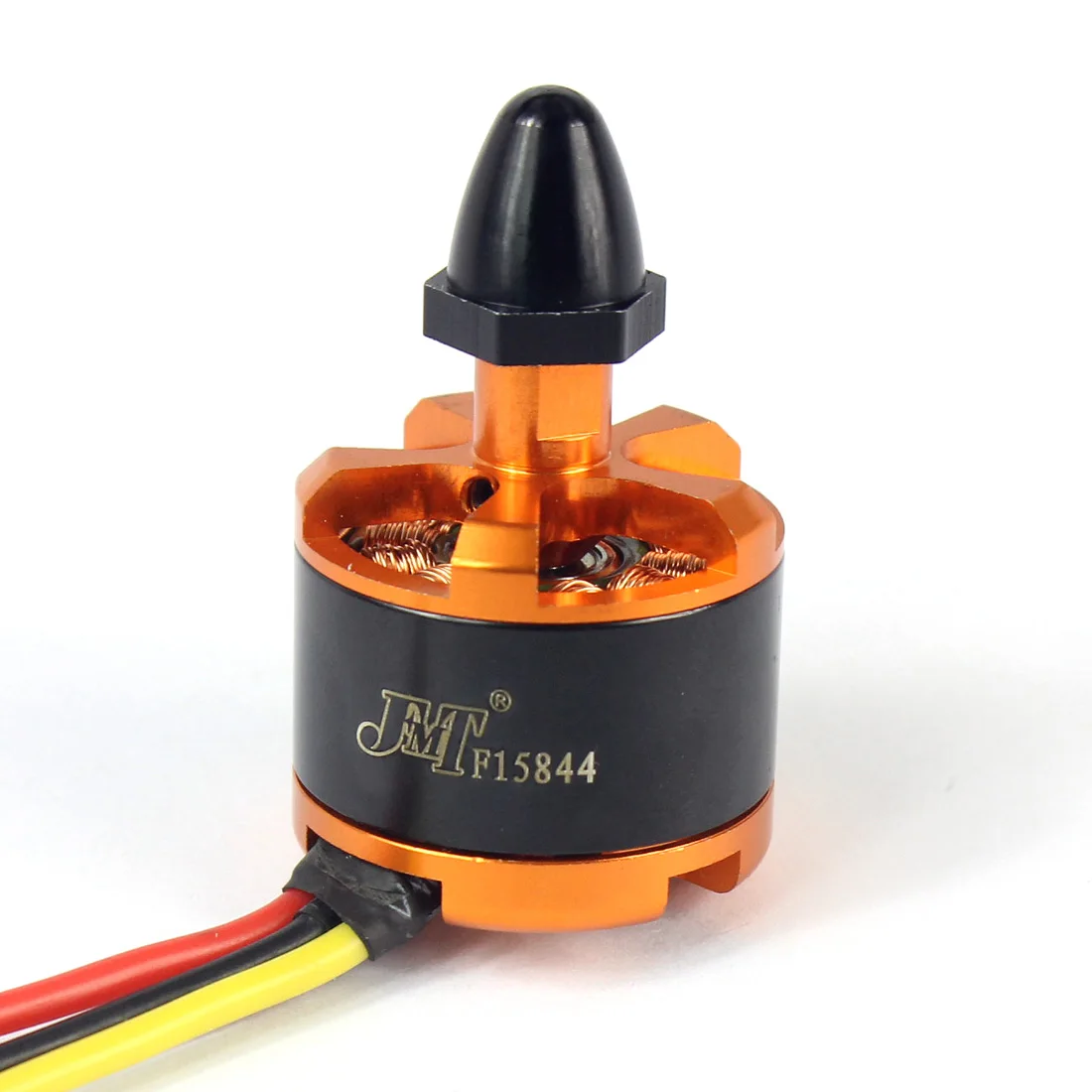

920KV CW CCW Brushless Motor
Outer diameter: 28.0 mm
Height: 24.0 mm (Without Shaft)
K V: 920kv
30A Brushless ESC Speed Controller
1.1 Output: Continuous 25A, Burst 40A up to 10 Secs.
1.2 Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
1.3 BEC: 3A
1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
1.5 Size: 45mm (L) * 25mm (W) * 11mm (H).
1.6 Weight: about 25g.
propeller 9443
Length: 9.4 inches
Product Pitch: 4.3 inches
Color: White

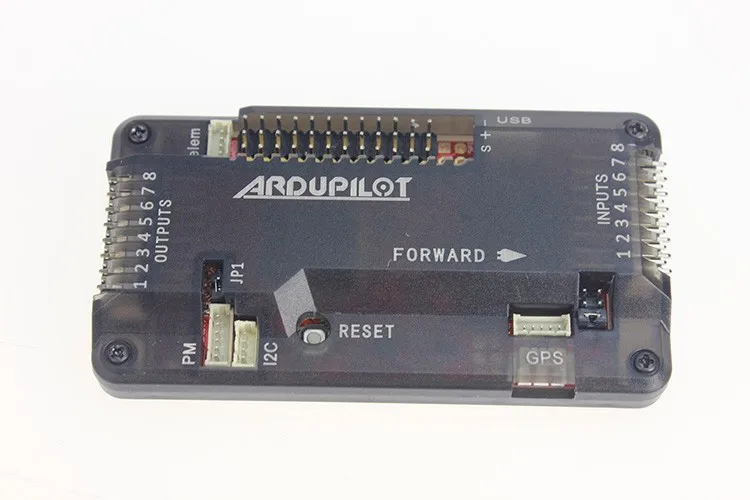

APM2.8 ArduPilot Mega APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded
Size: 70*45*13.5
Weight: 28G
APM is an open source flight control, can you play APM well depend on individual ability. Player must have ability of basic understanding of monolithic integrated circuit, c-language, knowledge of electrical,mechanical, and also needs a certain degree of mental capacity, financialand material resources, energy support.If you're not ready, then We recommend that you prepare some introductory information first.
Introduction:
Eliminate V2.52 Version Old 1.0mm 6P SM06B GPS interface , changed to the DF13-4P compass external I2C interface, Place the DF13-5P GPS interface with external interfaces of the compass , more convenient to connections GPS with external compass.
Replaced the V2.52 I2C interface to multi-purpose MUX interfaces, which can be used by the users themselves through the Pad of Back Board freely configurable function output, UART0,UART2,I2C,OSD optional, defaults OSD interface, avoiding 2.52 version when you want to use both Data Transmission and OSD, you need to use Y-line separating the interface programme. Improved OSD interface when used in conjunction with Data Transmission, because of the isolation resistance, more effective to avoid the interference of Data Transmission.
New V2.8.0 use United States semi-LP2985-3.3, pressure-resistant up to 16V, increased reliability, reduced probability of Bad Gyro health due to voltage problems.

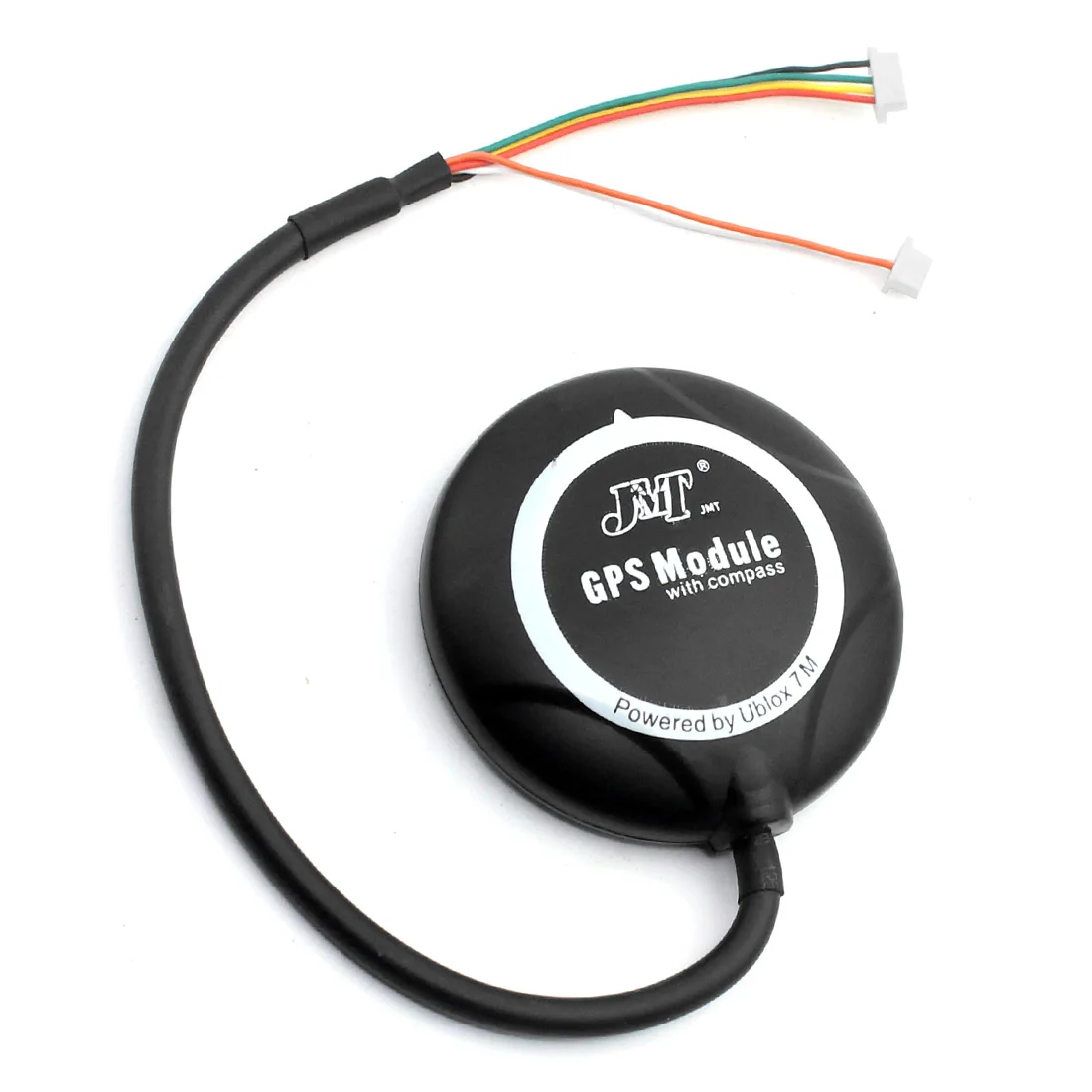

GPS with Compass
GPS Features:
- Built-in compass GPS module
- Main chip: 6M
- With fast satellite searching speed and high precision
- Compatible with APM serial port and I2C port
- Includes round plastic shell
- Pre-configured, Flashed with the correct settings, and tested
- Super Bright LED,BlackPlane with Standard Mk style mounting holes 45mm X 45mm
- Cable included
- With L5883 compass Cable length in 25CM
- Dimensions: 53.5*53.5*15.5
- Weight: 30g
- Quantity:1 Piece
Description:
C/A code,1.023MHz
Receiver Frequency:L1 [1575.42MHz]
Locate performance
2D :3m(Average)
2D:2m(average),with WAAS
drifting<0.02m>
accuracy:1us
coordinate system:WGS84
max attitude height:18000
Max speed:515m/s
Specification:
tracking sensitivity:161dBm
Capture sensitivity:148dBm
cold start time:38s average
Warm start time:35s average
hot start time:1s average
Capture time:0.1s Average
Temperature:40 centi grade to +80 centi grade
wide power supply voltage:+3.5V~+5.5V
Radiolink AT9 2.4GHz 9 Channel Transmitter Radio & Receiver
1 Size: 183*193*100mm
2 Weight: 0.88kg
3 Frequency: 2.4GHz ISM band (2400MHz to 2485MHz)
4 Modulation mode: QPSK
5 Channel bandwidth: 5.0MHz
6 Spread spectrum: DSSS
7 Adjacent channel rejection: >38dbm
8 Transmitter power: <100mW(PCB testing), <20dbm(3 meter air testing)
9 Operating Current: <105mA
10 Operating Voltage: 7.4~15V
11 Control distance: more than 900 meters ground, 1.5kms air
12 Channel: 9 channels, 5~9 channels are customizable
13 Simulator model: under the simulator model the transmitter action turn off, change to power saving model
14 Screen: 2.8 inches 16 colorful screen , 240*320 pixels
15 Compatible model: Include all 120 degree and 90 degree swashplate helicopter, all fix wing and glider, five flying model and aircraft
Features
FULL TYPES AND FUNCTIONS
Suit for all airplanes including helicopter 8 swash plate models, fixed wing 2 airfoils 3 rears,
gliders 4 airfoils 2 rears and aircraft.
FAST RESPONSE
It takes 3ms only for 9 channels to response parallel, which is less than the average time 20ms.
SUPER STABLE AND LONG DISTANCE OPERATING
DSSS spread spectrum mode supplies better performance in anti-interference .
QPSK modulation mode.
Actual measurement: 900 meters ground and 1.5kms air.
Universal Tall Landing Skid PTZ
About 185mm/18.5cm tall
Package include:
- 2 x Black Landing Skid
- 4 x Installation seat
- 2 x short Tube
- 2 x long Tube
(no screws included)
Aluminum 2-axis Gimbal Camera Mount PTZ
Effective Picture,No Camera included,Purchase or ready separately:
Features:
- Simple structure and light weight,CNC aluminum alloy structure
- Brushless motor direct drive
- With anti-vibration rubber balls,easy to adjust
- Compatible with Gopro 3/3+,
- with 2pcs 2208 motors and V3 gimbal controller,sensor
- with motor protector which can help heat dissipation
- gimbal weight: 400g
Note: This Product Not Suit For DJI Phantom Visitor 2.
And It Is Not The Mounting Holes, You Need To Drilled And Install By Yourself.

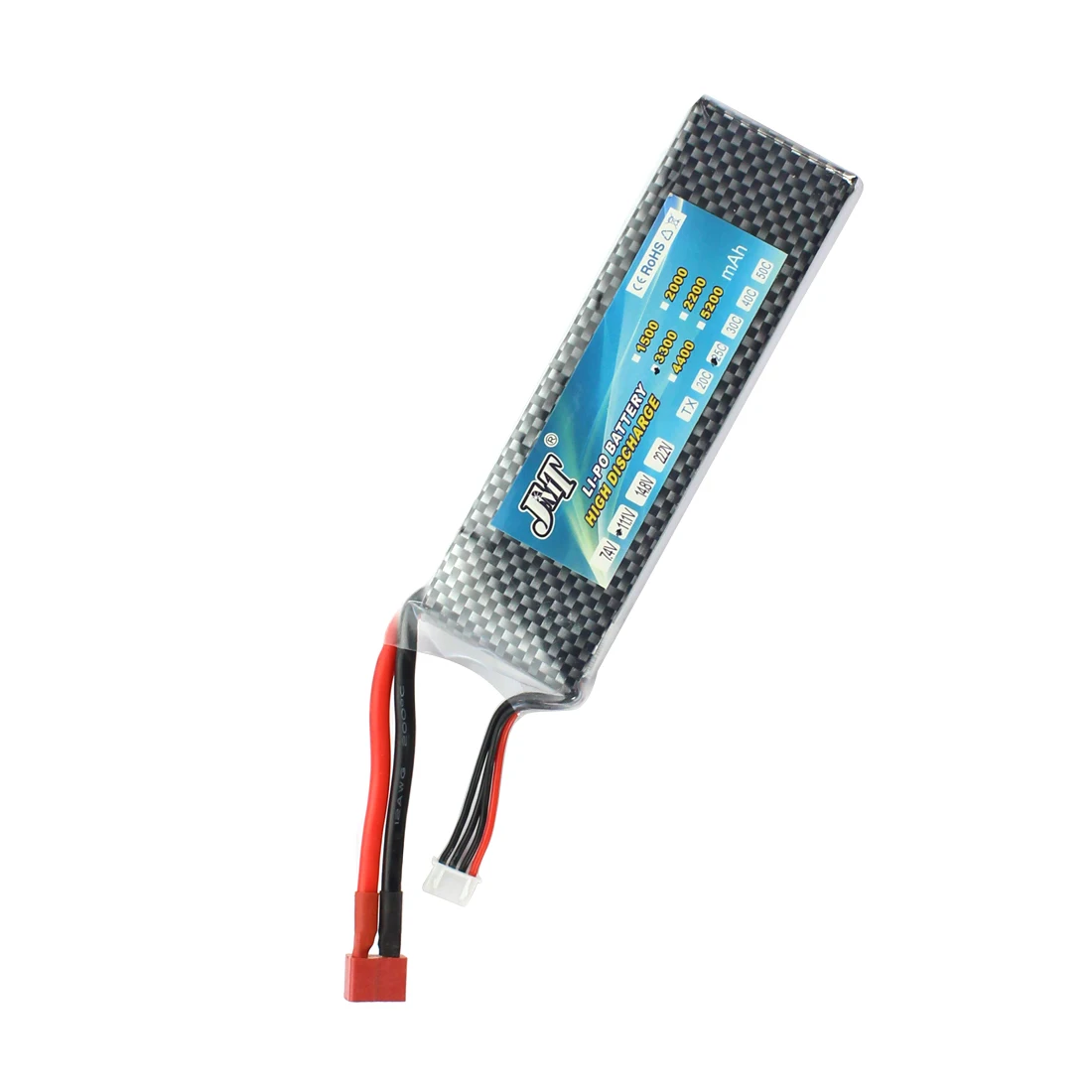

11.1V 3300Mah 25C Quad / multi-axis aircraft with 3S lithium battery
Size: about 139x 43 x19MM
Weight: about 268.8g

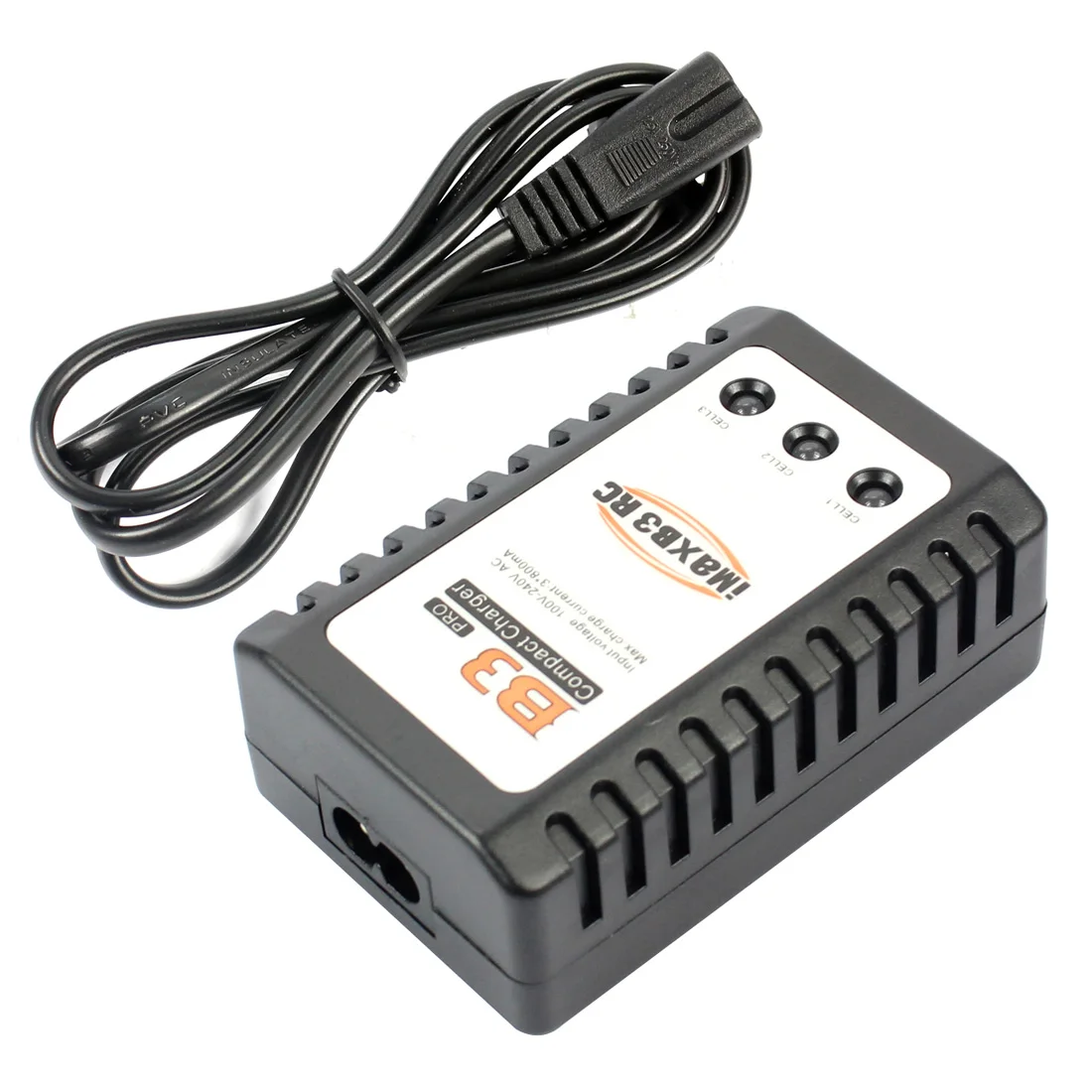

IMAX RC B3 Pro Compact Balance Charger
Feature:
Input Voltage : 100 - 240V AC50 / 60Hz
Output Current: 3*800mA
Suitable for 2 cell and 3 cell Li-Po Batteries
Led Indicator:
When power is on : Orange
Stand by mode : Green
Battery Charging : Red
Battery Full : Green
65mm Impact Resistance Skid-Proof Sponge Foam Tube Ball
Size: OD 24* ID 8 * L 65MM
Color:Black-red
