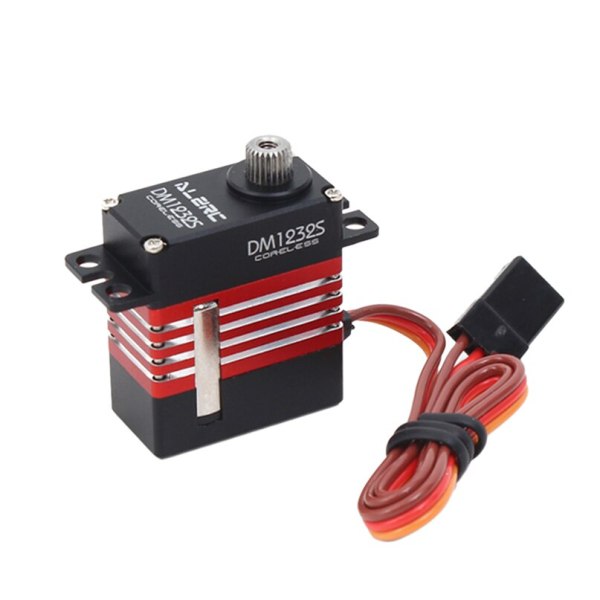

ALZRC DM1232S CCPM Micro Digital Metal Servo for Devil 380 450 465 480 RC Helicopter
DM1232S a special micro digital metal servo customized for the swashplate, with application of steel cog which will greatly reduce brush and break for the teeth. New generation control chip presents pure stability and high efficiency. New metal shell with CNC highlights surface emerge high-quality and luxury.
For Devil 450 Pro / Devil 450 RIGID / Devil 465 RIGID / Devil 480 RIGID / Devil 480 FAST / Devil 380 FAST.
Adopting 1215 5-pole hollow cup motor, the response speed is fast, the energy consumption is small, the efficiency is high, the life of the traditional motor is more than 5 times, and the lifespan is 200,000 times.
Adopting Japanese potentiometer, high precision, good consistency, 1 million high-life potentiometers.
High-resolution digital chip, stable performance, strong anti-interference ability, fast response, high precision, and smooth and smooth operation control.
The outer casing is made of all-aluminum alloy casing and is formed by high-precision CNC machining, which better guarantees the precision and heat dissipation performance of the steering gear.
Taiwan imports all-metal gears, and the output teeth are treated with titanium plating to enhance the strength and wear resistance of the gears, higher smoothness and smaller gears.
The double-bearing design adopts imported precision miniature bearings to ensure the concentricity and smoothness of the gears to a greater extent.
Technical Parameters:
Working voltage: DC4.8V-8.4V
Output torque / output speed:
- 8.4V - 5.6Kg.cm/0.052sec/60°
- 7.4V - 4.8Kg.cm/0.065sec/60°
- 6.0V - 4.1Kg.cm/0.072sec/60°
Size: 23 (L) x 12 (W) x 26.3 (H) mm
Weight: 20g
Motor: hollow cup
Gear: all metal
Dead zone: 2.0us
Working frequency: 1520us / 333Hz
Housing: Aluminum alloy CNC housing
Bearing: 2BB
Overload protection: Yes
Resolution: 4096
Output gear: 25T
Link line: 28AWG
Link line length: 220mm
Plug: FUT; JR Propo
package:
Spiral disc dedicated miniature digital metal steering gear x 1
One-handed steering arm - A x 3
Phillips screw (M2.5x4mm) x 1
