GEPRC GEP-CR/DX4 3/4 Inch 155/153mm Wheelbase Cinerun/RUN HD3 Cinewhoop Frame Kit 3mm 84g For DIY FPV Racing RC Drone

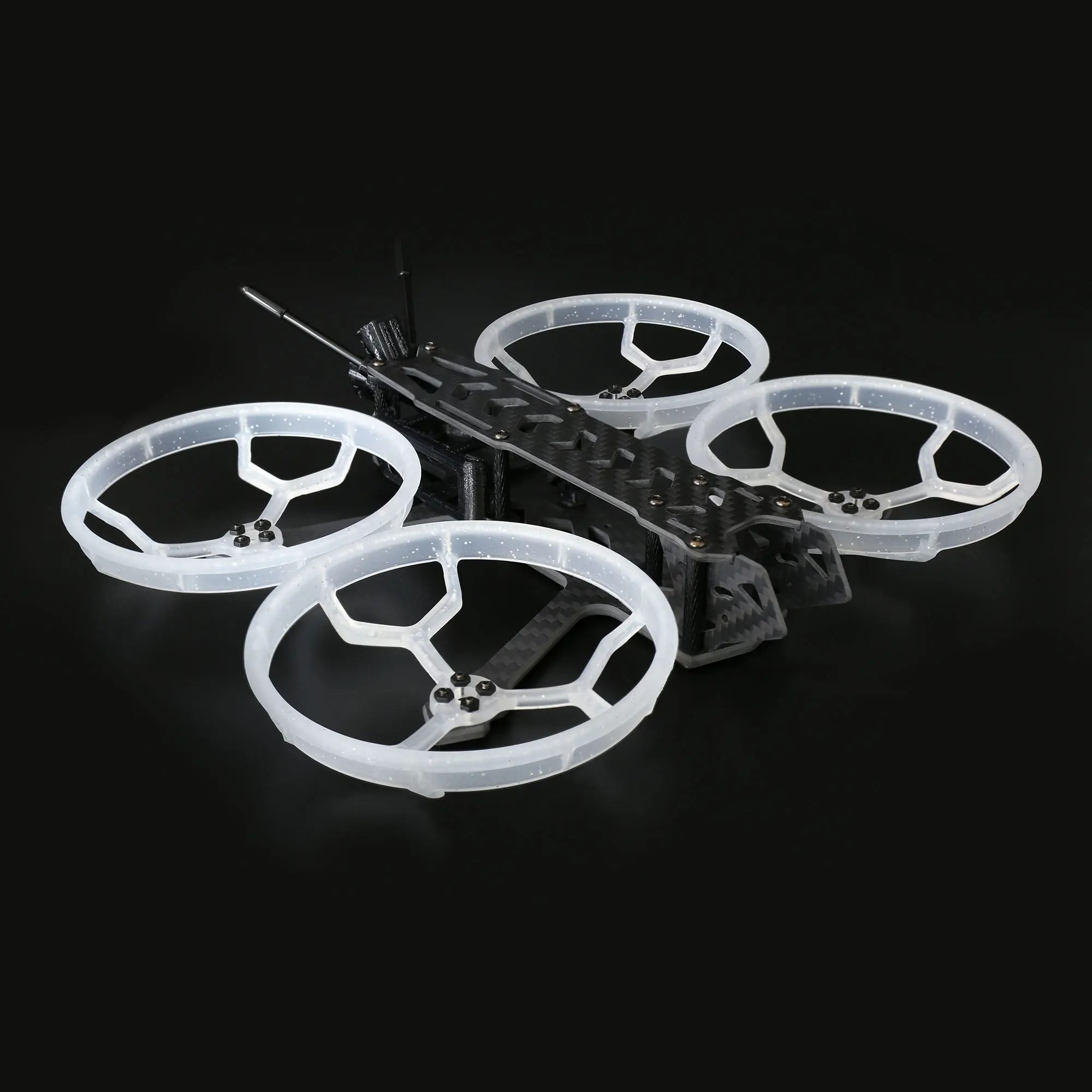

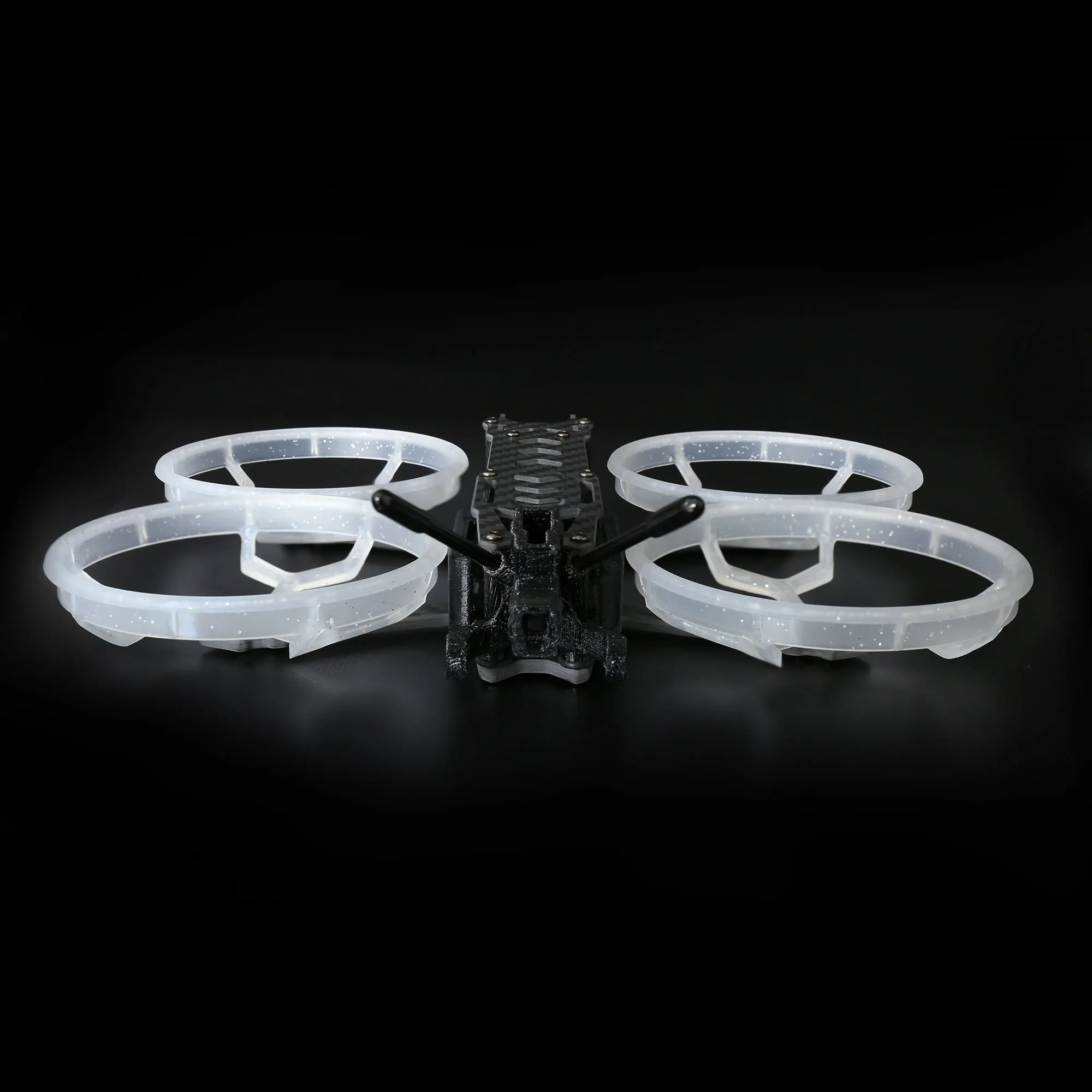

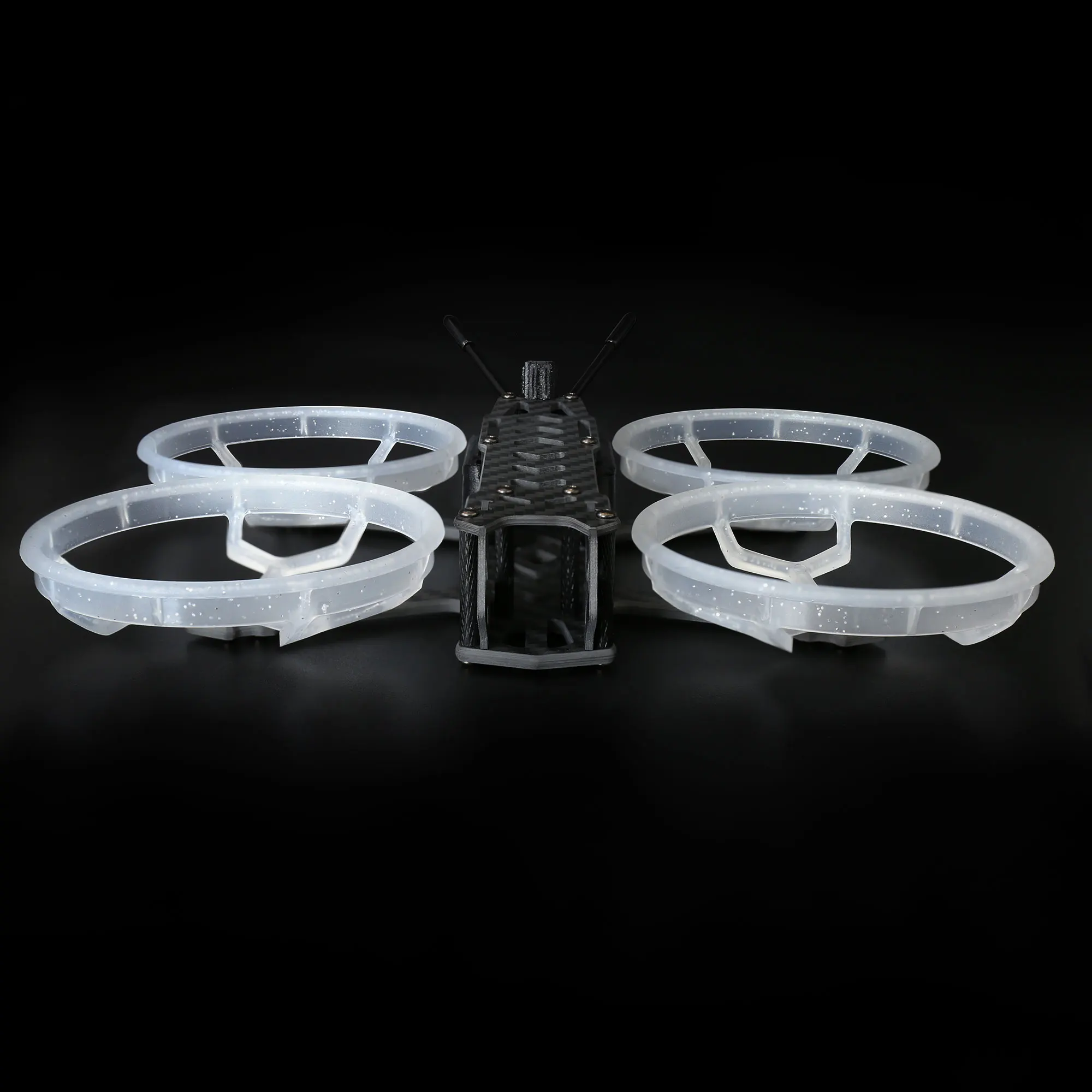

GEP-CR Specifications:
Brand Name: GEPRC
Product name: GEP-CR 3 inch
Wheelbase: 155mm
Support paddle: 3 inches
Floor thickness: 3mm
Top plate thickness: 2mm
Side plate thickness: 1.5mm
Motor hole position: 9mm (1404 motor 4 holes)
Weight: 84g
GEP-CR Include:
1 x base plate thickness 3mm
1 x top plate thickness 2mm
2 x side panel thickness 1.5mm
8 x M2*25mm mesh aluminum pillar black
16 x 2x6mm Fangsheng round head screws Fangsheng color
16 x 2x8mm Fangsheng round head screws Fangsheng color
4 x M2x22mm cup head round head screws black
8 x M2 flight control damping ring black
4 x M2x2 shock absorbing ring black
8 x M2x2mm nylon nut black
1 x XT30 power cord
1 x 330UF 25V capacitor
1 x Sky end fixing piece black
1 x antenna mount black
1 x battery non-slip mat black
1 x tripod cushion
2 x Antenna protection tube
2 x M15x200 battery tie black
4 x 3 inch protective frame transparent color
1 x 20x20mm insulation board transparent color

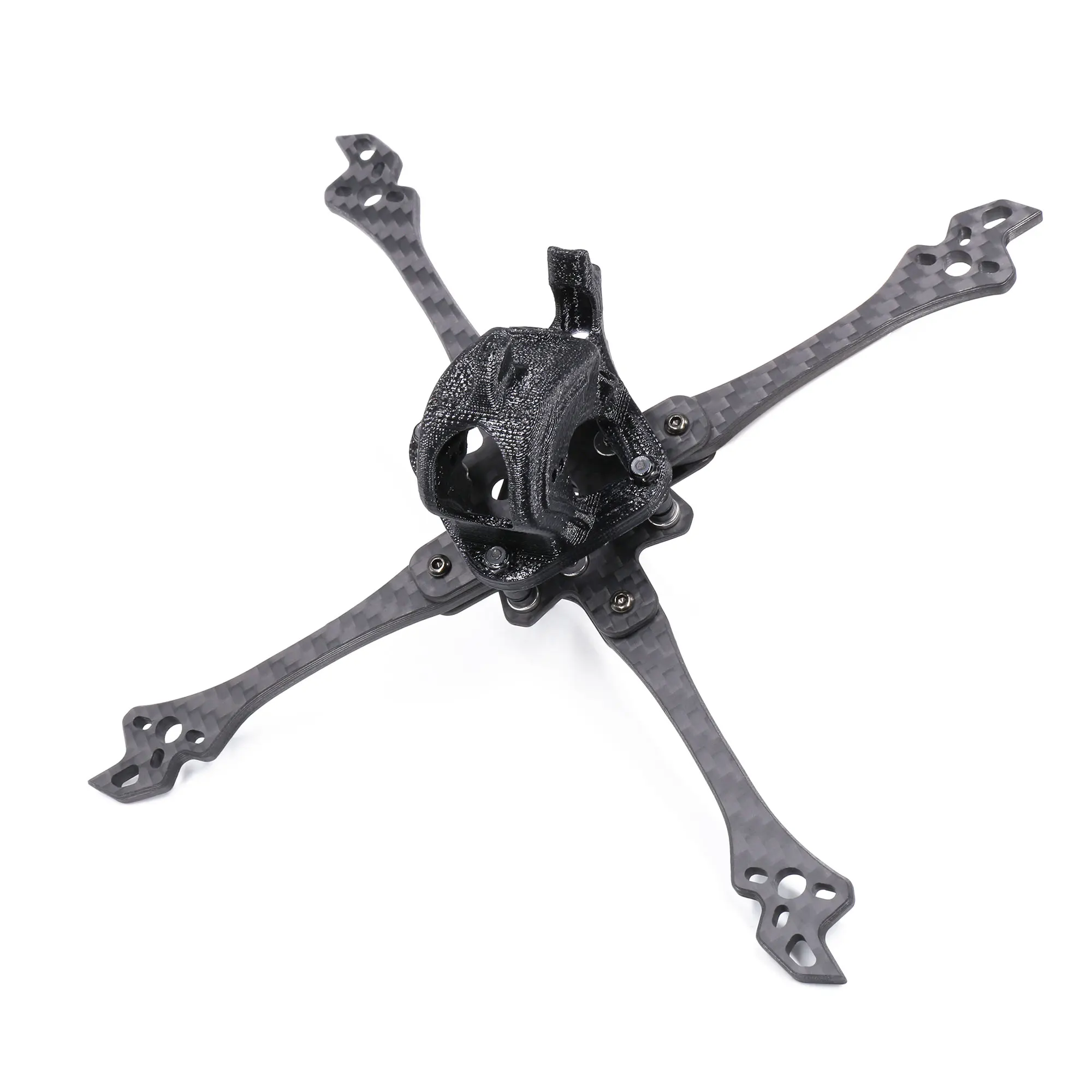

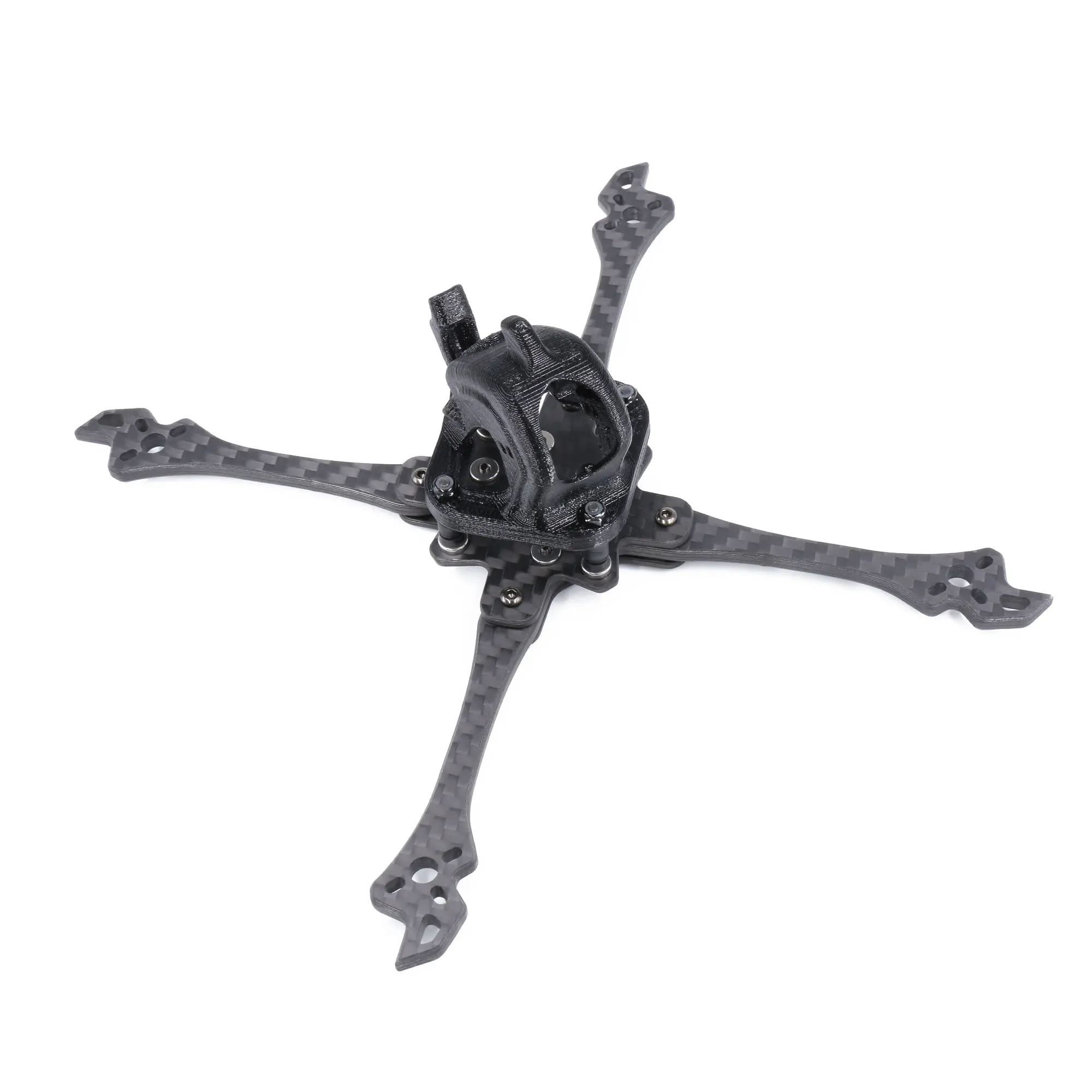

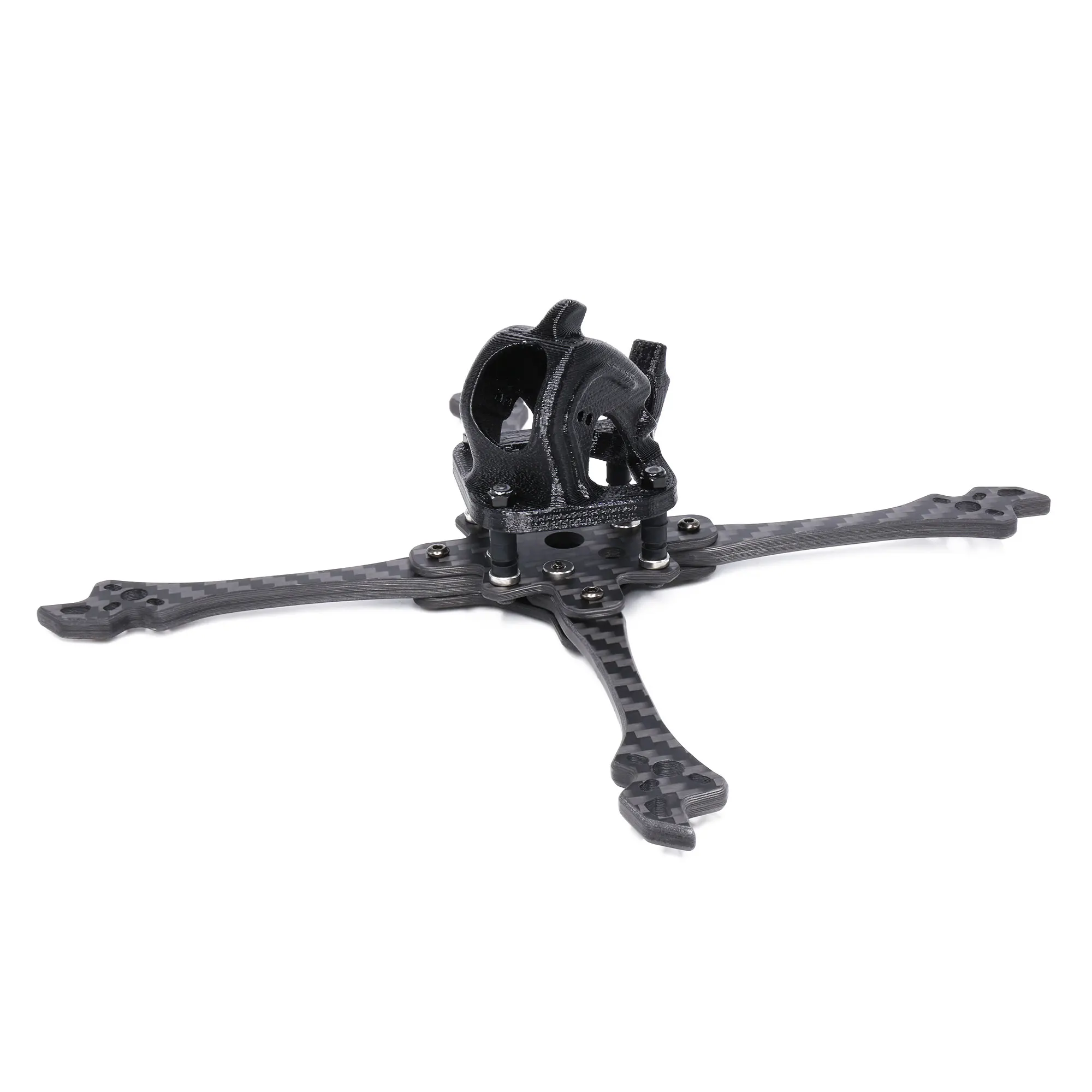

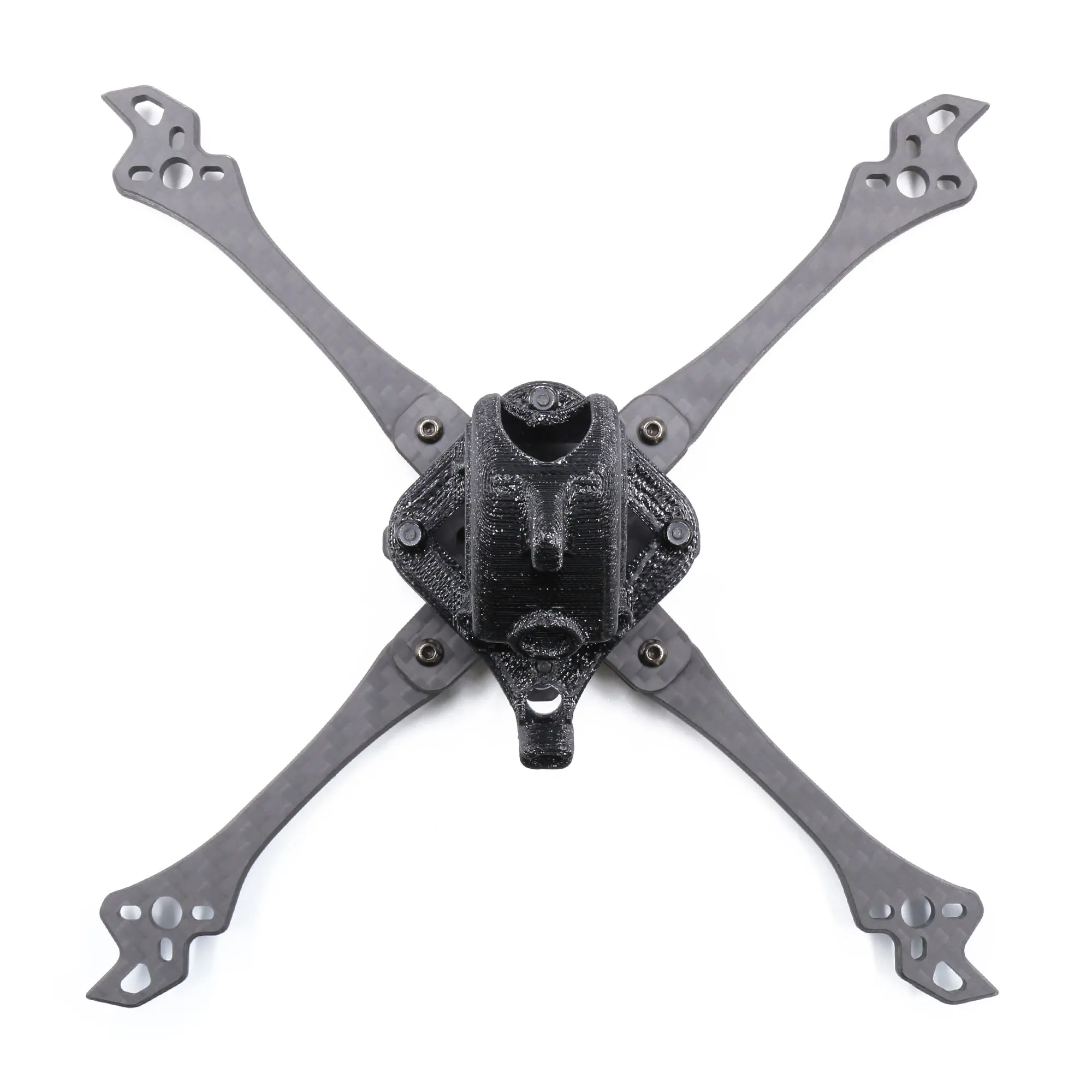

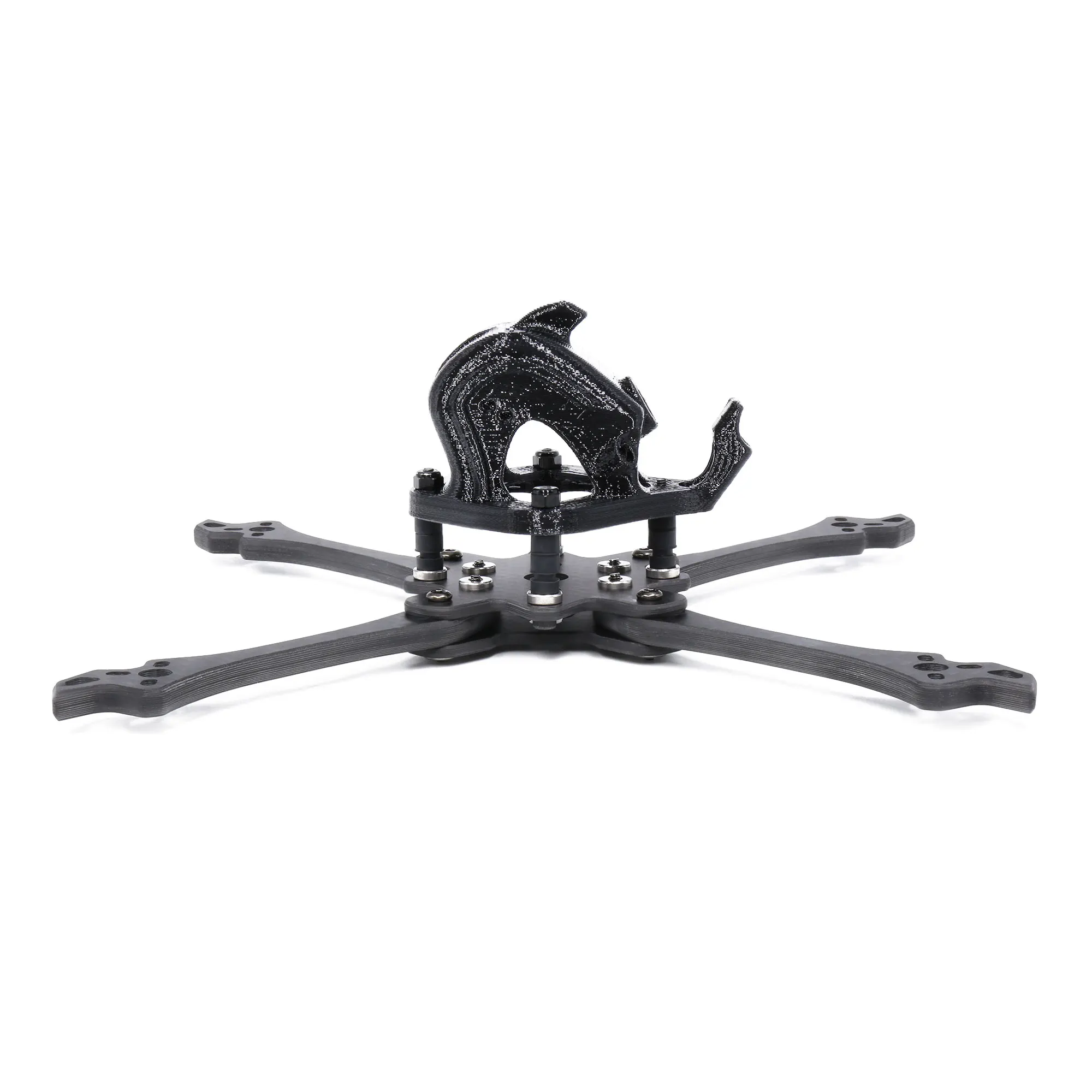

GEP-DX4 Specifications:
Brand Name: GEPRC
Product name: GEP-DX4
Wheelbase: 153mm
Support paddle: 4 inches
Arm thickness: 4mm
Splint thickness: 2mm
Floor thickness: 2mm
Motor hole position: 9mm (1507 motor 4 holes)
Weight: 39g
GEP-DX4 Include:
1 x arm 4mm
1 x splint 2mm
1 x base plate 2mm
1 x M2x18mm cup head screw black
3 x M2x20mm cup head screws black
8 x M2x10mm Fangsheng round head screws black
2 x M2x5 Fangsheng round head screws Fangsheng color
3 x M2 self-tightening nuts black
12 x M2 pressure riveting nuts
8 x M2 flight control damping ring black
1 x 3D printed part black
1 x battery non-slip mat
2 x 2.4g antenna protection tube
2 x battery tie
