FEICHAO GT3C FS-GT3C 2.4GHz 3CH Transmitter w/ Battery GR3E Receiver 20KG 180/270 Degree Digital Servo 25T Arm For RC Cars Boat

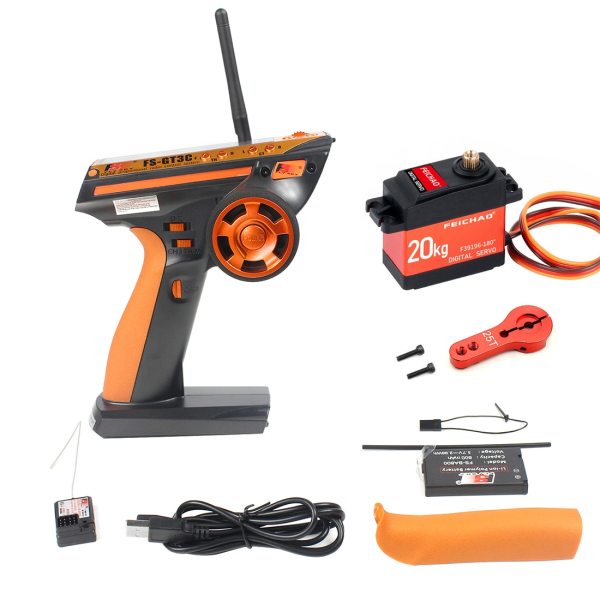

Package Includes:
FS-GT3C Transmitter*1
FS- GR3E Receiver*1
Battery*1
20KG 180 Degree or 270 Degree Digital Servo*1
25T metal arm*1(optional)
FS-GT3C Transmitter Parameters
Channels: 3
Model Type: Car/Boat
RF Range: 2.40Channels: 3
Model Type: Car/Boat
RF Range: 2.4055-2.475GHz
RF power: <20dBm
RF Channel: 140
Bandwidth: 500KHz
2.4GHz system: AFHDS
Modulation Type: GFSK
Stick Resolution: 1024
Low Voltage Warning: <3.5V
DSC Port: USB PPM
Steering Range: 90° L:45° R: 45°
Throttle Range: 35° F: 22.5° B: 12.5°
Chargeable: Yes
Antenna Length: 26mm
Weight: 303g
Power: 3.7V
Display: NTN Transmissive Segment LCD with Backlight, VA100*32mm
Size: 157*116*258mm
Color: Black/Orange/Gray
Certificate: CE0678, FCC
20KG 180 Degree or 270 Degree Digital Servo
20KG Servo:
- High-precision metal gears with hard anodizing
- CNC aluminium middle Shell,
Control system :PWM control (1500 u-sec is the central point)
Working voltage:4.8V ~ 6V
Working temperature: -20C°~ +60C°
Torque :4.8V /17.2kg.cm
6.0V /20.3kg.cm
Idle speed :4.8V/0.15sec / 60 deg
6.0V/0.13sec / 60 deg
Steering angle: 180 / 270 degree
Idle current:4.8V/470mA 6.0V /650mA
Load current :4.8V/750mA 6.0V /950mA
Dead band :2usec
Lifetime:>15000 times without load
Moving angle:60°±10°
Drive type: MOS drive
Motor type:Cored motor
Potentiometer type:Direct drive
Signal booster type:Digital
Size:40.5X20.2X40.3mm
Weight : 62g (without accessories)
Ball Bearing:2BB
Gear material:Metal gear
Case material: PA66+fiber40%
Wire length:260mm
Wire gauge No and plug type:26AWG,JR plug
Brown wire:Negative
Red wire:Positive
Orange wire:Singal
Application:RC car, RC airplane, Helicopter
