Home>FPV Drone and Part>RC Parts>FEICHAO L9R 9/12CH S.Bus Non-telemetry Long Range Receiver w/PCB Antenna for Taranis X9D Transmitter

FEICHAO L9R 9/12CH S.Bus Non-telemetry Long Range Receiver w/PCB Antenna for Taranis X9D Transmitter Item NO.: F27644

Write a Review

US$ 49.99

Ships From:
China	US$ 49.99	Stock(599)	- +

Quantity: 0 , Subtotal 0

Product Name	FEICHAO L9R 9/12CH S.Bus Non-telemetry Long Range Receiver w/PCB Antenna for Taranis X9D Transmitter
Item NO.	F27644
Weight	0.06 kg = 0.1323 lb = 2.1164 oz
Category	FPV Drone and Part > RC Parts
Brand	FEICHAO
Creation Time	2020-10-14

Description:

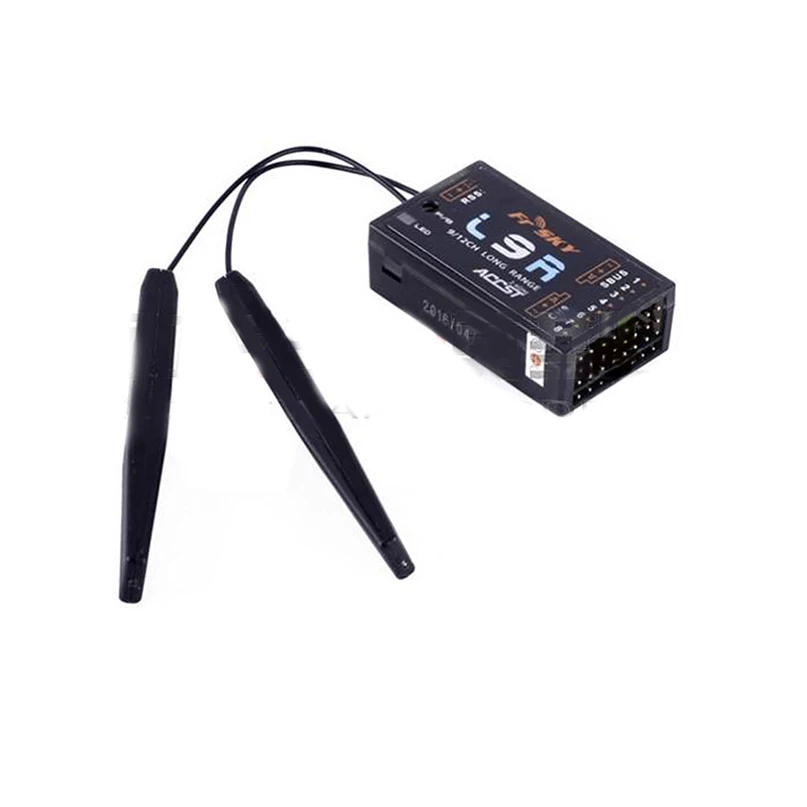

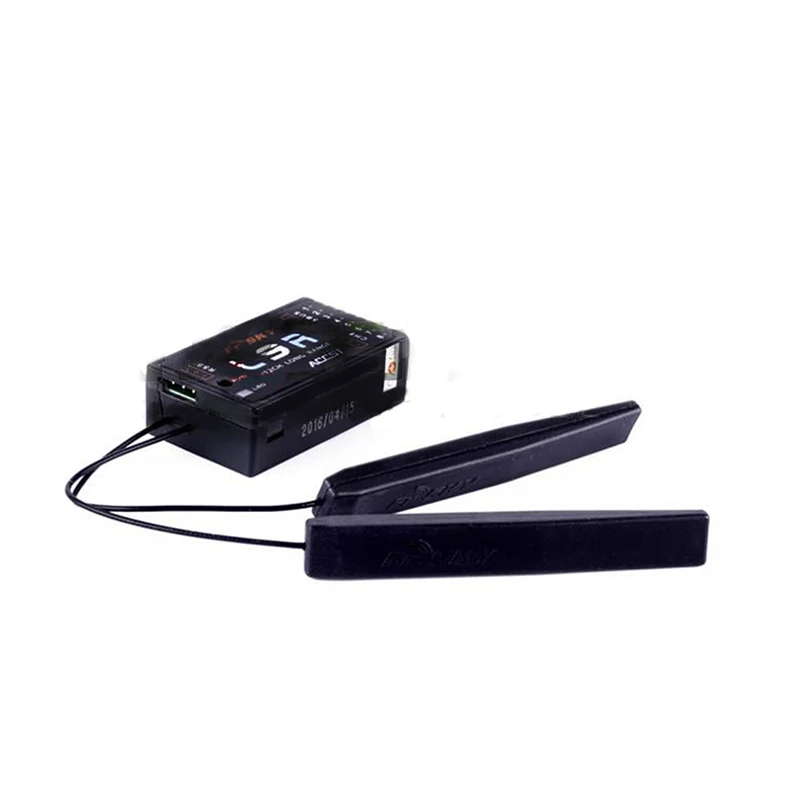

FrSky L9R receiver is the new long range unit from Frsky and offers up to twice the range of the standard X series receivers.
It should be noted that L9R is a non-telemetry receiver and therefore not Smartport or Data Hub compatible.

Specifications:
Antenna: PCB Antenna
Number of Channels: 1-9ch from conventional channel outputs, 1-12ch from SBUS port
RSSI output: Analog RSSI output (0-3.3V)
Operating Voltage Range: 4.0-10V
Operating Current: 100mA@5V
Operating Range: approx. 2 times that of X-series receivers

Compatibility:

FrSky X-series Module (XJT) etc in LR12 mode (Switch 1 is OFF, Switch 2 is ON)
FrSky Taranis X9D etc. in LR12 mode
L9R receiver does not work with FrSky V8, D8, and D16 Mode.

IMPORTANT:

L9R has a bind protocol that differs from the X series - PLUS failsafe is set to last signal by default, so the user must ensure to set the failsafe to work as preferred. Failsafe cannot be set from the TX, so the manual should be consulted for the relevant information.

Package included:

1 x FrSky L9R Receiver
