JMT Mini RC Racing Drone Brushless Motor ESC Combo Set 4x EMAX RS2306-2400KV Motor & Mini ESC Dshot BLS Bullet 30A Speed Controller/HobbyWing XRotor Micro BLHeli-s 30A DShot600 + Mini Power Distribution Board
2 Kinds of ESCs optional, Please choose the one you want.

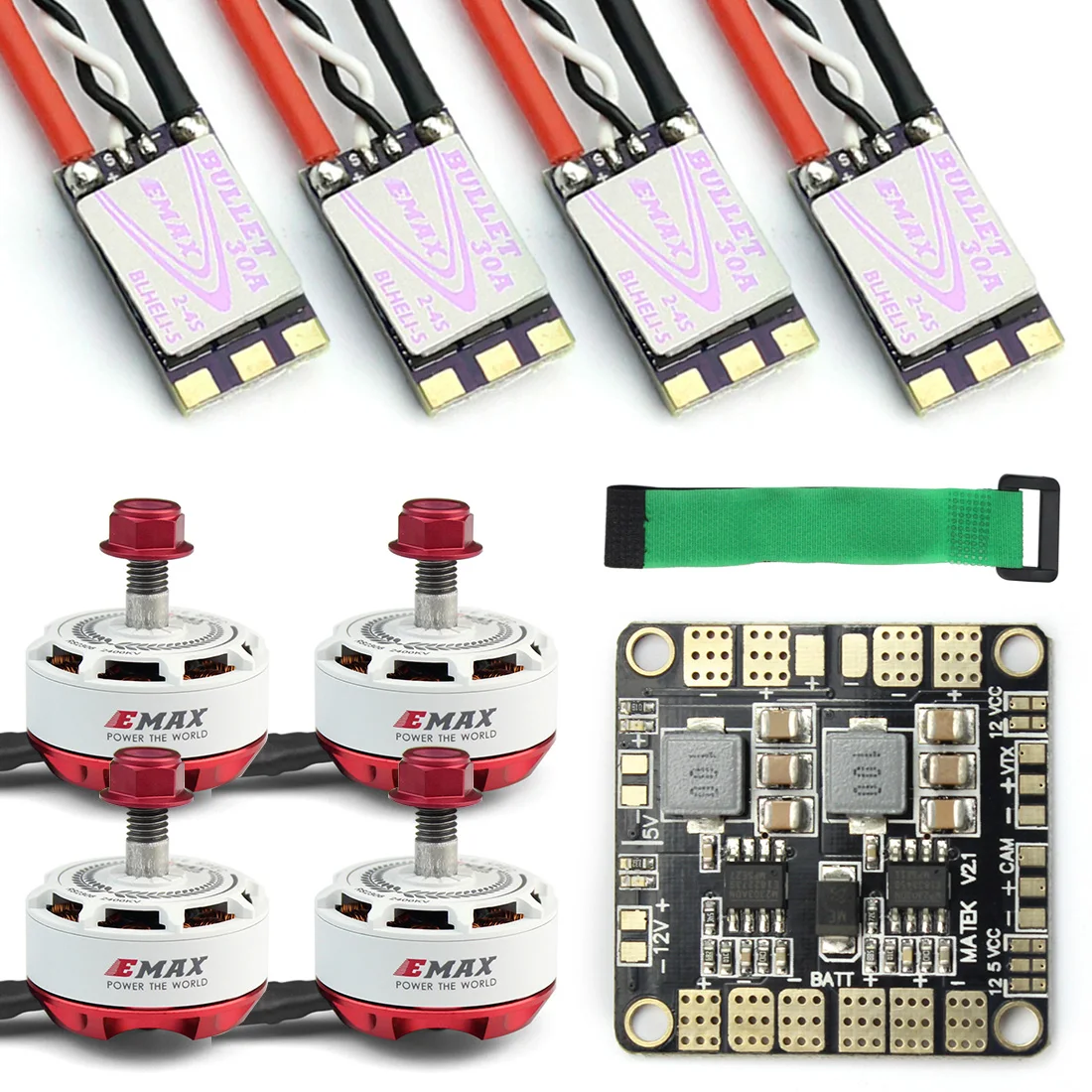

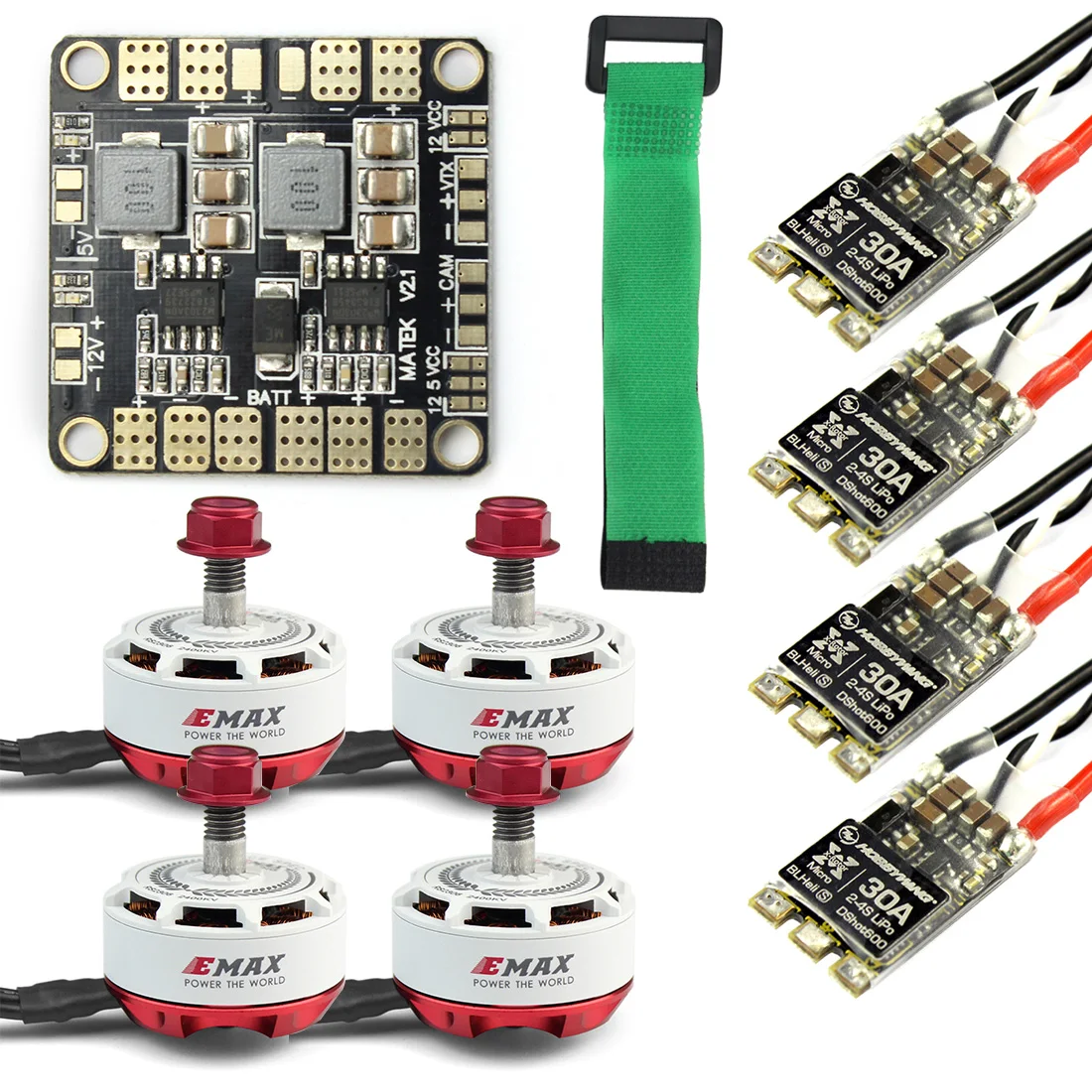

Package included:
4x EMAX RS2306-2400KV Motor
4x EMAX Mini ESC Dshot BLS Bullet 30A/HobbyWing XRotor Micro BLHeli-s 30A DShot600
1x Mini Power Distribution Board PDB with BEC 5V & 12V

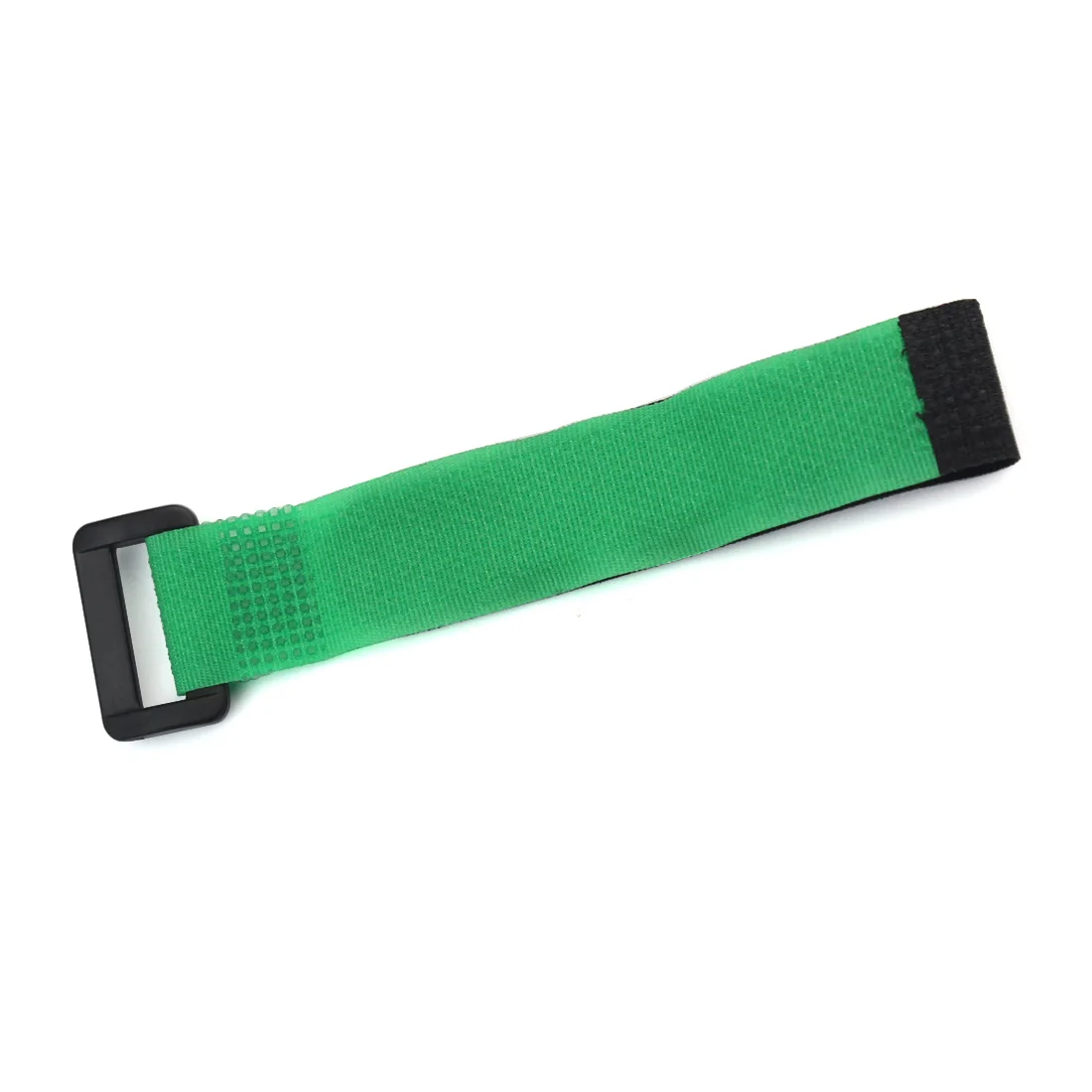

1x Magic Sticker belt strap
HobbyWing XRotor Micro BLHeli-s 30A ESC Support DShot600:
EMAX Mini ESC Dshot BLS Bullet 30A Speed Controller:

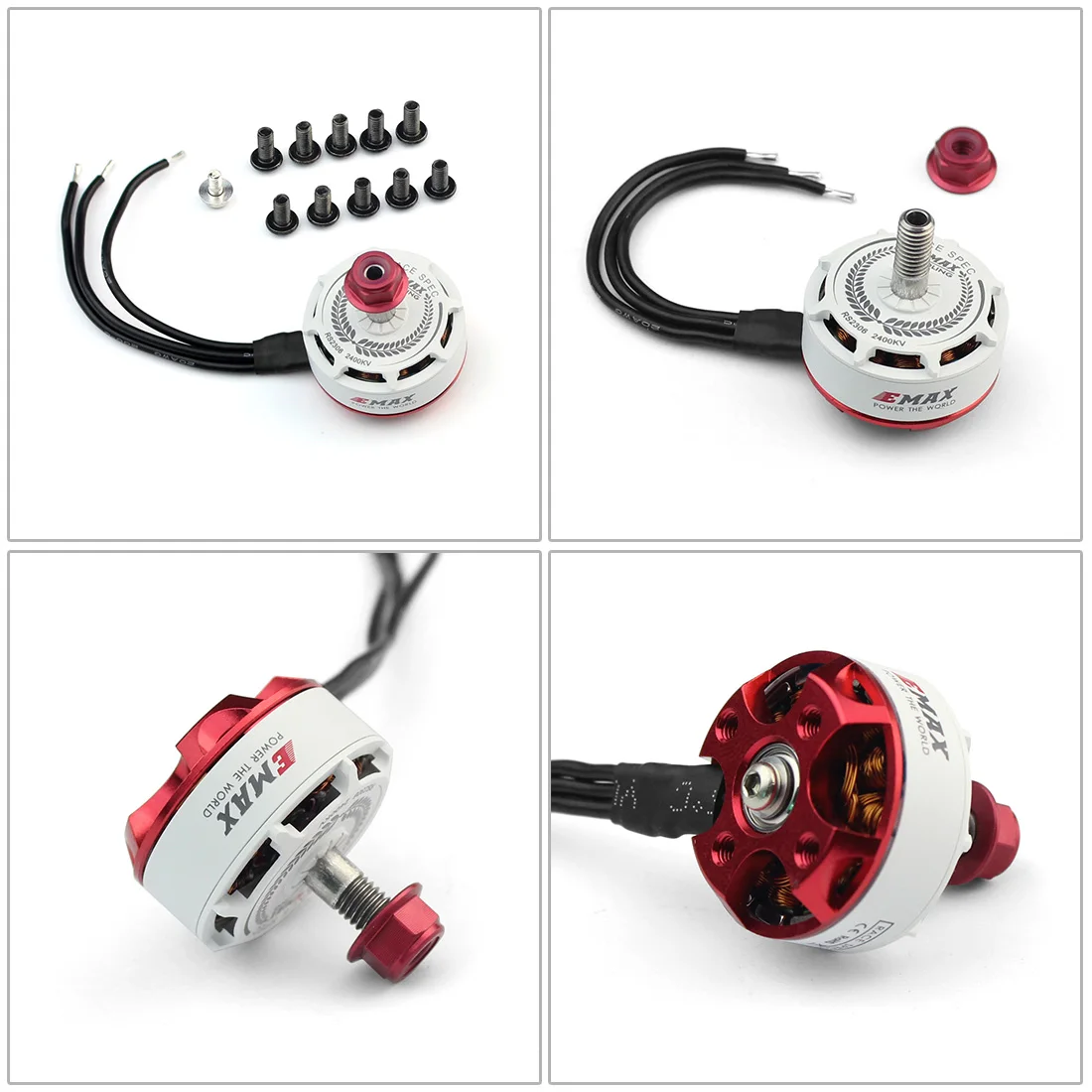

Motor:
Brand name: Emax
Item name: EMAX RS2306 2750KV /2400KV motor
KV: 2750 / 2400 options
No. of cells(Support Lipo): 3-5S (11.1V-18.5V)
Propeller: 5 inches
Cool white + red bottom

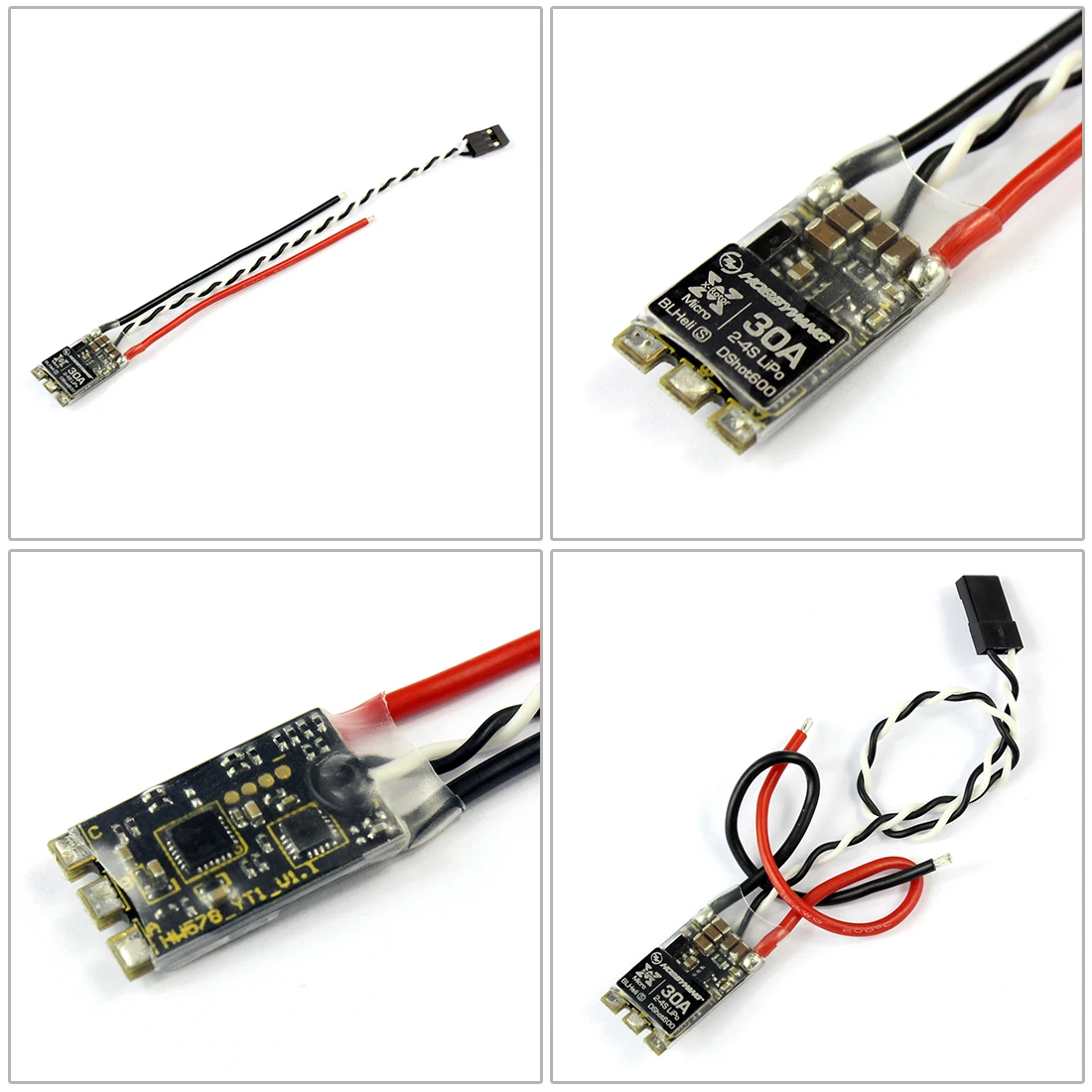

HobbyWing ESC:
Item Name : XRotor BLHeli-S-Dshot600 30A
Con/Peak .Current : 30A /40A (10S)
Support Volatge : 2-4S
Firmware : BLHeli-S A-H-50 16.5 Version
Programming : Remote Control , BLHeliSuite
Support Signal : PWM ,Oneshot125, Oneshot42, Multishot
Size: 23.8*14.5*5.8mm(Exclude Wire)
Weight : 6g ( Exclude Wire )
EAMX ESC:
Item Name : New EAMX FPV Dshot Bullet ESC
Suit for : 130 RC FPV Racer Drone Multicopter
BEC:NO
MCU: EFM8BB2
Firmware : BLHeli_S
Support : MultiShot ,Oneshot42,OneShot125
Features:
1. super-mini, ultra-light ESC.
2.BLHeli-S firmware (16.5)/ Supports DSHOT, MULTISHOT, ONESHOT42, ONESHOT125.
3.New heat sink design both effectively reduces the core temperature, and avoids propeller strike damage
4.Top quality MOSFET, ceramic capacitors. 3oz high TG PCB board, significantly improves heat dissipation and improves system efficiency.
Note:
After welding the ESC with Motor, Please do not directly contact with the frame carbon plate, it will cause short-circuit burned and it is no warranty.

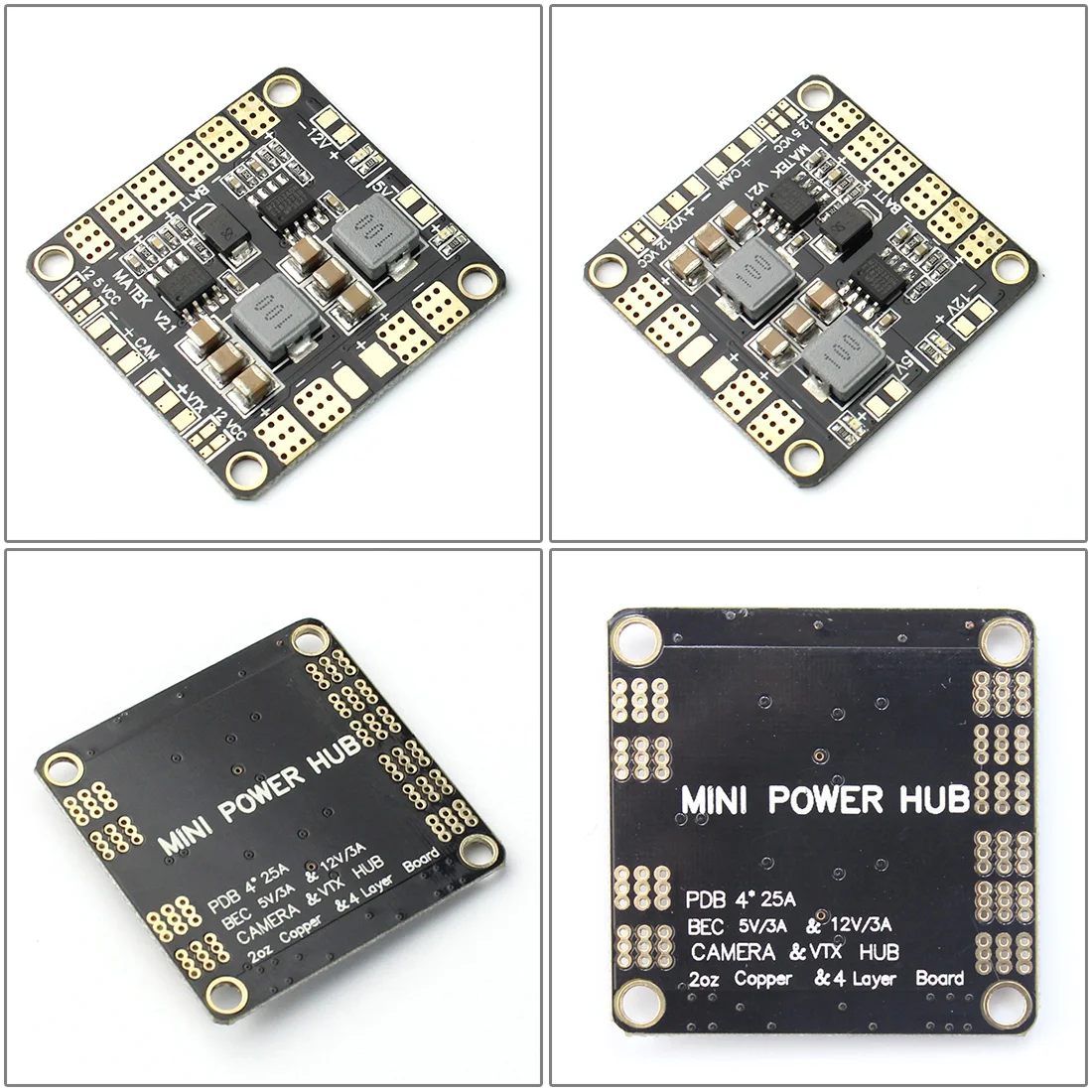

Mini Power Distribution Board:
- 2oz copper & 4-layers PCB.
- ESC & Battery solder tabs in pairs
- Solder Bridges of various voltage for Camera & VTX.
- DC/DC synchronous buck regulator, Efficiency is up to 95%.
- TVS(Transient Voltage Suppressor) protection for DC/DC chip.
- 5V & 12V Output LED indicators & Short circuit tolerant
