RC HexaCopter Aircraft Electronic:700KV Brushless Motor 30A ESC BEC 1555 Propeller GPS APM2.8 Flight Control
Three-hole High Quality Carbon Fiber 15x5.5 1555 Propeller :
Adopts the high quality 100% 3K all carbon fiber board which imported from Japan improve material. Each pair of propellers has perfect dynamic poise and static balancing which balance by manpower. Especially improves the air-powered efficiency and aerofoil stability
High quality ultra-light carbon fiber propellers especially designed for multicopters
Carbon fiber forward propeller---1555*1
Carbon fiber reverse propeller---1555*1
Length:15 inch,Pitch 5.5,Main Hole Dia 4mm,Side Holes Dia 3mm,Center distance 12mm
GPS Features:
- Built-in compass GPS module
- Main chip: 6M
- With fast satellite searching speed and high precision
- Compatible with APM serial port and I2C port
- Includes round plastic shell
- Pre-configured, Flashed with the correct settings, and tested
- Super Bright LED,BlackPlane with Standard Mk style mounting holes 45mm X 45mm
- Cable included
- With L5883 compass Cable length in 25CM
- Dimensions: 53.5*53.5*15.5
- Weight: 30g
- Quantity:1 Piece
Description:
C/A code,1.023MHz
Receiver Frequency:L1 [1575.42MHz]
Locate performance
2D :3m(Average)
2D:2m(average),with WAAS
drifting<0.02m>
accuracy:1us
coordinate system:WGS84
max attitude height:18000
Max speed:515m/s
Specification:
tracking sensitivity:161dBm
Capture sensitivity:148dBm
cold start time:38s average
Warm start time:35s average
hot start time:1s average
Capture time:0.1s Average
Temperature:40 centi grade to +80 centi grade
wide power supply voltage:+3.5V~+5.5V
Pictures in details:

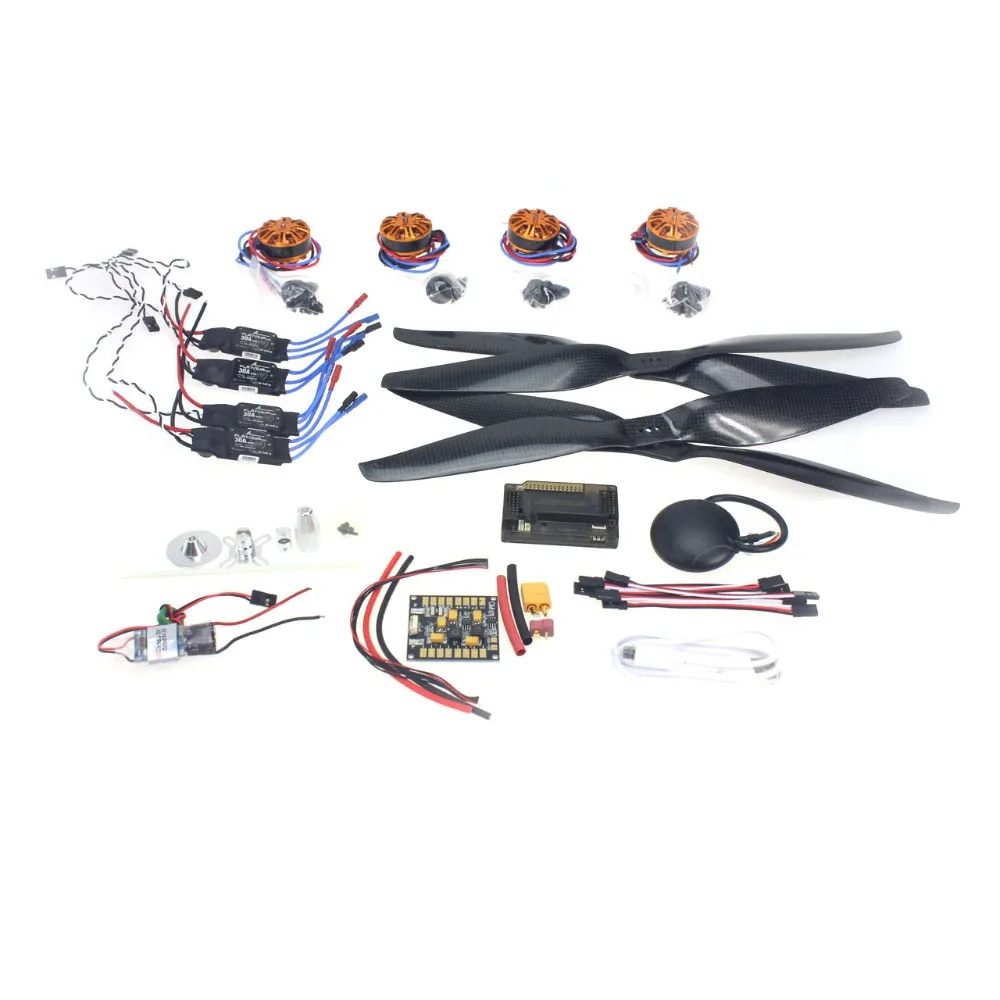

Package listing:
4* 3508 700KV 198W Disc Motor
4*30A ESC
2*1555 Carbon Fiber Propeller(pair)
1*6M GPS with Compass L5883 25cm Cable

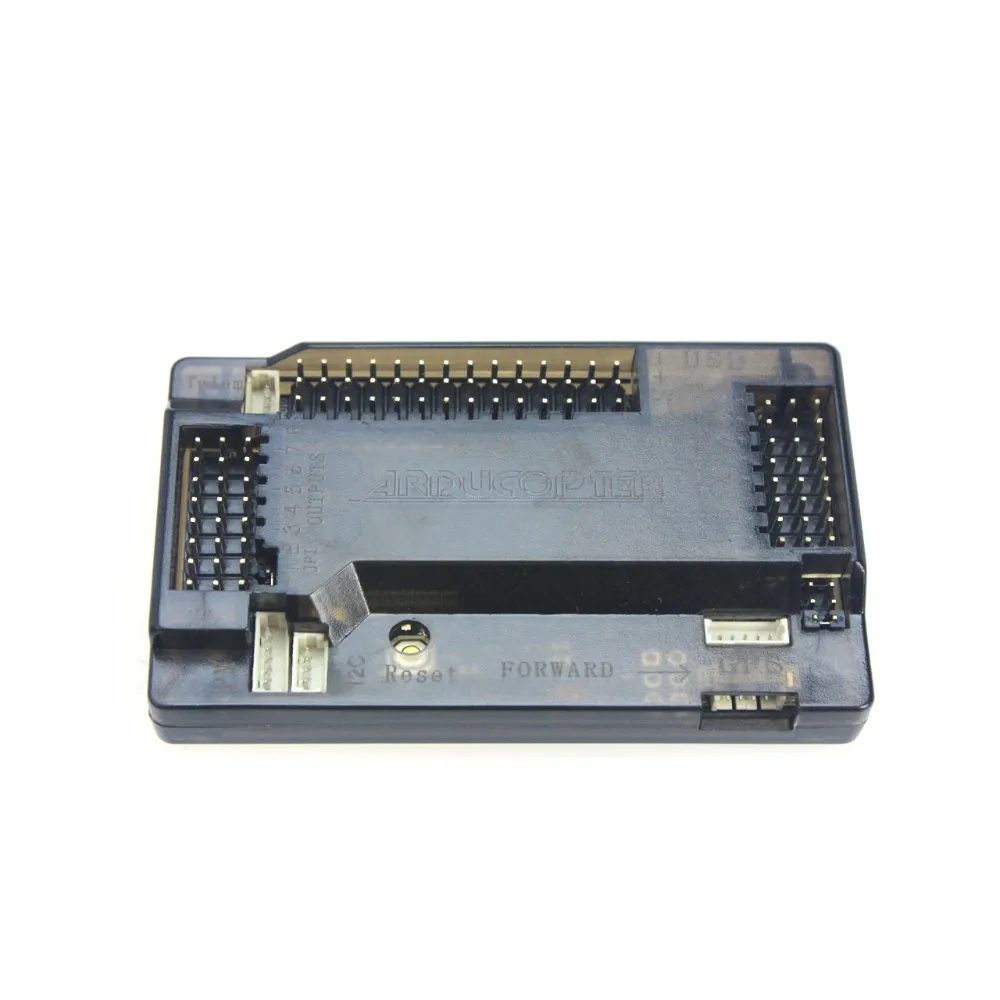

1*APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded Built-in Compass
1*Multifunction Power Distribution Board 5.3V BEC
5*10cm Servo Extension Lead Wire Cable
1*Universal GPS Folding Antenna Mount Holder Metal
1* USB data cable
1* 8S-5A 5A U-BEC UBEC
1*tool set
