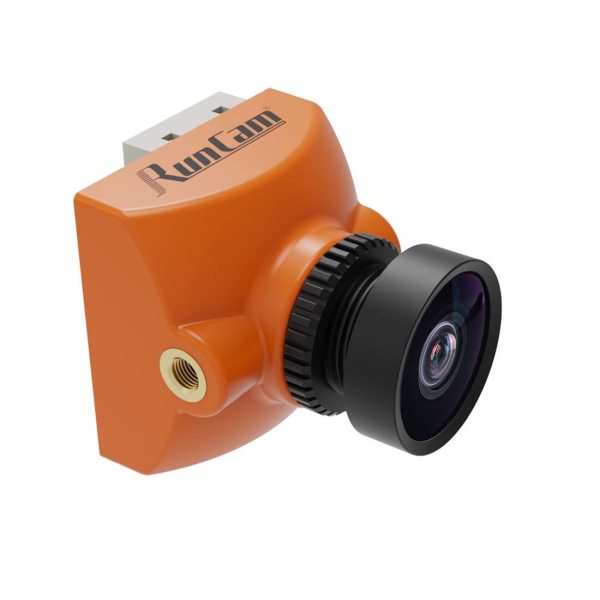

RunCam Racer 4 Super WDR CMOS Sensor 1000TVL 1280*720 1.8mm/2.1mm FOV160 5-36V FPV Camera for RC FPV Racing Freestyle Drones
Product name: RunCam Racer4
positioning:
Racing dedicated camera
Selling point:
1000TVL and 720P analog and digital compatible DJI FPV system cameras
1.8mm lens version FOV160
Features:
Super backlight, ultra-low latency, Micro size all-inclusive shell.
Detailed Chinese copywriting:
Cleaner picture quality, larger FOV, just for the ultimate racing.
Clearer picture quality | 160° larger FOV* | Super WDR | 6ms racing delay
*The FOV of the 1.8mm lens is 160°
Carefully adjusted, brand new picture quality.
Compared with the previous generation product, there is less interference and the picture is cleaner and fresher. At the same time, the colors are adjusted to be more natural and realistic.
160° FOV favored by professional players.
Our customized high-quality 1.8mm lens has a FOV of 160°, which is at least 10° higher than similar products on the market. A greater vision helps professional players to have a stronger record.
The display effect of FPV glasses is optimized.
We have specifically optimized the display effect of FPV glasses (especially OLED glasses), which makes the display effect of Racer 4 on the glasses significantly improved compared to the previous generation.
* The actual visual effects should be viewed and compared in a real environment. Due to the analog-to-digital conversion, DVR recording may vary greatly.
Super WDR, 6 milliseconds professional racing delay.
What you want is this extreme, professional players see it right away.
Fully enclosed shell, more sturdy and reliable.
Compared with other 19*19 micro-size cameras on the market, Racer 4 uses a fully enclosed shell design, which is more robust and reliable.
Switch scenes with one key, and it's hard to give up after use.
Racer 4 has 3 preset scene modes: personal, light track, and dark light. You can switch scenes with one key through the serial port (UART) or the tuning keypad.
* Please refer to the instruction manual for the usage method.
Connect the camera to the flight controller, insert the SpeedyBee Bluetooth module (the OTG cable is available for Android), open the SpeedyBee App, and you can update the firmware of the Racer 3*.
* Please refer to the instruction manual for the usage method.
More practical features.
1.8mm / 2.1mm lens options.
4:3 / 16:9 can be switched.
N system / P system can be switched.
The serial port adjustment/parameter adjustment board can be switched.

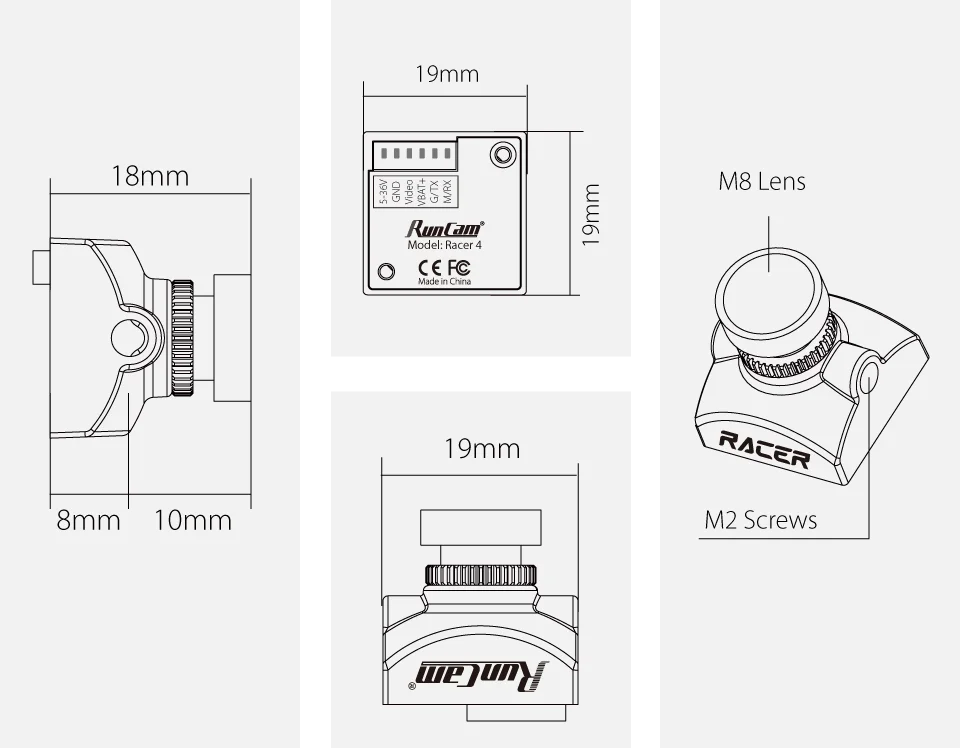

Dimensions
Parameters
|
Model
|
RunCam Racer 4
|
|
Image Sensor
|
Super WDR CMOS Sensor
|
|
Resolution
|
|
Analog : 1000TVL
|
Digital : 1280*720@60fps
|
|
|
Lens
|
1.8mm FOV160°
|
|
Shutter
|
Rolling Shutter
|
|
One Touch Scene Setting
|
Personal / Lightrax
|
|
Menu Control
|
Cable Control / Remote Control Switchable
|
|
Power
|
|
Analog : DC 5-36V
|
Digital : DC 3.3V
|
|
|
Current
|
|
Analog : 110mA@5V
|
Digital : 350mA@3.3V
|
|
|
Housing Material
|
ABS
|
|
Net Weight
|
6g
|
|
Dimensions
|
L19mm*W19mm*H20mm
|
