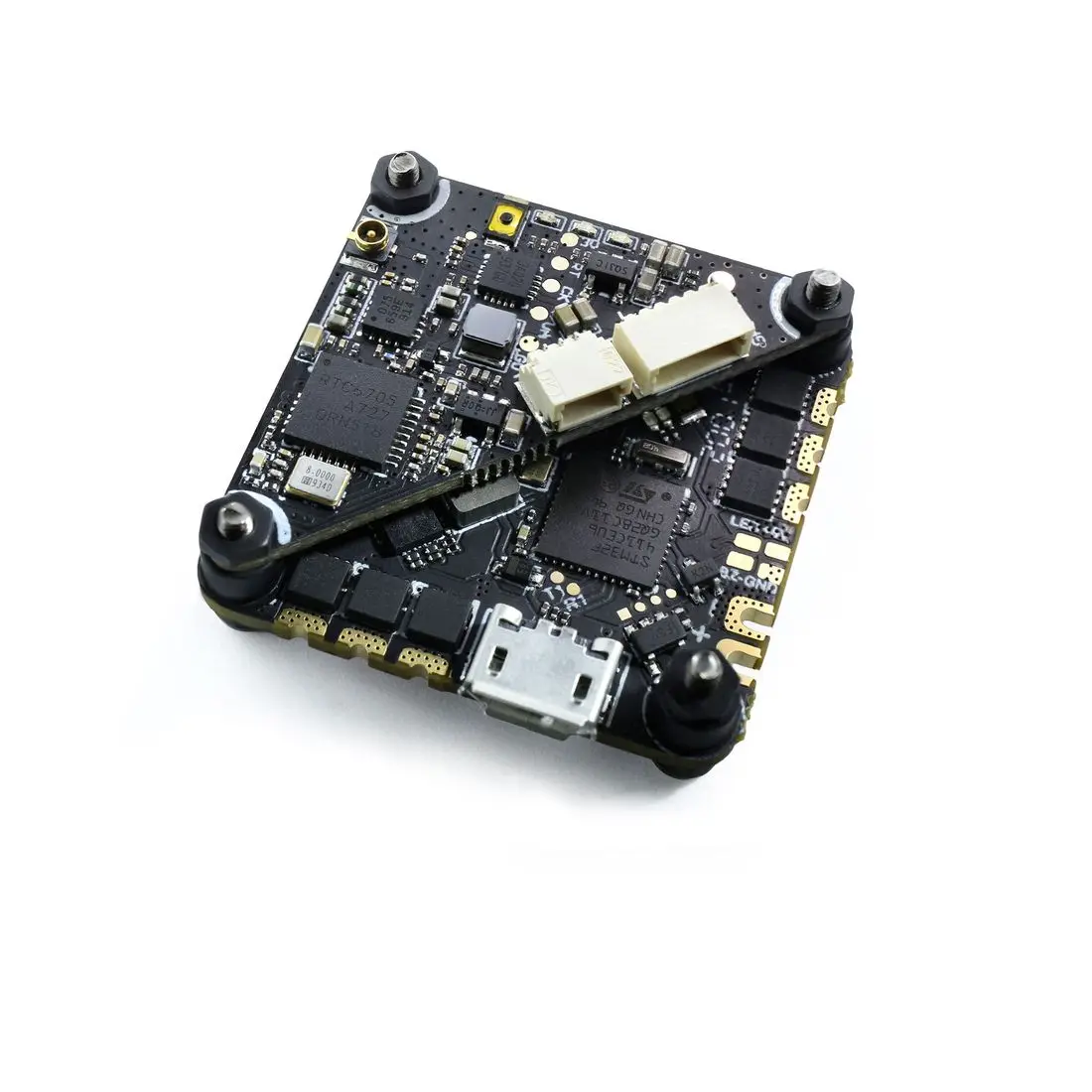

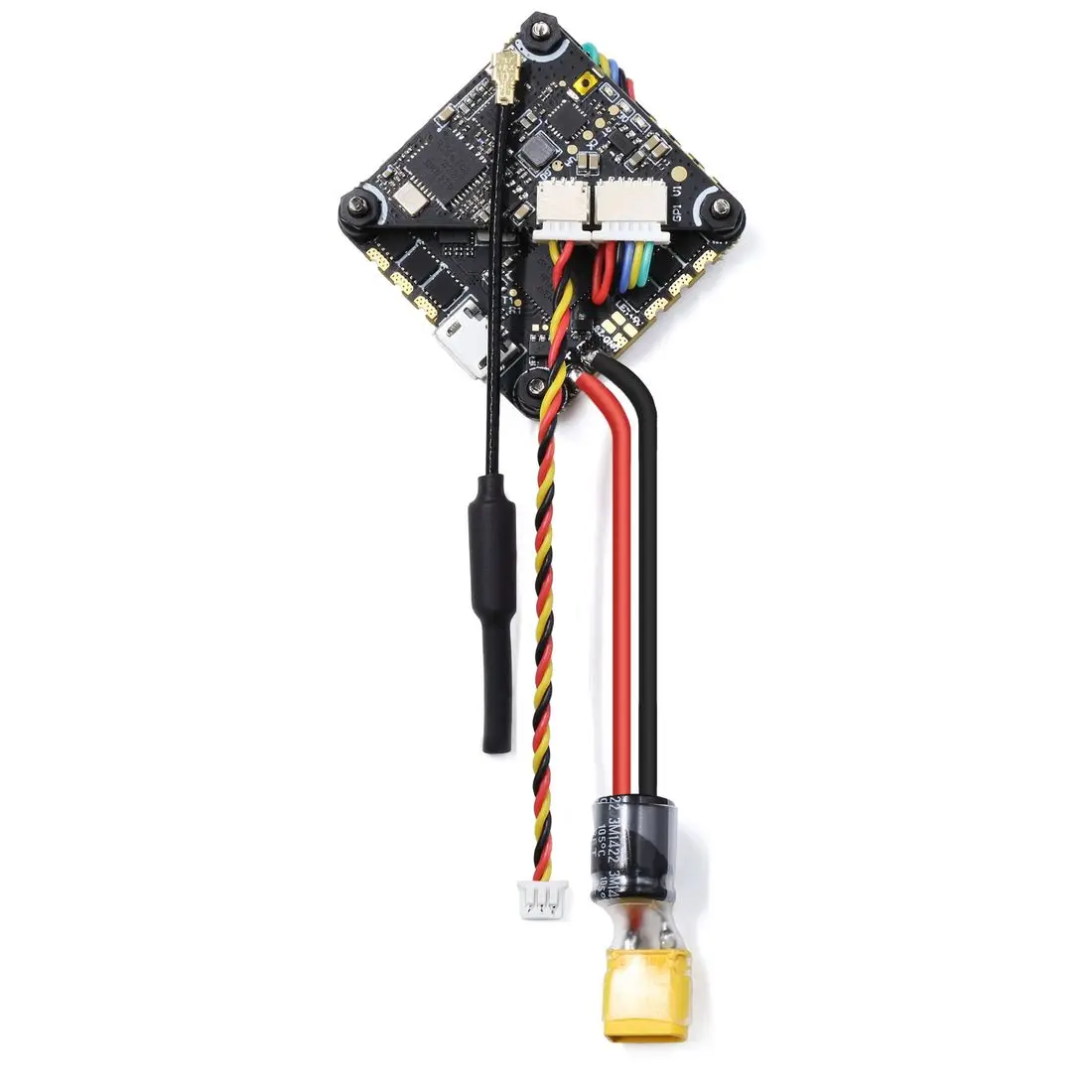

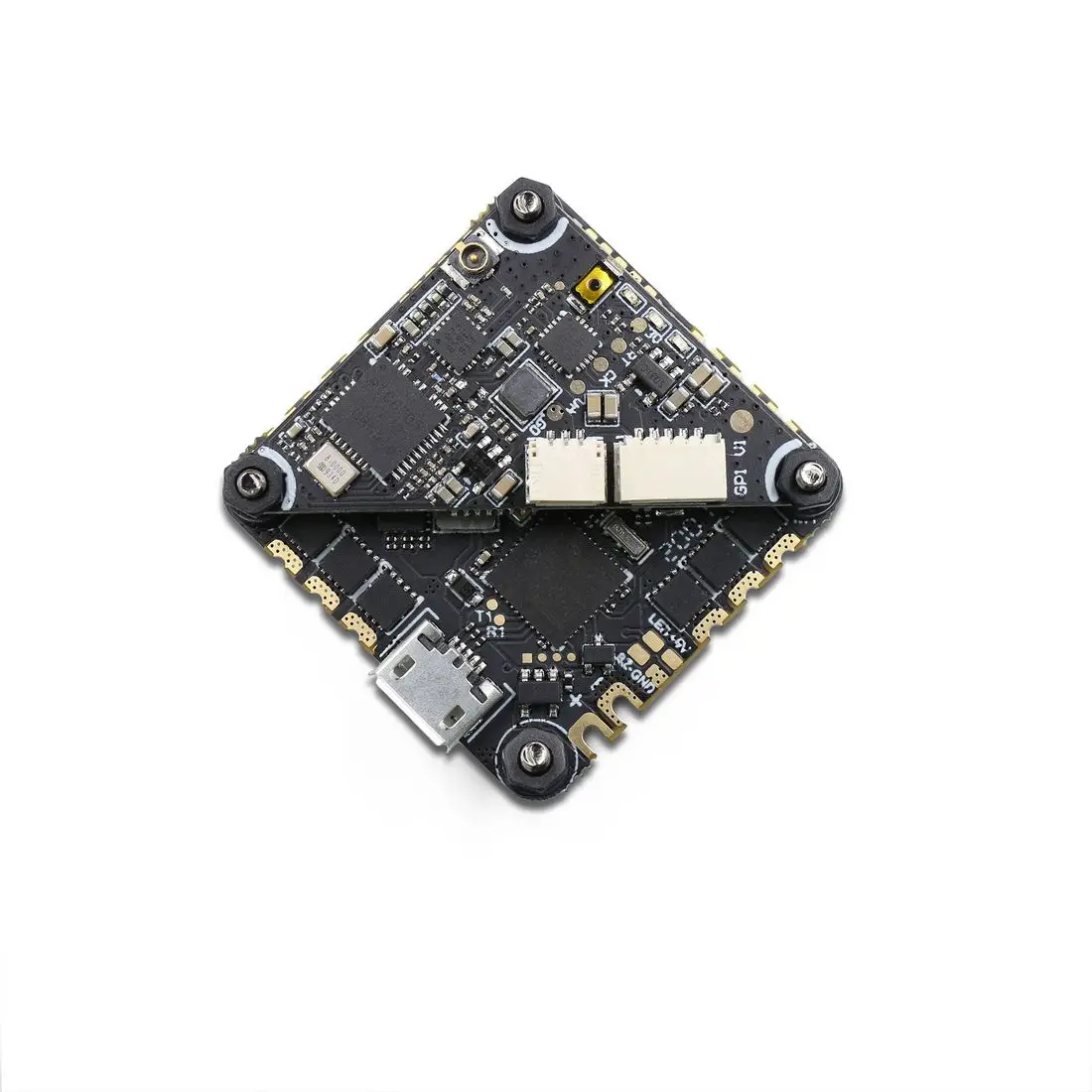

GEPRC STABLE 12A/20A Whoop Stack F4 Flight Control&BLhelis_s ESC OSD MPU6000 Gyro for RC FPV BWhoop Toothpick Quadcopter Drone
Summary:
A new high-performance AIO brushless FC, GEP-20A-F4 is added to the NEW members of the toothpick FPV Micro Quad’s
Compared with the previous 12A version of GEP-20A-F4, the new GEP-20A-F4 can achieve 20A continuous current and burst current can reach 30A. Supports up to 4S batteries. It is recommended to use 12XX-15xx motors with 3 “- 4” propeller. This GEP-20A-F4 has powerful flight performance, comes with OSD tuning, extremely light weight, allowing you to build a toothpick FPV Micro Quad’s with perfection performance.
Coupled with a 200mW map transmission specifically designed for Whoop classes and toothpick racks, it has stable signals, clean graphics, and light weight.Easy to use.

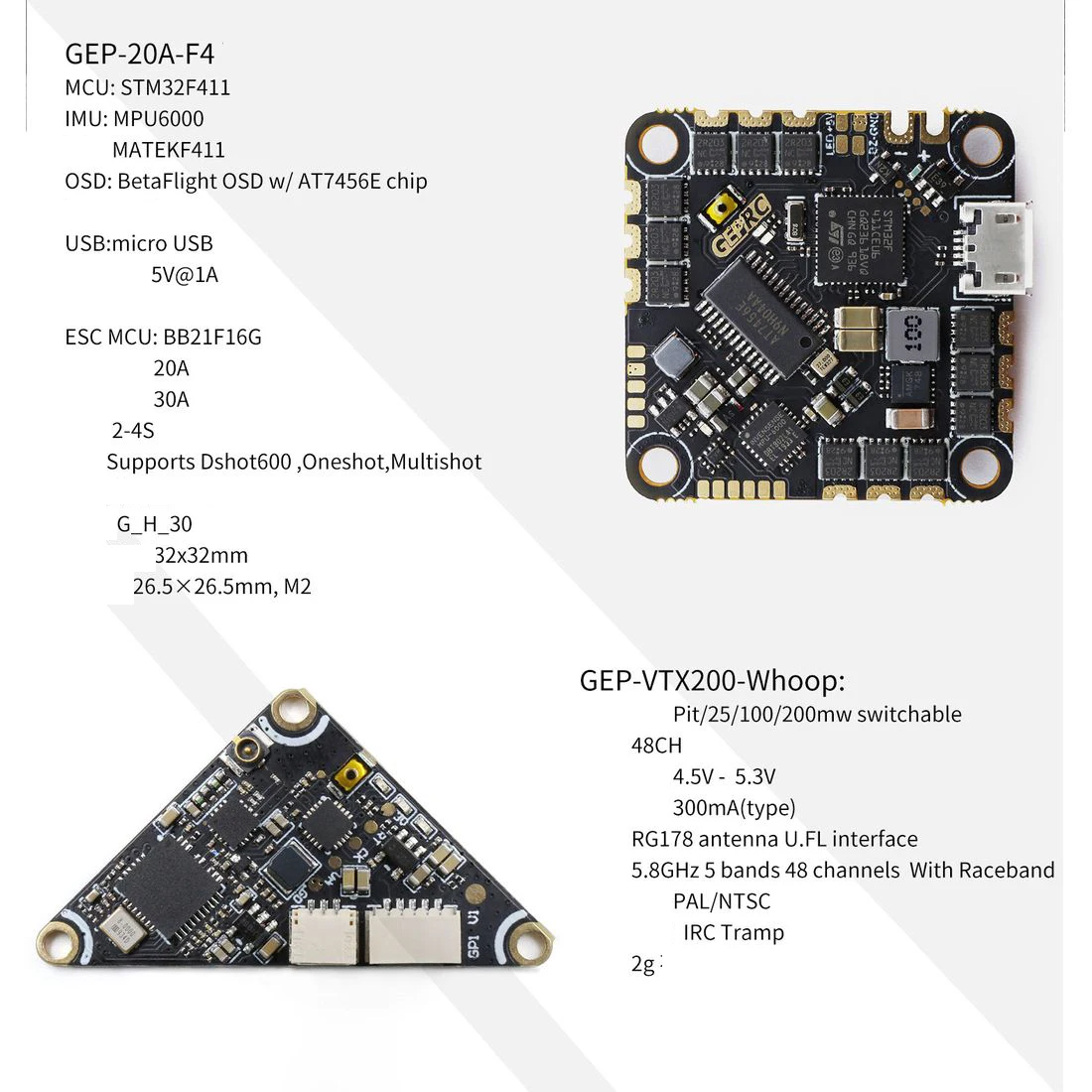

GEP-12A-F4 Flight contorller:
Model Name:GEP-12A-F4
MCU: STM32F411
IMU: MPU6000 gyro/accelerometer (SPI)
OSD: BetaFlight OSD w/ AT7456E chip
Baro:NO
BEC Output: 5V@1A
Integrated LC Filter
Firmware target: GEPRCF411
Installing Hole: 25.5×25.5mm, M2
ESC MCU: BB21F16G
Continuous current: 12A/20A（Optional）
Input:2-4s lipo
Supports Dshot600 ,Oneshot,Multishot
Current meter: 210
Target: G_H_30
12A Size: 28.5×28.5mm board,25.5mm mounting holes (M2)
20A Size: 32×32mm board,25.5mm mounting holes (M2)
VTX Specifications:
Model Name:GEP-VTX200-Whoop
Item name: 25~200mw 48CH VTX FPV Transmitter
Output power: Pit/25/100/200mw switchable
Channels: 48CH
Input voltage: 4.5V–5.3V
Current consumption: 300mA(type)
Antenna: RG178 antenna U.FL interface
Frequency: 5.8GHz 5bands 48 channels With Raceband
Video Format:PAL/NTSC
Control protocol：IRC Tramp
Weight: 2g without antenna
Receiver Support:
Frsky XM/XM+/R-XSR
Futaba Receiver
DSM/DSMX
FlySky Receive
TBS Crossfire Receiver
AC900
Most receivers that support SBUS

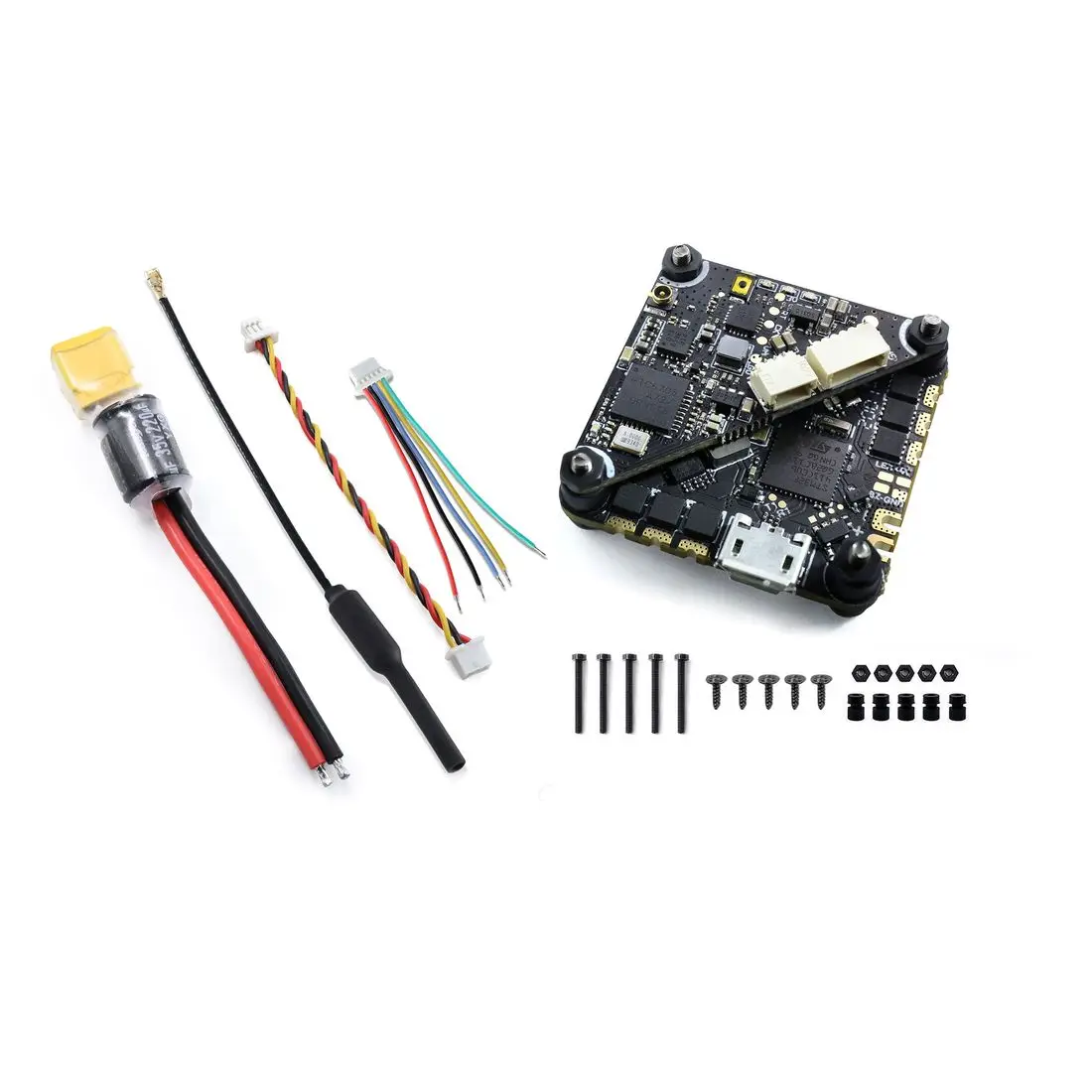

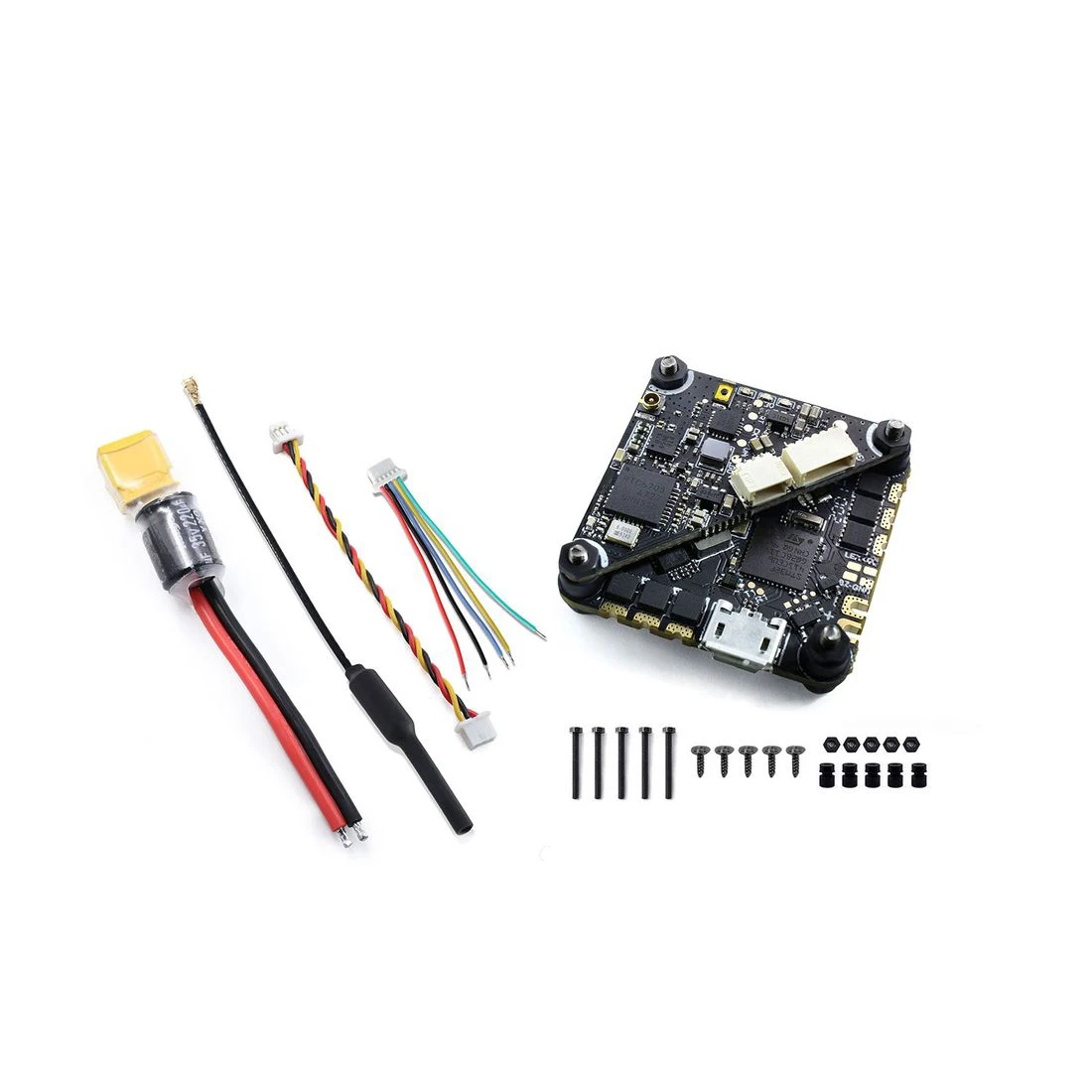

Include：
– 1 x GEP-12A-F4 or GEP-20A-F4（Optional）
– 1 x GEP-VTX200-Whoop
– 1 x Power cable
– 8 x screw
– 4 x Soft silicone
