FEICHAO Toothpick F4 2-4S AIO Brushless Flight Controller BLHELI_S 12A ESC No RX OSD Smart Audio for Toothpick FPV Racing Drone Item NO.: F34348/F34349

Write a Review

US$ 44.99

Color:
Pre-soldered	US$ 44.99	Stock(999)	- +
Not Pre-soldered	US$ 44.99	Stock(996)	- +

Quantity: 0 , Subtotal 0

Product Name	FEICHAO Toothpick F4 2-4S AIO Brushless Flight Controller BLHELI_S 12A ESC No RX OSD Smart Audio for Toothpick FPV Racing Drone
Item NO.	F34348/F34349

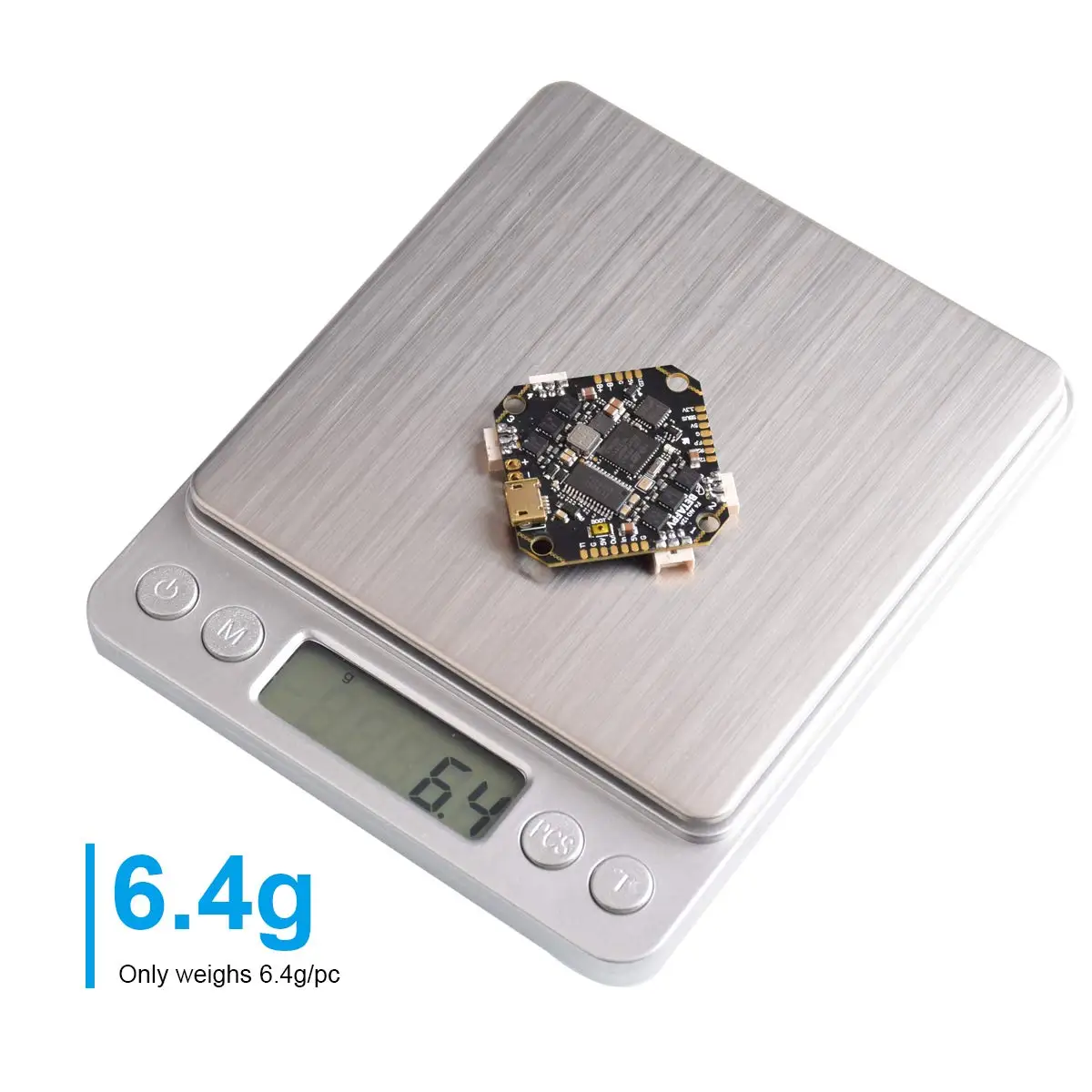

Weight	0.052 kg = 0.1146 lb = 1.8342 oz
Category	FPV Drone and Part > RC Parts
Brand	FEICHAO
Creation Time	2020-10-14

SPECIFICATIONS OF ESC
Support BLheli/BLHELI_S suite Pass-through ready
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 2S-4S Lipo
Continue current: 12A
Peak current: 15A
Firmware: BLHELI_S
Processor: SILABS EFM8BB21F16G-C
Motor Connectors: 1.25mm header pins connector
Factory firmware: G-H-30-16.7

Recommend Parts
Motors:
2S: 1103 11000KV Motor
3S: 1103 8000KV Motor
1105 6000KV Motor
4S: 1105 5000KV Motor
Battery:
3S: 300mAh 3S Battery
450mAh 3S
4S: 450mAh 4S Battery
Frame:
HX100 Frame

Package:

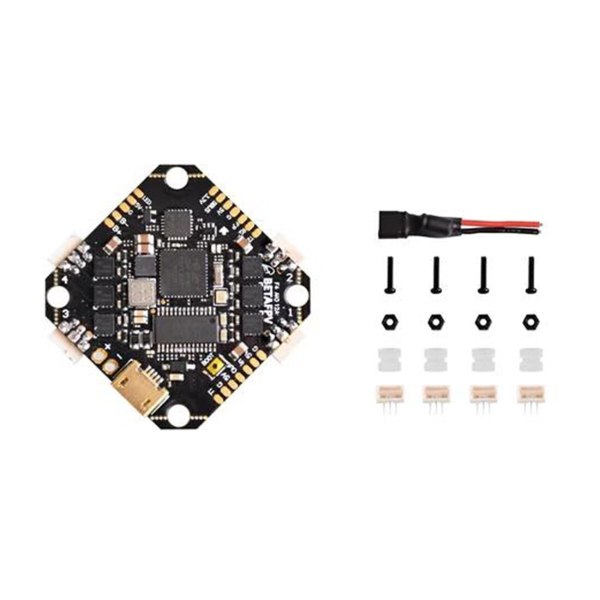

1 * F4 2-4S AIO 12A Toothpick Brushless FC with motor pluggable pins
4 * M1.2x4mm screws
4 * M1.4x5mm screws
4 * Anti-vibration rubber dampers
