VMR40 5.8G 40Ch Wireless FPV System Video Rx Reciever with Antenna OTG Connect Smartphone Tablet PC for Racing Quadcopter
Note: Product do not include the cellphone or tablet PC, Only the receiver set.
Connection definition:
MiniUSB Cable Connector:
Function keys / Interface Introduction:
Interface definition
Features:
Compatible with most of 5.8G transmitter
Rugged, conducive to heat, anti-interference ability
Integrated OLED 128x32 display, can display the current channel, signal strength, and USB voltage
Supports three ways:OTG connected Android phone or tablet,OTG connected computer,Connected AV display
note:
1. Some mobile devices will be insufficient supply voltage, as well as the case of software, blank screen.
This will have a certain compatibility, if it can not be compatible, use other replaceable compatible mobile devices.
2. When working the temperature will be high, it is a normal phenomenon. Because the video accepting
and processing is high-frequency, high-power devices, would produce a certain temperature.
3 Kinds of Display Devices:
OTG to Android Phones, USB to PC, AV Displayer
Application Methods:

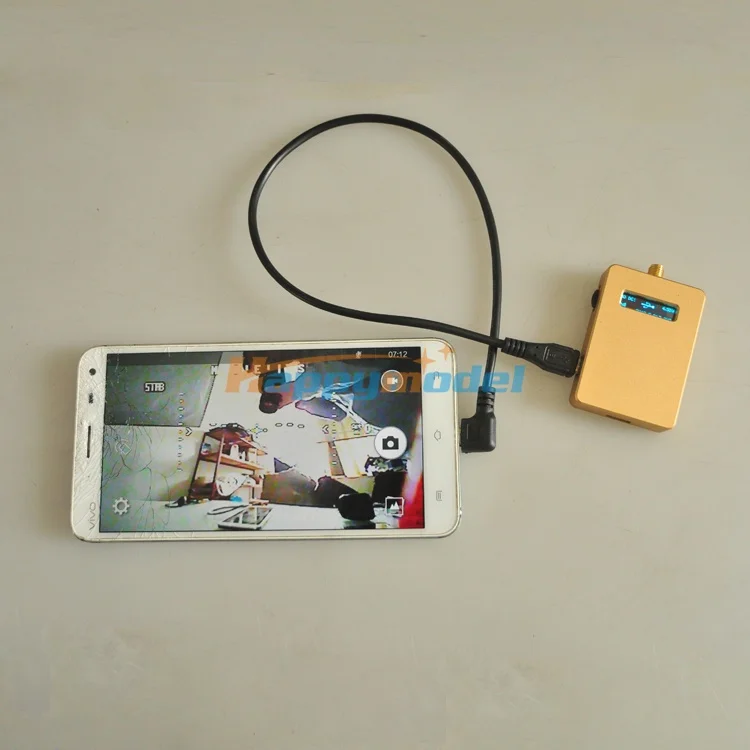

For Android Smartphone
1.Install a VI software on your Android Smartphone
2.Connect to VMR40 Receiver Directly with OTG cable (no need external power supply)
3.Power on, search frequency on your VMR40 receiver
For PC
1.Connect to PC with USB cable
2.Turn on AMCP camera or MP ground station
3.Power on, search frequency on your VMR40 receiver

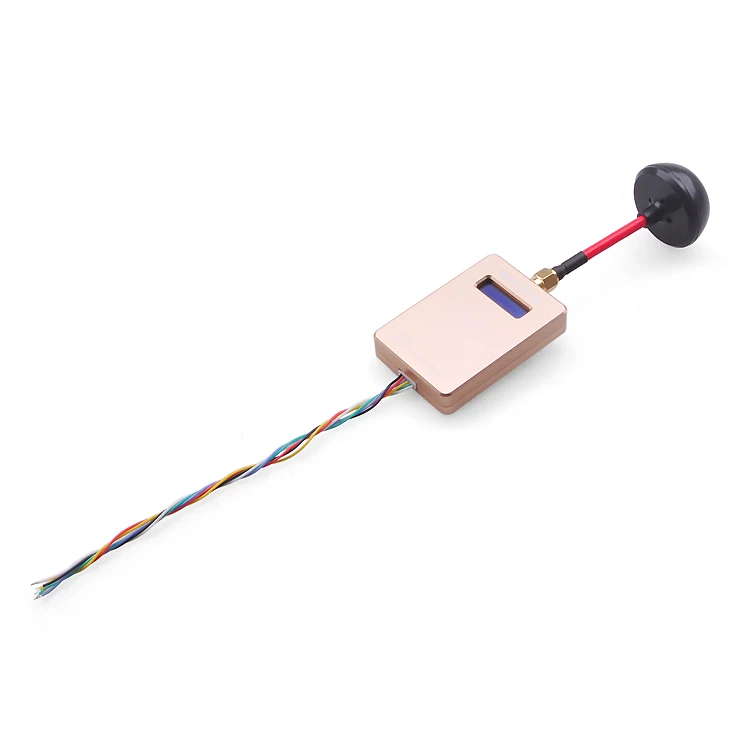

For AV Displayer
1.Weld the data lines yourself, and connect to corresponding AV connectors (2-3S power supply for receiver)
2.Search frequency on your VMR40 receiver, while the transmitter is at work.
VMR40 Android phone APP application download: //pan.baidu.com/s/1bRh9WM
Specifications:
- Type:FM
- Resolution: 640*480 30FPS
- Work voltage: 8V~13V DC
- Work current: USB 5V 250mA
- Channel:40
- Dimension: 23*25*7.7mm
- Color: Gold
- Working temperature: -10° to 65°
- Weight: 56g (with Mushroom Antenna)
- With OLED 128*32 monitor
- Resolution: 640 * 480 30FPS
- Working temperature: -10 ~ + 65 °
- Working current: USB 5V 250mA
- Environment: open, without shelter, without interference
Package included:
- VMR40 Receiver
- Mushroom Antenna
- Mini USB cable (connect VMR40 and Android phone)
(Kinldy note that the phone and other spare parts in pictures are not included in the package)
