Many kinds of receiver , pls check carefully befeore purcahse .
If any confuse , just contact us freely .
Thank you !
X8B Receiver Specification:
Channels: 8
Model Type: Multi Rotor
Data Output: PPM/i-Bus
Frequency Range: 2.408-2.475GHz
Brandwidth: 500KHz
Number of Bands: 135
Transmission Power: <20dBm
Receiver Sensitivity: -92dBm
2.4GHz Protocol: AFHDS 2A
Modulation: GFSK
Low voltge alarm: None
Chargeable: None
Antenna length: 93mm
Input Power: 4.0-8.4V
Online Update: None
No ground interference(Transmitting and receiving 1m from the ground): >300m
Operating current: 50mA
Dimensions: 32x22.5x7.5mm
Weight: 3.7g
Certification: CE , FCC
FS-GR4 Receiver Specification:
Brand Name: Flysky
100% Brand New
Channels: 4 Channels
Model type: car/boat
RF Receiver Sensitivity:<20dBm(EU)
2.4G Mode:AFHDS 3
Modulation:Lora
Frequency: 2.402-2.481 GHZ
Input Power:3.5V-18V
Weight:15g
Color:black
Size:46*28*22mm
Certificate: CE,FCC ID:N4ZFGR400
Compatible Transmitter: Compatible with FS-NB4+FS-TR4 FS-FG4 Transmitter
FS-CVT01 Specification:
Acquisition voltage range: -100 ~ 100V DC
Accuracy: 0.1V DC
Input Power: 9mA (TYPE)
Number of series: 15 (MAX)
Weight: 6.0 g
Input Power: 4.0-6.5V DC
Dimensions: 31 * 15 * 8.5 mm
Color: Black
Detection of anti-anti-function terminal: Yes (reverse will show a negative value)
Suitable models: car / boat / aircraft
Adaptation receiver: iA6B (directly), iA10 (need to use conversion line, within the module package contains C header)
RX2A Specification:
Item name: FS-RX2A receiver
Channel: 10(IBUS), 8(PPM)
RF Range: 2.408-2.475GHZ
Number of bands: 135
RX Sensitivity: -92dBm
2.4GHz protocol: AFHDS 2A
Signal output: IBUS, PPM
Antenne length: 33mm
Power input: 3.3-5V
Control distance: 400m+
Current: 30MA
Size: 12*15mm
Weight: 1g
Compitable Transmitter: All AFHDS 2A Transmitter, for example FS-I6,FS-I6X,FS-I6S,FS-TM8,FS-TM10,FS-I10.
Note: Failsafe only work on IBUS, not in PPM.
GT3E RX Specifications:
Size: 37.6 x 22 x 13mm
Batteries Power:5V DC (1.5AAA x 4) (not included)
Features:Channels: 3 Channels
Frequency:2.4G
Model type: car/boat
RF receiver sensitivity: -105dbm
Modulation: GFSK
System type: AFHDS
Sensitivity: 1024
Power: 4-11V DC;
Failsafe: Yes (channel 2)
Bind port: Yes (channel 3)
Power port: Yes Specifications:
Size: 37.6 x 22 x 13mm
Batteries Power:5V DC (1.5AAA x 4) (not included)
Features:Channels: 3 Channels
Frequency:2.4G
Model type: car/boat
RF receiver sensitivity: -105dbm
Modulation: GFSK
System type: AFHDS
Sensitivity: 1024
Power: 4-11V DC;
Failsafe: Yes (channel 2)
Bind port: Yes (channel 3)
Power port: Yes (VCC)
ANT length: 26mm
Package Include:
1x FS-GR3E Receiver
1x Black Attenna Tube
(VCC)
ANT length: 26mm
Package Include:
1x FS-GR3E Receiver
1x Black Attenna Tube
R9B Receiver Specifications:
Channels: 8 Channels
Model type: glid/helicopter/airplane
RF range: 2.40-2.48GHz
Bandwidth: 500Hz
Band: 160
Receiving sensitivity:-105DBM
2.4G system: AFHDS
Code type: GFSK
Sensitivity: 1024
Input Power:4.5-6.5V DC
Ant Length: 26mm
Weight: 11.3g
Size: 42.7 x 27 x 15mm
Color: Grey transparent
Certificate:CE, FCC
R6B Receiver Specification:
(1) channel : 6 channel;
(2) high frequency pattern: GFSK;
(3) high frequency modulation system: PPM/PCM;
(4) frequency: 2.4G;
(5) power source: 5V DC (1.5V AAA*4)
(6) weight: 25g
(7) antenna length: 26mm;
(8) size: 30*25*8mm;
(9) color: Black;
(10) authentication: CE, FCC, RoHS;
iA4B Receiver Specification:
Channels: 4
Model type: car/boat
RF range: 2.4055-2.475GHz
Band: 140
RX Sensitivity: -105 dBm
2.4G system: AFHDS2
Code type: GFSK
Power: 4.0-6.5V
Weight: 10g
ANT length: 26mm
Size: 35.4*29.6*13mm
Color: black
Certificate: CE, FCC
AS-Bus PORT: yes
Data Acquisition port: yes
iA6 Receiver Specifications:
Channels: 6 Channels
Model type: Airplane / Glider / Helicopter
Frequency range: 2.4--2.48GHZ
Band width number: 160
Transmitting power: not moer than 20dBm
RF receiver sensitivity: -105dbm
2.4G modes: automatic frequency second generation digital systems
Encoding: GFSK
Antenna length: 26mm
Input power: 4.0-6.5V DC
Dimension: 40 * 21 * 7mm
Weight: 6.4g
Color: Black
i-Bus interface: No
Data acquisition interface: None
iA6B Receiver Specifications:
Channels: 6 Channels
Compatible Flysky i4 i6 i10 transmitter.
Model type: Airplane / Glider / Helicopter
Frequency range: 2.4--2.48GHZ
Band width number: 140
Transmitting power: not moer than 20dBm
RF receiver sensitivity: -105dbm
2.4G mode: the second generation of an enhanced version of the automatic FM digital system
Encoding: GFSK
Antenna length: 26mm * 2 (dual antenna)
Input power: 4.0-6.5V DC
Dimension: 47 * 26.2 * 15mm
Weight: 14.9g
Color: Black
i-Bus interface: Yes
Data acquisition interface: Yes
X6B Receiver Specifications:
Item: X6B i-BUS 2.4GHz 6CH Receiver
Channels: 6(PWM), 8(PPM), 18(i-BUS)
Model Type: Multi-Totor
RF Range: 2.408-2.475 GHz
Brand Wigth: 500KHz
RF Power: No more than 20 dBm
RX Sensitivity: -95dBm
2.4GHz protocol: AFHDS 2A
Modulation Type: GFSK
Stick resolution: 1024
Low voltage alarm: Yes
DSC port: PPM/PWM/i-BUS
Antenna Length: 93mm (Dual Antenna)
Power input: 4.0-8.4V
On-line Update: Yes(Wireless)
Range: >300m
Weight: 4.5g
Size: 36*22*7.5mm
i-BUS Port: Yes
Certificate: CE0678, FCC ID: N4ZX6B00
Compitable Transmitter: All AFHDS 2A Transmitter, for example FS-i10, FS-TM8, FS-i6,FS-i6S, FS-TM10
IA10B Receiver Specification:
Number of Channels: 10
Suitable models: Airplane / glider / helicopter Health
Frequency range :2.4-2 .48 GHz
Number of newspapers: 160
Transmitting power: not more than 20dBm
Receiver sensitivity:-105dBm
2.4G modes: automatic frequency second generation digital system
Encoding: GFSK
Antenna length: 26 mm * 2 (dual antenna)
Weight: 19.3 g
Input power :4.0-6 .5 V DC
Dimensions: 47 * 33.1 * 14.7 mm
Color: Black
Certification: CE0678, FCC
i-BUS Interface: Yes
Data acquisition interface: Yes
A6 Receiver Specifications:
Channels: 6
Compatible Transmitter: For i4 i6 i10 GT2E GT2F GT2G
Model Type: Fixed-Wing/Glider/ Helicopter
RF Range: 2.4055-2.475GHz
RF Channel: 140
RF Receiver Sensitivity: -105dBm
Bandwidth: 500KHz
Modulation Type: GFSK
Power: 4.0-6.5V DC
Antenna Length: 26mm
Color: Grey (Transparent)
Size: 45*22*13mm(not including cable length)
Cable length: 180mm

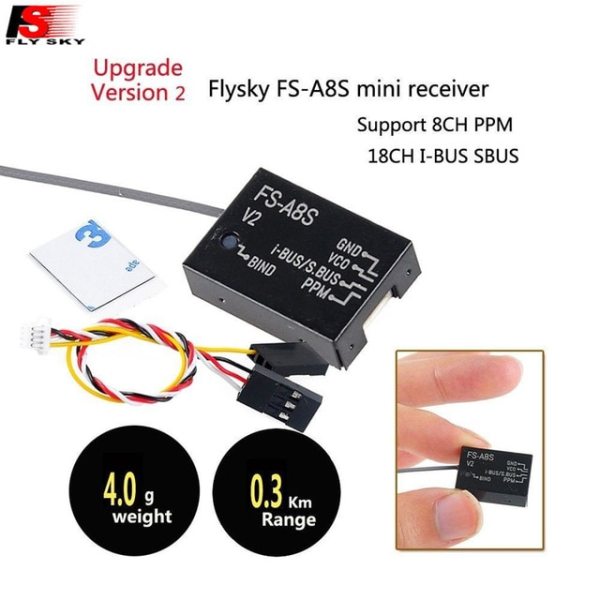

A8S Receiver Specifications:
1.Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F
2. Item Name: FS-A8S Receiver
3. Channels: PPM 8CH, i-BUS 18CH
4. Model Type: Multi-rotor
5. Frequency Range: 2.408-2.475GHz
6. Band Width: 500KHz
7. Band Number: 135
8. RX Sensitivity: -92 dBm
9. 2.4GHz System: AFHDS 2A
10. Modulation Type: GFSK
11. DSC Port: PPM/i-BUS/S.BUS
12. Antenna Length: 26mm (Not including brass contacts)
13. Input Power Supply: 4.0-8.4V
14. No Ground Interference ( Transmitting and receiving 1 m from the ground): >300m
15. Working Current: 40mA
16. Channel Delay: <15mS
17. Certificate: CE0678, FCCID: N45ZA8S00
18. Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F
19. Dimensions: (0.79 x 0.55 x 0.28)" / (2 x 1.4 x 0.7)cm (L x W x H)
20. Weight: 0.1oz / 2.9g
A8S Receiver Specifications:
1. Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F2. Item Name: FS-A8S Receiver
3. Channels: PPM 8CH, i-BUS 18CH
4. Model Type: Multi-rotor
5. Frequency Range: 2.408-2.475GHz
6. Band Width: 500KHz
7. Band Number: 135
8. RX Sensitivity: -92 dBm
9. 2.4GHz System: AFHDS 2A
10. Modulation Type: GFSK
11. DSC Port: PPM/i-BUS/S.BUS
12. Antenna Length: 26mm (Not including brass contacts)
13. Input Power Supply: 4.0-8.4V
14. No Ground Interference ( Transmitting and receiving 1 m from the ground): >300m
15. Working Current: 40mA
16. Channel Delay: <15mS
17. Certificate: CE0678, FCCID: N45ZA8S00
18. Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F
19. Dimensions: (0.79 x 0.55 x 0.28)" / (2 x 1.4 x 0.7)cm (L x W x H)
20. Weight: 0.1oz / 2.9g
A3 Receiver Receiver Specifications:
Features:
Reliable, interference-free 2.4 GHz signal 2A AFHDS operation.
Ultra lightweight design.
Easy to combine and link very quickly.
AFHDS2A3 channel receiver.
Compatible with Flysky GT2E GT2G GT2F transmitter.
Fast, very stable performance.
Product specifications:
Channel: 3 channels
Model Type: Car / Boat
Frequency range: 2.4055-2.475 GHz
Band width: B500KHz
Band width: 140
RF receiver sensitivity: -105dBm
Modulation: GFSK
Channel definition: 4096
Input power: 4.0-6.5 V DC
Antenna length: 26 mm
Weight: 6 grams
BS6 Receiver Features:
FS-BS6 Receiver
Item No.: FS-BS6
Channels: 6CH
RF Range: 2.408-2.475GHz
RF Channel: 135
RX Sensitivity: -92dBm
2.4GHz System: AFHDS 2A
Modulatione Type: GFSK
Power Input: 4.0-8.4V DC
Size: 30 x 21x 17mm
X14S Receiver Specifications:
Item Name: FS-X14S
Brand Name: Flysky
Channels: 14 Channels
RF standard: AFHDS 2A
Model type: Racing Drone
Display: LED indicator
Channel latency: ＜20ms
Date output: PPM/i-bus/S.BUS
Frequency: 2.4G
Power: 3.5-8.4V
Weight: 1.2g
Size: 22 * 12 * 5mm
