Home>FPV Drone and Part>RC Parts>Feichao Hammer RHCP 5.8G 5dBi SAM/RP-SAM/UFL/ANGLE/MMCX/STRAIGHT MMCX Super Mini Antenna For RC Drone

Feichao Hammer RHCP 5.8G 5dBi SAM/RP-SAM/UFL/ANGLE/MMCX/STRAIGHT MMCX Super Mini Antenna For RC Drone Item NO.: F27598/F27599/F27600/F27601/F27602/F27603/F27604

Write a Review

US$ 6.29

Color:
	US$ 7.34	Stock(499)	- +
	US$ 7.34	Stock(492)	- +
	US$ 7.34	Stock(499)	- +
	US$ 7.34	Stock(496)	- +
	US$ 7.34	Stock(490)	- +
	US$ 7.51	Stock(492)	- +
	US$ 6.29	Stock(486)	- +

Quantity: 0 , Subtotal 0

Product Name	Feichao Hammer RHCP 5.8G 5dBi SAM/RP-SAM/UFL/ANGLE/MMCX/STRAIGHT MMCX Super Mini Antenna For RC Drone
Item NO.	F27598/F27599/F27600/F27601/F27602/F27603/F27604
Weight	0.024 kg = 0.0529 lb = 0.8466 oz
Category	FPV Drone and Part > RC Parts
Brand	FEICHAO
Creation Time	2020-10-14

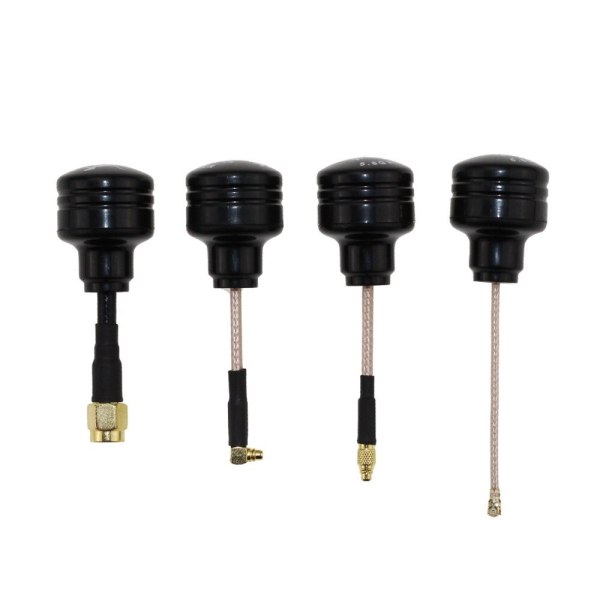

Feichao Hammer RHCP 5.8G 5dBi SAM/RP-SAM/UFL/ANGLE/MMCX/STRAIGHT MMCX Super Mini Antenna For RC Drone

Frequency range: 5.5-6.0 GHz
Bandwidth: 500MHZ
Gain: 5dBi
Standing wave ratio: <= 1.5
Axial Ratio: 0.74
Weight: 7 grams (excluding line)
Size: Diameter 21*28mm
Connector type: SMA, RP-SMA ipex mmcx
Current consumption: ≤10MA
Polarization: R.H.C.P
Power supply voltage: DC3.0-5.0v
Noise figure: ≤1.5db
Axis ratio: 3dbi
Maximum input power: 5W
Output: ≤1.8
Working temperature: -40～+85°C
Storage temperature: -40 to +85 ° C
