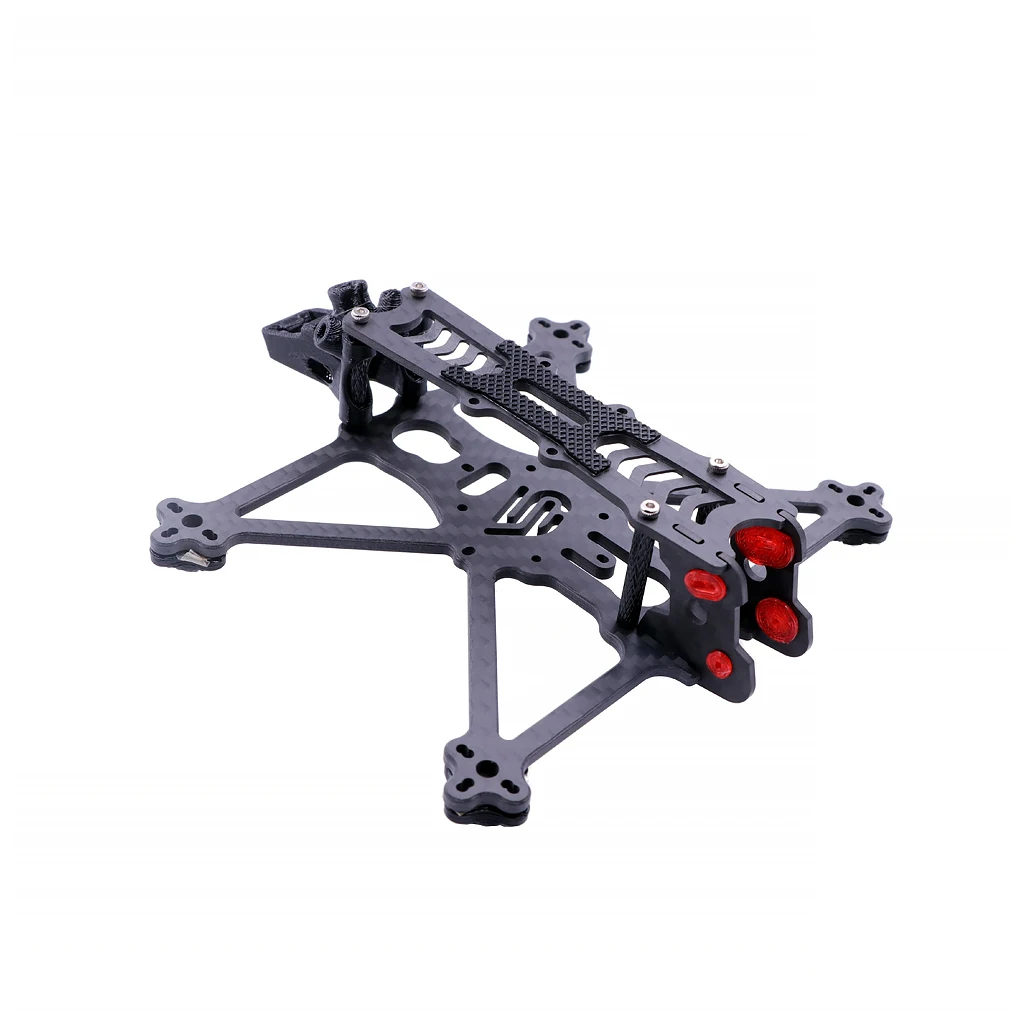

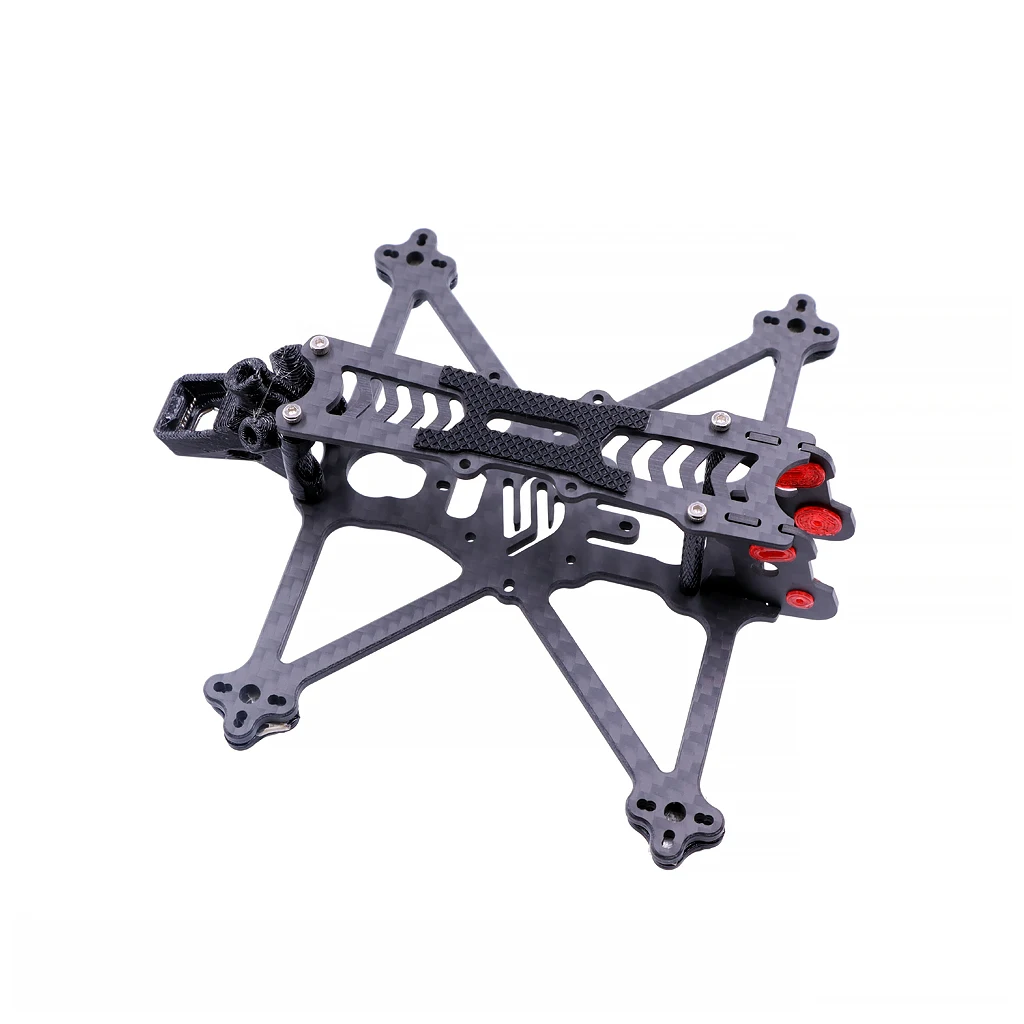

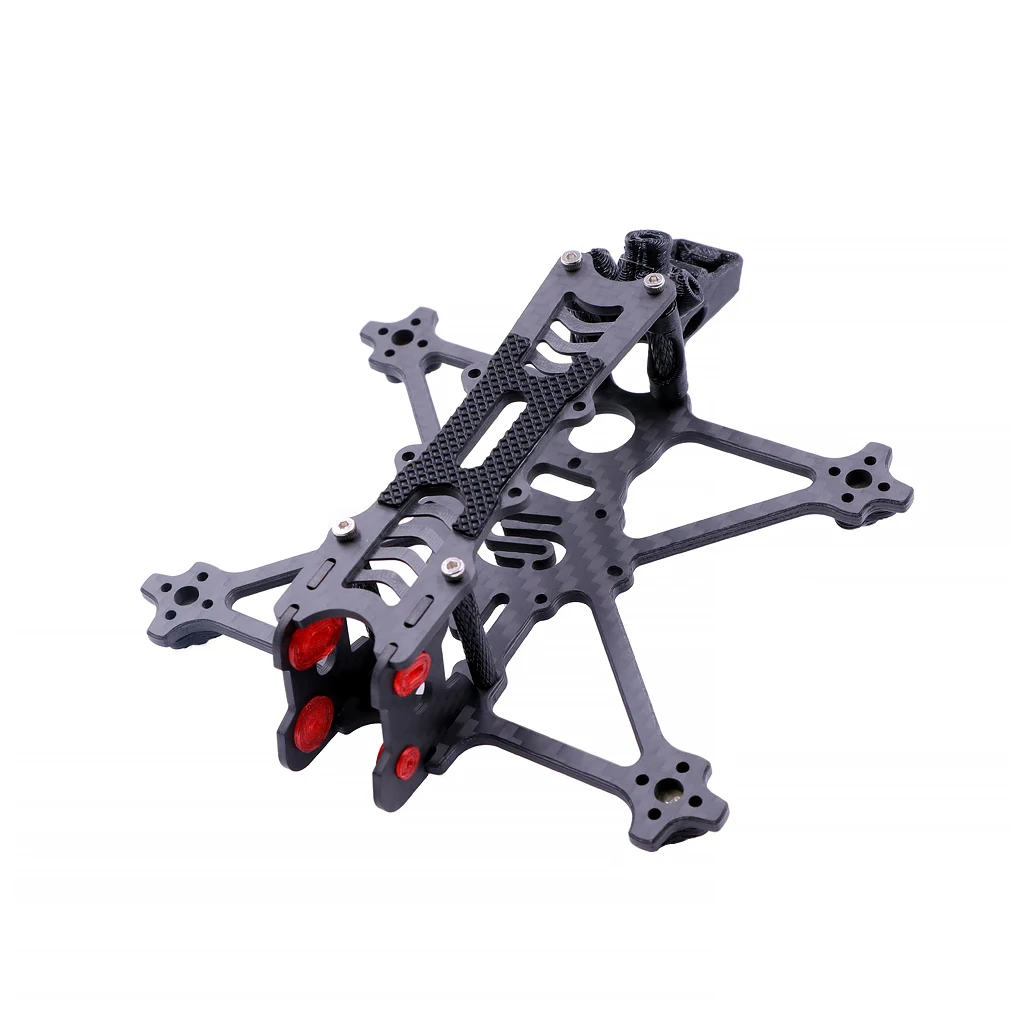

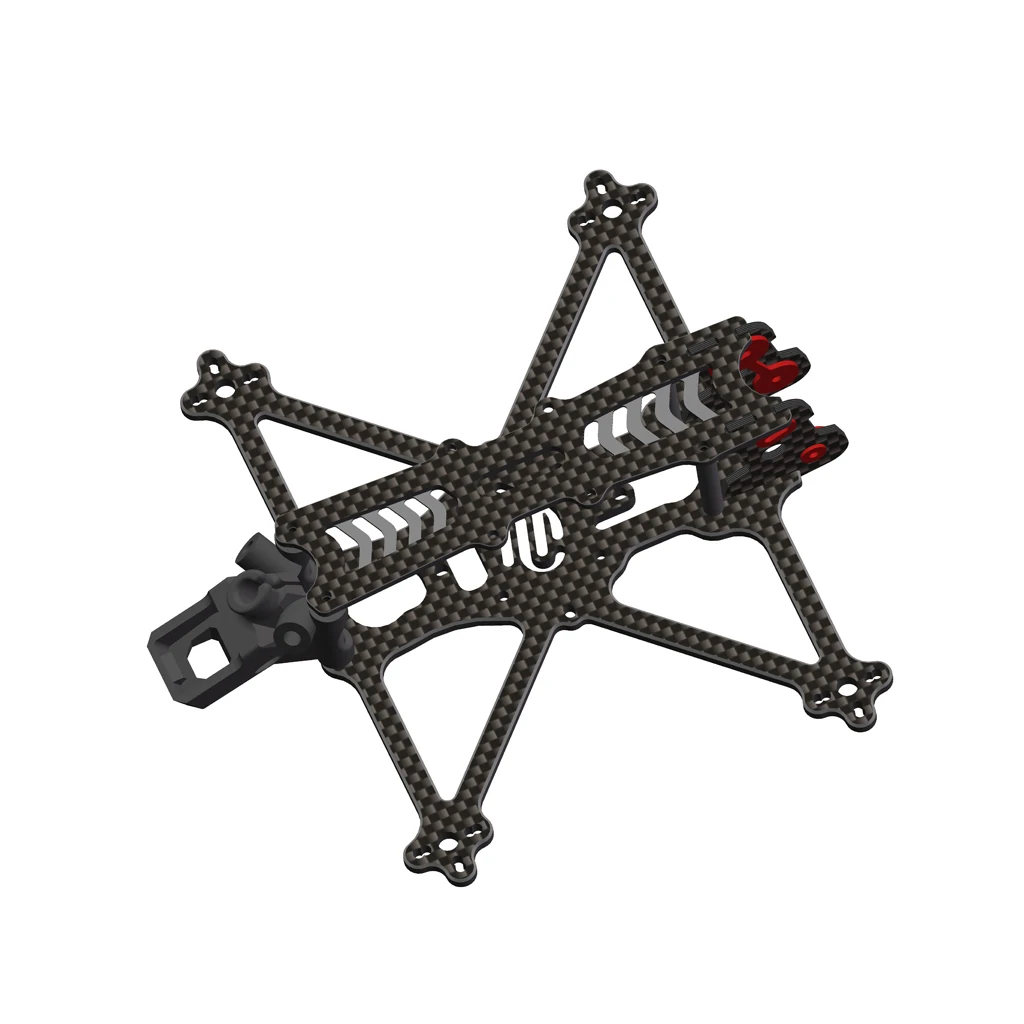

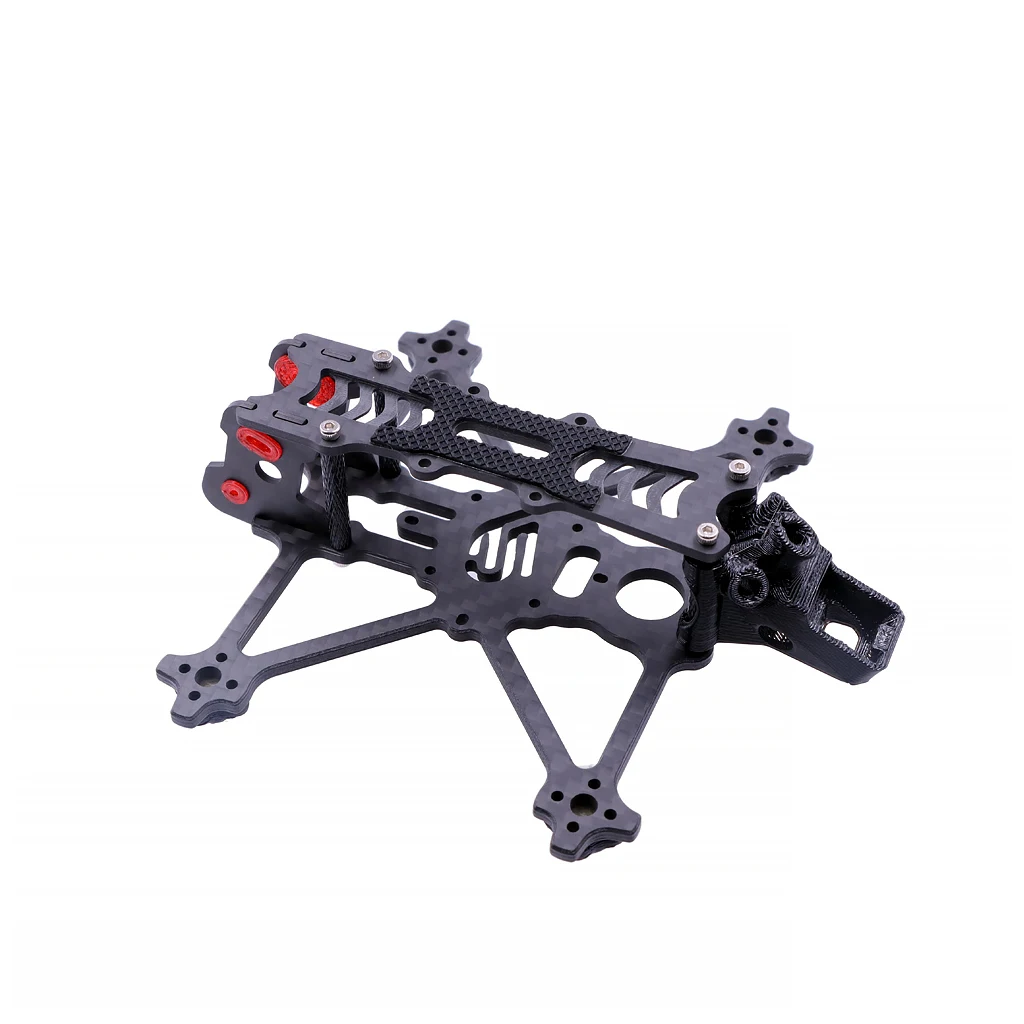

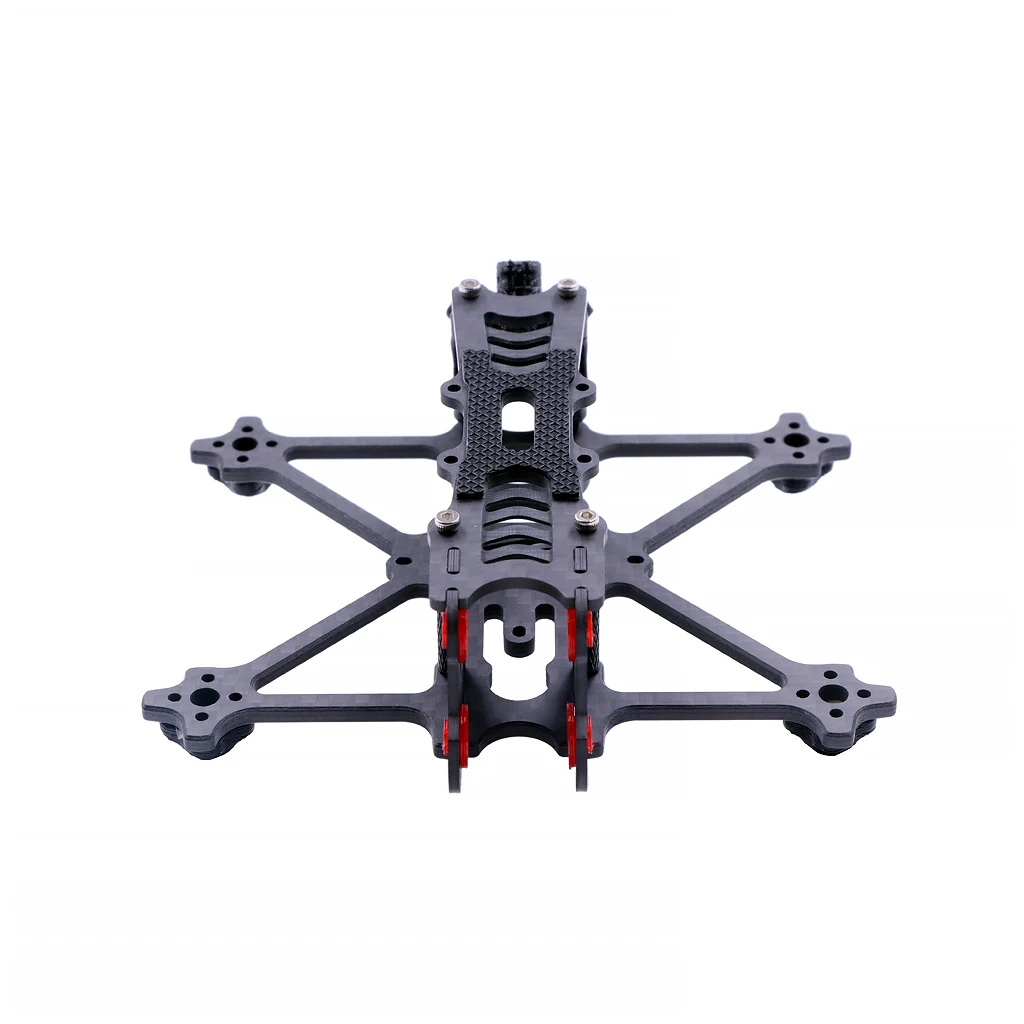

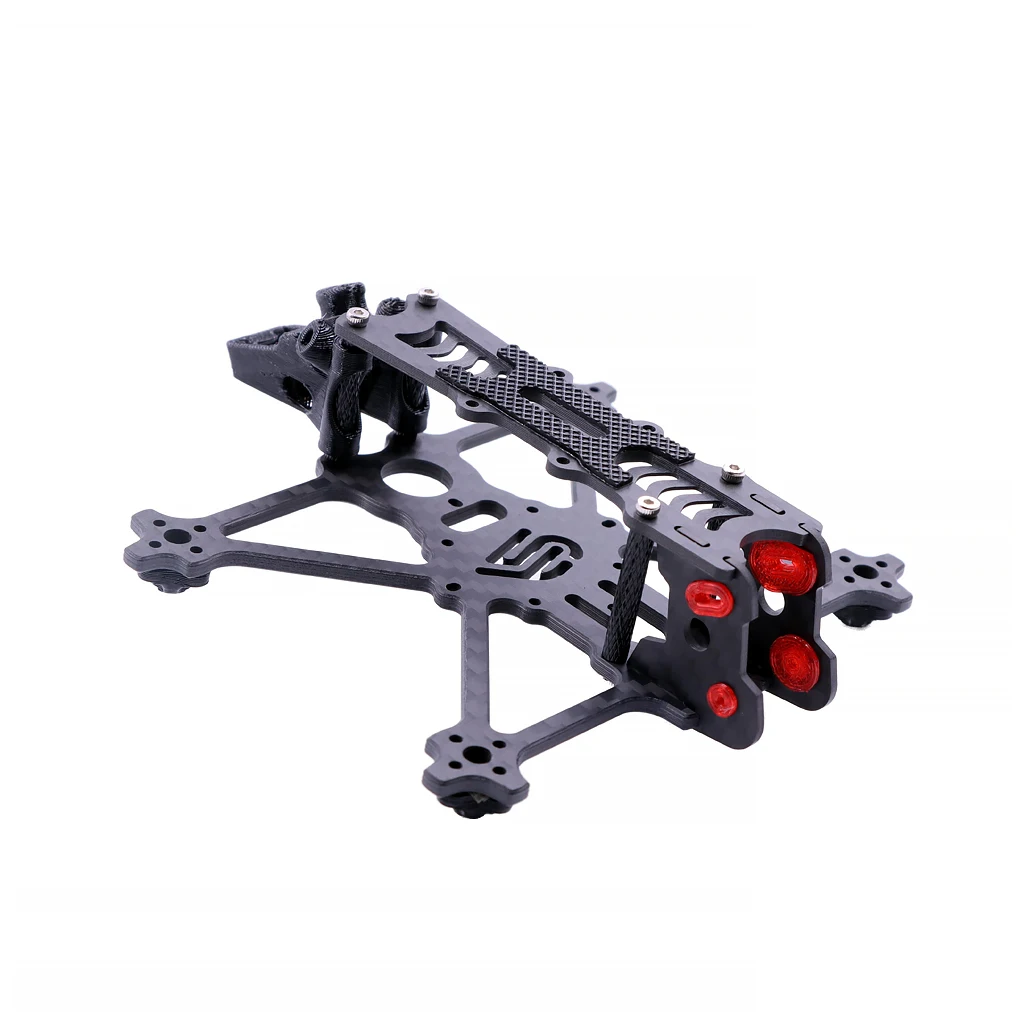

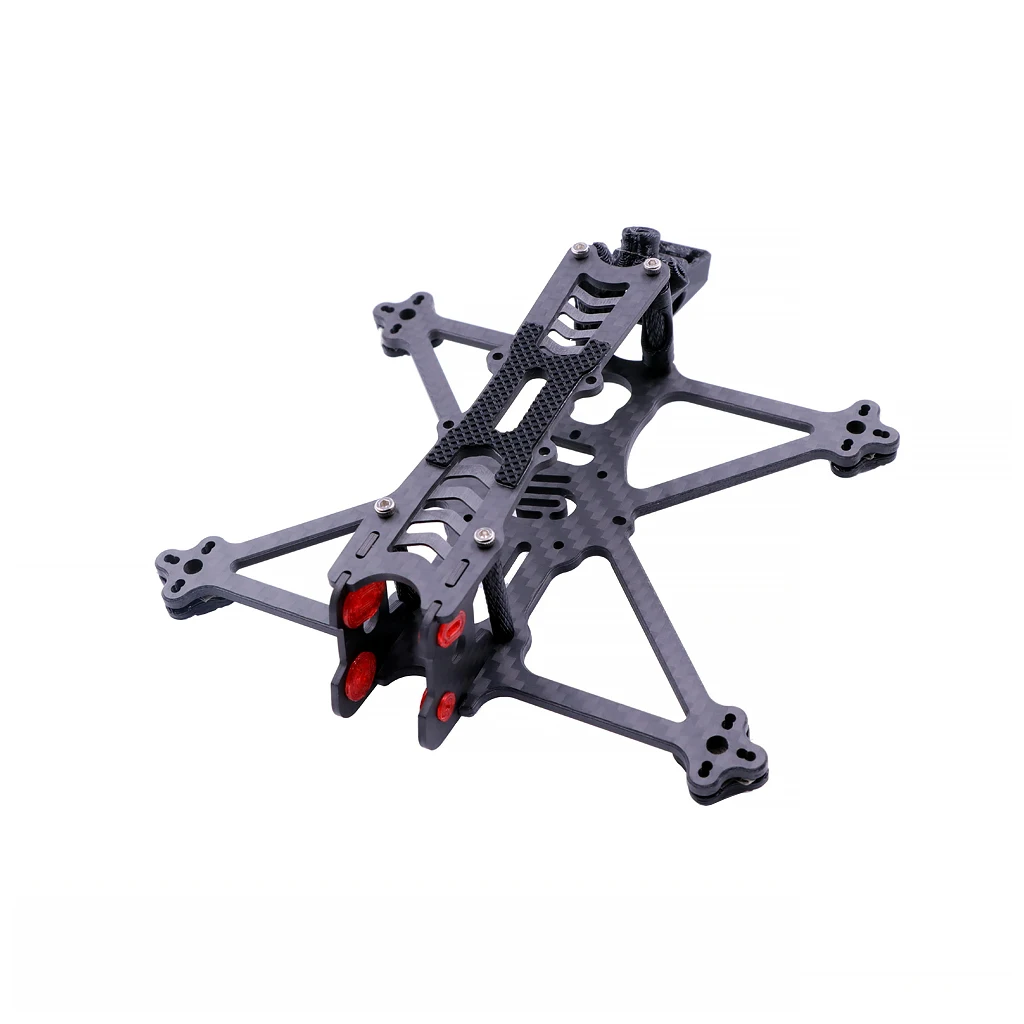

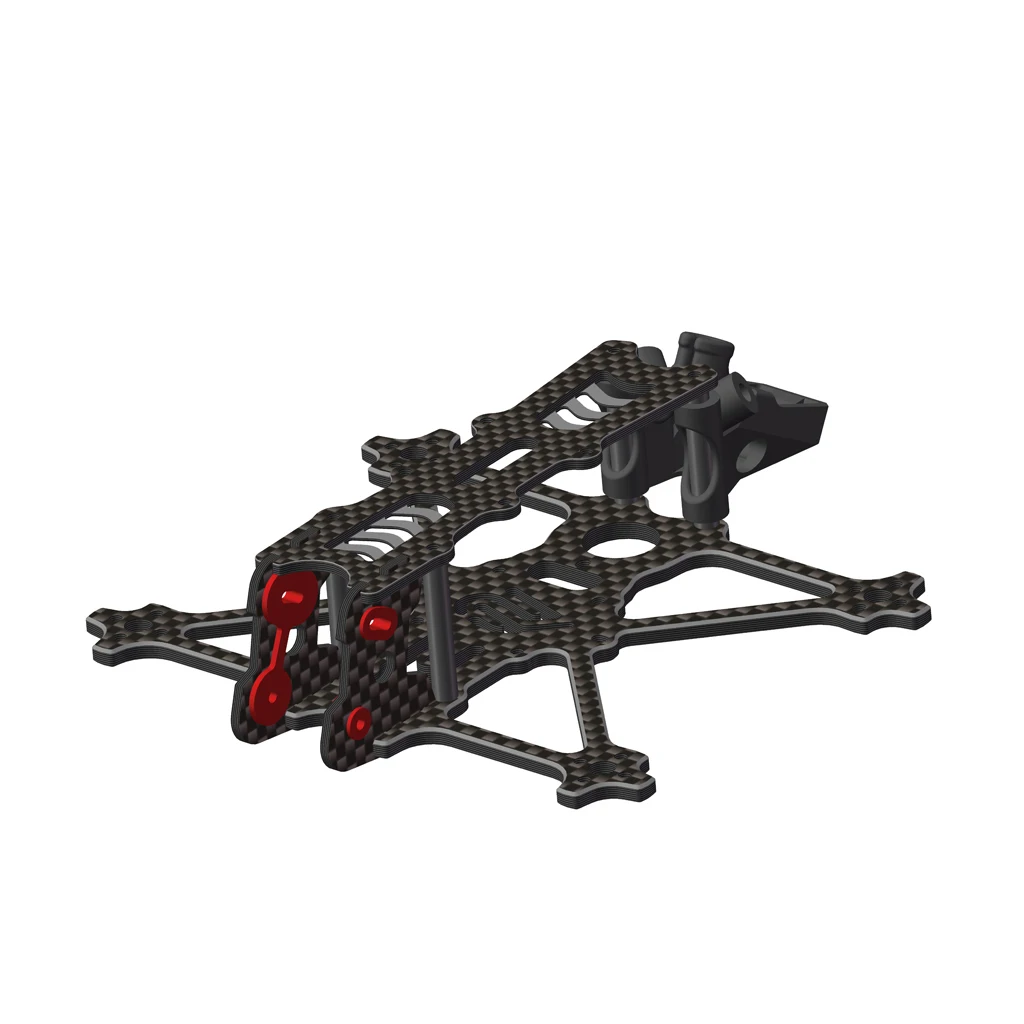

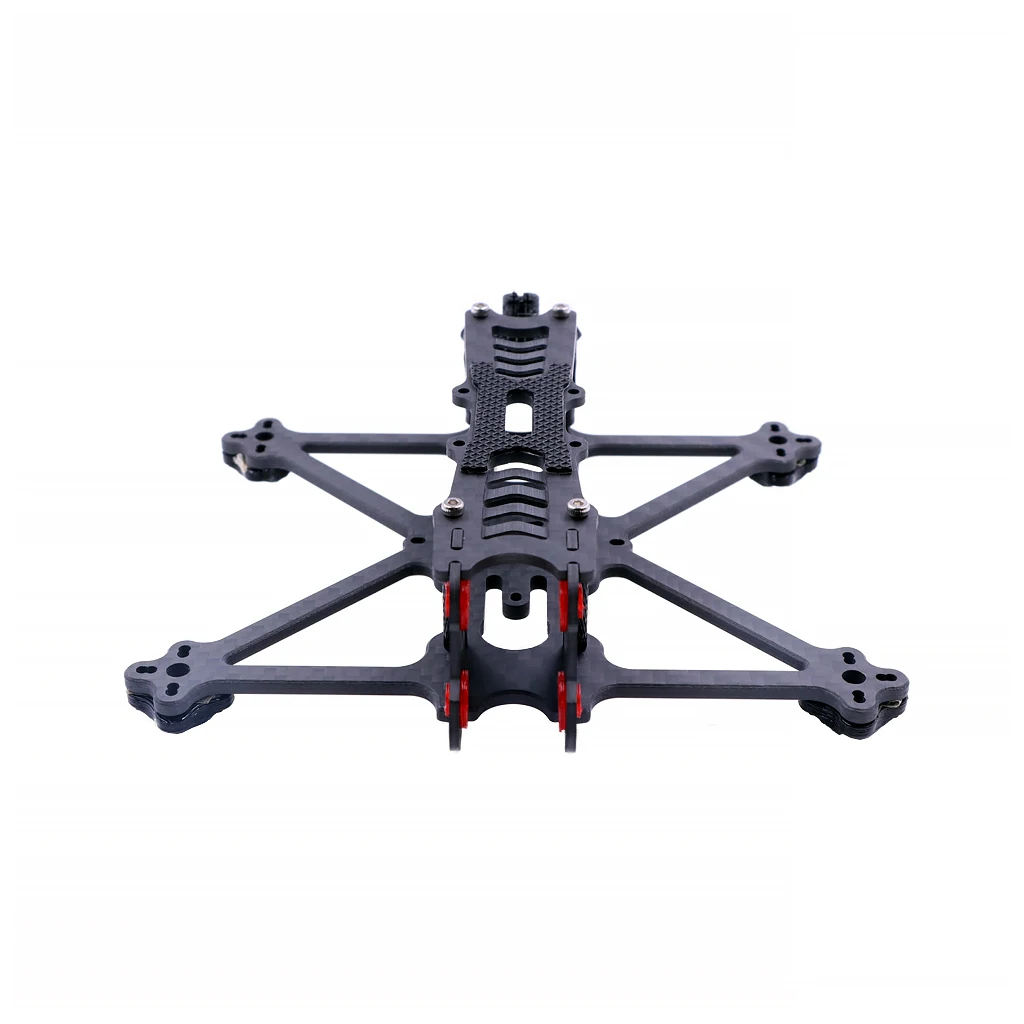

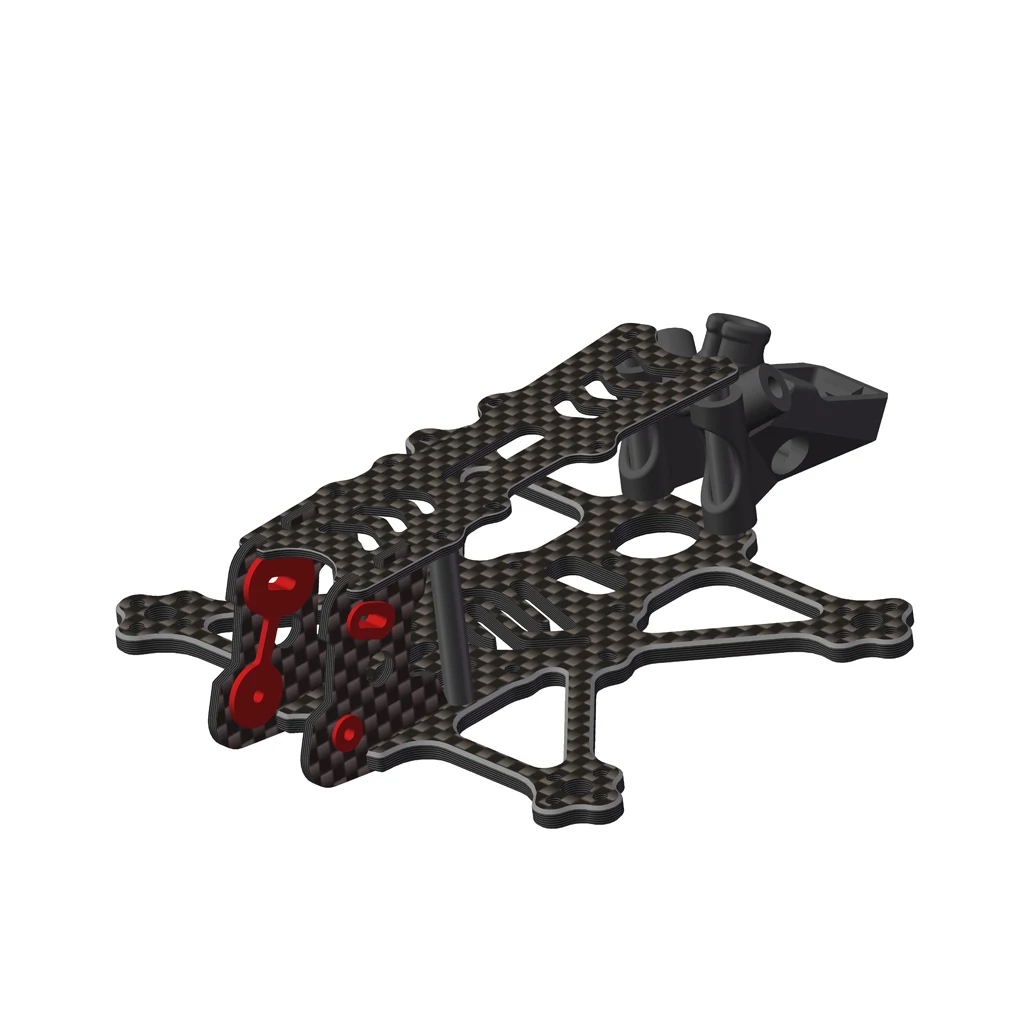

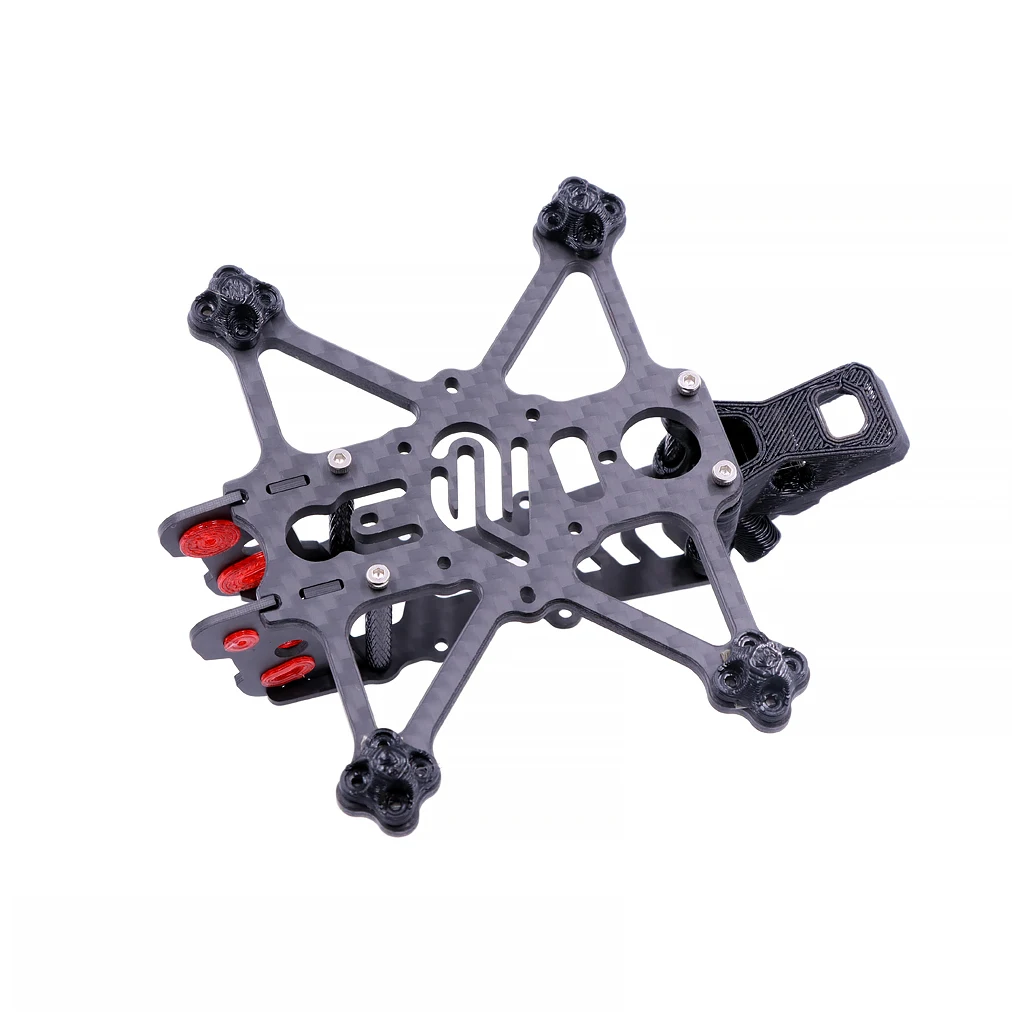

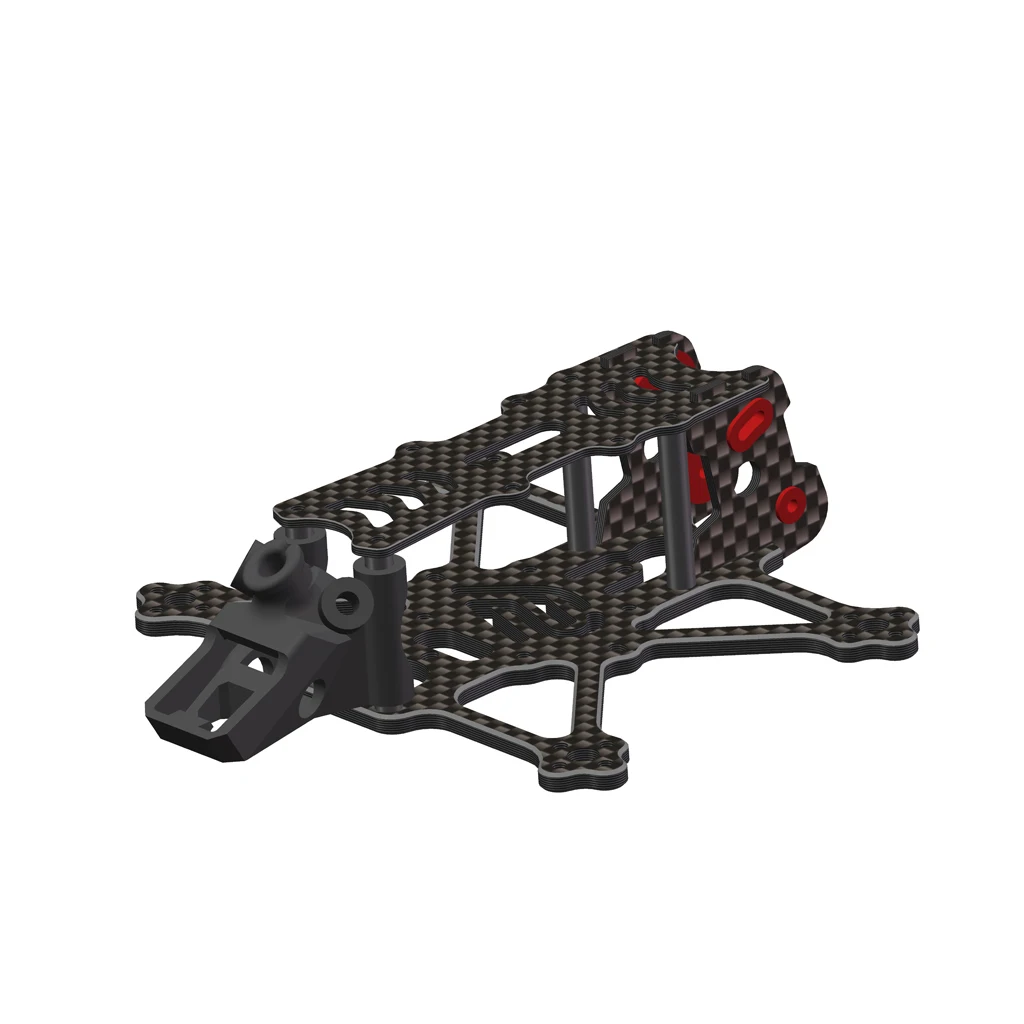

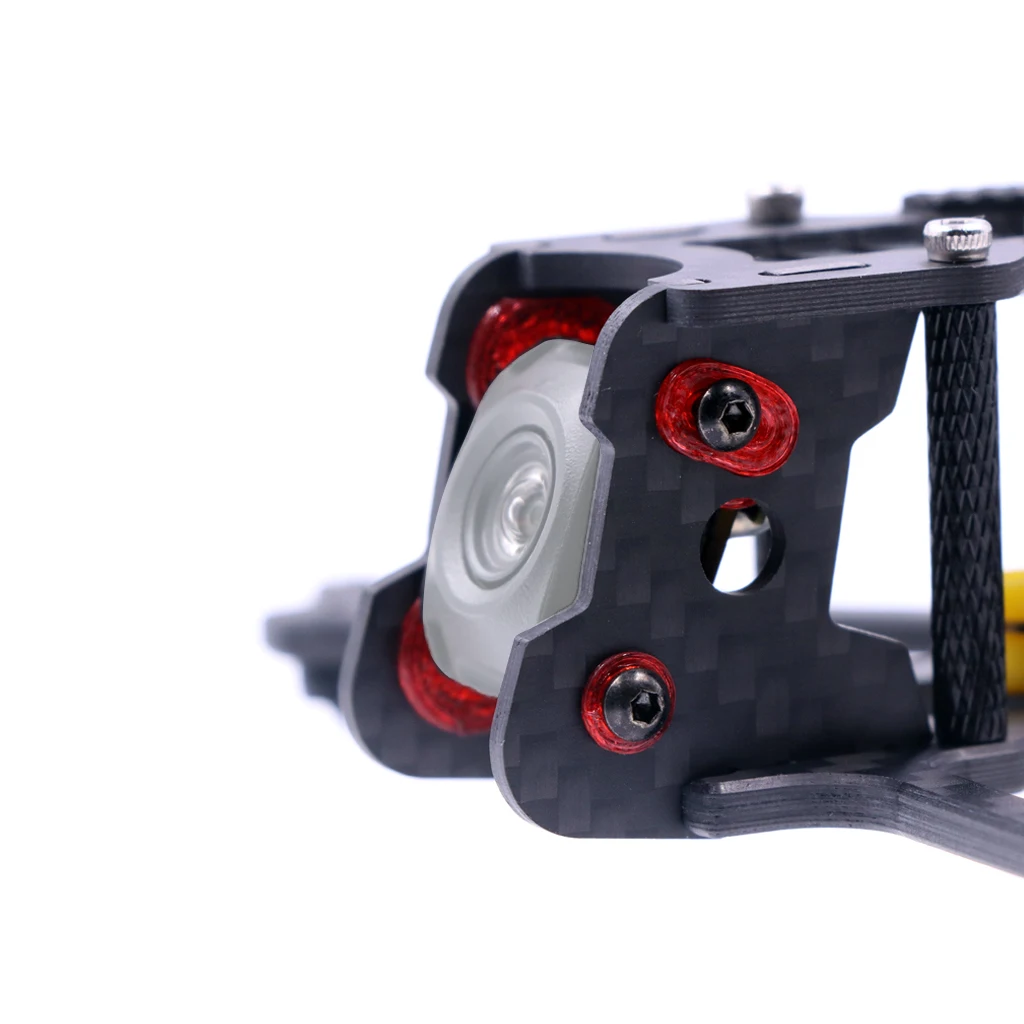

Fi-100/Fi-115/Fi-135 2/2.5/3 Inch Frame for O4 Air Unit 3K Carbon Fiber Frame Kit for FPV RC Racing Drone
Fi-100 for DJI O4 Air Unit 2inch Propeller Frame Kit FPV RC Racing Drone 1103 1104 1204 1206 Motor Elrs GPS 5.8G
Specification:
Model: Fi-100-O4
Wheelbase: 98MM
Bottom Plate Thickness: 3mm.
Upper Plate Thickness: 1.5mm.
Side plate thickness:1.5mm.
Column height：24mm.
FC Hole distance: 25.5x25.5 /26.5*26.5 / 20X20MM
Motor Hole distance: 9*9MM
Suitable propeller: 2Inch

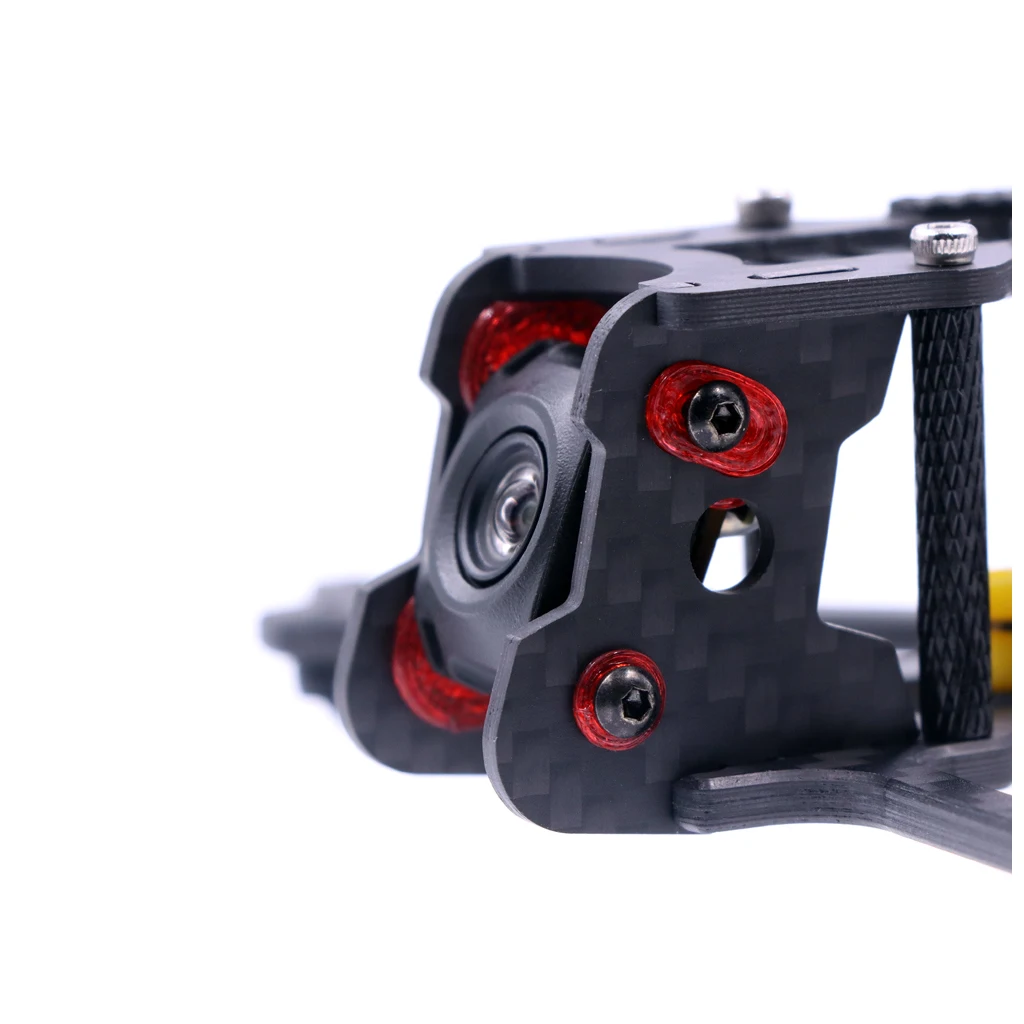

Suitable FPV camera: 14MM
GPS bin size：17*12.5*5mm(BE122/BZ122)

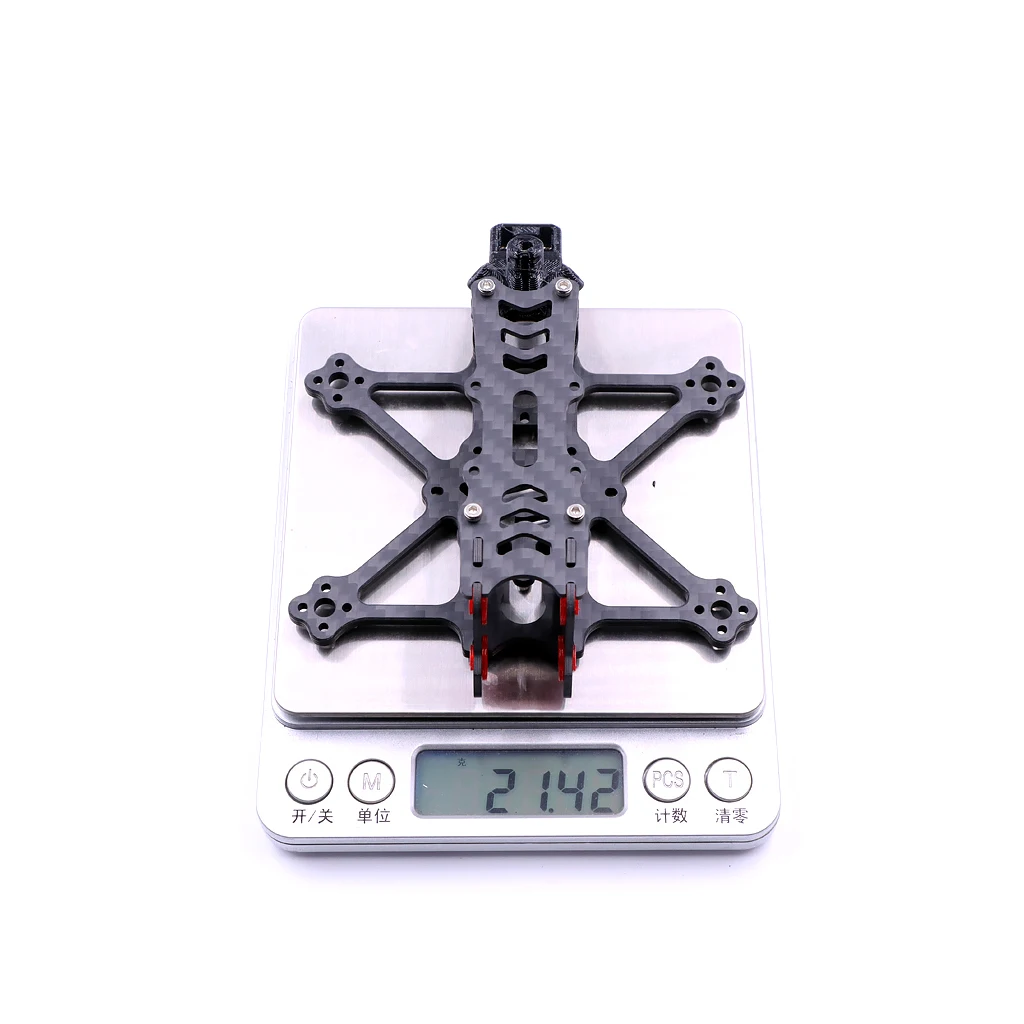

Weight: 22g（Different production batches will vary）
Material: 3K Carbon Fiber
Package list:
1 set Frame KIT, without any electronic equipment.
Fi-115 for DJI O4 Air Unit 65MM Propeller Toothpick Frame Kit FPV RC Racing Drone Caddx Nebula Vista 1204 1206 Motor Elrs GPS
Specification:
Model: Fi-115-O4
Wheelbase: 115MM
Bottom Plate Thickness: 3mm.
Upper Plate Thickness: 2mm.
Side plate thickness:1.5mm.
Column height：24mm.
FC Hole distance: 25.5x25.5 /26.5*26.5 / 20X20MM
Motor Hole distance: 9*9MM
Suitable propeller: 2.5Inch/65MM
Suitable FPV camera: 14MM
GPS bin size：17*12.5*5mm(BE122/BZ122)

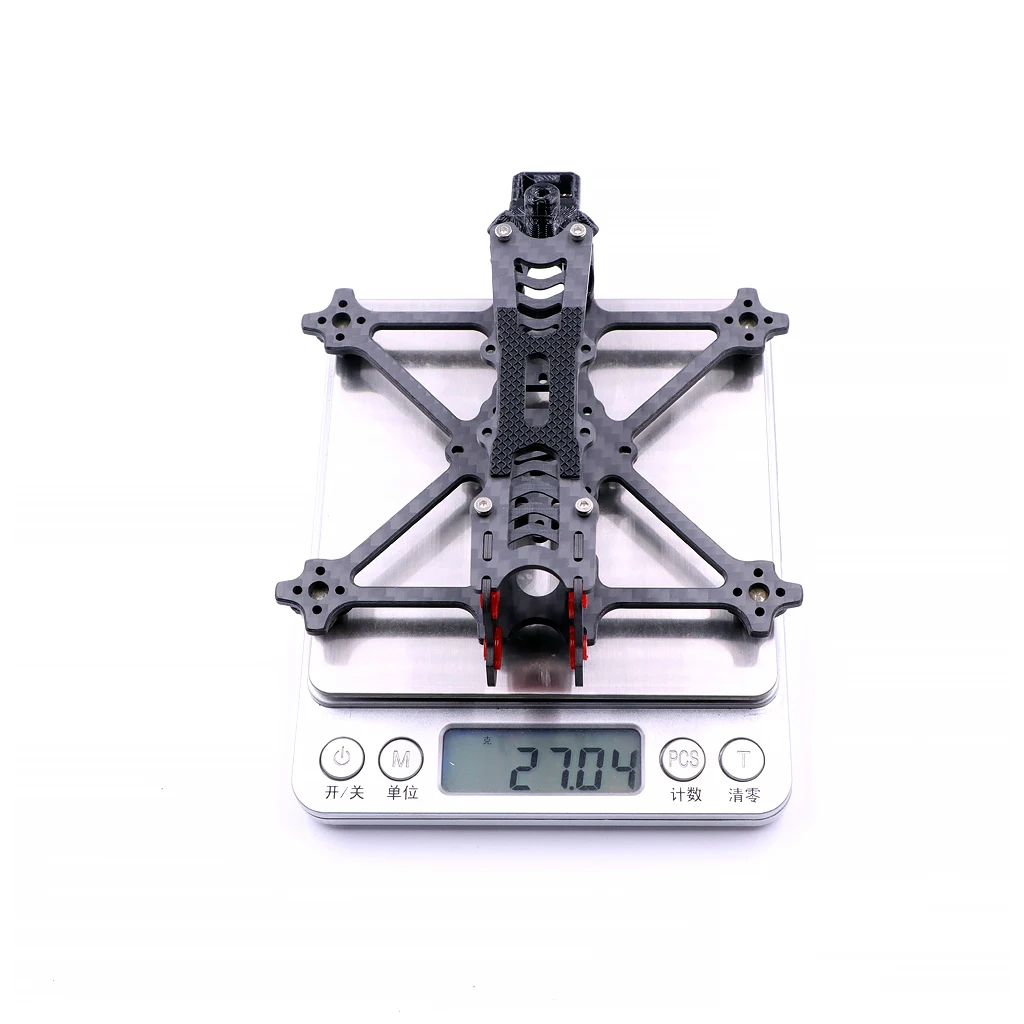

Weight: 27g（Different production batches will vary）
Material: 3K Carbon Fiber
Package list:
1 set Frame KIT, without any electronic equipment.
Fi-135 for DJI O4 Air Unit 3inch Propeller Frame Kit FPV RC Racing Drone Caddx Nebula 1204 1206 1303 1306 1404 Motor ELRS GPS
Specification:
Model: Fi-135-O4
Wheelbase: 135MM
Bottom Plate Thickness: 3mm.
Upper Plate Thickness: 2mm.
Side plate thickness:1.5mm.
Column height：24mm.
FC Hole distance: 25.5x25.5 /26.5*26.5 / 20X20MM
Motor Hole distance: 9*9/12*12MM
Suitable propeller: 3Inch/75MM
Suitable FPV camera: 14MM
GPS bin size：17*12.5*5mm(BE122/BZ122)

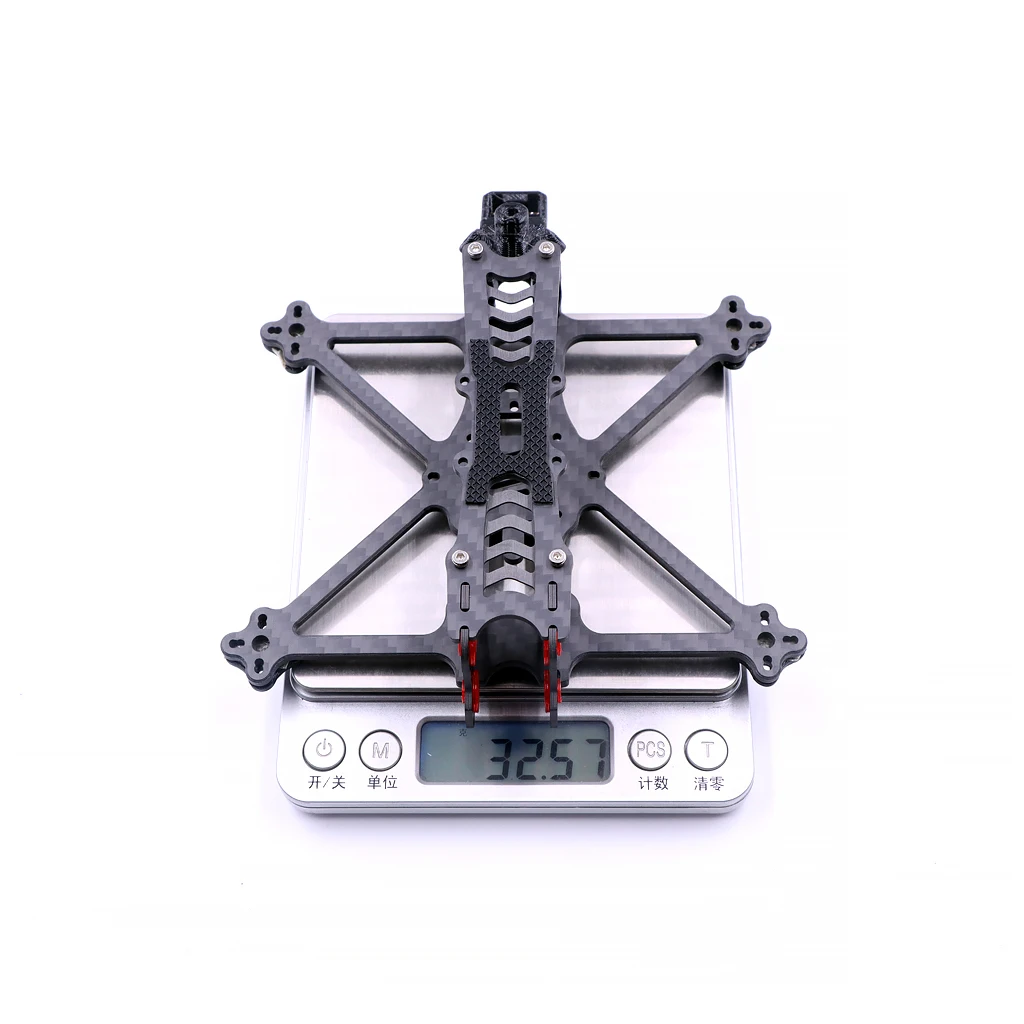

Weight: 33g（Different production batches will vary）
Material: 3K Carbon Fiber
Package list:
1 set Frame KIT, without any electronic equipment.
