Flysky FS-i6S 2.4G 10CH TX Transmitter with FS-iA6B RX / Phone Holder For Airplane AFT
Flysky FS-i6s 10CH 2.4G Transmitter with FS-iA6B Receiver
2 version optional (with phone holder/ without phone holder) please choose one you want
The FS-i6s transmitter and FS-iA6B receiver constitute a 10 channel 2.4GHz AFHDS 2A digital
proportional computerized RC system. This system offers superior protection against interference
while maintaining lower power consumption and high reliable receiver sensitivity.
Feature:
-Multi-channel hopping frequency
-New models function,supports 5 modes groups
-Slim design on transmitter for easy handling
-Full touchscreen interface, more convenient to control
-New Context aware reset function and low signal alarm function
-Bidirectional communication. Transmitter can send and receive data
-New throttle curve function, trims function, throttle mode function
-Unique ID Recognition System increase interference immunity and safety
-Receive data from temperature, altitude and many other types of sensors, servo calibration and i-
BUS support
-Omni-directional fain antenna. Cut down the interference, while using less power and maintaining a strong reliable connection
Transmitter Specifications:
Brand: Flysky
Model: FS-i6s
Channel: 10CH
Mode: Mode 1 to mode 4 switchable
Model type: Airplane, multicopter and helicopter
RF range: 2.4055-2.475Ghz
Bandwidth: 500KHz
Band: 140
RF power: Less than 20dBm
2.4G system: AFHDS 2A
Code type: GFSK
Sensitivity: 4096
Low voltage alarm: Yes (lower than 4.2V)
DSC port: Micro USB, PPM
Power input: 4.2V-6.0V
PS2/USB port: Yes
Power input: 4 * AA battery (not included)
Size: 179 * 161 * 81mm
Weight: 437g
Receiver Specifications:
Brand: Flysky
Model: FS-iA6B
Channel: 6CH
Model type: Fixed-wing, multicopter and helicopter
RF range: 2.4055-2.475GHz
Band width number: 140
Transmitting power: not moer than 20dBm
RF receiver sensitivity: -105dBm
2.4G mode: the second generation of an enhanced version of the automatic FM digital system
Encoding: GFSK
Antenna length: 15mm * 2 (dual antenna)
2.4GHz system: AFHDS 2A
Power: 4.0-6.5V DC
i-BUS port: Yes
Data acquisition interface: Yes
Size: 47 * 27 * 15mm
Weight: 16g

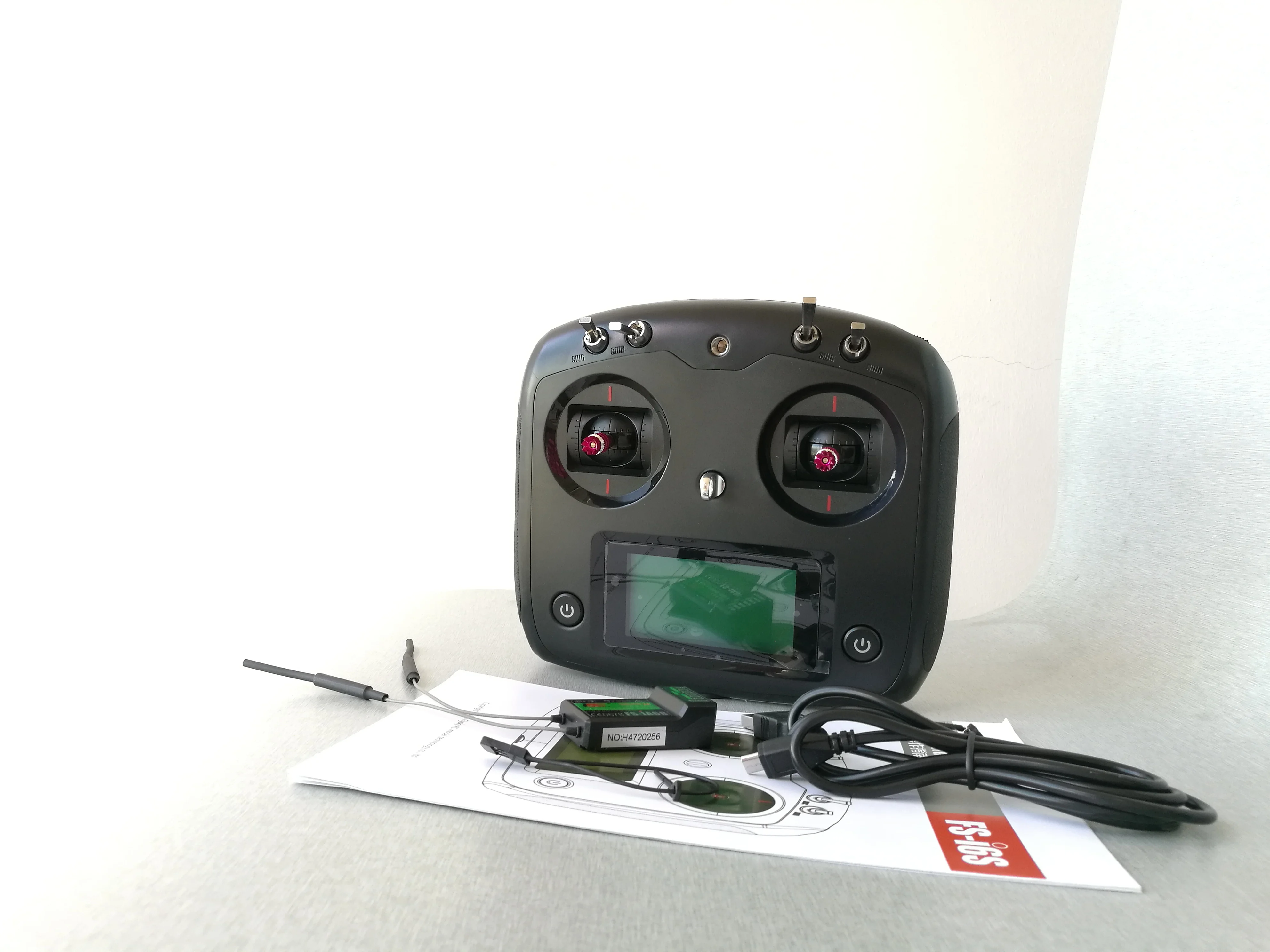

Package List:
1 * Flysky FS-i6s Transmitter
1 * Flysky FS-iA6B Receiver
1 * Upgrading Cable
1 * CD
