High-definition video transmission ushered in a new upgrade, and the new image transmission For DJI 03 Air Unit pushed the digital system to a new level.
Our team has also upgraded and optimized the overall performance on the basis of the MAK5, and will design the new MAK5 03 version with For DJI 03 .
Upgraded with new lens aluminum alloy side panels, 7075-T6 aluminum alloy is sturdy and durable.

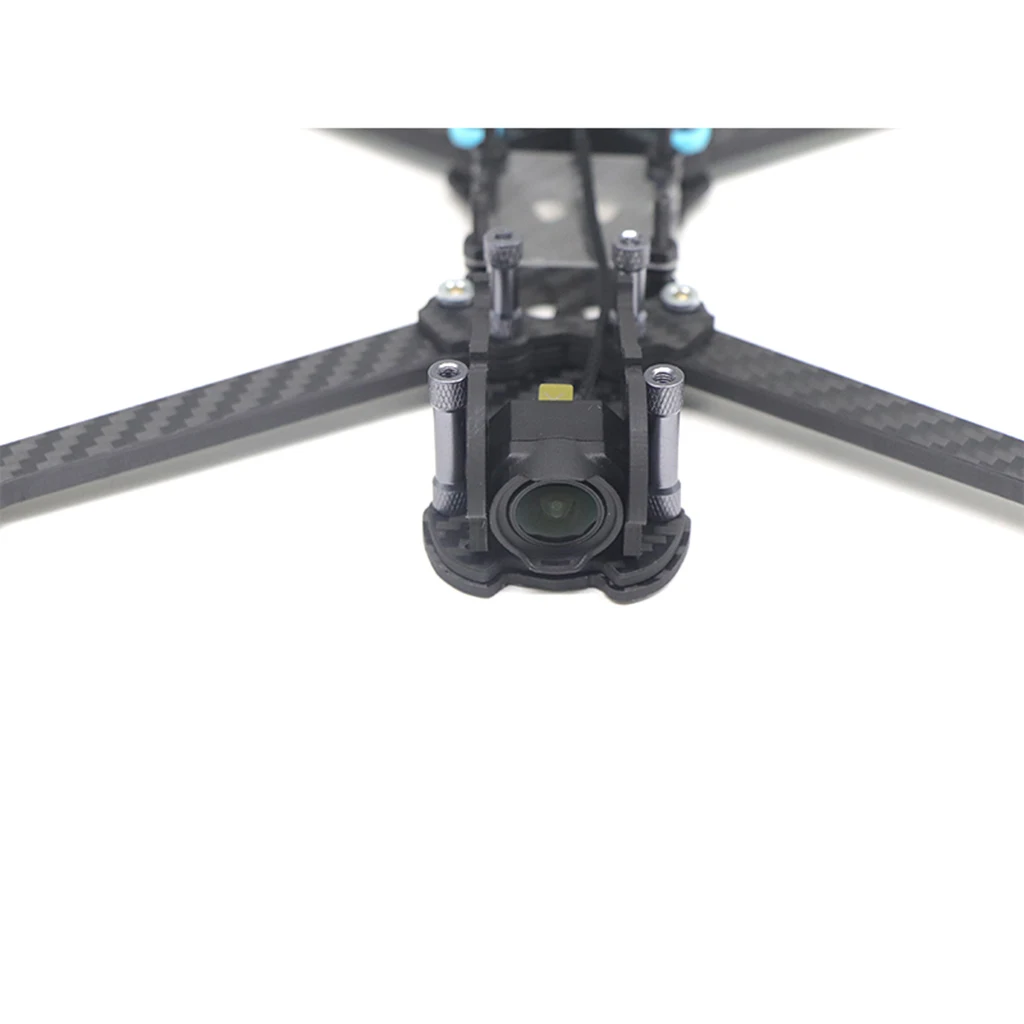

It can fully adapt to For DJI's new 03 air unit lens, and the viewing angle range (FOV) 155 recording specification can support up to 4K 60FPS.

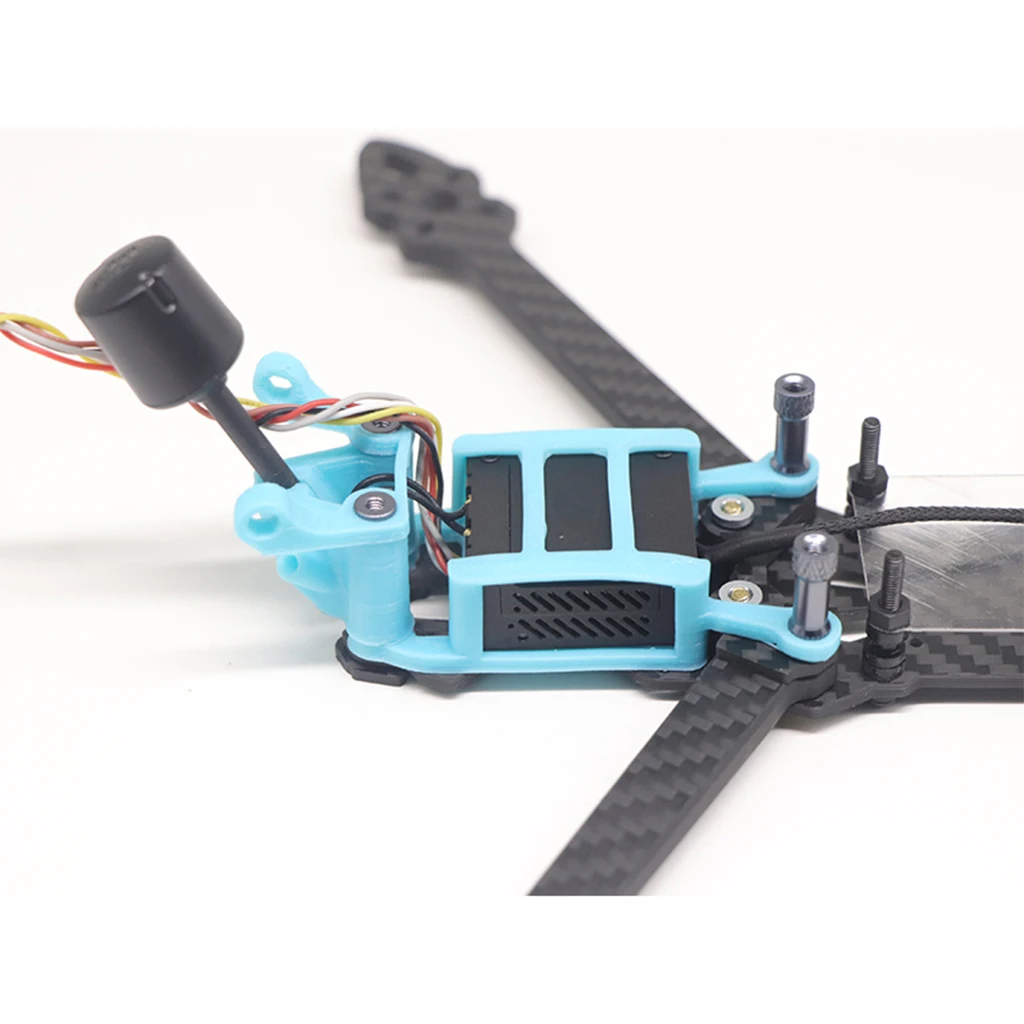

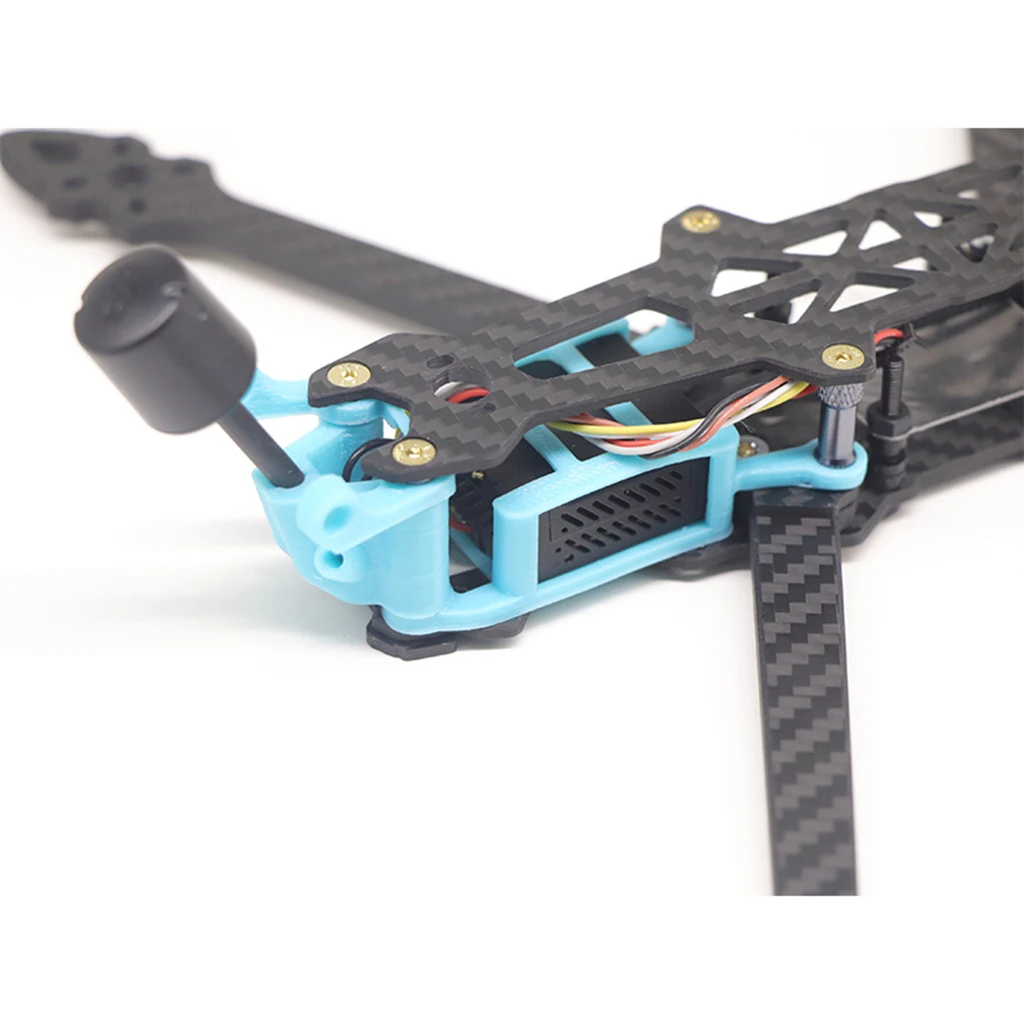

We also specially design TPU fixtures for O3 video transmission modules, and have heat inlet ports, which are conducive to full heat dissipation at the sky end.
Rack shock absorption design, the whole machine runs smoothly, TPU base, can install GoPro full series of action cameras, can also install Naked GoPro 8 10, Insta 360 G02 and Caddx Peanut and other cameras.
The MAK5 O3 will broaden your horizons and fly beyond what you have never seen before, bringing more possibilities to FPV creation.
MAK4 HD 5 inch
Type: Type H
Maximum supported blades: 5inch
Wheelbase: 225mm
Size: 138*176mm
Weight: Approximately 122g (including print)
Top / floor / side plate thickness: 2.5mm
Splint/protection plate thickness: 2mm
Arm thickness: 5mm
MAK4 HD 6 inches
Type: Type H
Maximum supported blades: 6inch
Wheelbase: 260mm
Size: 162*203mm
Weight: Approx. 130g (including print)
Top / floor / side plate thickness: 2.5mm
Splint/protection plate thickness: 2mm
Arm thickness: 5mm
MAK4 HD 7 inch
Type: Type H
Maximum supported blades: 7inch
Wheelbase: 295mm
Size: 193*223mm
Weight: Approximately 140g (including print)
Top / floor / side plate thickness: 2.5mm
Splint/protection plate thickness: 2mm
Arm thickness: 5mm
