Home>FPV Drone and Part>GEPRC MATEN-5.8G 2.5W VTX PRO Aluminum Alloy Numerical Control Shell Auxiliary Heat Dissipation Drones Accessories

GEPRC MATEN-5.8G 2.5W VTX PRO Aluminum Alloy Numerical Control Shell Auxiliary Heat Dissipation Drones Accessories Item NO.: 42452650

Write a Review

US$ 76.23

Quantity: Stock ( 99 )

Estimate Shipping Cost

Product Name	GEPRC MATEN-5.8G 2.5W VTX PRO Aluminum Alloy Numerical Control Shell Auxiliary Heat Dissipation Drones Accessories
Item NO.	42452650
Weight	0.045 kg = 0.0992 lb = 1.5873 oz
Category	FPV Drone and Part
Brand	GEPRC
Creation Time	2024-06-26

GEPRC MATEN-5.8G 2.5W VTX PRO Aluminum Alloy Numerical Control Shell Auxiliary Heat Dissipation Drones Accessories

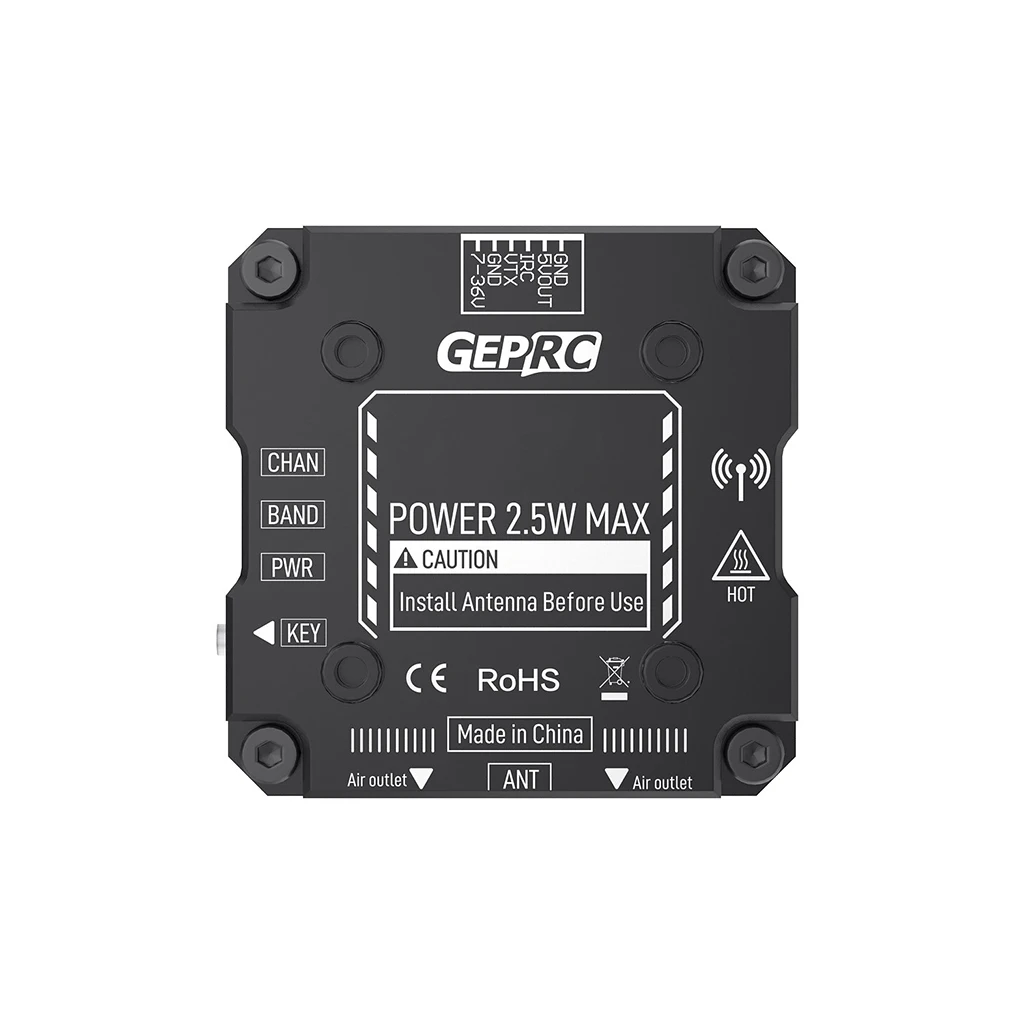

Model：GEPRC-MATEN 5.8G 2.5W VTX PRO

Size：36.3×36.3×12.6mm

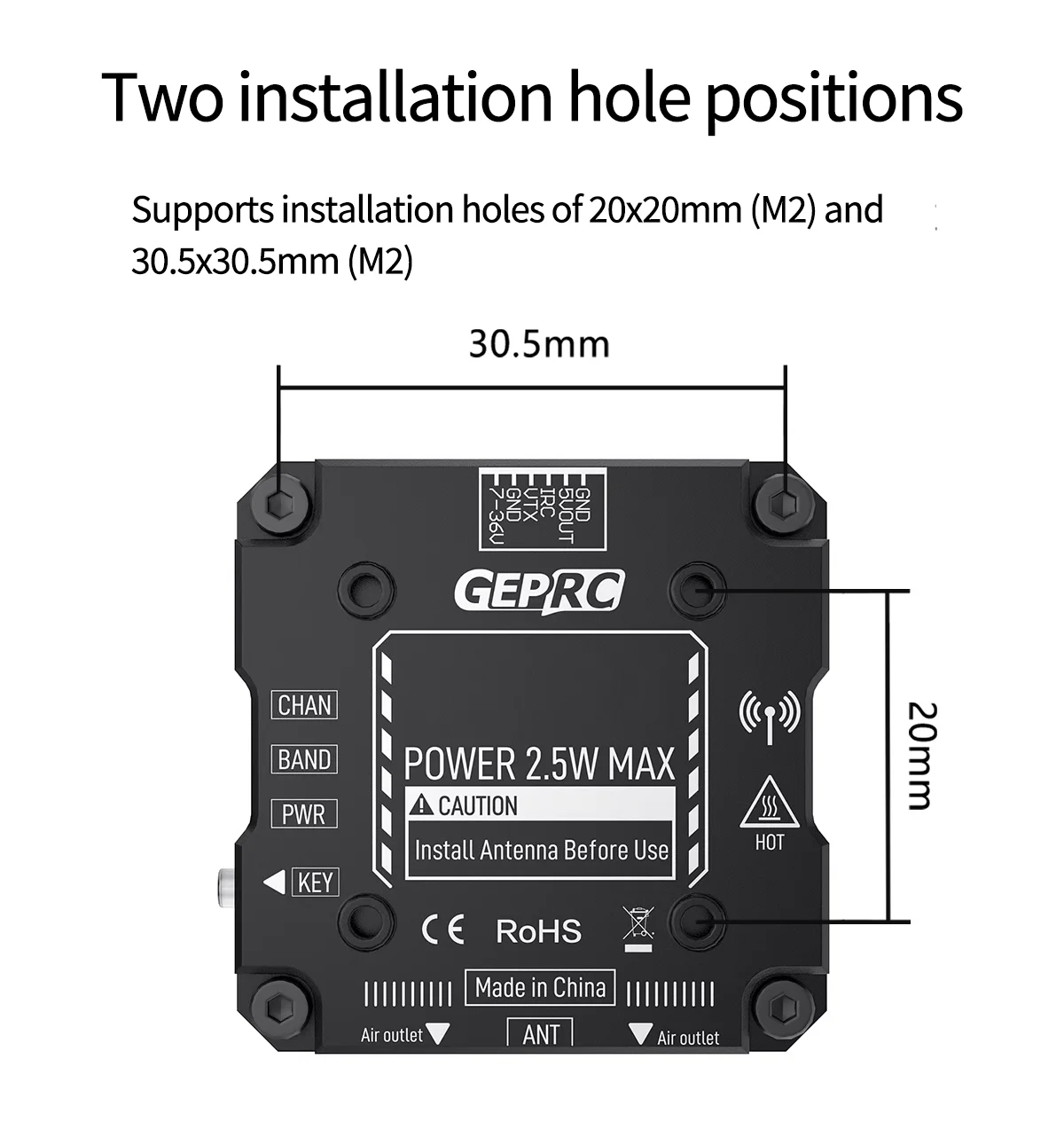

Mounting hole：20x20mm(M2)、30.5×30.5mm(M2)

Output power：25mW/200mW/600mW/1600mW/2500mW/Pit mode

Frequency：5.8G

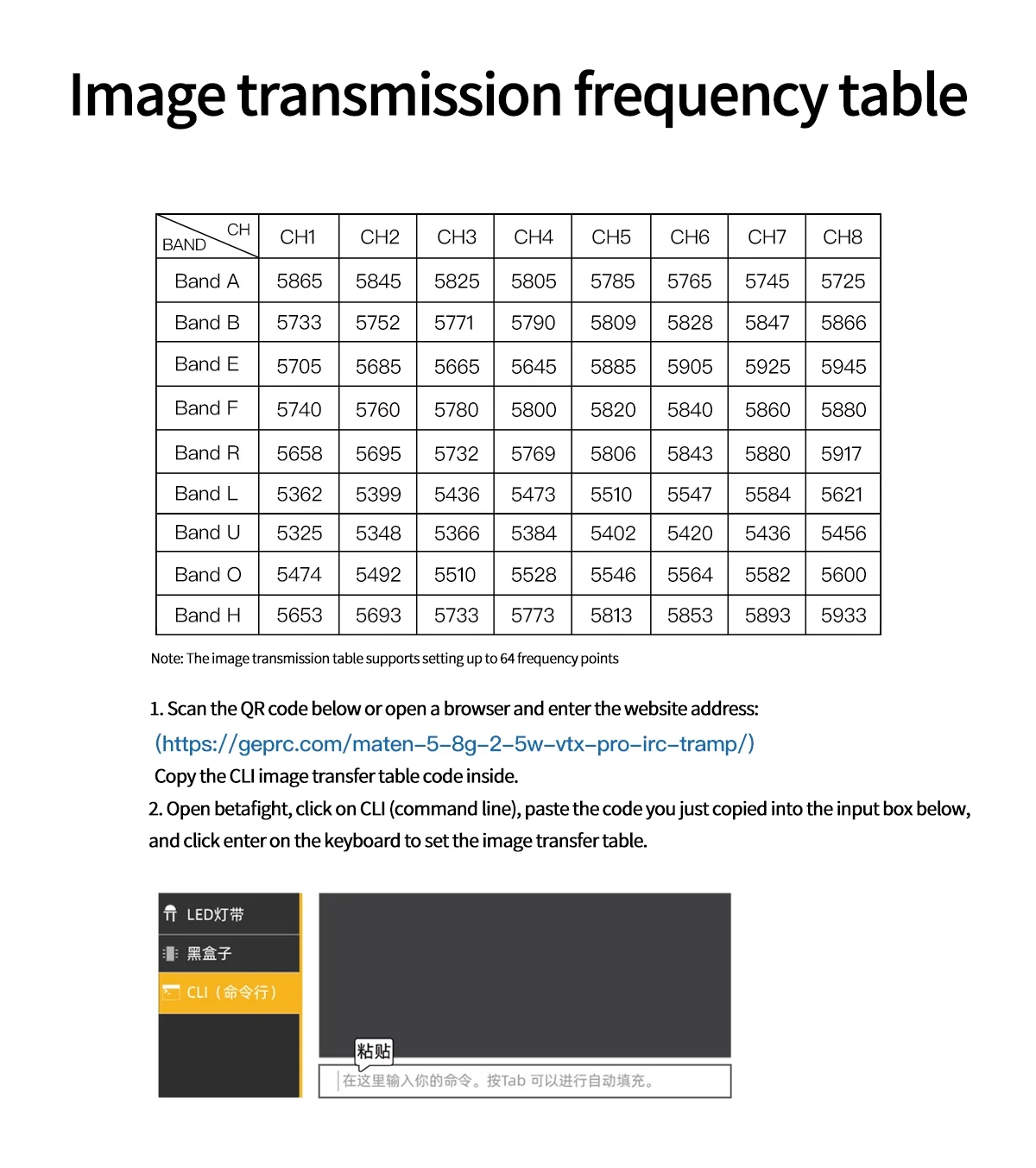

Channel：72CH

Input voltage：DC7-36V（2-8S Battery）

Output voltage：5V@600mA

Protocol：IRC Tramp

Antenna interface：MMCX

Cable interface：SH1.0 6pin

Video format：PAL/NTSC

Microphone: Built in microphone

Weight：17g

Feature

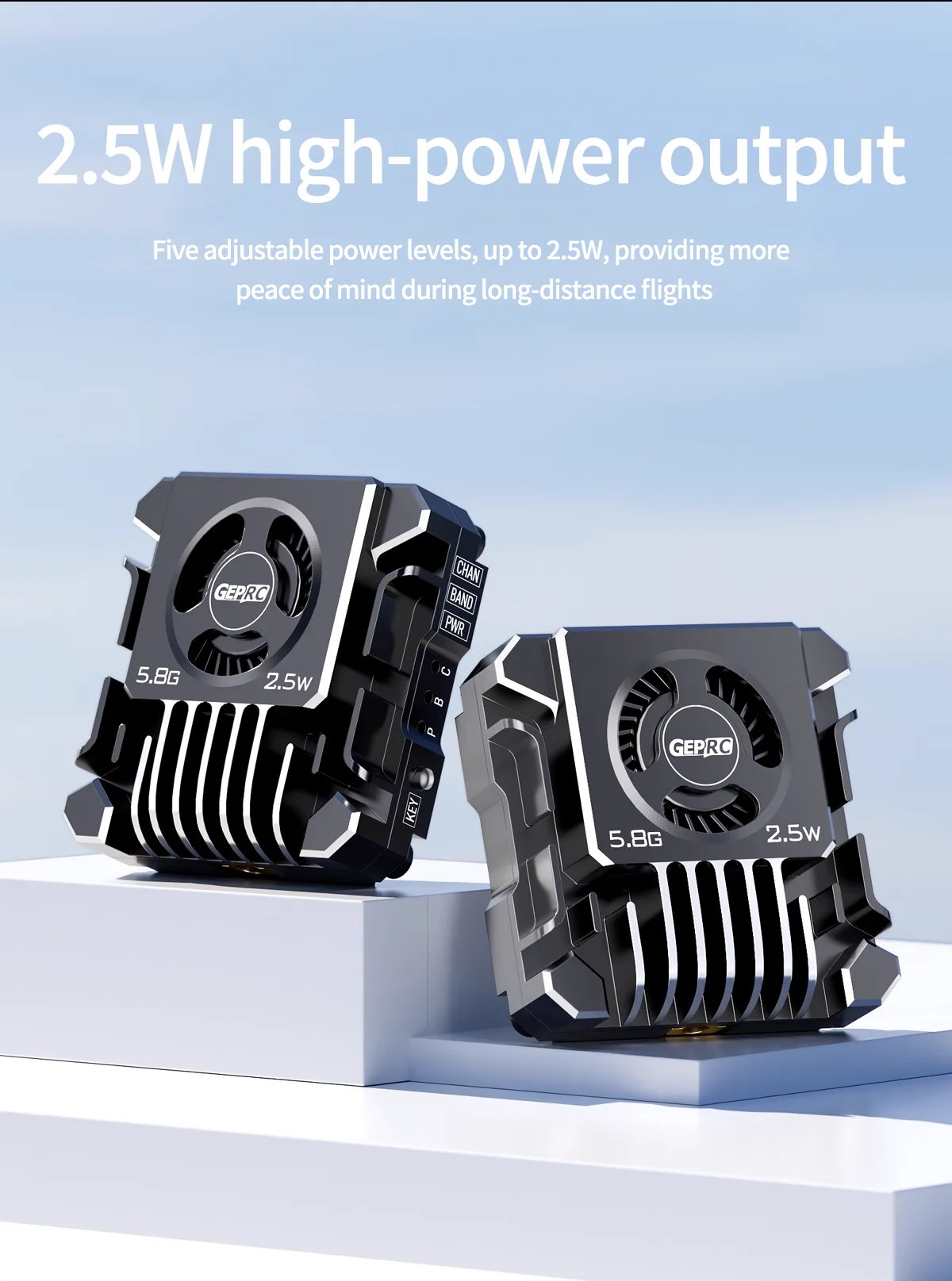

Five levels of adjustable power, up to 2500mW, suitable for long distance flight

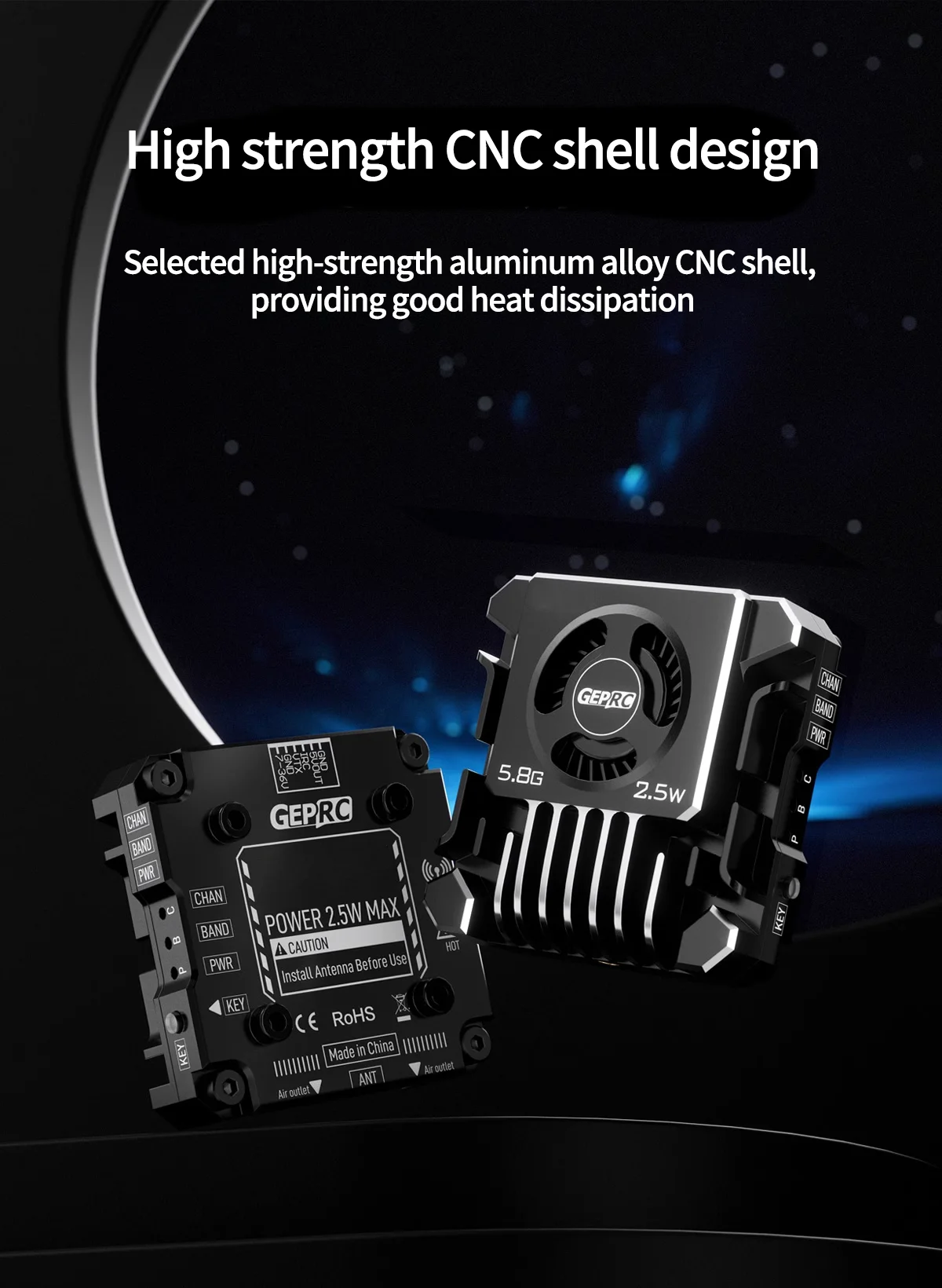

Selected high strength aluminum alloy CNC shell, auxiliary heat dissipation

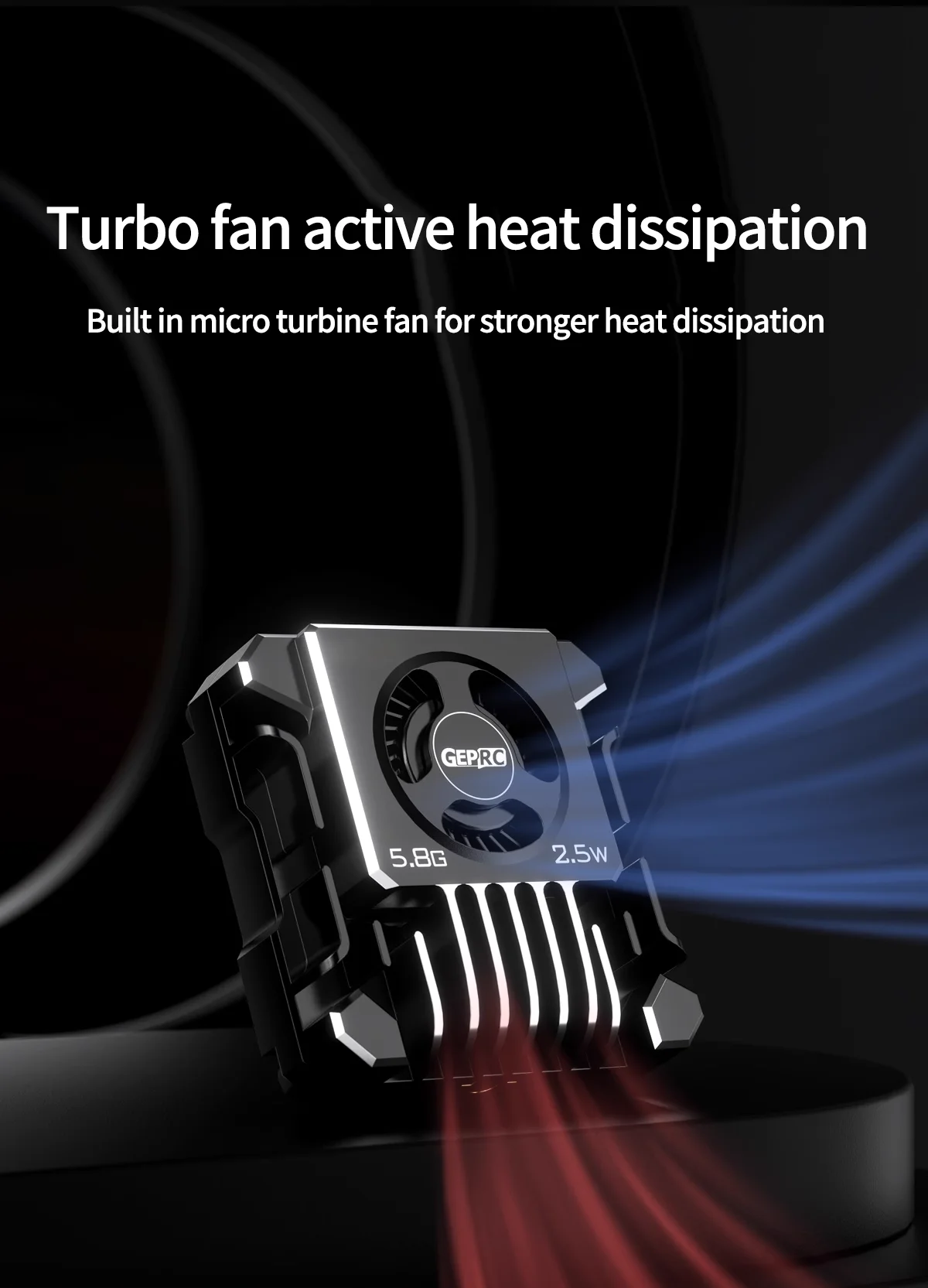

The built-in micro turbofan actively dissipates heat

Wide voltage input, Supports 7V-36V Voltage input.

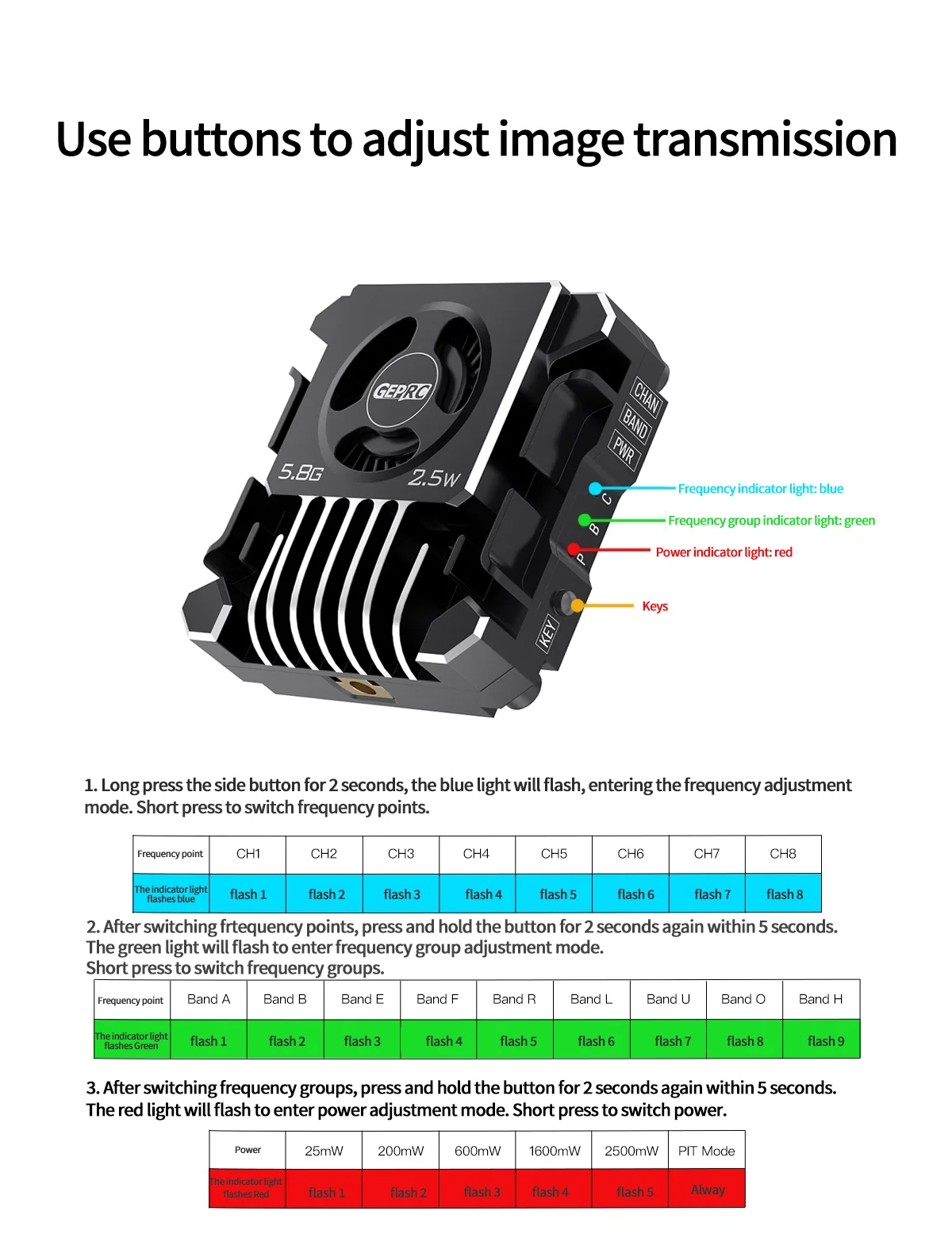

One function buttons, three indicator lights, easy to control.

VTX control protocol is IRC Tramp,supports OSD parameter adjustment.

Temperature control protection function that can prevent high temperature burning

VTX built in microphone,Real-time transmission of Drone’s sounds.

supports 72 transmission channels

Support 2020mm and 30.530.5mm installation hole position

Includes

1 x MATEN-5.8G 2.5W VTX PRO

1 x MMCX Copper tube antenna

1 x MMCX to SMA（Internal foramen）connector

1 x sh1.0 6P Connecting cable

6 x M2*5 screw

4 x M2*12 screw

Thank you for you choose our product , we are trustworthy ,if you have any questions ,please message us freely , we would like to try our best to solve your issue .
