Home>FPV Drone and Part>HAPPYMODEL ES24TX Slim 2-4G ExpresLRS High-frequency Transmitter Module Compatible with X-lite Tango2

HAPPYMODEL ES24TX Slim 2-4G ExpresLRS High-frequency Transmitter Module Compatible with X-lite Tango2 Item NO.: 34734610

Write a Review

US$ 33.91

Quantity: Stock ( 99 )

Estimate Shipping Cost

Product Name	HAPPYMODEL ES24TX Slim 2-4G ExpresLRS High-frequency Transmitter Module Compatible with X-lite Tango2
Item NO.	34734610
Weight	0.1 kg = 0.2205 lb = 3.5274 oz
Category	FPV Drone and Part
Brand	Happymodel
Creation Time	2022-11-08

HAPPYMODEL ES24TX Slim 2-4G ExpresLRS High-frequency Transmitter Module Compatible with X-lite Tango2

Specifications:
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux,as espbackpack)
RF chip: SX1280IMLTRT
Lite Compatible with Frsky 8pin socket
Frequency Range: 2400 to 2500
Maximum receive refresh rate: 500
Minimum receiver refresh rate: 25
RF Output Power: 10dBm~24dBm
Power supply voltage: 5v~10v
Weight: 48gram(with antenna and case）
Dimension: 60mm*30mm*20mm(With CNC case)
Antenna gain: 1.87dBi

Features:
Open source ExpressLRS
1.Long range, low latency and high re-flashed rates;
2.Supports up to 250 RF power;
3.Telemetry data transmission supported;
4.Cooling fan provide;
5.CNC aluminum protective shell.

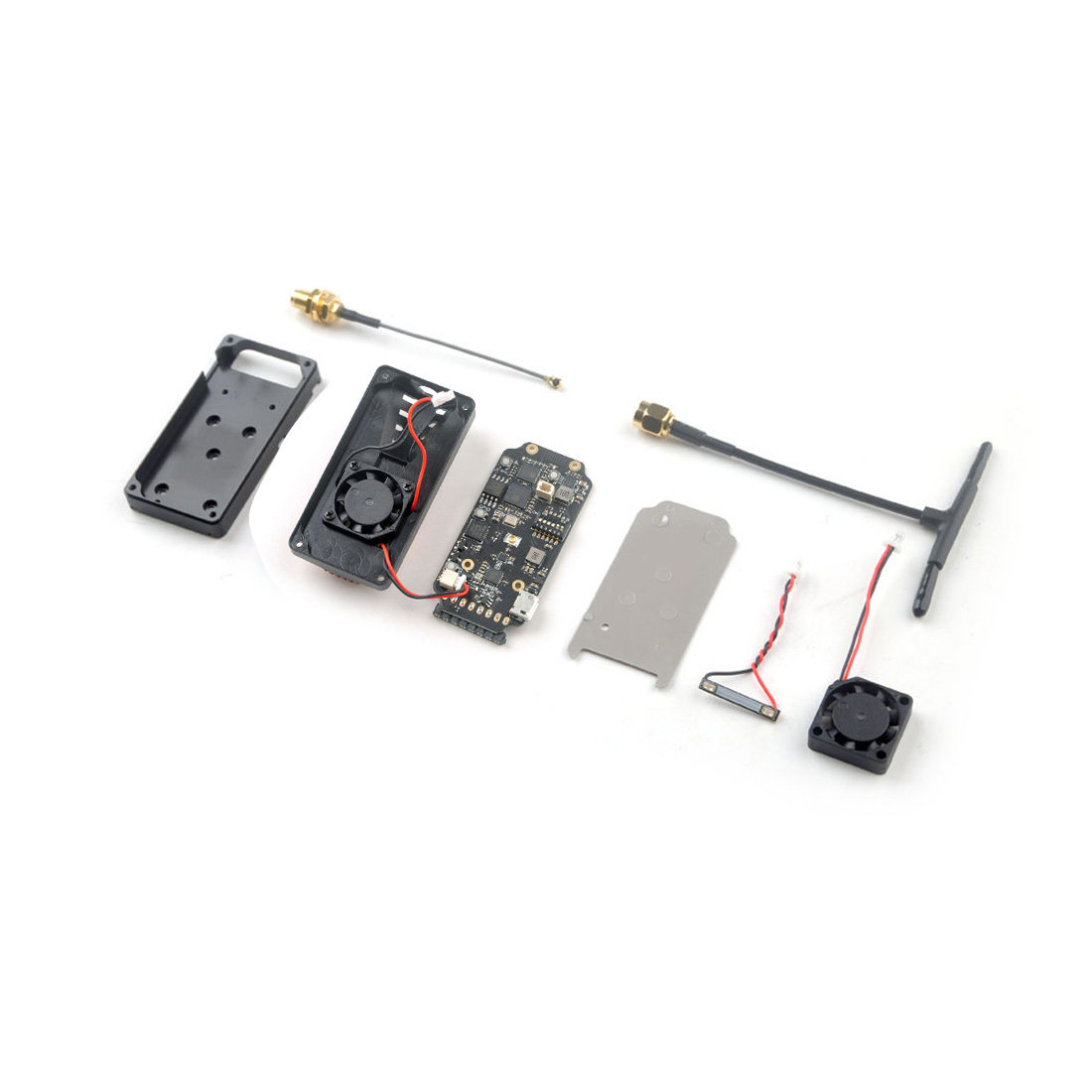

Package Include:
ES24TX Slim TX module *1
24TX80 antenna *1
CNC Aluminum alloy case *1
Cooling Fan *1
LED board *1
Antenna adapter cable *1

Notice:
The painting defects of CNC aluminum alloy casing are acceptable.
Please make sure to fix the plastic burrs of the socket interface before installing the module PCB.
When installing the LED board, please put it in place and put the wire into the corresponding slot to avoid interference with the installation of the cooling fan.
