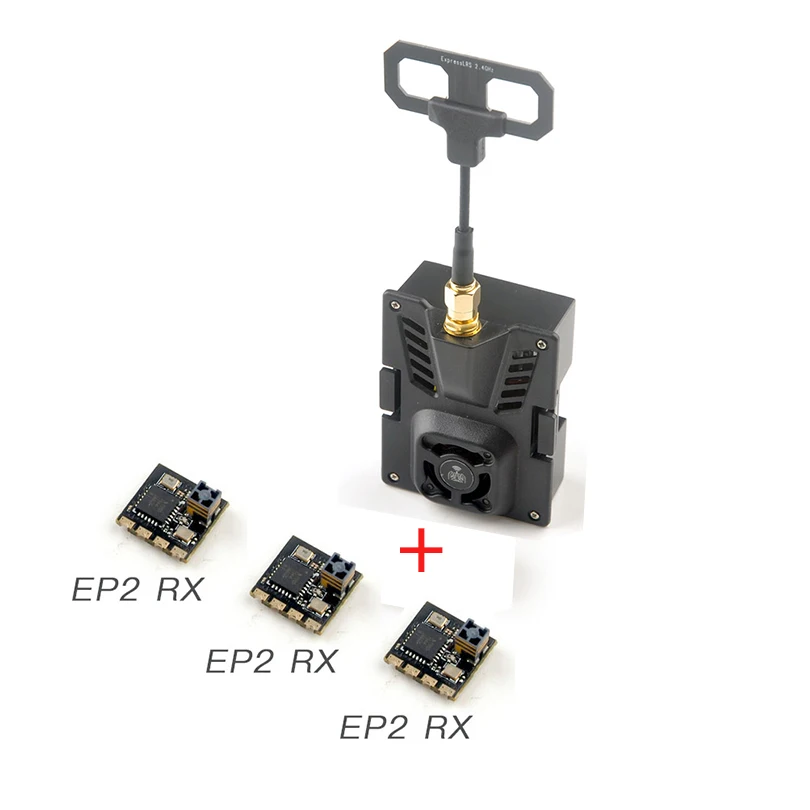

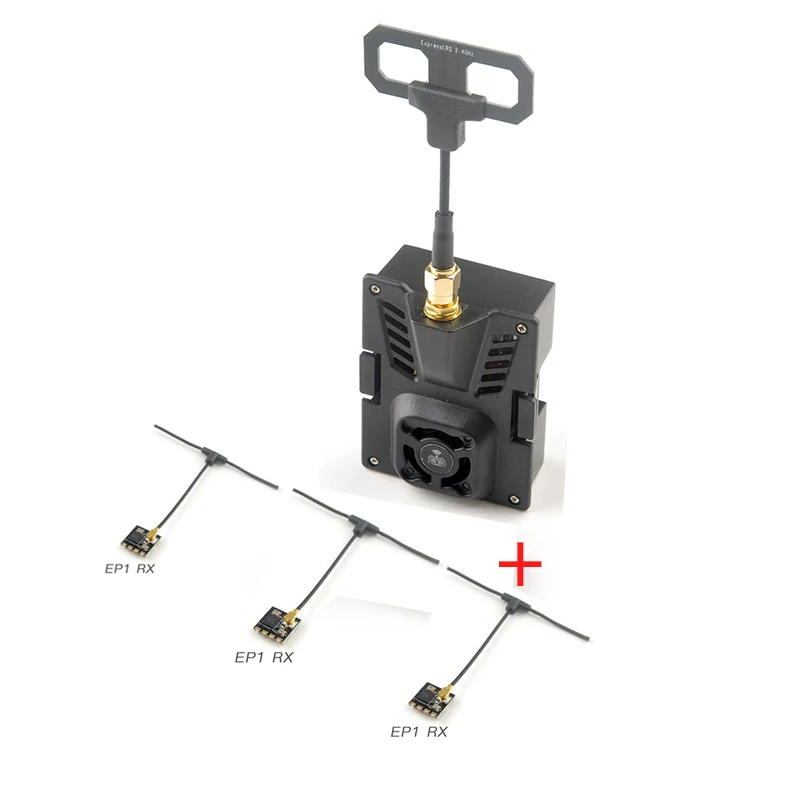

Product Name	HappyModel ES24TX Pro 1000mW 2.4G ExpressLRS ELRS Micro TX Module with Cooling Fan RGB LED Module EP1 RX EP2 RX for RC FPV Drone
Item NO.	3241500
Weight	0.05 kg = 0.1102 lb = 1.7637 oz
Category	FPV Drone and Part > RC Parts > Flight Controller
Brand	Happymodel
Creation Time	2021-11-23

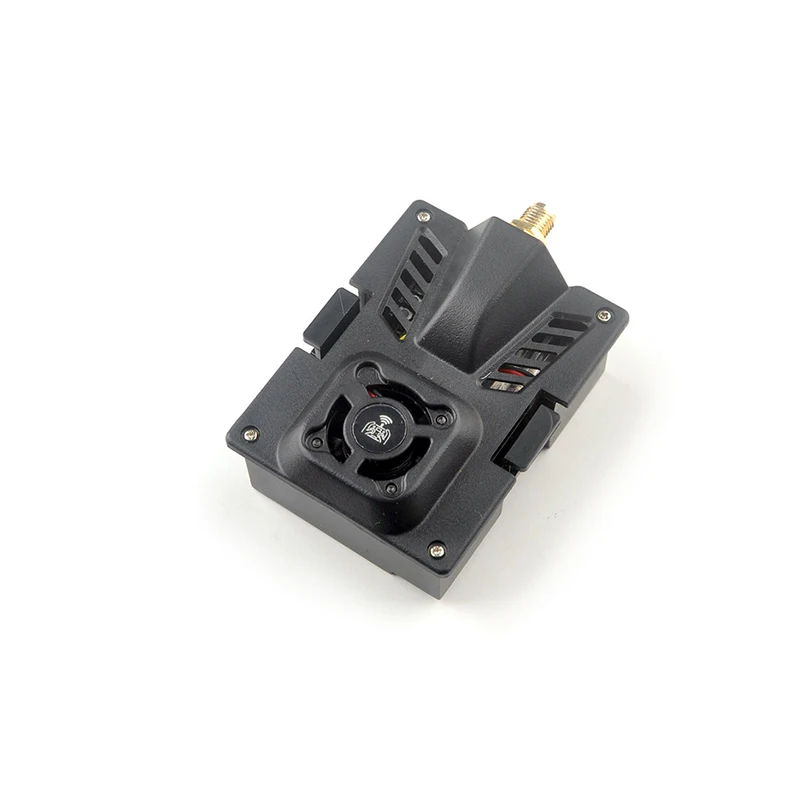

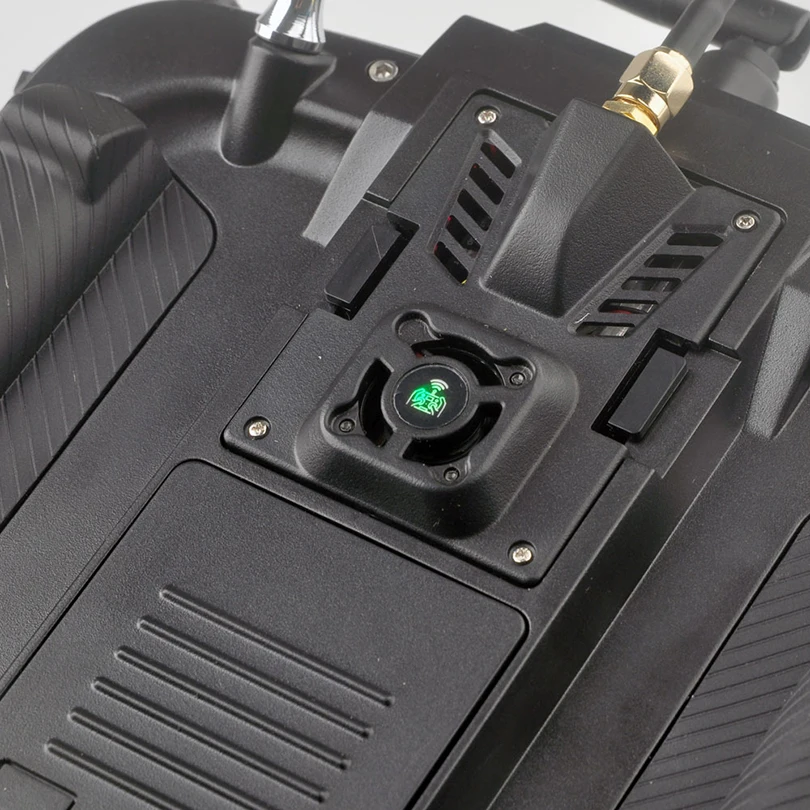

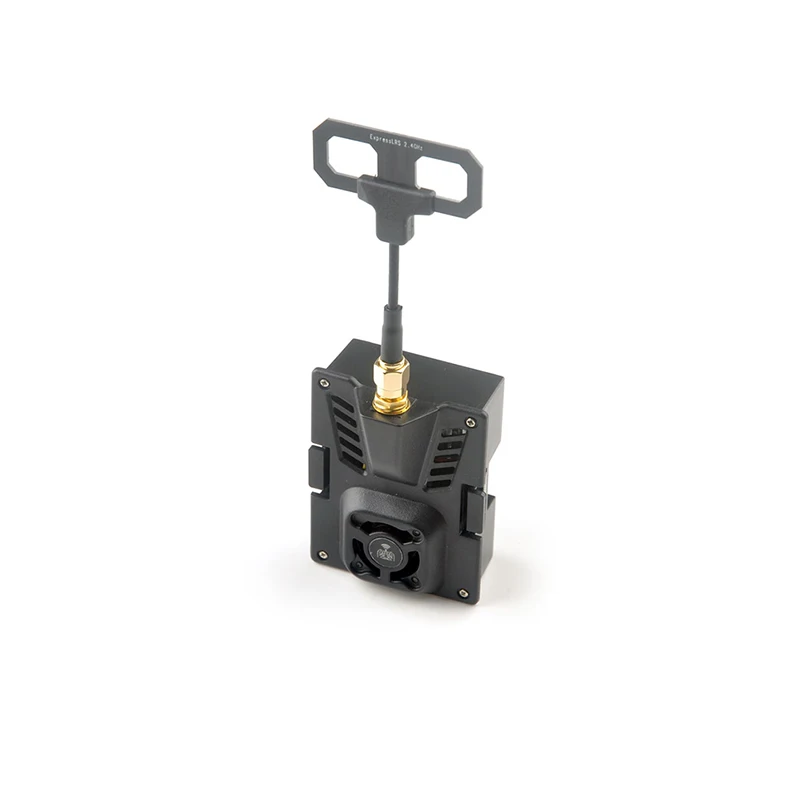

The ES24TX Pro Micro ExpressLRS TX module is a upgrade version of ES24TX module.

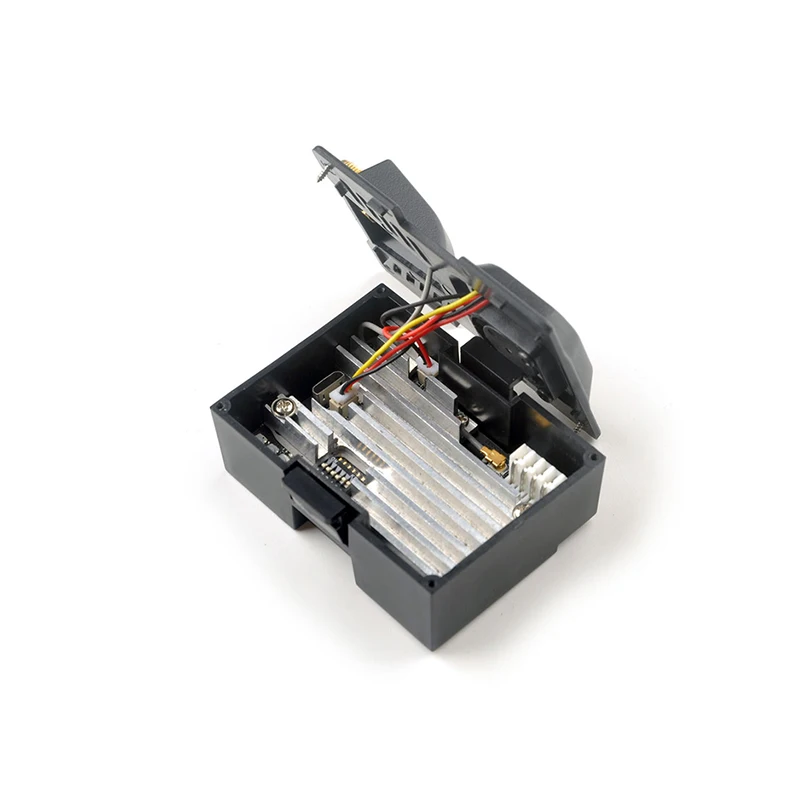

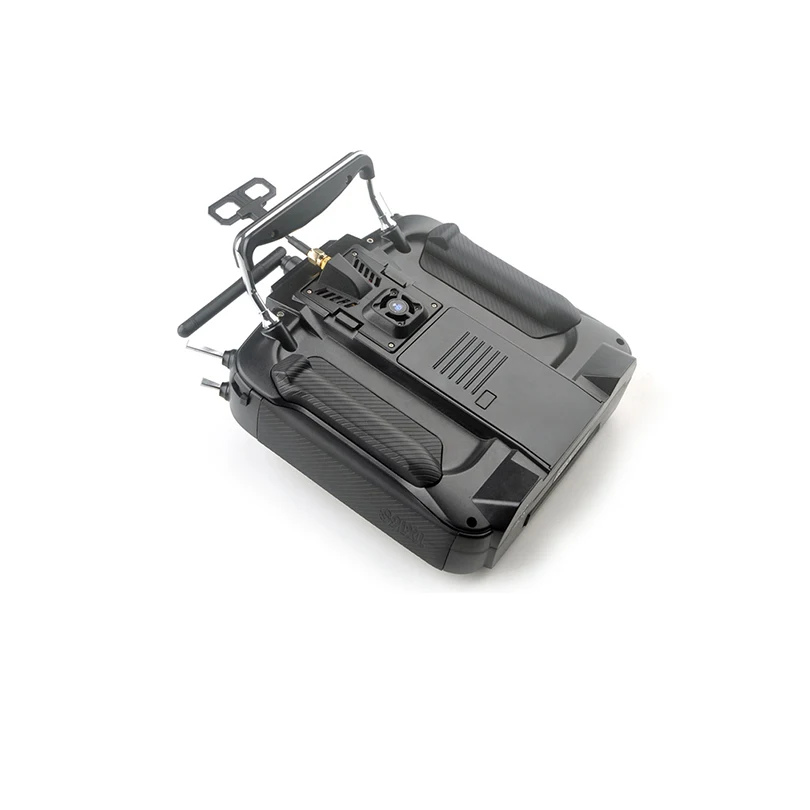

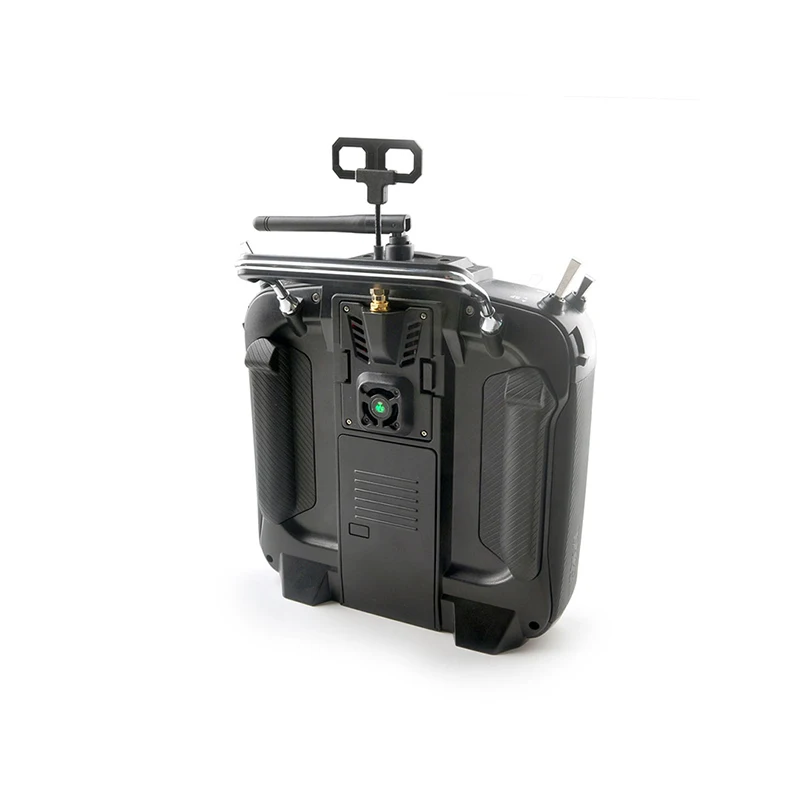

Max output up to 1000mw, reserved Cooling Fan and RGB LED module. This Micro TX module support most of the OpenTX radio transmitter that with Micro JR bay. And this time the ES24TX Pro module comes completely assembled before out of factory.

Specifications:

Regulatory Domain: ISM2400

MCU:ESP32(main),ESP8285(aux,as espbackpack)

RF chip: SX1281IMLTRT

JR standard 5pin socket

Frequency Range: 2400 MHz to 2500 MHz

Maximum receive refresh rate: 500Hz

Minimum receiver refresh rate: 25Hz

RF Output Power: >30dBm

Power supply voltage: 5v~10v

Weight: 51gram(without antenna)

Dimension: 70mm*49mm*32.5mm
