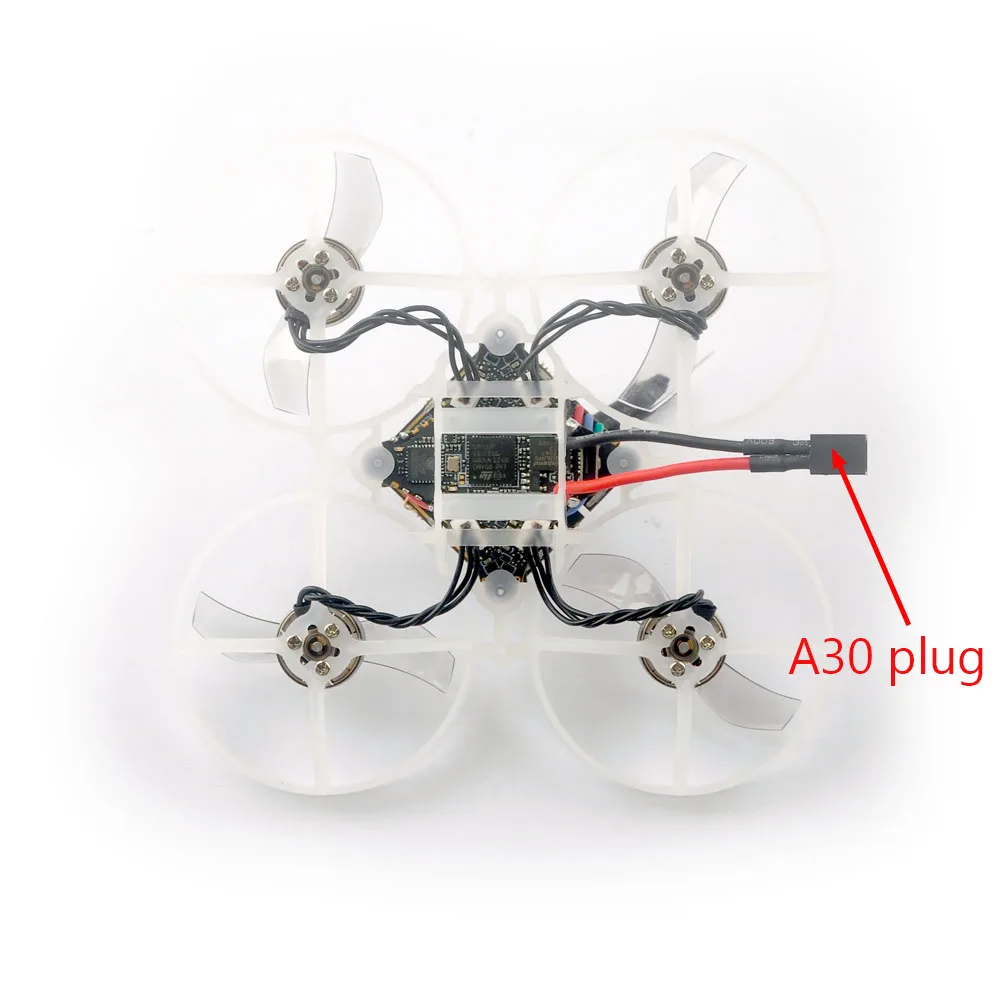

Notes: Recommend use the battery with lead wire, both A30 and BT2.0 plug battery are compatible.
Specifications:
Brand Name: Happymodel
Model: Moblite7 HDZERO V3
Frame wheelbase: 75mm

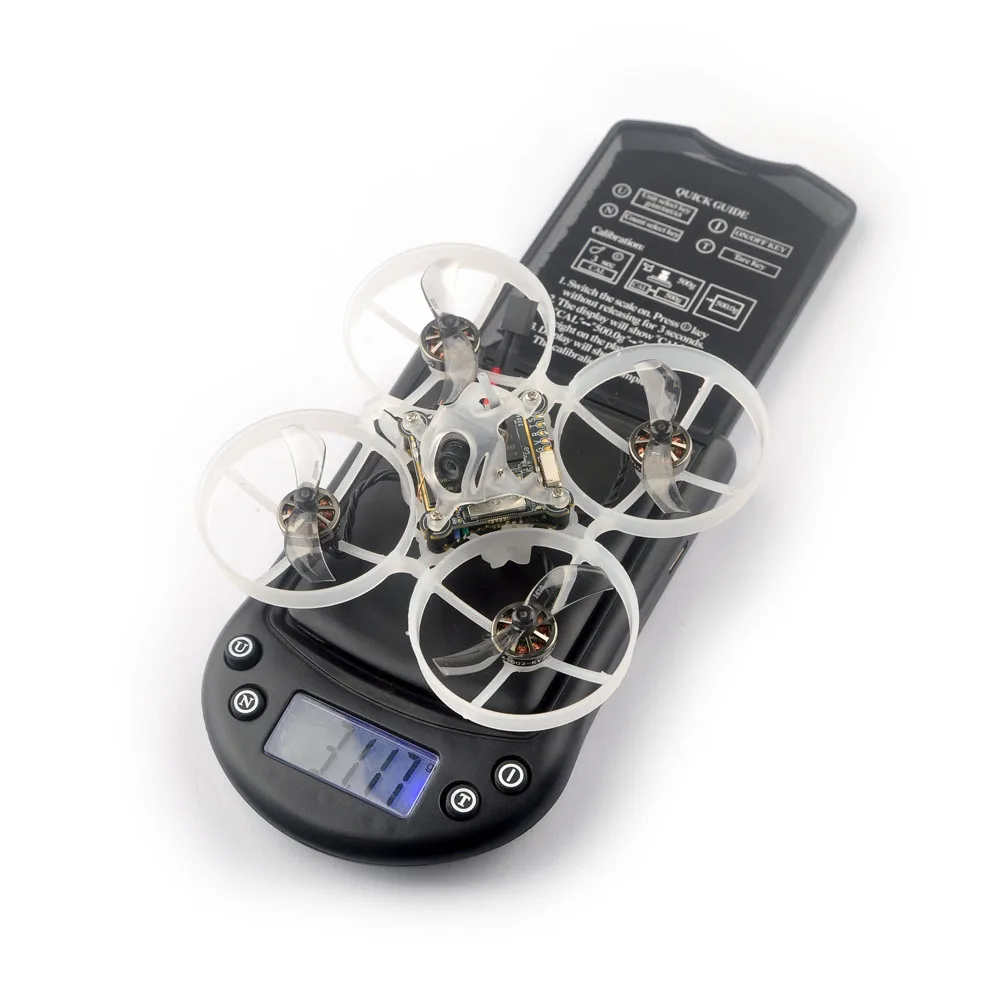

Weight: 31.5 gram without battery
Size: 98mm*98mm*50mm
UART ELRS v3.0 ready
Compatible with 1S Lipo battery or Lihv battery
Battery Plug: GNB A30
Onboard blackbox ready

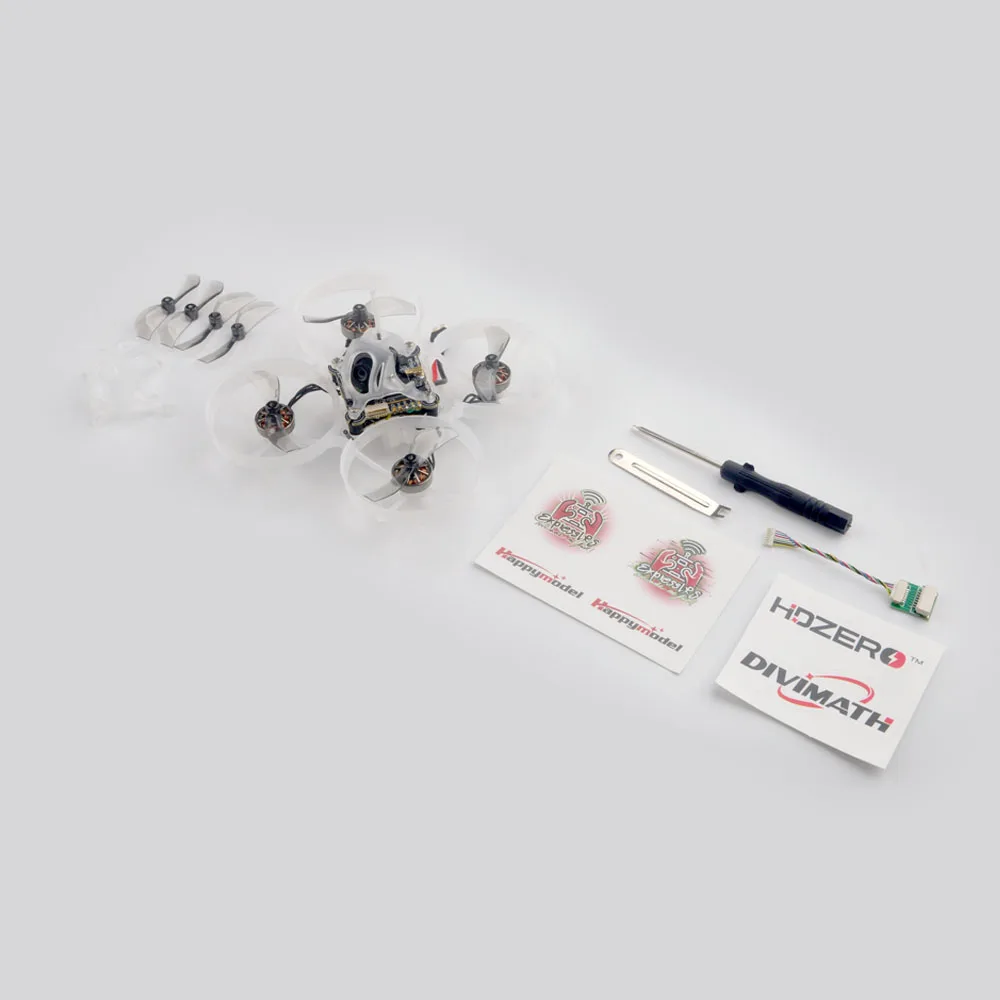

Package includes:
Item Name | Qty |
Mobula7 v4 75mm frame +Canopy | 1 |
SuperX HD ELRS AIO flight controller | 1 |
Happymodel 1002 KV20000 Unibell brushless motor | 4 |
Gemfan 1610-2 bi-blades propeller(4cw+4ccw) | 1 |
HDZero Nano Lite Camera | 1 |
HDZero Whoop Lite VTX | 1 |
Spare Canopy | 1 |
Propeller disassemble tool | 1 |
Screw driver | 1 |
Flight controllerSuperX HD ELRS | Betaflight 4.4.2 firmware ready
Firmware target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: BMI270 or ICM42688P (SPI connection)
Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone
Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read
Built-in UART elrs receiver , elrs v3.0 ready, support WIFI and pass-through firmware update
Bluejay ESC Firmware ready
Built-in 5V 1A BEC
Built-in voltage detection
No betaflight analog osd chip |
Onboard 4in1 ESC | Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support ESC-Configurator and BLHELI_S Suite configurator
Factory firmware: Z-H-30 – Bluejay, 0.19, 48kHz
Default protocol: DSHOT300 |
Onboard UART ExpressLRS 2.4GHz Receiver | RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Receiver protocol: CRSF
Default firmware version: ExpressLRS V3.0.1
The same hardware with Happymodel EP1 receiver
Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through |
Motor | Model: EX1002 20000KV
Configu-ration:9N12P
Stator Diameter:10mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*12.5mm
Weight(g):2.5g
No.of Cells(Lipo):1S only |
Propeller Gemfan 1610-2 Bi-blades | Weight:0.24g
Material: PC
Pitch:1 inch
Props Dia:40mm
Center Hole Dia:1.5mm |
HDZero Nano Lite Camera | 14x16x11 mm
1.5gram
0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor
Excellent low light performance
Fov:
4:3: D:130° H:108° v:84°
16:9:D:122° H:108° V:65° |
HDZero Whoop Lite VTX | 1S Input
25mW/200mW RF Output-SmartAudio Support
25.5×25.5 M2 Soft Mounting- Antenna Retention
Removable Shielding Box- 32.5×32.5mm(29x29mm inner)
4.5grams/4mm Thickness (without shielding) |
Port setting:
