Home>FPV Drone and Part>RC Parts>JHEMCU F4 NOXE V3 F411 Flight Controller 5V 10V BEC 2-6S 20X20mm for FPV RC Drone

JHEMCU F4 NOXE V3 F411 Flight Controller 5V 10V BEC 2-6S 20X20mm for FPV RC Drone Item NO.: F47109-D2

Write a Review

US$ 16.98

Version:
Full Version	US$ 19.98	Stock(9999999)	- +

Quantity: 0 , Subtotal 0

Product Name	JHEMCU F4 NOXE V3 F411 Flight Controller 5V 10V BEC 2-6S 20X20mm for FPV RC Drone
Item NO.	F47109-D2
Weight	0.04 kg = 0.0882 lb = 1.4110 oz
Category	FPV Drone and Part > RC Parts
Brand	FEICHAO
Creation Time	2022-04-18

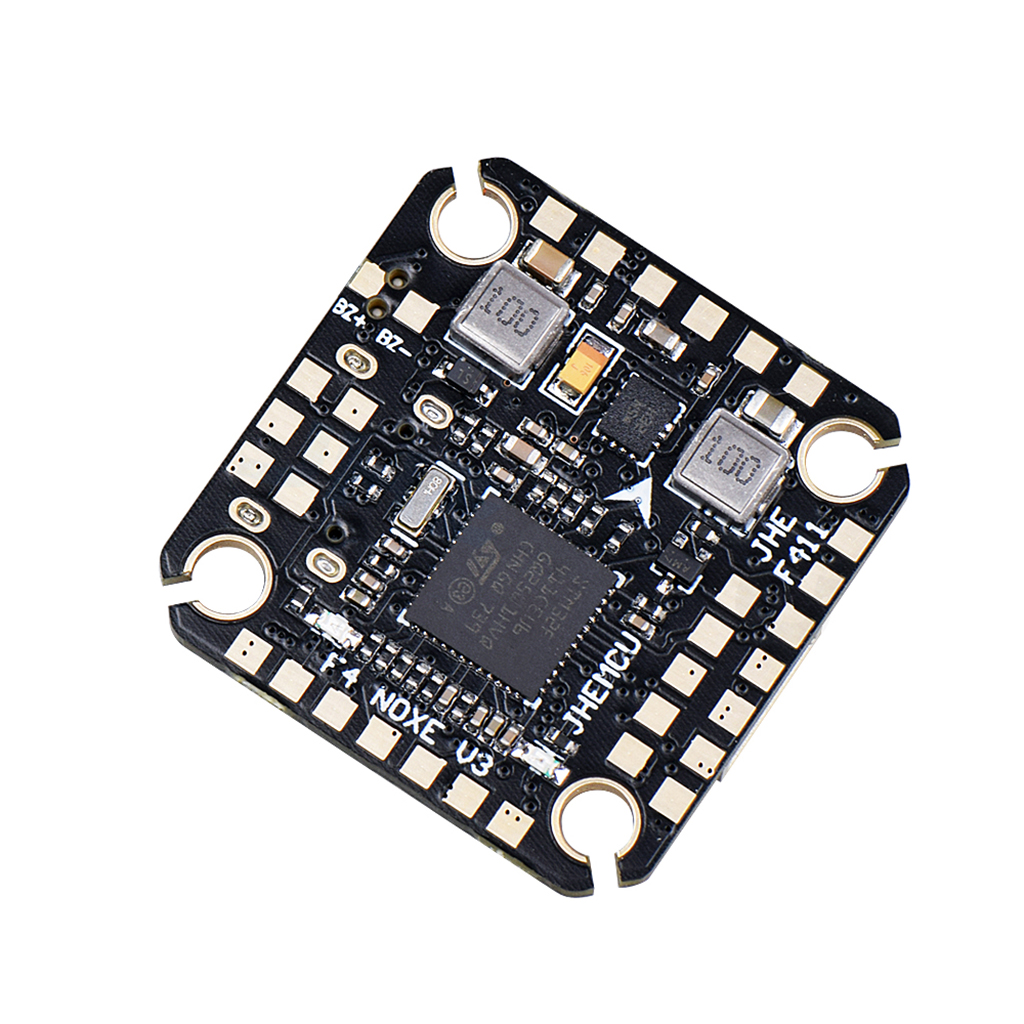

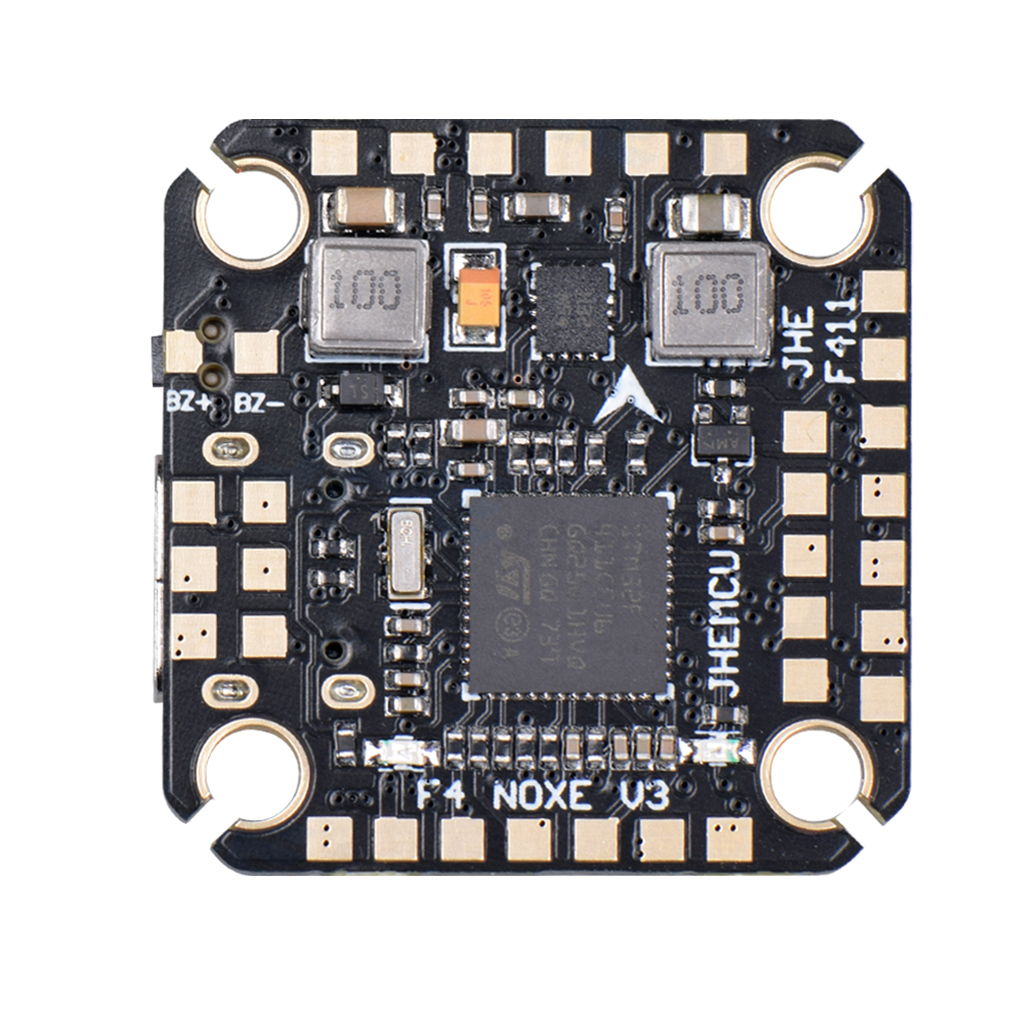

JHEMCU F4 NOXE V3 F411 Flight Controller 5V 10V BEC 2-6S 20X20mm for FPV RC Drone

Specifications
Model: F4 NOXE V3
Main control (MCU): STM32F41 1CEU6/100MHZ
Sensor (IMU): BMI270/Gyro/Accel
Video Overlay (OSD): AT7456E,

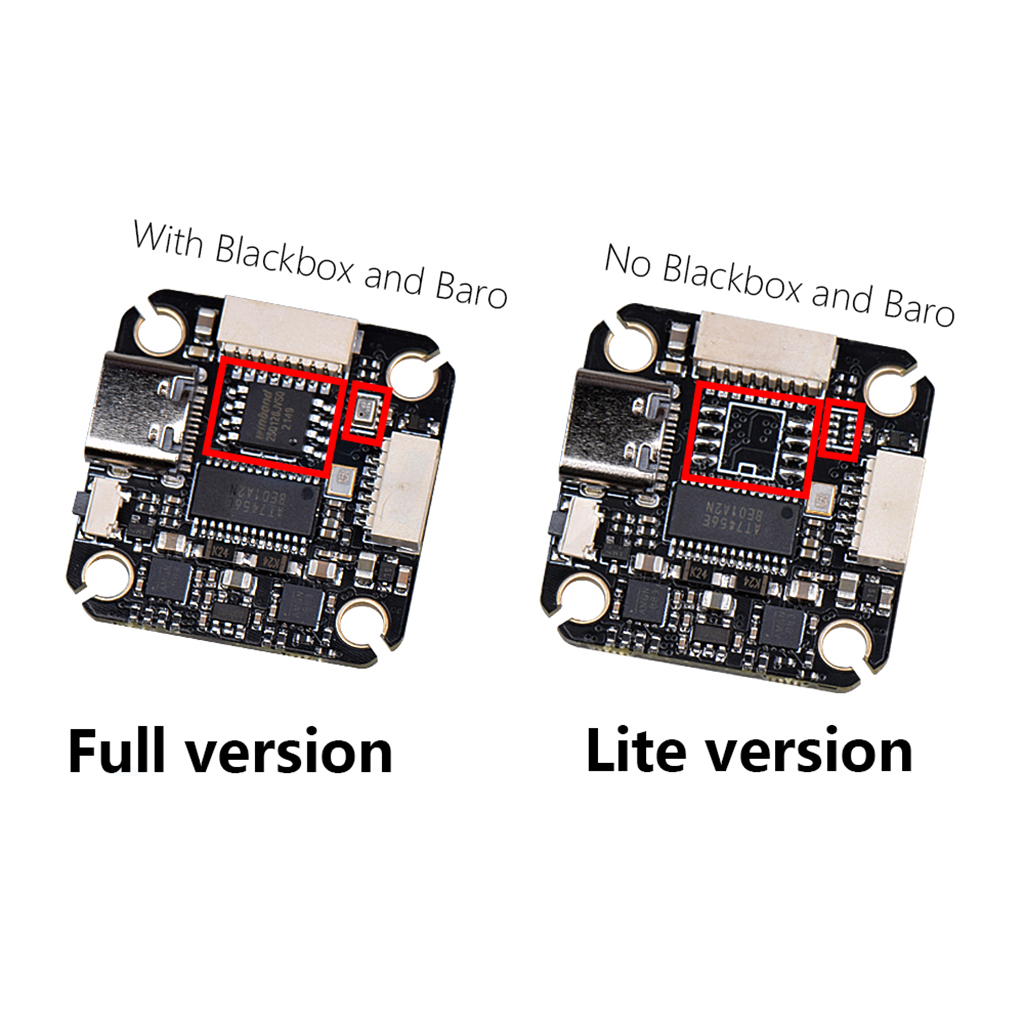

Barometer (Baro): Yes (Full version only)
Blackbox: 16MB (Full version only)
Input voltage: 2S-6S (7.4V-26V)
5V- BEC: 5V/2.5A ±0.1V
10V-BEC: 10V/2A ±0.1V
Receiver): ELRS (CRSF), TBS (CRSF), SBUS, IBUS, DSM2, DSMX
HD interface: yes
UART: UART1, UART2
lIC: IC1
Led. Strip: Yes
Buzzer: support 5V active
ESC signal: PWw. Oneshot125, Onesho42, Mulishol,
Dshot1s0. Dshot300. Dhat600
USB: Micro USB
Current port; yes
Voltage sensor: Yes
DFU button: Yes
Firmware; betaflight 4.3.0 JHEF411.HEX
Size (Zize): 27*27*5MM
Mounting Hole: 20*20*3MM

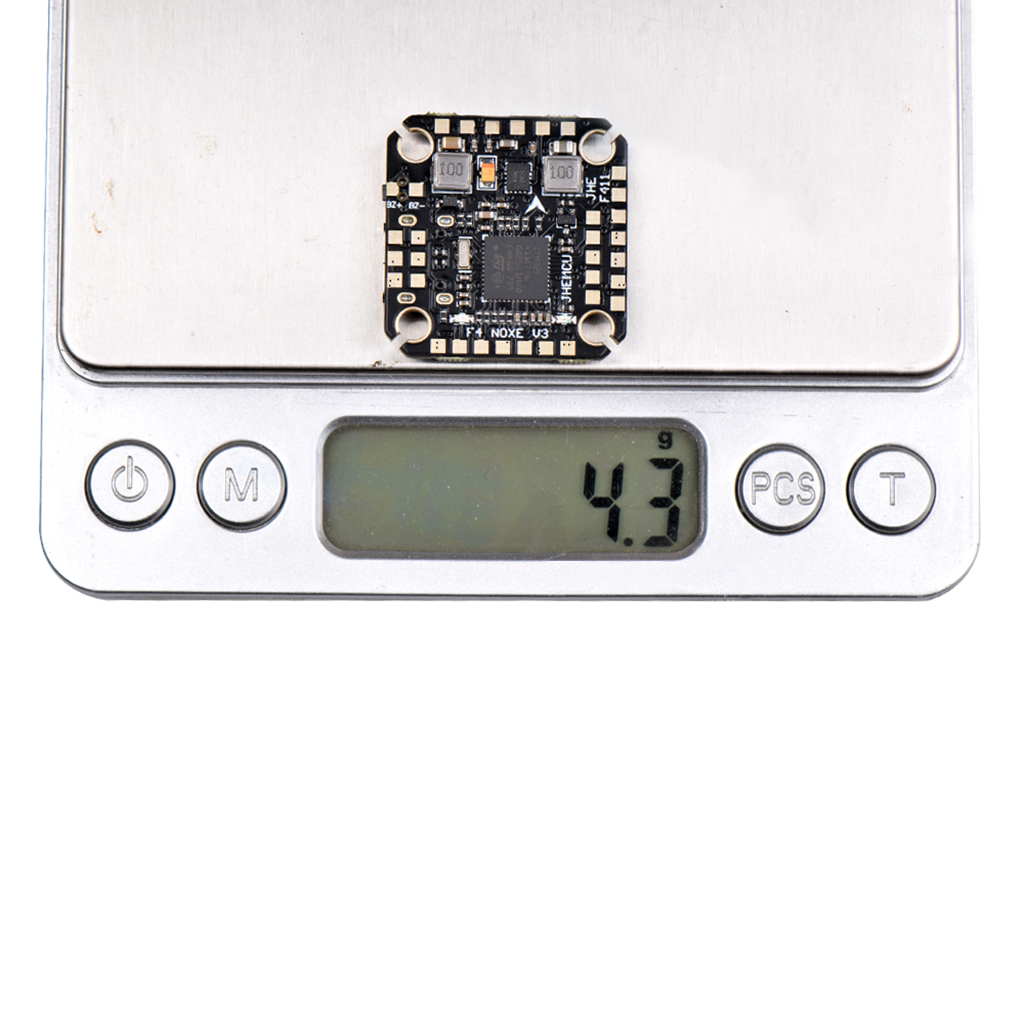

Weight: 4.3g
