Home>FPV Drone and Part>RC Drones>JMT HappyModel 4PCS RS0802 KV20000 1S Brushless Motor for FPV Freestyle Mobula7 Mobula7 HD 1S Tinywhoop Drones DIY Parts

JMT HappyModel 4PCS RS0802 KV20000 1S Brushless Motor for FPV Freestyle Mobula7 Mobula7 HD 1S Tinywhoop Drones DIY Parts Item NO.: 33106630

Write a Review

US$ 7.07

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

Product Name	JMT HappyModel 4PCS RS0802 KV20000 1S Brushless Motor for FPV Freestyle Mobula7 Mobula7 HD 1S Tinywhoop Drones DIY Parts
Item NO.	33106630
Weight	0.02 kg = 0.0441 lb = 0.7055 oz
Category	FPV Drone and Part > RC Drones
Brand	FEICHAO
Creation Time	2022-06-13

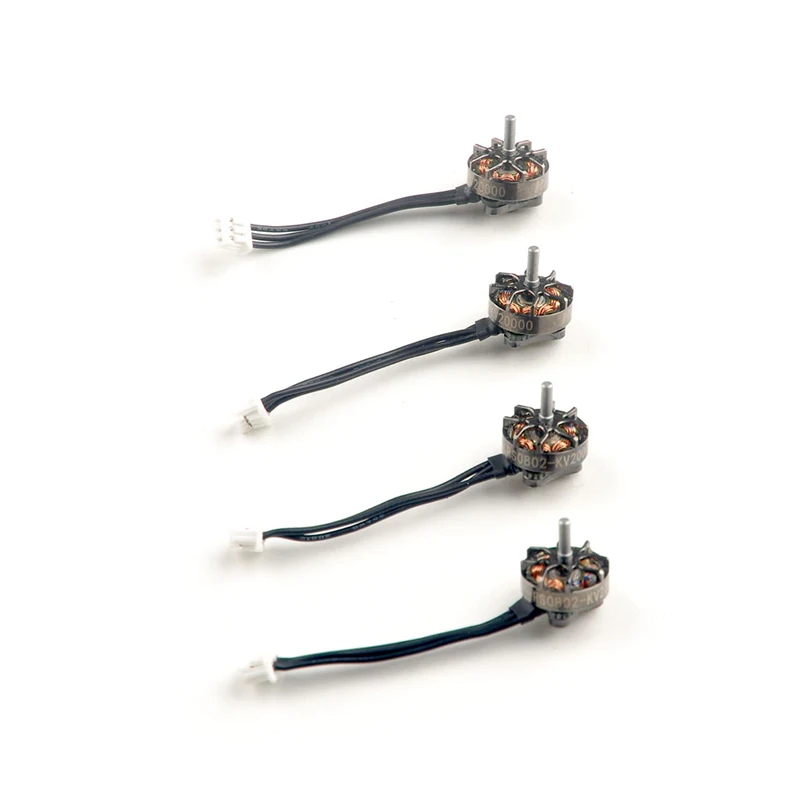

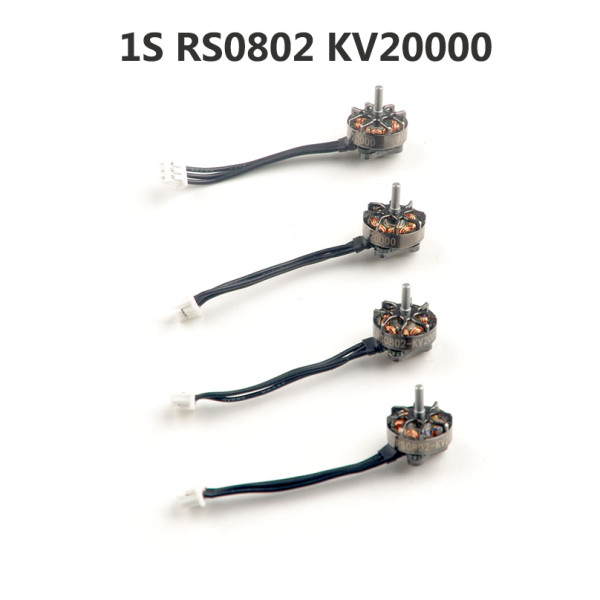

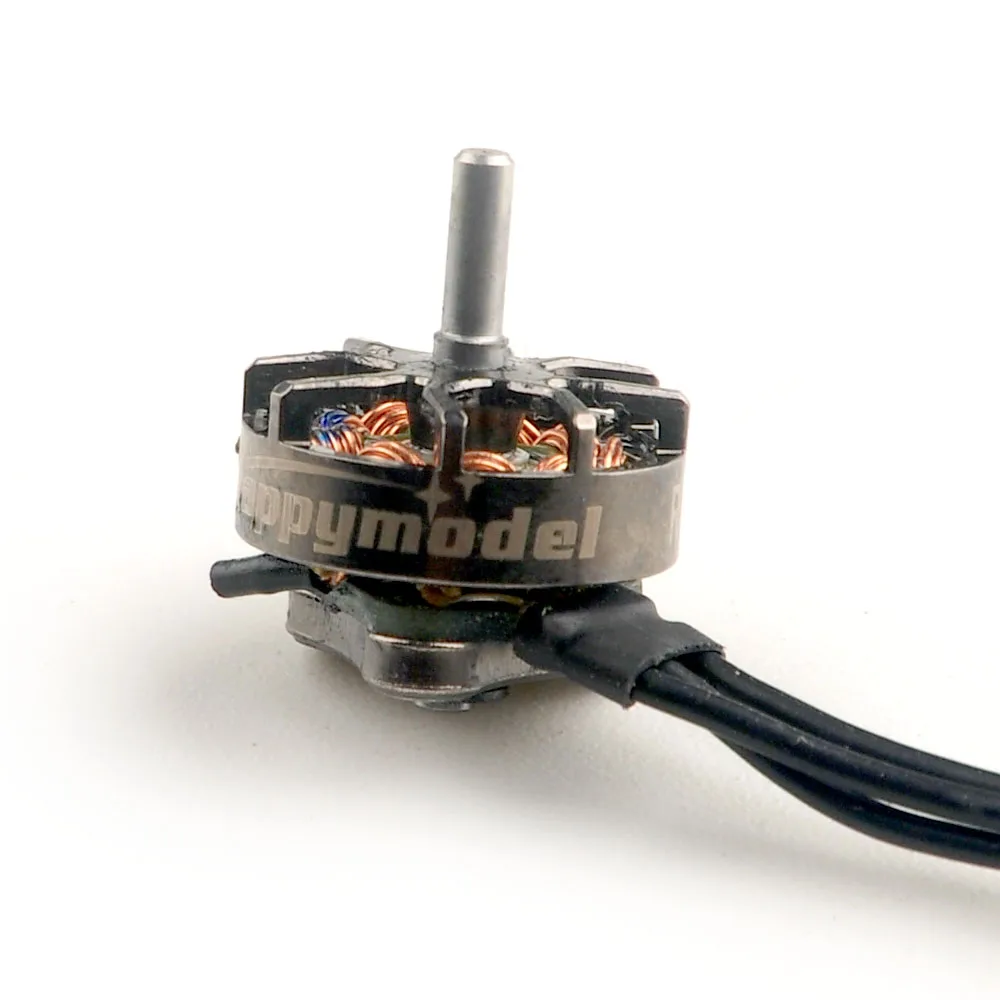

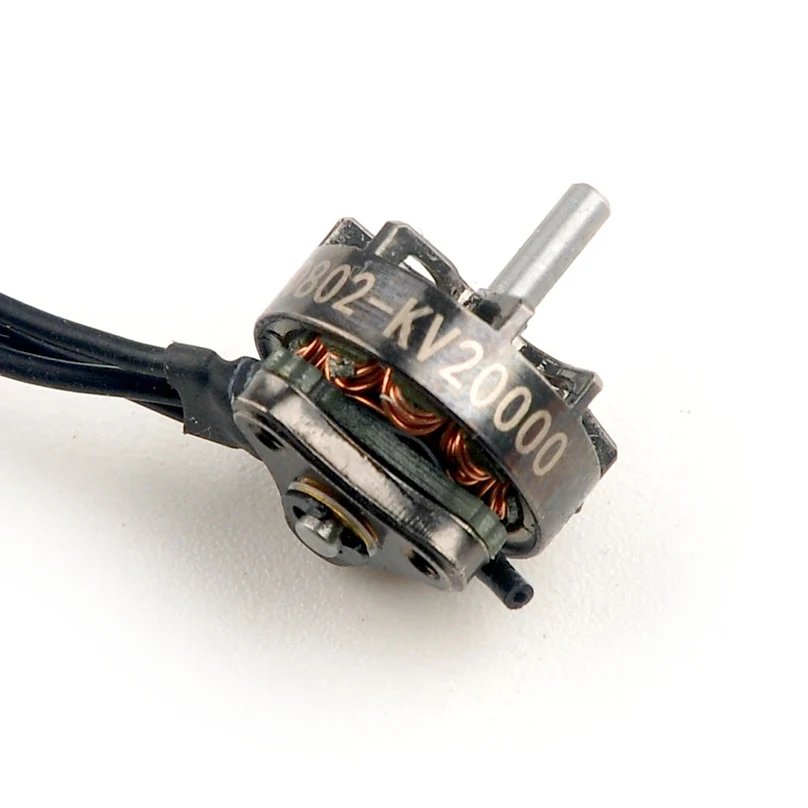

HappyModel 4PCS RS0802 KV20000 1S Brushless Motor for FPV Freestyle Mobula7 Mobula7 HD 1S Tinywhoop Drones DIY Parts

Specifications:
Brand name: Happymodel
Item name: RS0802 brushless motor
KV: 20000KV
Shaft Diameter: 1.5mm
Configuration: 9N12P
Stator Diameter: 8mm
Stator Length: 2mm
Motor Dimension(Dia.Len): Φ10.5mm13.5mm
Terminals: JST1.25mm
No. of Cells(Lipo): 20000KV compatible with only 1S lipo
Wire length(exclude connector):30mm
Weight: 2g
Compatible for Mobula7 and Mobula7 HD 1S version

Happymodel RS0802 KV20000 Brushless motor Bench data
No-load voltage	No-load current	No-load Speed	KV	Voltage (v)	Current (A)	Thrust (g)	Efficiency (g/w)	Power (w)	Propeller
Happymodel RS0802-20000KV
2	0.46	40790	20395.0	3.7	0.5	6.1	3.297	1.85	Gemfan 1610 2-blade propeller
				3.7	1	11.3	3.054	3.7
				3.7	1.5	15.9	2.865	5.55
				3.7	2	20.8	2.811	7.4
				3.7	2.5	24.7	2.670	9.25
				3.7	3	29.4	2.649	11.1
				3.7	3.5	32.5	2.510	12.95
				3.7	3.74	34.8	2.515	13.838
