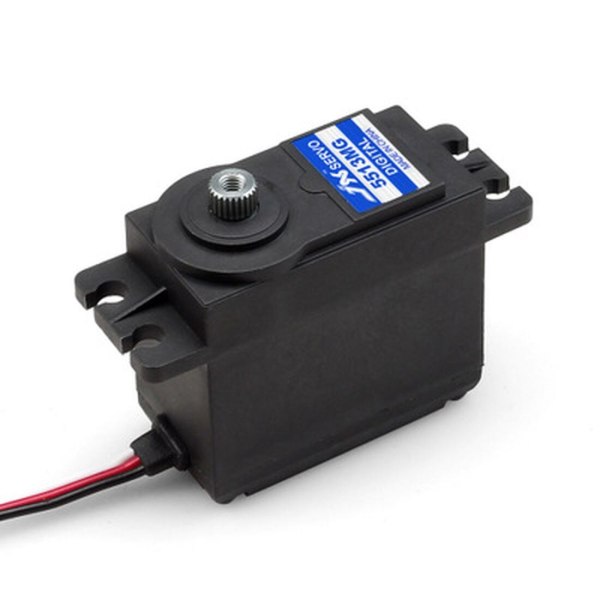

JX 8KG/9KG/13KG/15KG/20KG High Torque Metal Gear Digital Standard Servo For Helicopter Drone Tank Car Robot Accessories
PDI-5508MG/8KG:
Working voltage: DC4.8~6.0 V
Speed (4.8V): 0.09 sec/60°
Speed (6.0V): 0.07 sec/60°
Torque (4.8V): 6.8 kg.cm
Torque (6.0V): 8.2 kg.cm
Size: 40.5X20.2X38mm /1.59 X0.80X49 in
Weight: 55.6 g (1.96oz)
Servo/PDI-5509MG/9KG:
Working voltage: DC4.8~6.0 V
Speed (4.8V): 0.15 sec/60 degrees
Speed (6.0V): 0.13 sec/60 degrees
Torque (4.8V): 8.65 kg.cm (120.15 oz/in)
Torque (6.0V): 9.35 kg.cm (129.88 oz/in)
Size: 40.5X20.2X38mm /1.59 X0.80X49 in
Weight: 55.6 g (1.96oz)
PDI-5513MG/13KG:
Working voltage: DC4.8~6.0 V
Speed (4.8V): 0.20sec/60 degrees
Speed (6.0V): 0.18 sec/60 degrees
Torque (4.8V): 11.75kg.cm (163.21oz/in)
Torque (6.0V): 13.06 kg.cm (181.40 oz/in)
Size: 40.5X20.2X38mm /1.59 X0.80X49 in
Weight: 55.6 g (1.96oz)
PDI-5515MG/15KG:
Working voltage: DC4.8~6.0 V
Speed (4.8V): 0.18 sec/60 degrees
Speed (6V): 0.16 sec/60 degrees
Torque (4.8V): 14.25 kg.cm (197.93 oz/in)
Torque (6V): 15.32 kg. cm (212.79 oz/in)
Size: 40.5X20.2X38mm /1.59 X0.80X49 in
Weight: 55.6 g (1.96oz)
PDI-5521MG/20KG 120°
Working voltage: DC4.8~6.0 V
Speed (4.8V): 0.18sec/60°
Speed (6V): 0.16 sec/60°
Torque (4.8V): 17.25kg.cm (239.55oz/in)
Torque (6.0V): 20.32 kg.cm (281.89 oz/in)
Size: 40.5X20.2X38mm /1.59 X0.80X49 in
Weight: 55.6 g (1.96oz)
PDI-5521MG/20KG 360°
Working voltage: DC4.8~6.0 V
Speed (4.8V): 53 rpm
Speed (6V): 65 rpm
Size: 40.5X20.2X38mm /1.59 X0.80X49 in
Weight: 55.6 g (1.96oz)
package contains:
1xservo(Optional)
1xservo spare parts set
