JX PDI-HV1151MG Mini Waterproof Servo 8.4V 4.5KG Metal Gear Digital Servo for Rc Car Traxxas TRX-4 Racing BRX01 Crawler Item NO.: 34680700

Write a Review

US$ 8.19

Quantity: Stock ( 999 )

Estimate Shipping Cost

Product Name	JX PDI-HV1151MG Mini Waterproof Servo 8.4V 4.5KG Metal Gear Digital Servo for Rc Car Traxxas TRX-4 Racing BRX01 Crawler
Item NO.	34680700
Weight	0.035 kg = 0.0772 lb = 1.2346 oz
Category	Aliexpress
Creation Time	2022-11-02

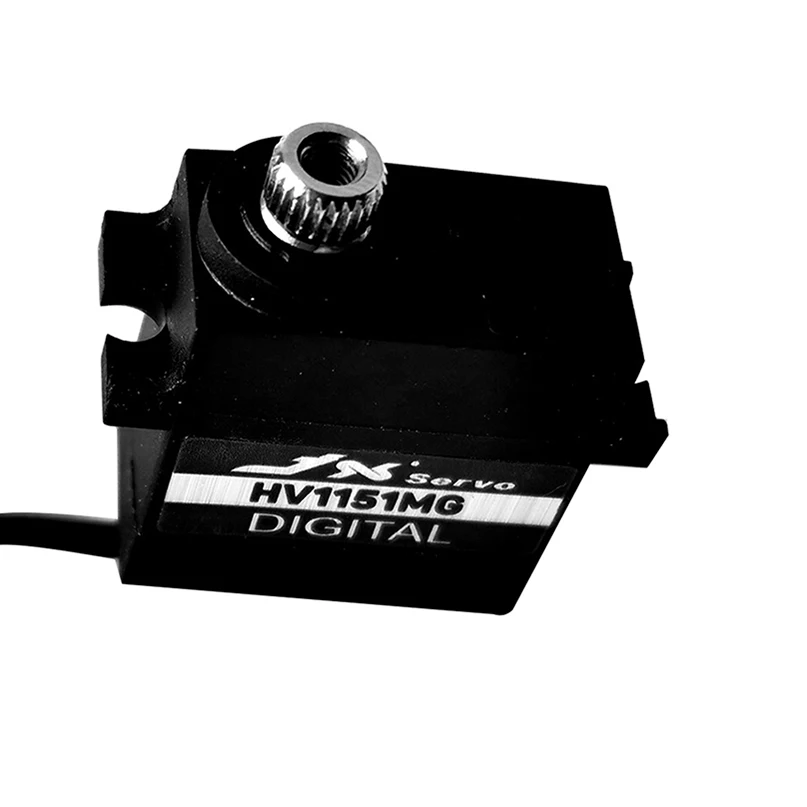

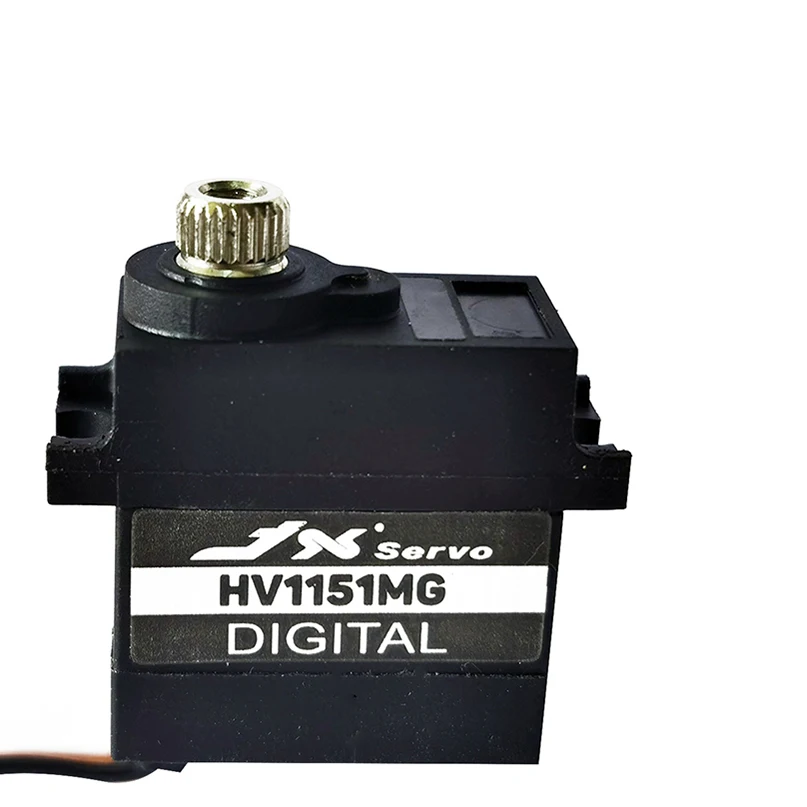

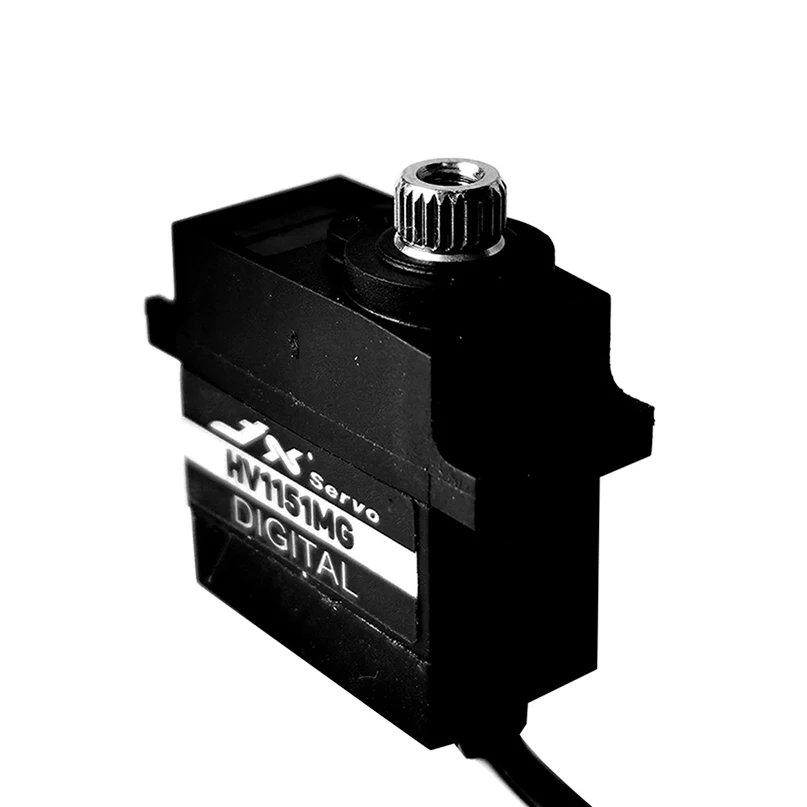

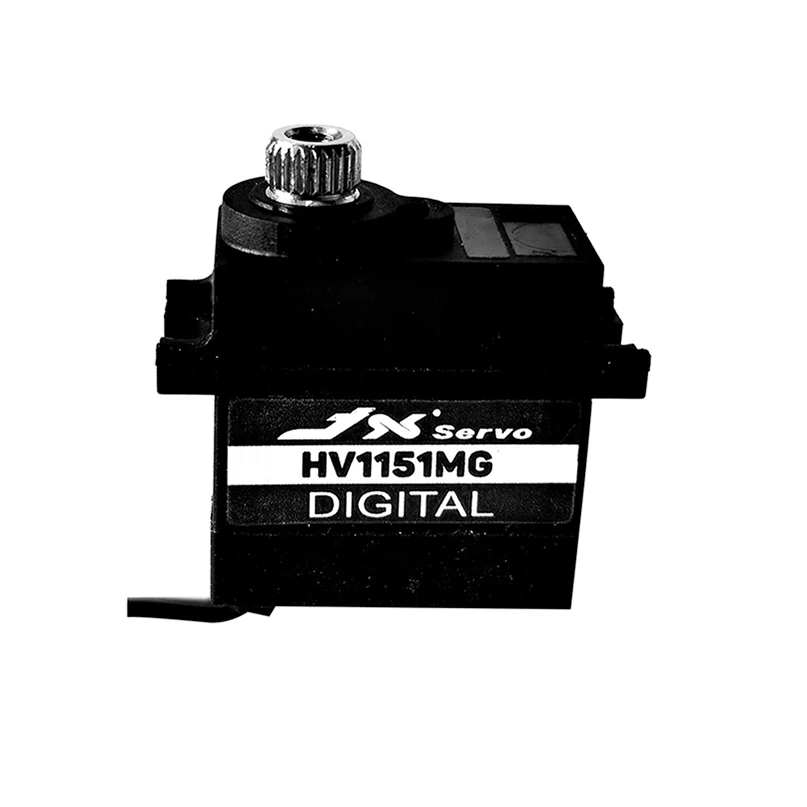

JX Servo 8.4V Waterproof Metal Gear Digital Servo PDI-HV1151M Mini for Traxxas TRX-4

Product description: Model: PDI-HV1151MG 8.4V Mini Waterproof 4.5kg
Extreme factory direct sales JX SERVO high voltage 8.4V waterproof metal gear digital steering gear PDI-HV1151M special for Traxxas TRX-4

Features:
- High voltage 8.4V waterproof mini servo
--- High precision metal gear made in Taiwan
--- Double ball bearing
--- Extra long cable JR 360mm

Product parameters:
Pulse width:1000-2000μs=90°
Pulse width:500-2500μs=180°
Dead band: 2μs 1520μs / 330hz
Motor: coreless motor
Operating Speed 6V): 0.12sec/60°
Operating Speed (8.4V): 0.1sec/60°
Stall Torque (6V): 3.5kg.cm
Stall Torque (8.4V): 4.5kg.cm
Dimensions: 23.2 x 12.5x 25.6mm
Weight: 15g(0.5oz)
Connector Wire Length: JR 360 mm
Bearing: 2BB

Operating Temperature: 20deg ~ 60deg

Waterproof
Spline: 25T
Apply to:

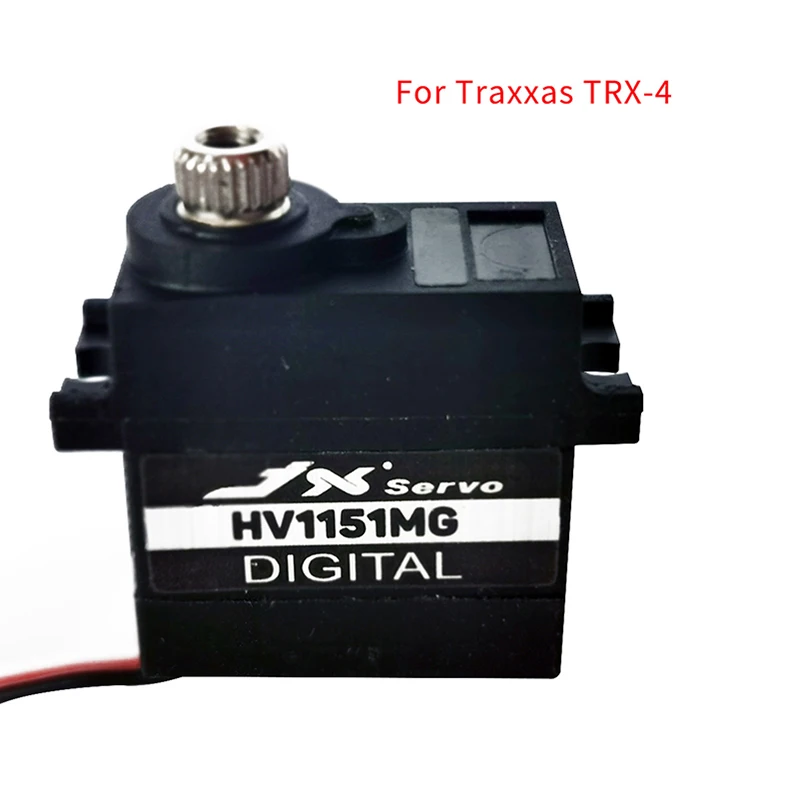

Traxxas TRX-4
Boom Racing BRX01
And the remote control car that needs to change gears
