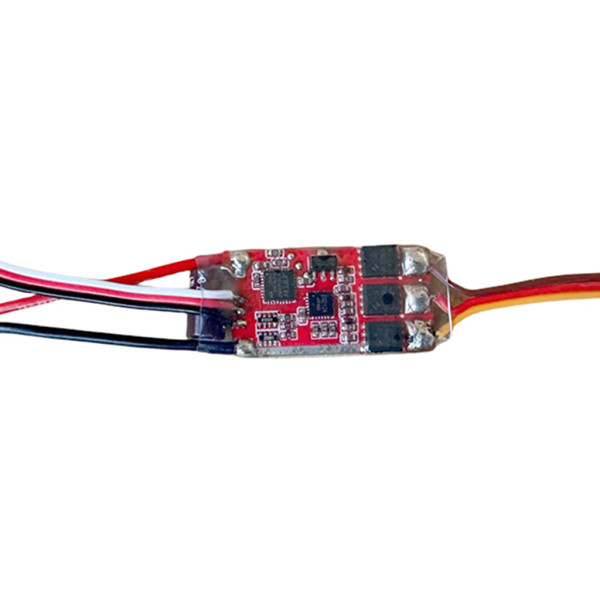

Mini-Q Mini-Z Mini-Q 20a Brushless Esc Compatible with 1/24 1/28 1/32 Rc Mosquito Esc Item NO.: 4511070

Write a Review

US$ 12.67

Quantity: Stock ( 999 )

Estimate Shipping Cost

Product Name	Mini-Q Mini-Z Mini-Q 20a Brushless Esc Compatible with 1/24 1/28 1/32 Rc Mosquito Esc
Item NO.	4511070
Weight	0.04 kg = 0.0882 lb = 1.4110 oz
Category	RC Car
Brand	FEICHAO
Creation Time	2025-03-03

Using AM32 open source firmware, you can freely adjust parameters, support dshot/pwm signals,
Linear at low speed, violent at high speed, very smooth speed adjustment, no heat at low temperature.
Supports bidirectional/unidirectional operation, adjustable drag brake, sinusoidal start and other functions,
Quick forward and reverse switching is very smooth. For more details, please refer to the official description of AM32

AM32-20A parameters
1: Voltage range 2-3S (7.4-12.6V)
2: Single-cell LIPO protection voltage 3.0V
3: Continuous working current 20A
4: Instantaneous current up to 30A
5: BEC output: 5V2A
6: Size 40*18*6 (mm)
7: PCB board size: 35*17MM
