NX4 PRO EVO Gyro Balancer Flight Controller Board For Singal/Dual/Delta And V-tail Aileron Airplane 3D Flight Item NO.: 34680800

Write a Review

US$ 7.40

Color:
NX4 PRO	US$ 7.40	Stock(8000)	- +
NX4 EVO	US$ 10.51	Stock(9000)	- +

Quantity: 0 , Subtotal 0

Product Name	NX4 PRO EVO Gyro Balancer Flight Controller Board For Singal/Dual/Delta And V-tail Aileron Airplane 3D Flight
Item NO.	34680800
Weight	0.048 kg = 0.1058 lb = 1.6932 oz
Category	Aliexpress
Creation Time	2022-11-02

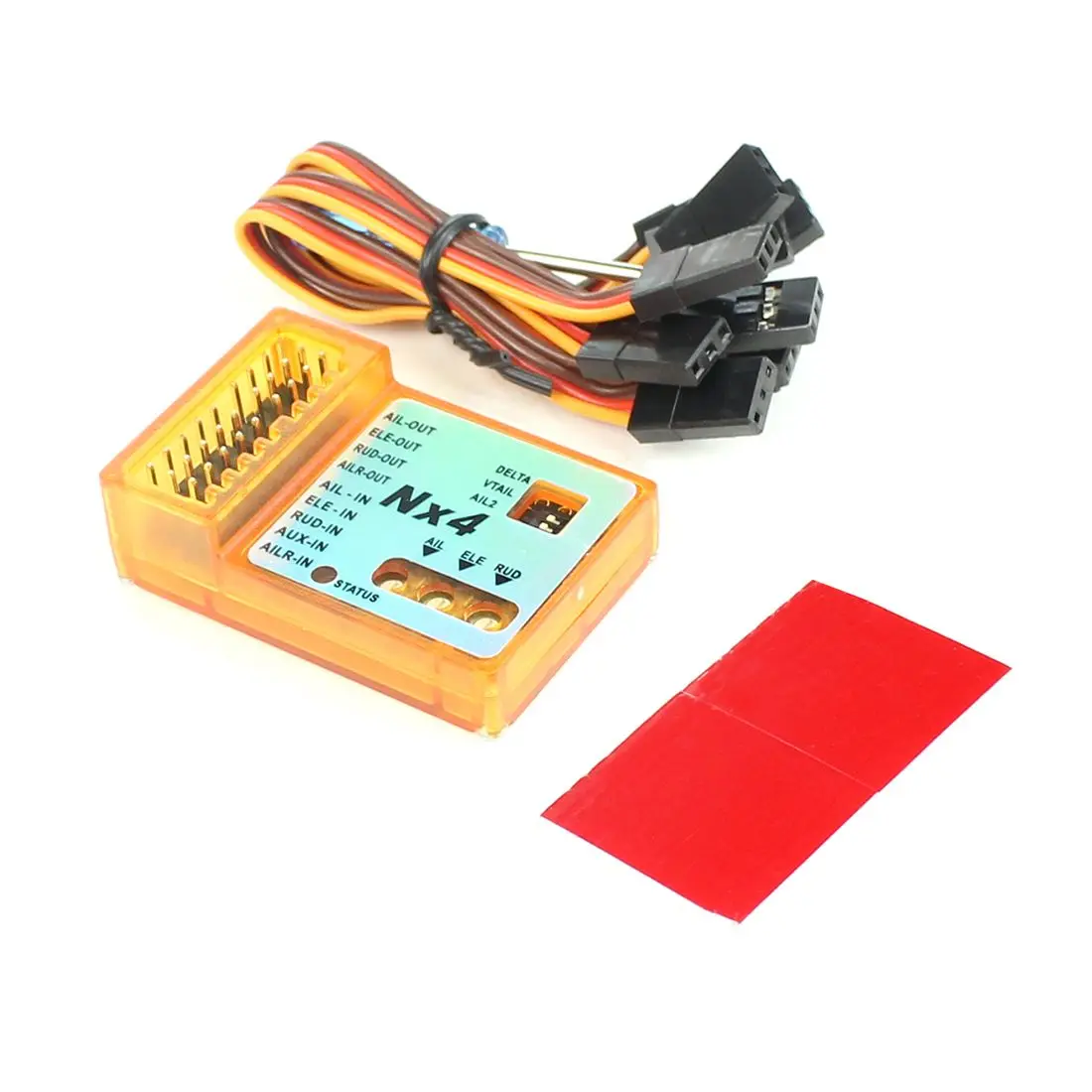

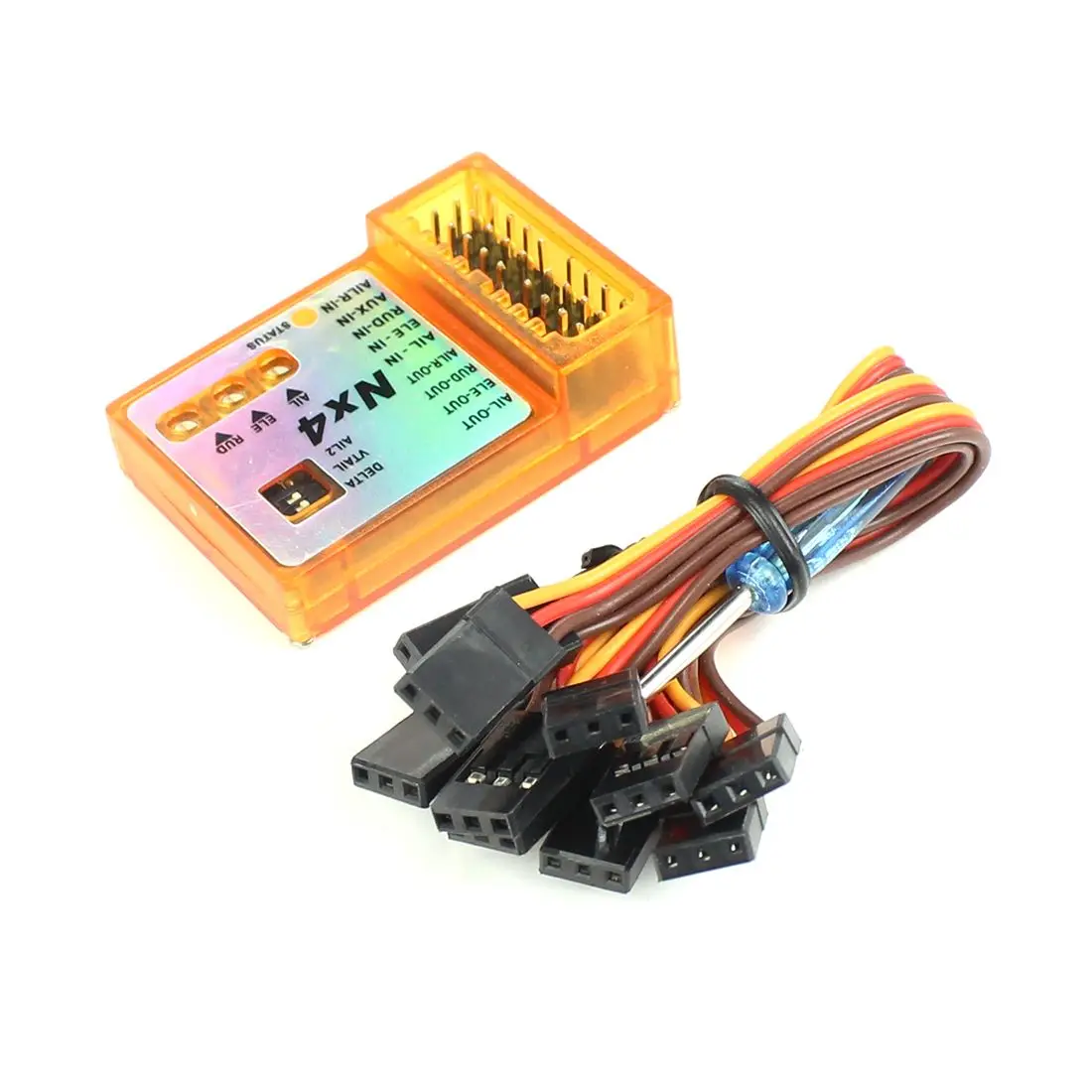

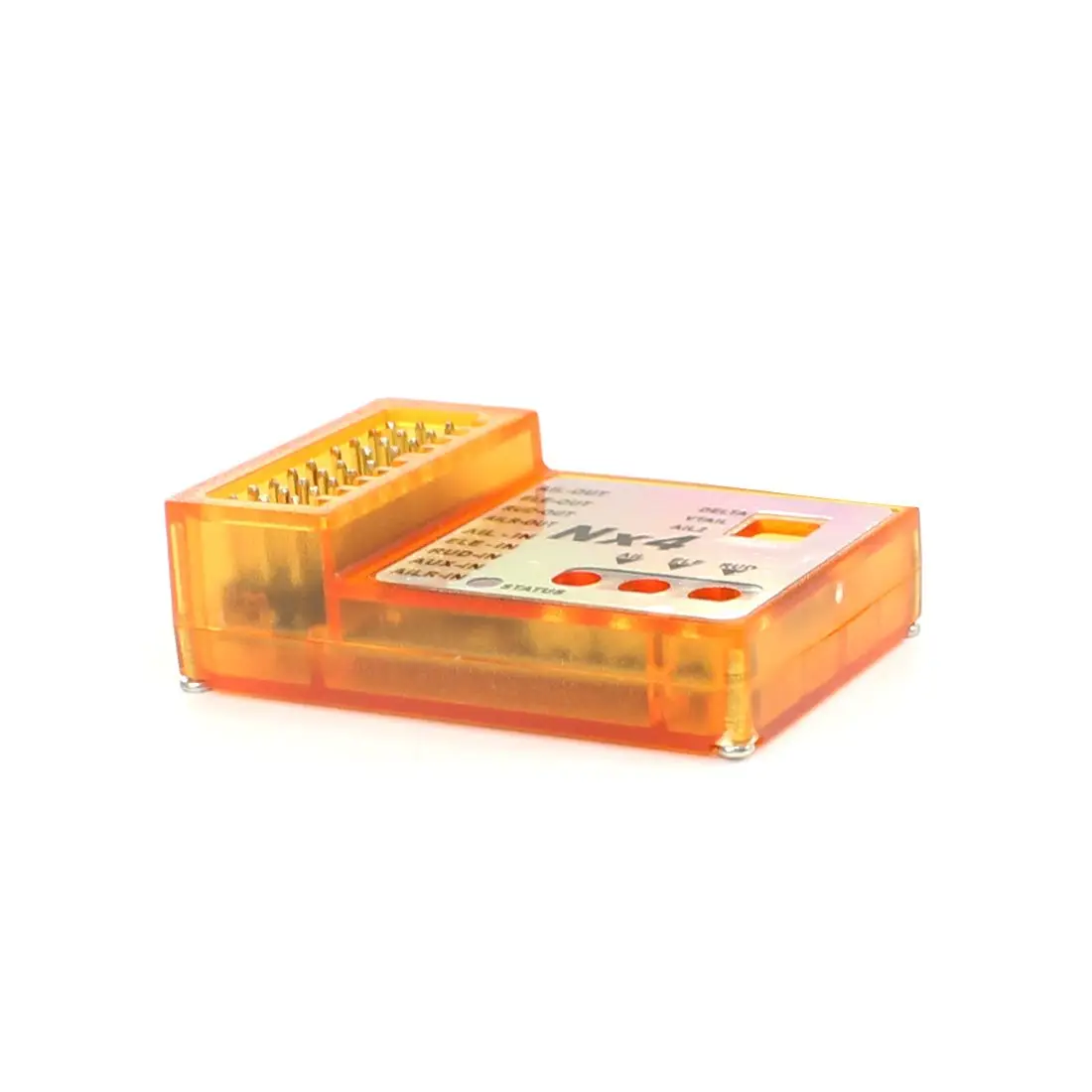

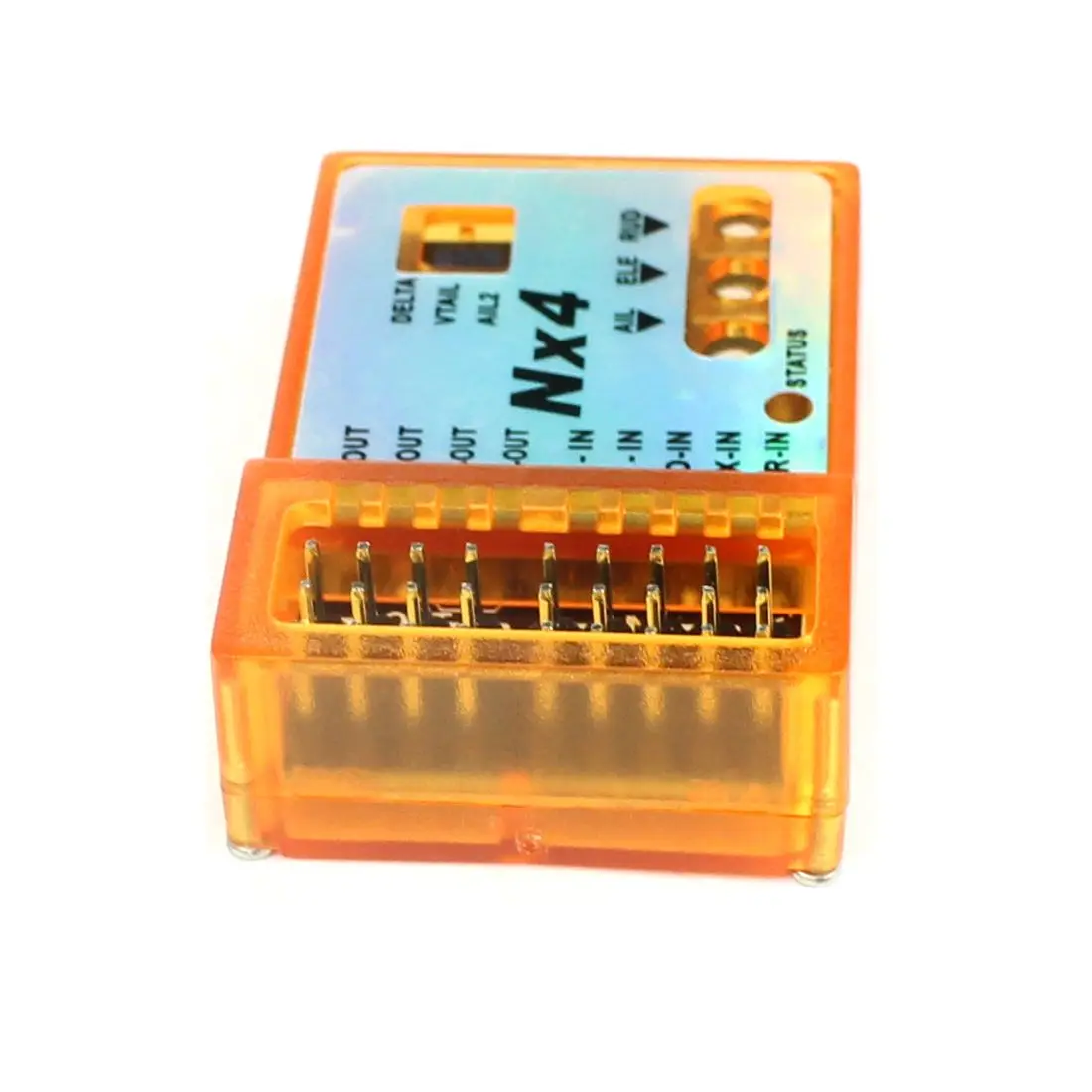

NX4 PRO Flight Controller :
Product parameters:
Input voltage: DC 5 – 6V
Working temperature: 0-50 ° C

Product performance:
This product has, horizontal self-stabilization, manual flight, 3D lock.
This product supports: ordinary T-tail fixed wing, single aileron, double aileron (requires remote control to set mixing control), delta wing (flight control built-in mixing control), V tail (flight control built-in mixing control) and other models.

Quick installation tips:
1. Refer to the manual for correct connection and check whether the remote control is working properly.
2. Adjust the DIP switch to select the correct model. Check whether the direction of the rudder control surface of the remote control is correct.
3. Adjust the working direction of the gyroscope through the potentiometer switch and check whether the control direction of the gyroscope is correct. (Please use small sensitivity for the first flight)
4. Calibrate the neutral point of the remote control through the remote control mode switch. (When replacing the remote control or receiver, the neutral point must be calibrated)

NX4 EVO Flight Controller:

Product parameters:

Input voltage: DC 5 – 6V

Working temperature: 0-50 ° C

Dimensions (length, width and height): 43x28x15mm

Weight: 11g

Product performance:

This product has, horizontal self-stabilization, manual flight, 3D lock, one-button rescue.

This product supports: ordinary T-tail fixed wing, single aileron, double aileron, delta wing, V tail and other aircraft types.

Quick installation tips:

1. Refer to the instruction manual for correct connection and check whether the remote control is working properly.

2. Adjust the DIP switch to select the correct model. And check whether the control surface of the remote control is normal.

3. Adjust the working direction and sensitivity of the gyroscope through the potentiometer switch, and check whether the working direction of each rudder surface of the gyroscope is correct. (Please use sensitivity for the first flight)

4. Set up one-button rescue (refer to the instruction manual, when the one-button rescue is turned on, the elevator must be tilted upwards and then back to level, otherwise it needs to be set separately)

5. Calibrate the neutral point of the remote control through the remote control mode switch. (When replacing the remote control or receiver, the neutral point must be calibrated)
