Home>FPV Drone and Part>Radiolink Byme-DB Flight Controller Built-in Gyroscope for Delta Wing Micro Fixed Wing Paper Plane

Radiolink Byme-DB Flight Controller Built-in Gyroscope for Delta Wing Micro Fixed Wing Paper Plane Item NO.: 40499030

Write a Review

US$ 9.13

Quantity: Stock ( 99 )

Estimate Shipping Cost

Product Name	Radiolink Byme-DB Flight Controller Built-in Gyroscope for Delta Wing Micro Fixed Wing Paper Plane
Item NO.	40499030
Weight	0.042 kg = 0.0926 lb = 1.4815 oz
Category	FPV Drone and Part
Brand	Radiolink
Creation Time	2024-01-24

Features:

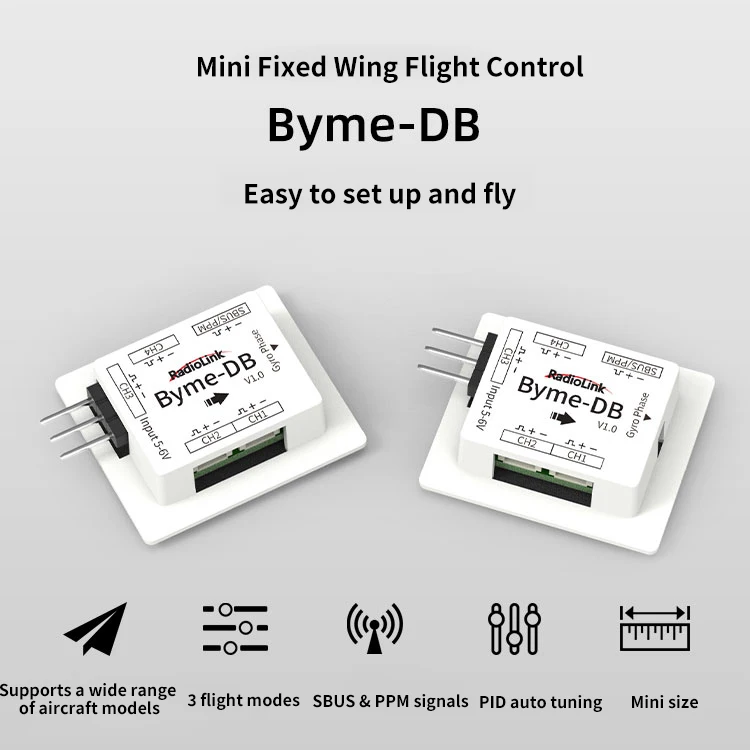

Applicable for Multiple Models: Applicable to all model airplanes with mixed elevator and aileron controls including delta wing, paper plane.

Flight Controller Assist Enhance Stability: Three-axis gyroscope and three-axis acceleration sensor combined with the full attitude algorithm, control algorithm, and digital filter make the airplane with the flight controller Byme-DB easy to change from Modes of Stabilize Mode/Gyro Mode/Manual Mode. Beginners can start with the Stabilize Mode and quickly master it even on the first flight.

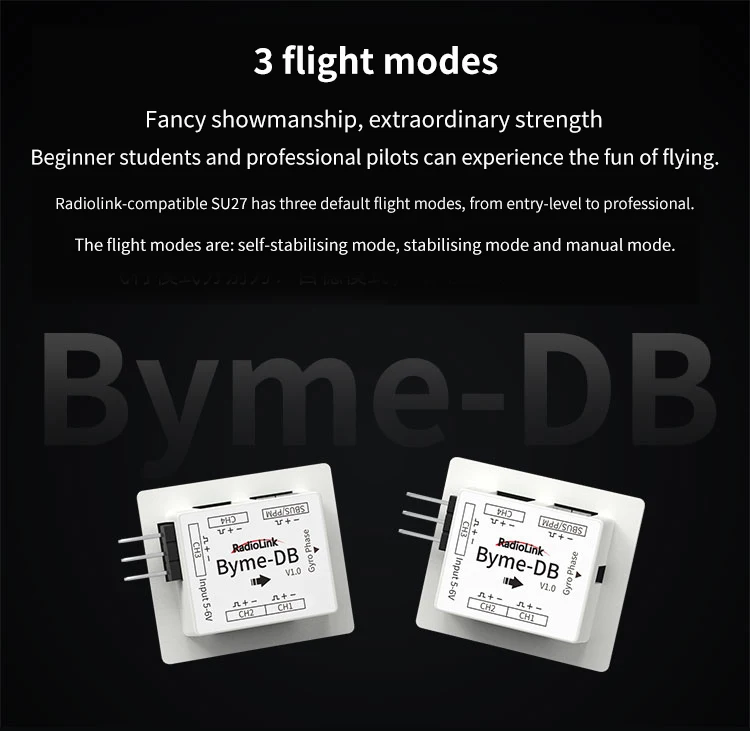

Three Flight Modes: Stabilize Mode, Gyro Mode, and Manual Mode. Both beginners and professional pilots can enjoy the fun of flight.

PID AutoTune: Byme-DB continues to optimize the optimal PID parameters based on Byme-D. The fourth channel output is used for a delta wing with rudders, etc. No need for parameter adjustment. Only the flight control mode switch and flight controller calibration need to be set when the first wiring.

Specifications:

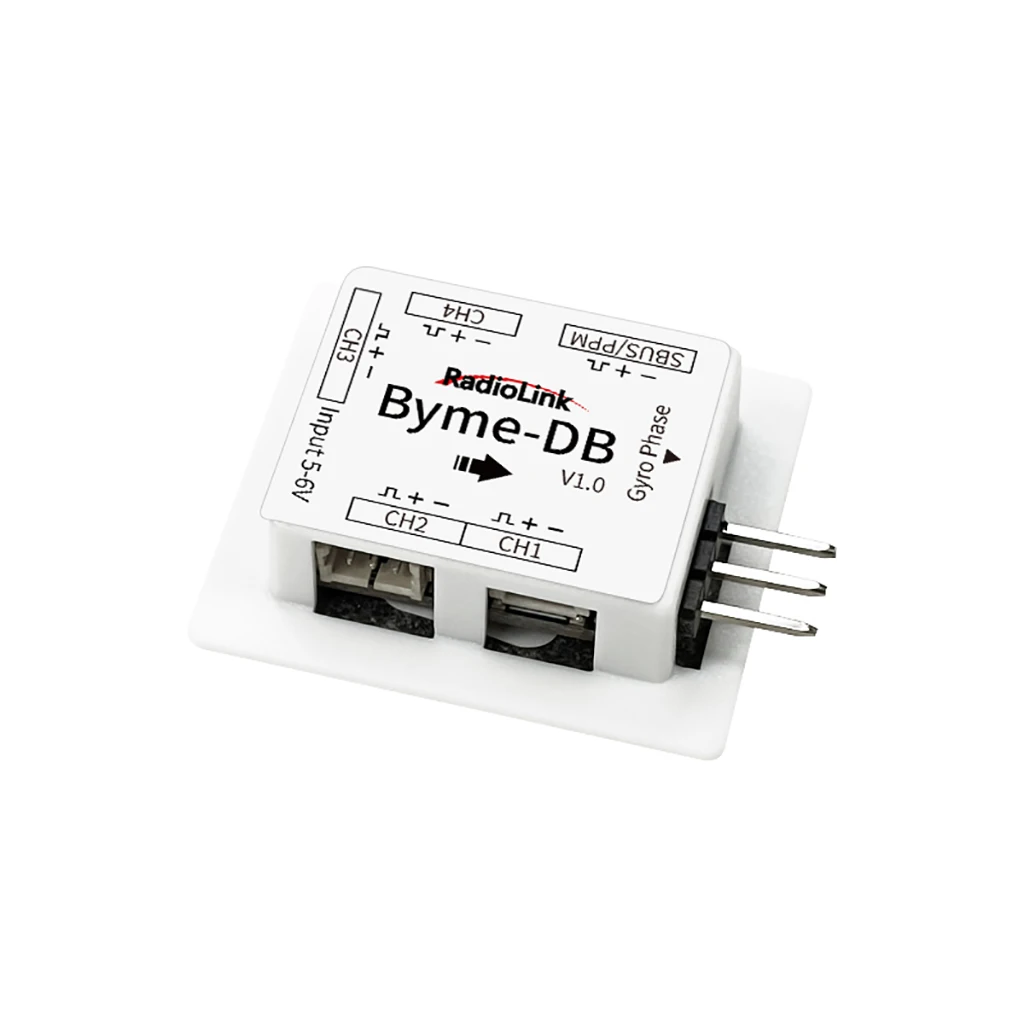

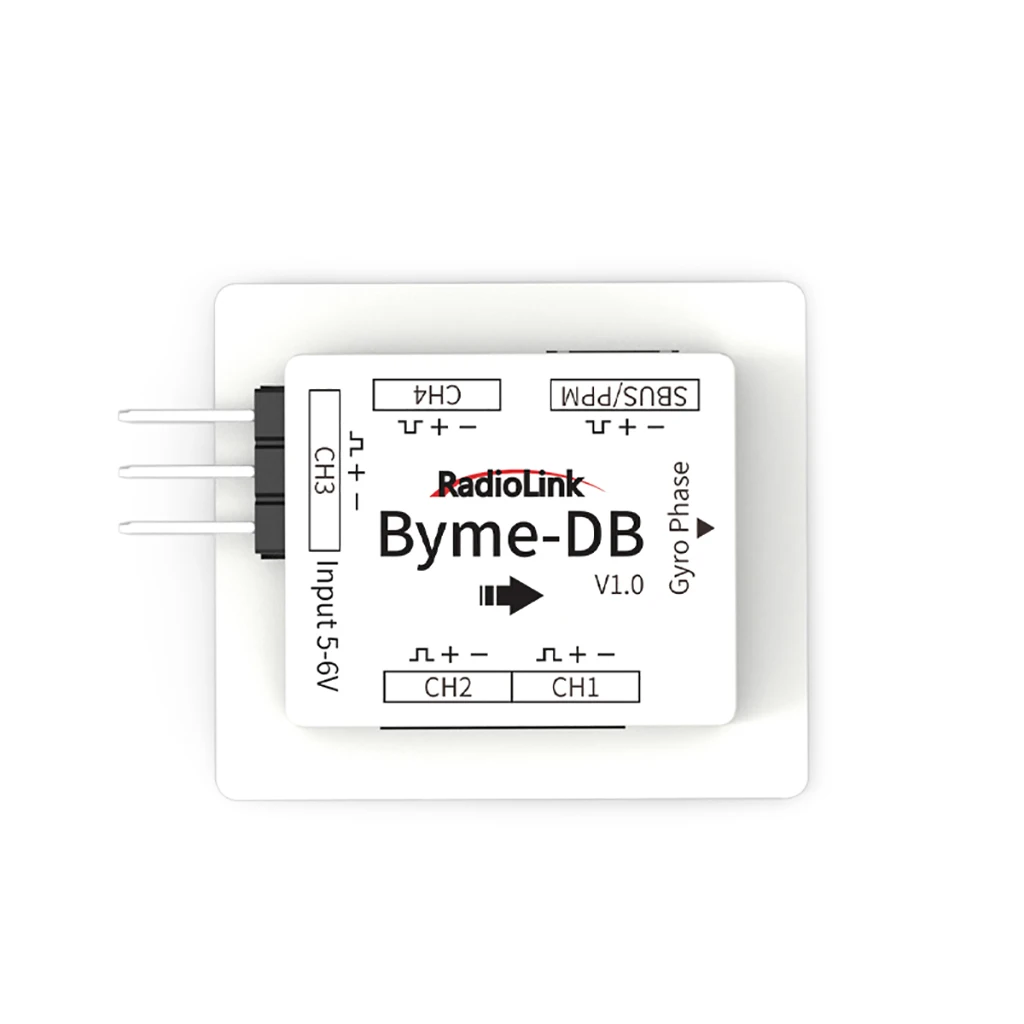

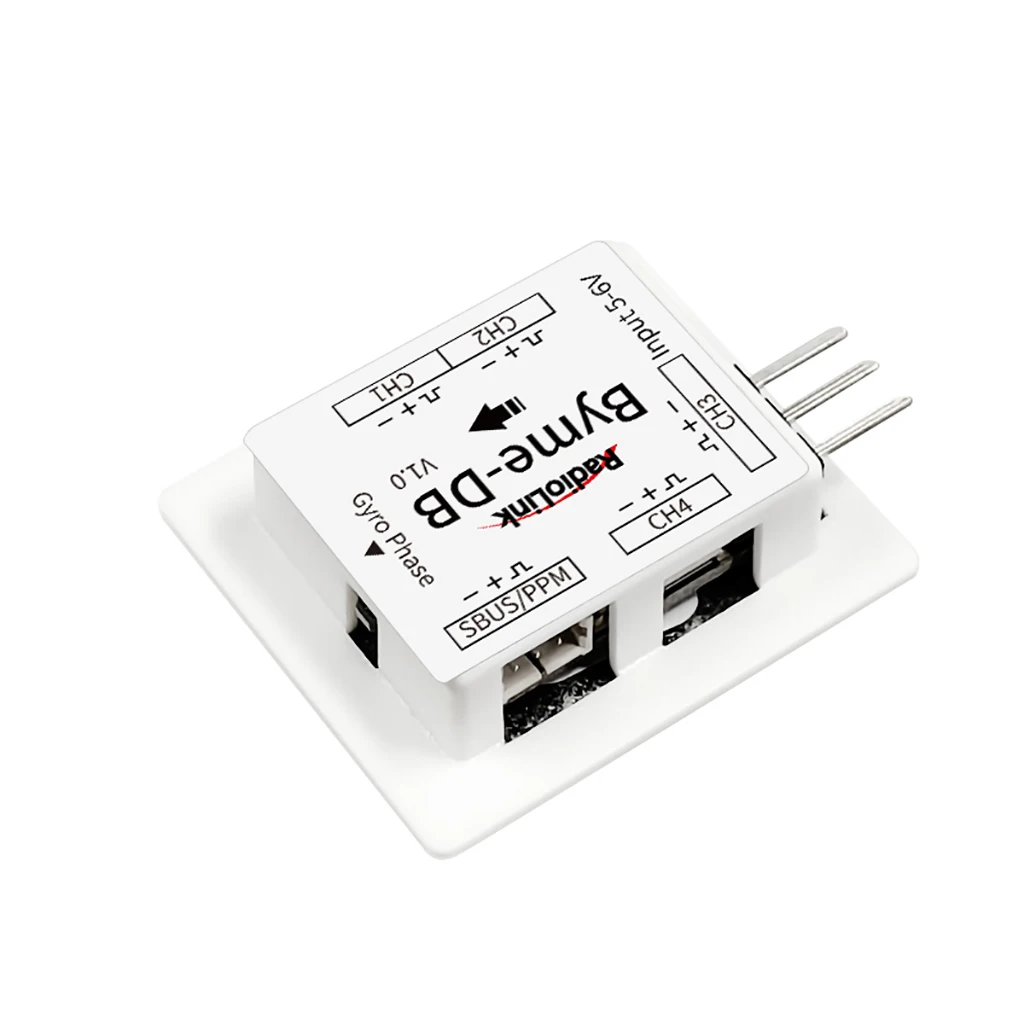

Product Name: Byme-DB Flight Controller

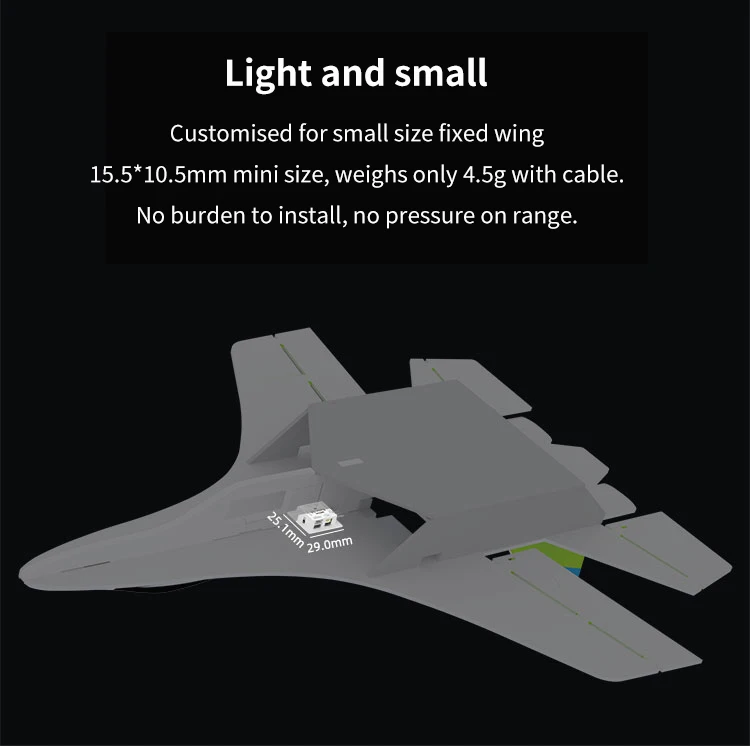

Dimension: 2925.19.1mm (1.14”0.99”0.36”)

Weight (With wires): 4.5g(0.16oz)

Channel Quantity: 4 channels

Signal Supported: SBUS/PPM

Input Voltage: 5-6V

Operating Current: 25±2mA

Integrated Sensor: three-axis gyroscope and three-axis acceleration sensor

Flight Modes: Stabilize Mode, Gyro Mode, and Manual Mode

Channel for Flight Mode Switch: Channel 5

Channel for Throttle Cut: channel 7(requires at least 7 channels transmitter)

Models Compatible: Applicable to all model airplanes with mixed elevator/aileron controls including delta wing, paper plane,

Transmitters Compatible: all the transmitters with SBUS/PPM signal output

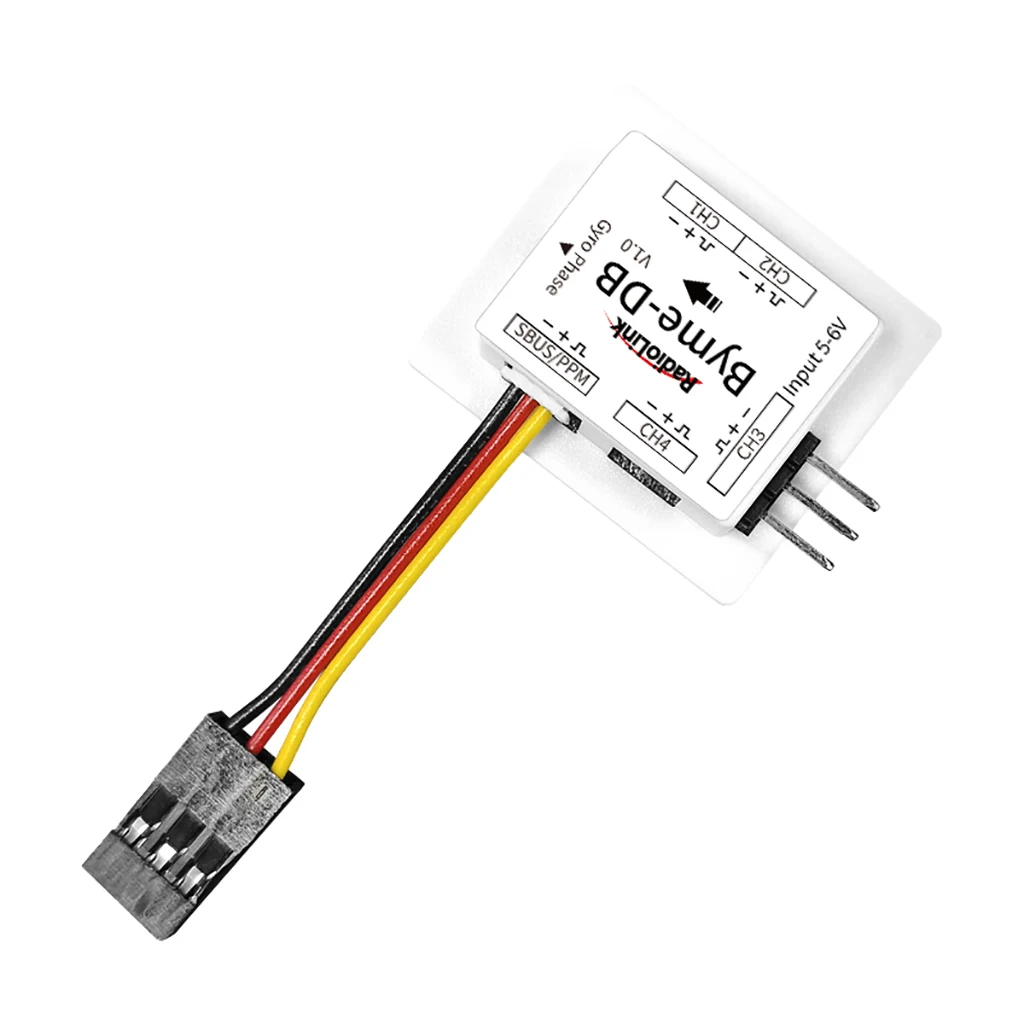

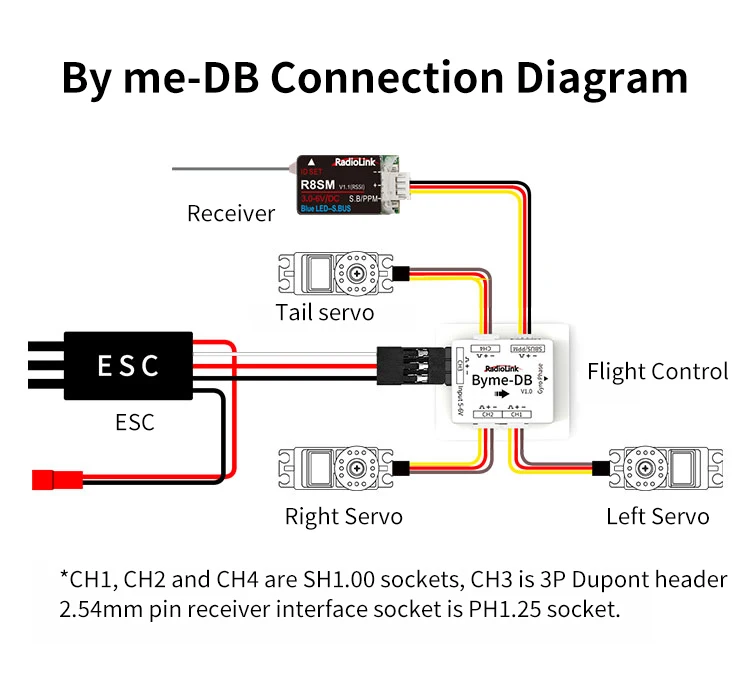

Socket Specifications: CH1, CH2 and CH4 are 3P SH1.00 sockets; the receiver connect socket is 3P PH1.25 socket; CH3 is a 3P 2.54mm Dupont Head
