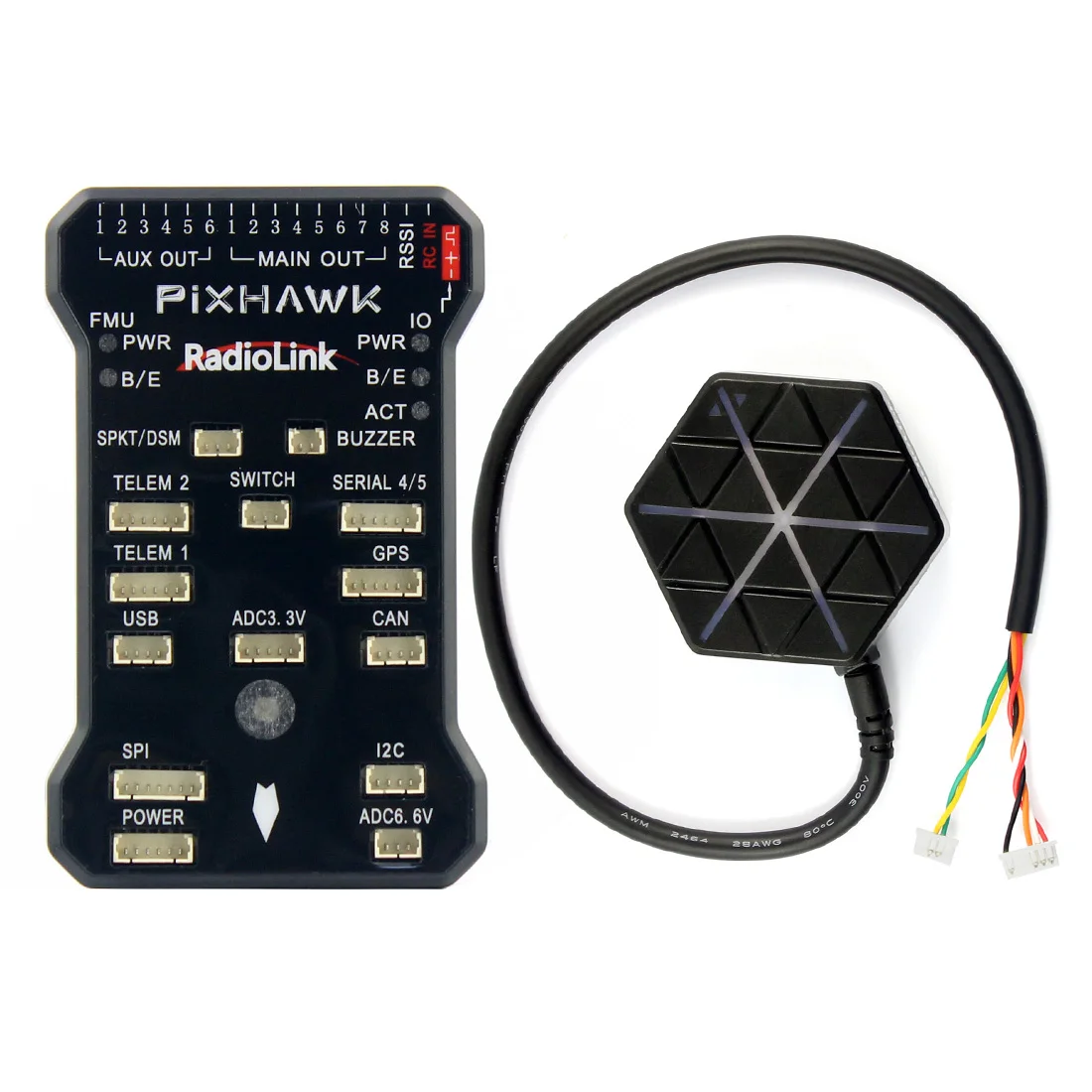

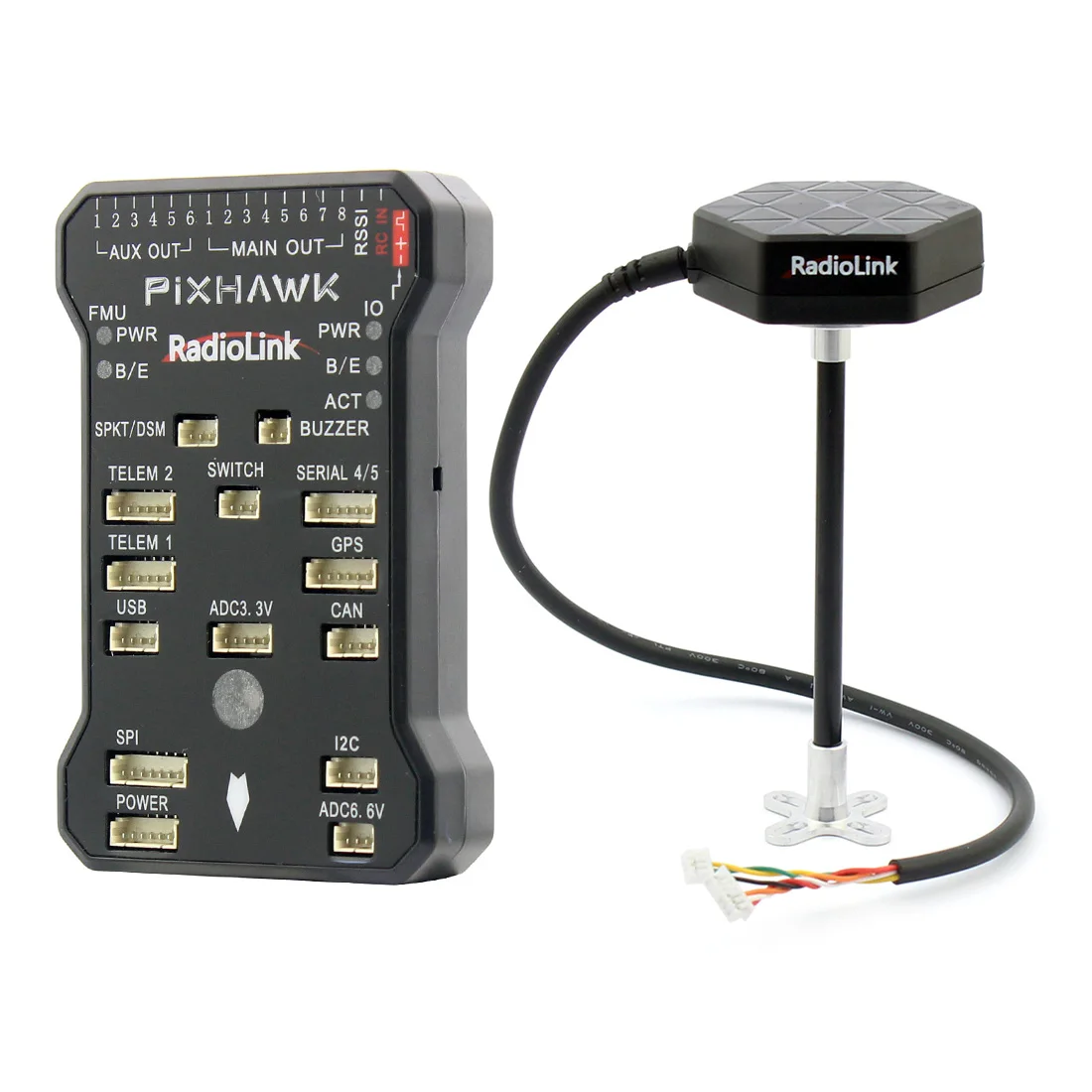

Radiolink PIX 32 Bit Flight Controller & M8N GPS Combo Set with Switch / Power Module / Buzzer / 4G TF Card / GPS Stand Holder for AT9/AT10 Remote Controller OSD DIY RC Multicopter Drone
Note:
Open source products, once sold, no return, if quality problems, Please return for repair . Does not provide one to one support. Buy carefully!

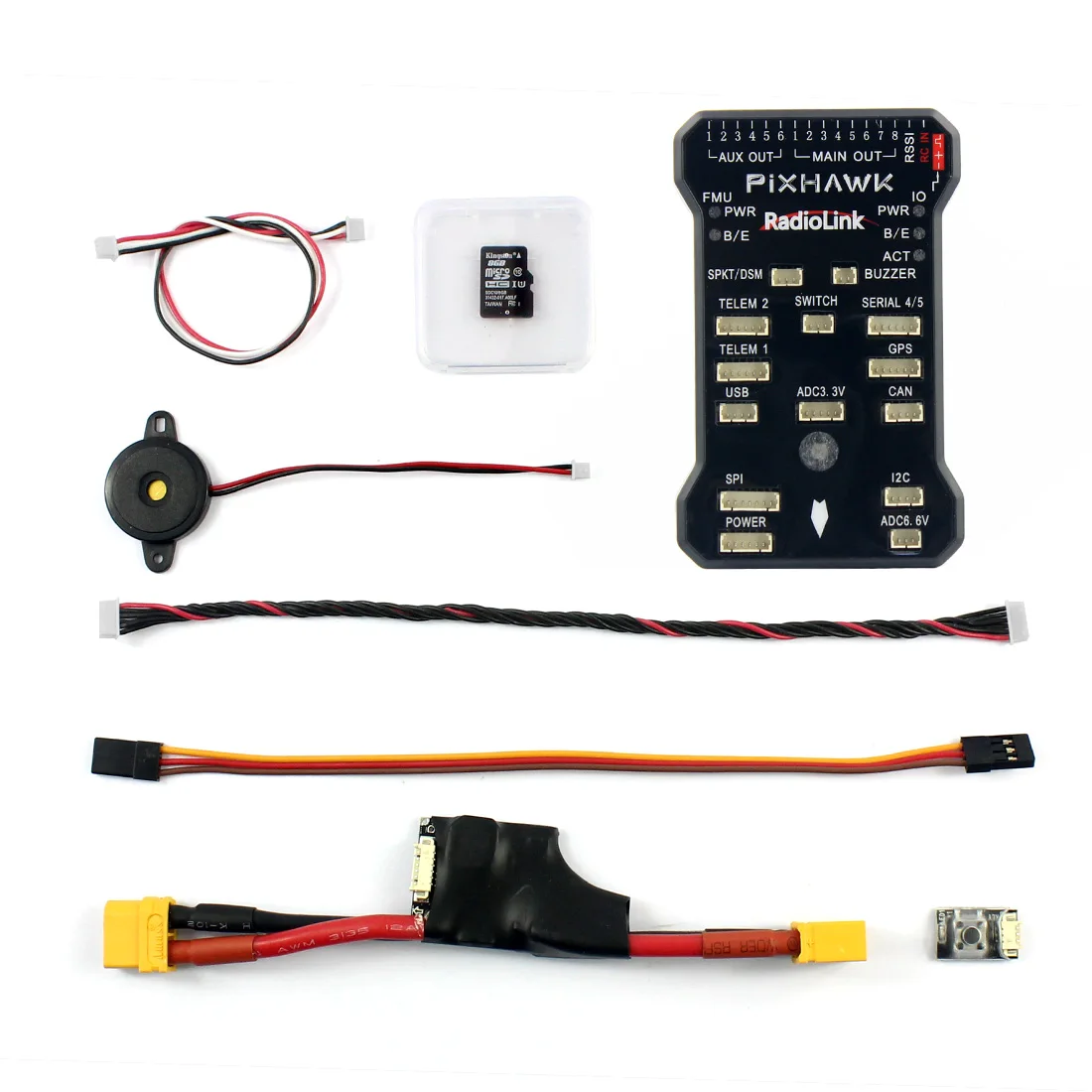

Product included:
1x Radiolink PIX Flight Controller
1x M8N GPS Module
1x GPS Stand Holder
1x Power Module
1x Safe Switch
1x Buzzer
1x 4G Memory Card
1x Dupont Cable
2x Adhesive
Description:
- AT9/AT10 Remote Controller Multirotor Menu Setting,specifically customized to PIX Flight attitude parameter setting, correspondence, beginners can easily set
(Note, Product do not include the remote controller and OSD, Please ready by yourself)
- Customization, comprehensive technical support, at hand and fly, erfectly embodies PIX function and fun flight
- 3DR same original, the new circuit design, reduce the interfere in flight control internal board original board , achieve less noise, more accurate compass (route more accurate, more stable point), safer and quieter.
processor:
32bit STM32F427 ARM Cortex M4 Core + FPU (floating point unit)
168 MHZ / 256 KB RAM / 2 MB RAM
32bit STM32F103 Fault Protection Coprocessor
Sensor
Invensense MPU6000 3-axle Accelerometer / Gyroscope
STcro LSM303D 14Bit Accelerometer / Magnetometer
MS5611 MEAS barometer
Micro L3GD20 16 Bit gyroscope
ST MI
- All interfaces fully tested and accurately detectd by automatic detection system software , avoid bad interfaces lead to flight control installation unsuccessfully.
Multiple flight mode switch freely, Helicopters, Fixed-wing, Multi-rotor,Model Car,Arbitrary;
Multiple flight mode, support for self-stability, high-set, fixed, hover, drift, sports, stunt, circling, following, return, landing, guidance, automatic, all-powerful!
Interface:
Interface:
1x SPKT/DSM Receiver interface
2x OSD/Radio Telemetry interface
1x USB
1x SPI Bus
1x Power Module interface
1x Safe Switch
1x Buzzer
1x Serial 4/5
1x GPS Module
1x Cam (Controller Area Network) Bus
1x 12C Interface
1x ADC6.6V
1x ADC3.3V
1X LED Light

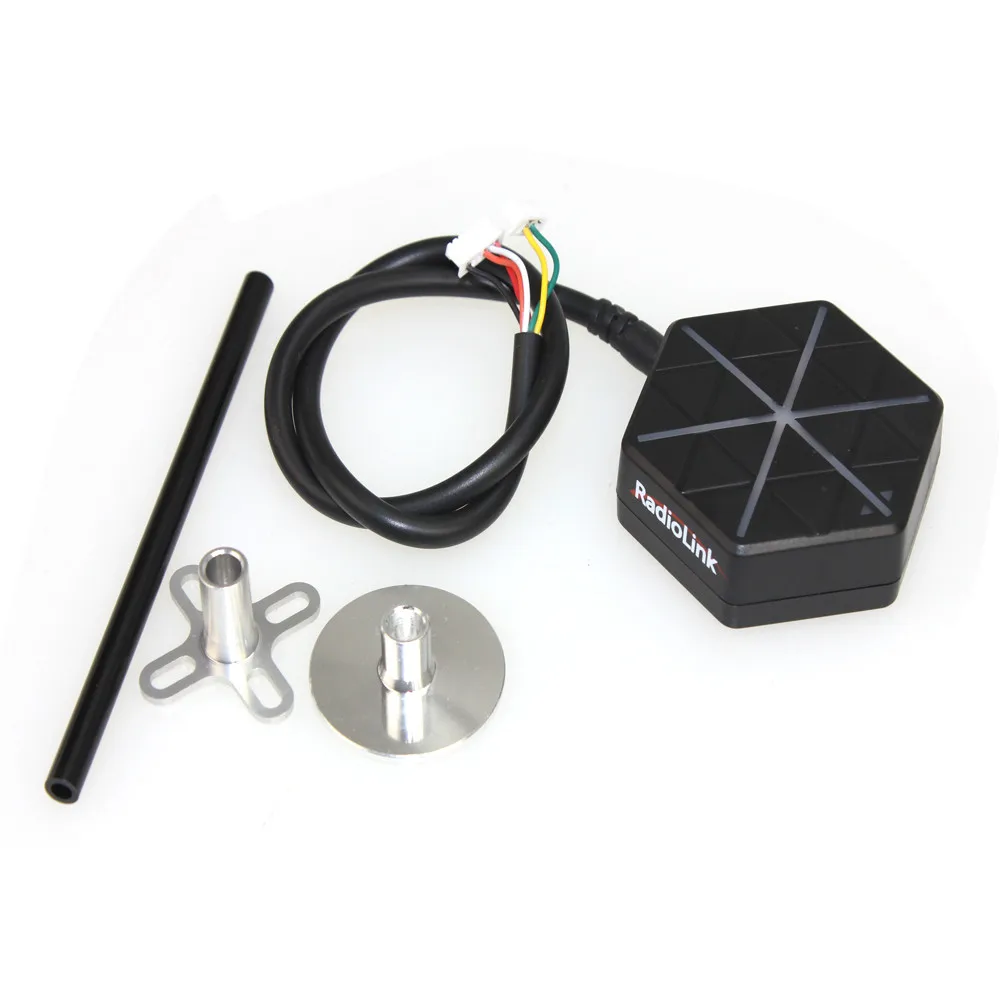

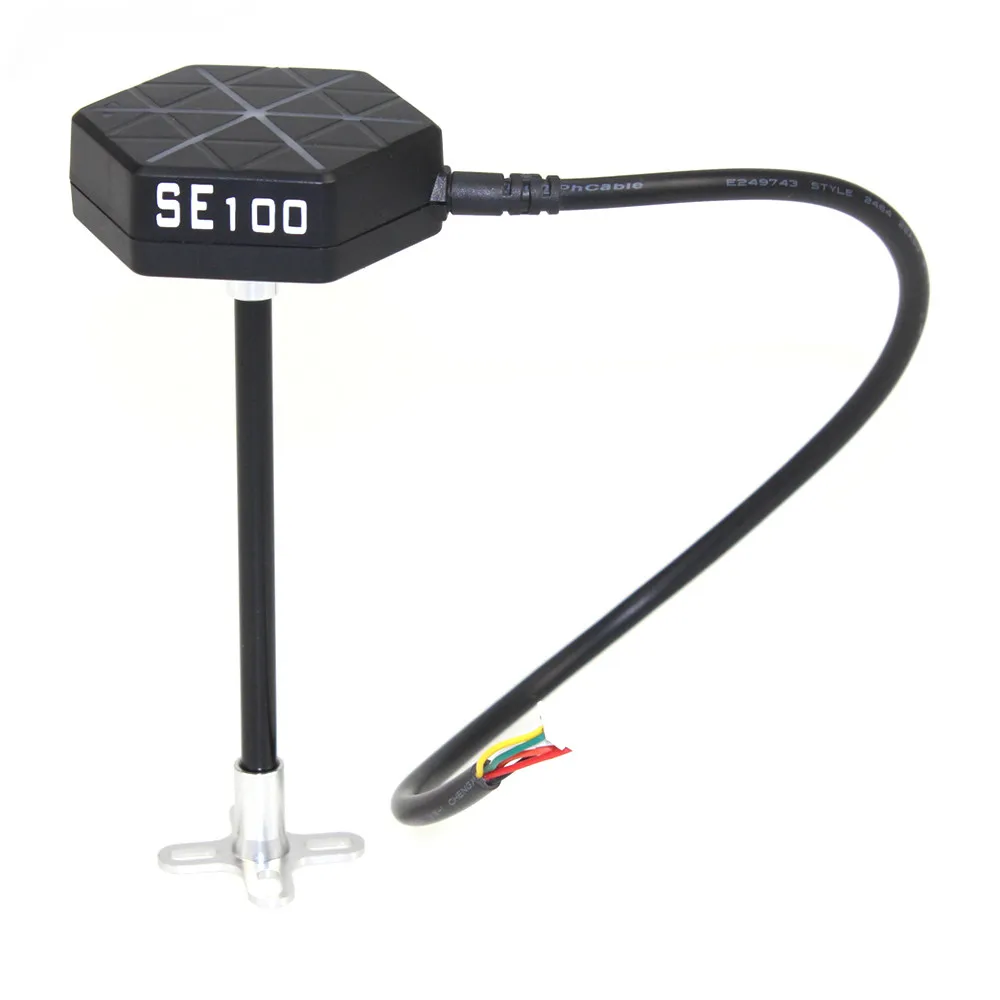

Newest Radiolink M8N GPS DIY FPV RC Drone Multicopter Flight Controller GPS Module with GPS Stand Holder Bracket
---- The Color of GPS Stand Holder Bracket will be changed by Factory. If you have special request about it, Please message us together with order information, Thanks.

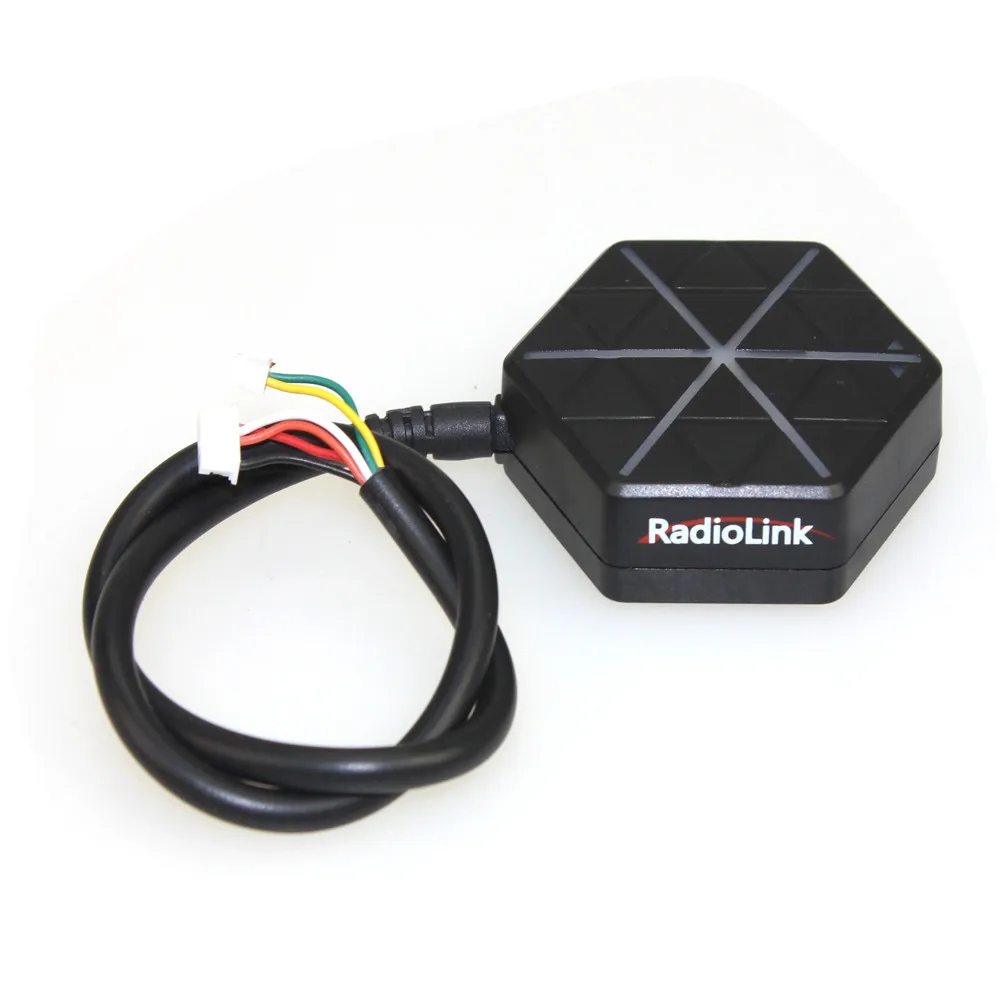

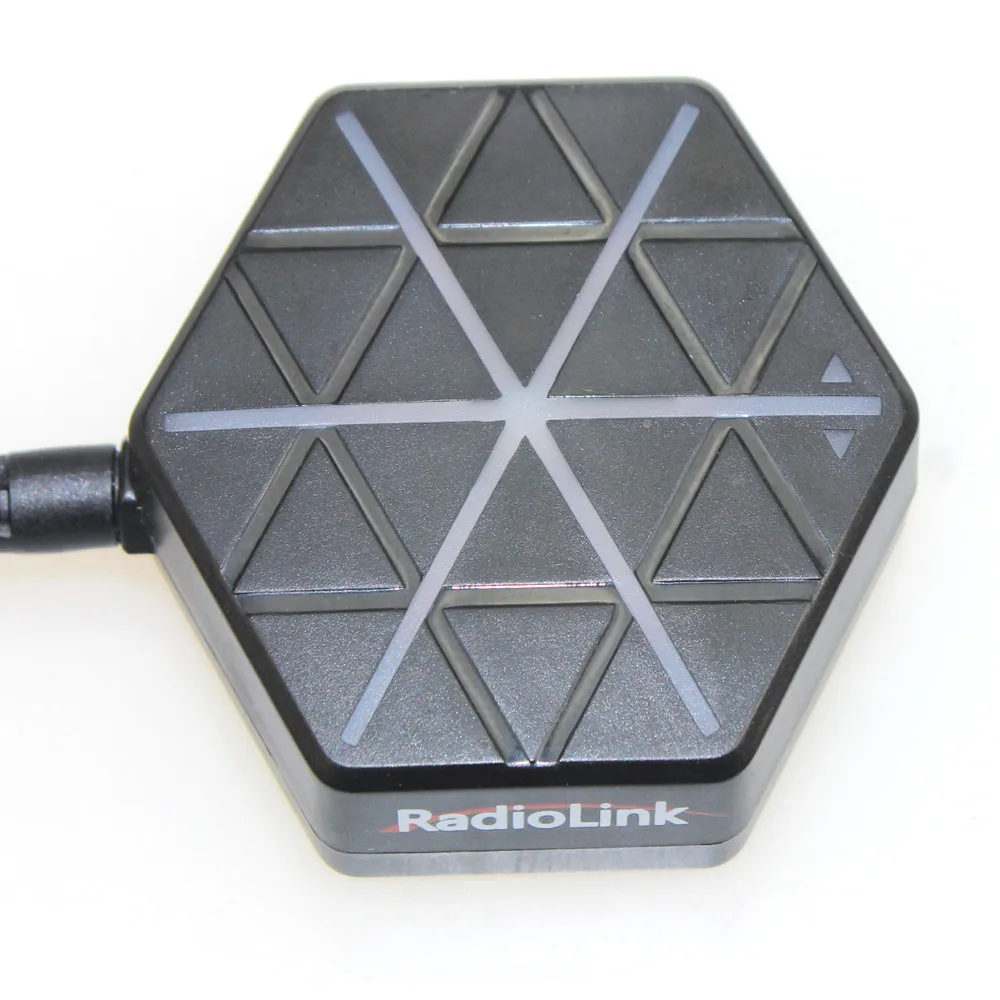

M8N GPS, with UBX-M8030(M8), MMIC BGA715L7 from Infineon and 13 years of RF experiences, is much better than single GNSS 7N.
Support GPS, GLONASS, QZSS, BeiDou
1 meter position accuracy, positioning in 23 seconds, supper valley stationkeeping ability
Specification:
Brand name: Radiolink
Item name: M8N GPS Module
Positional Accuracy: 1m precision when working with concurrent GNSS, 2.5m precision when working with single
GNSS.
Velocity precision: 0.1m/s
Max height: 50000m
Max speed: 515m/s
Max acceleration: 4G
Max update rate: up to 18Hz
Sensitivity
Tracking & Nav.: -167dBm; Reacquisition:-163dBm; Cold start:-151dBm; Hot start:-159dBm
Time to first fix: Cold start: 26s, Hot start:1s.
Power supply: voltage 3.3VDC+-5%, current 50~55mA
Ports:
A. GPS UART interface, baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K
B.Geomagnetic I2C interface
Feature
1. Top Configuration
1) GPS decoder chip: Radiolink M8N GPS, with u-blox UBX-M8030(M8), 72-channel, MMIC BGA715L7 from Infineon and 13 years of RF experiences, is much better than single GNSS 7N.
A.Concurrent reception of GPS/QZSS L1 C/A,GLONASS L10F, BeiDou B1
B.SBASL1 C/A:WAAS, EGNOS, MSAS
2) Antenna : 2.5dbI high gain and selectivity ceramic antenna
3) Power amplify IC: MMIC BGA715L7 from Infineon
4) Filter: SAWF(Surface acoustic wave filter) form Murata
5) Geomagnetic: HMC5983 from Honeywell
2. Professional Design
Radiolink M8N GPS, benefits from professional wireless experiences of Radiolink engineers, exceed the limitation of IC sensitivity index from circuit schematic design to PCB placement.1 meter position accuracy, positioning in 23 seconds and valley stationkeeping ability make Radiolink GPS much better than the similar products.
3. High Performance Cost Ratio
Reasonable price with better hardware, software configuration and brand new exterior designs.
Parameter
1) Positional Accuracy: 1m precision when working with concurrent GNSS, 2.5m precision when working with single GNSS.
2) Velocity precision: 0.1m/s
3) Max height: 50000m
4) Max speed: 515m/s
5) Max acceleration: 4G
6) Max update rate: up to 18Hz
7) Sensitivity
Tracking & Nav.: -167dBm; Reacquisition:-163dBm; Cold start:-151dBm; Hot start:-159dBm.
8) Time to first fix: Cold start: 26s, Hot start:1s.
9) Connect ports
Power supply: voltage 3.3VDC+-5%, current 50~55mA
Ports
A.GPS UART interface, baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K
B.Geomagnetic I2C interface
