Radiolink PIX Flight Controller with Power Module / Buzzer / 4G TF Card for AT9/AT10 Remote Controller OSD DIY RC Multicopter Drone
Note:
Open source products, once sold, no return, if quality problems, Please return for repair . Does not provide one to one support. Buy carefully!
Description:
- AT9/AT10 Remote Controller Multirotor Menu Setting,specifically customized to PIX Flight attitude parameter setting, correspondence, beginners can easily set
(Note, Product do not include the remote controller and OSD, Please ready by yourself)
- Customization, comprehensive technical support, at hand and fly, erfectly embodies PIX function and fun flight
- 3DR same original, the new circuit design, reduce the interfere in flight control internal board original board , achieve less noise, more accurate compass (route more accurate, more stable point), safer and quieter.
processor:
32bit STM32F427 ARM Cortex M4 Core + FPU (floating point unit)
168 MHZ / 256 KB RAM / 2 MB RAM
32bit STM32F103 Fault Protection Coprocessor
Sensor
Invensense MPU6000 3-axle Accelerometer / Gyroscope
STcro LSM303D 14Bit Accelerometer / Magnetometer
MS5611 MEAS barometer
Micro L3GD20 16 Bit gyroscope
ST MI
- All interfaces fully tested and accurately detectd by automatic detection system software , avoid bad interfaces lead to flight control installation unsuccessfully.
Multiple flight mode switch freely, Helicopters, Fixed-wing, Multi-rotor,Model Car,Arbitrary;
Multiple flight mode, support for self-stability, high-set, fixed, hover, drift, sports, stunt, circling, following, return, landing, guidance, automatic, all-powerful!

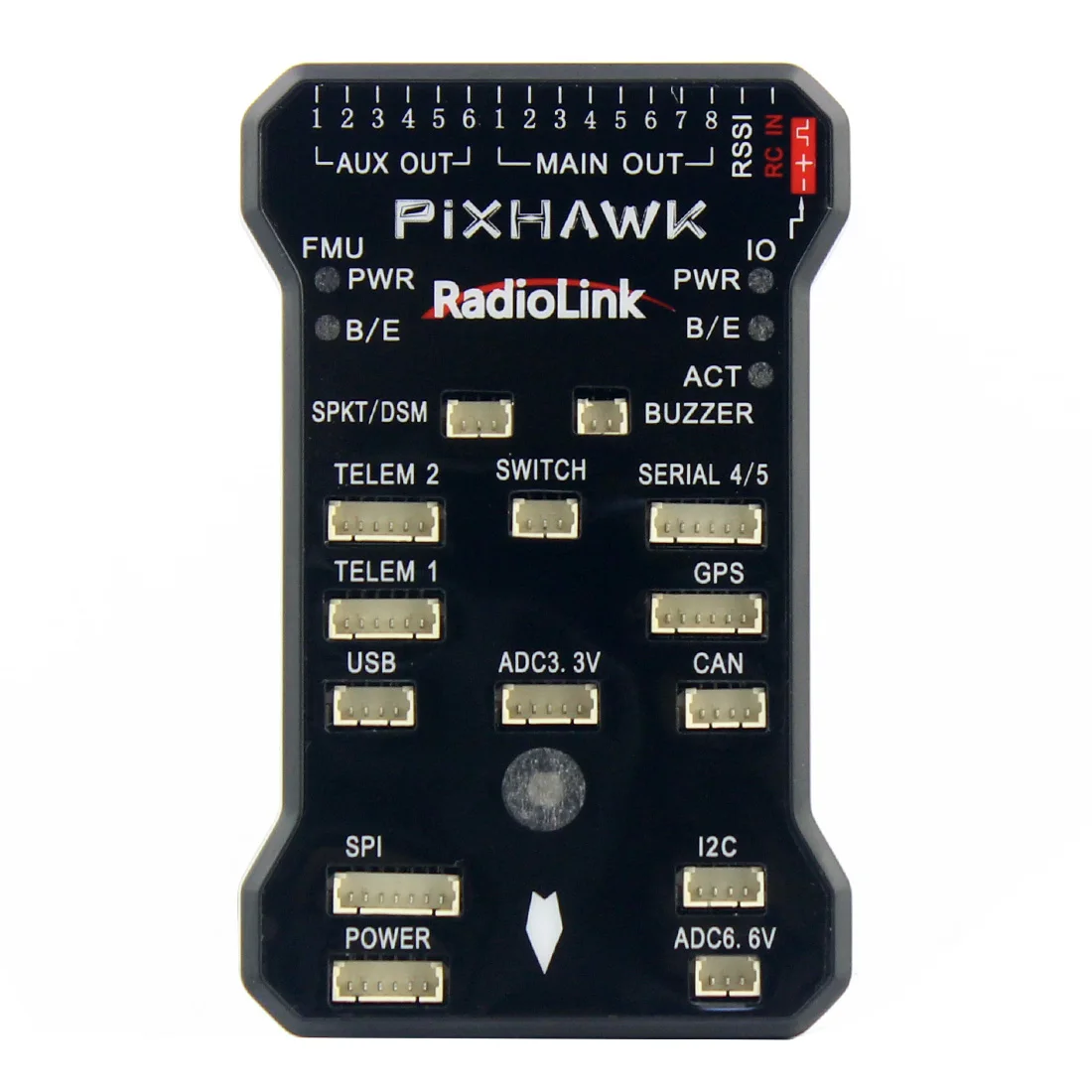

Interface:
Interface:
1x SPKT/DSM Receiver interface
2x OSD/Radio Telemetry interface
1x USB
1x SPI Bus
1x Power Module interface
1x Safe Switch
1x Buzzer
1x Serial 4/5
1x GPS Module
1x Cam (Controller Area Network) Bus
1x 12C Interface
1x ADC6.6V
1x ADC3.3V
1X LED Light
Package included:
- 1 x Radiolink Pixhawk main control
- 1 x Flight control shell
- 1 x Buzzer
- 1 x Power Module
- 1 x 4G TF Card
