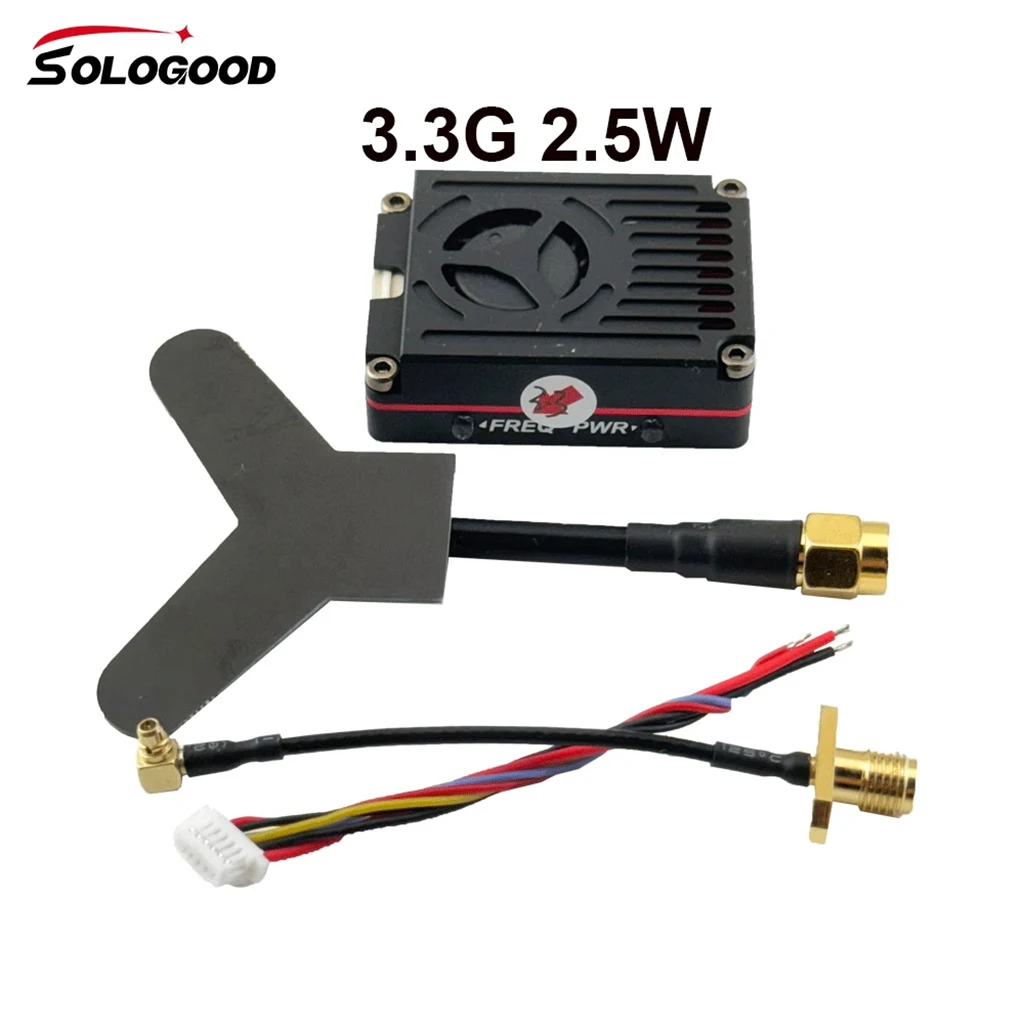

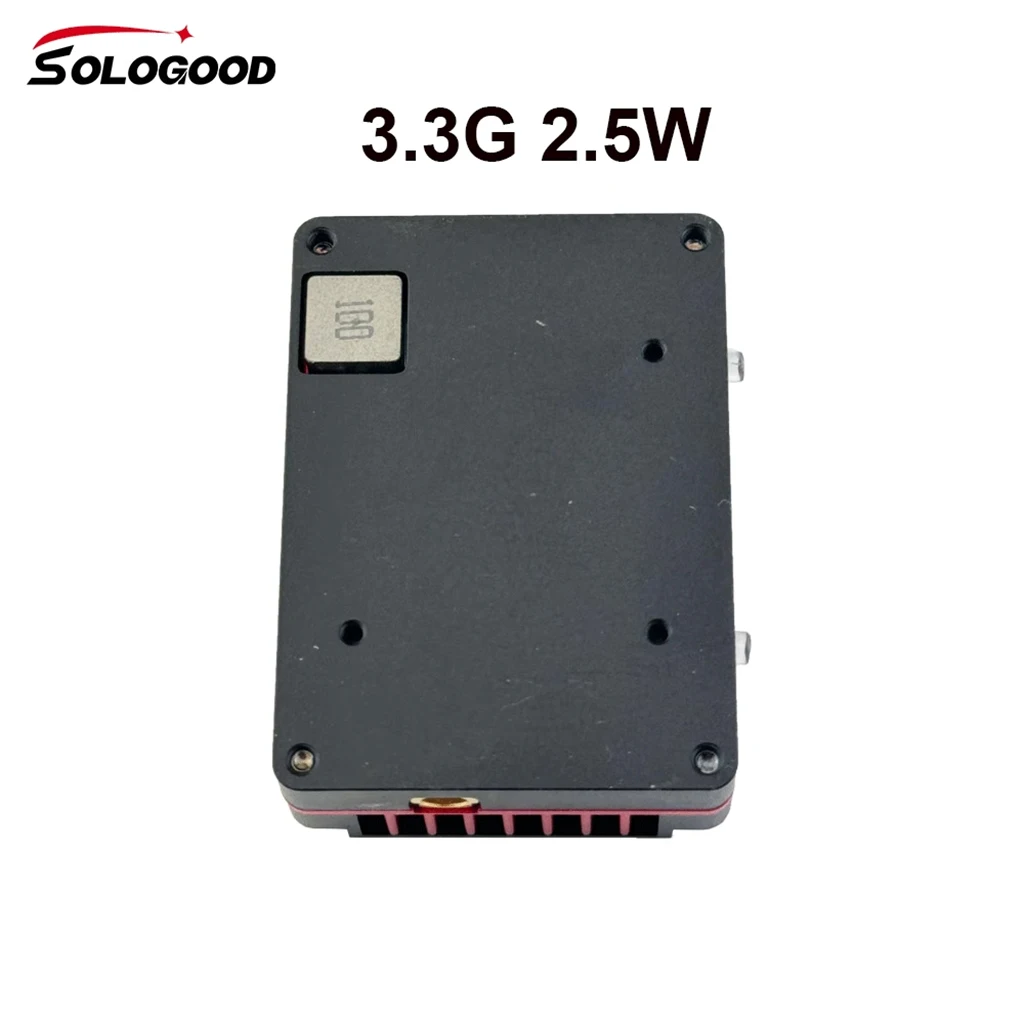

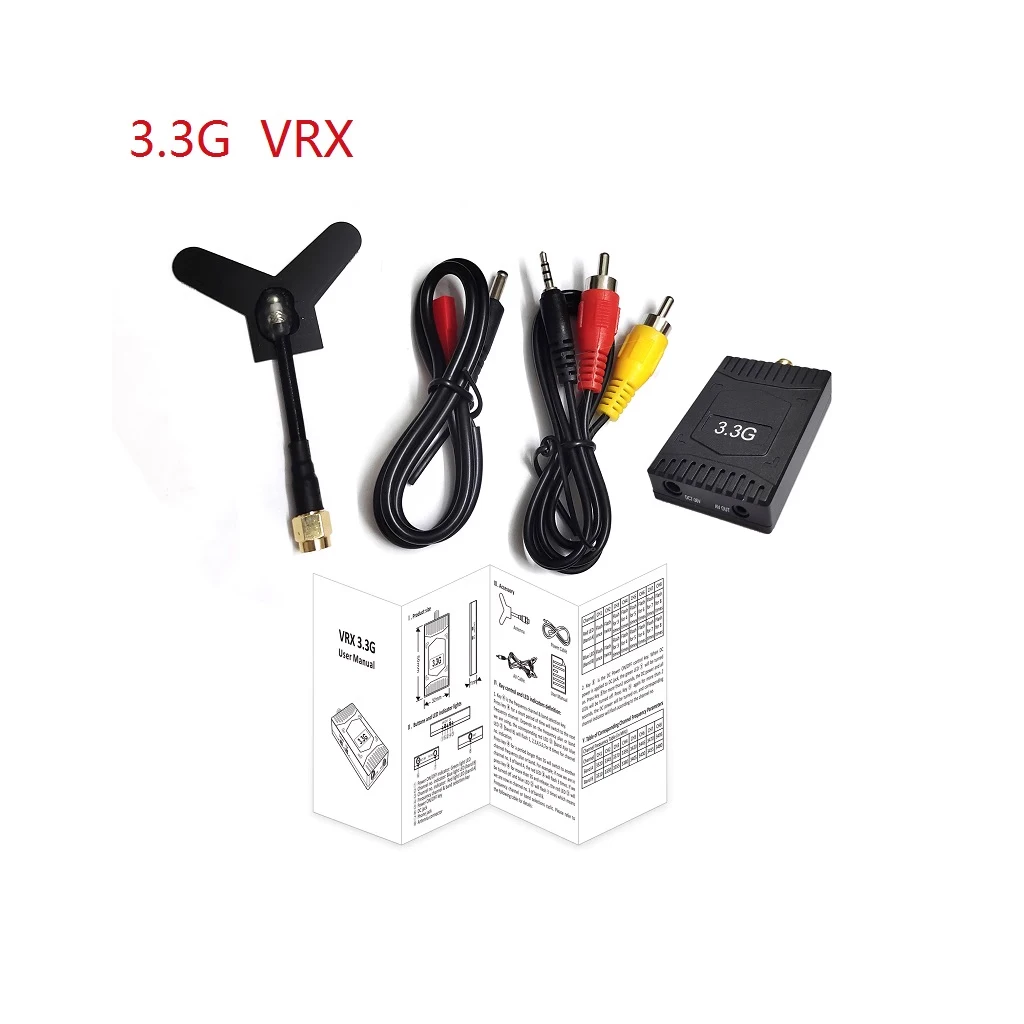

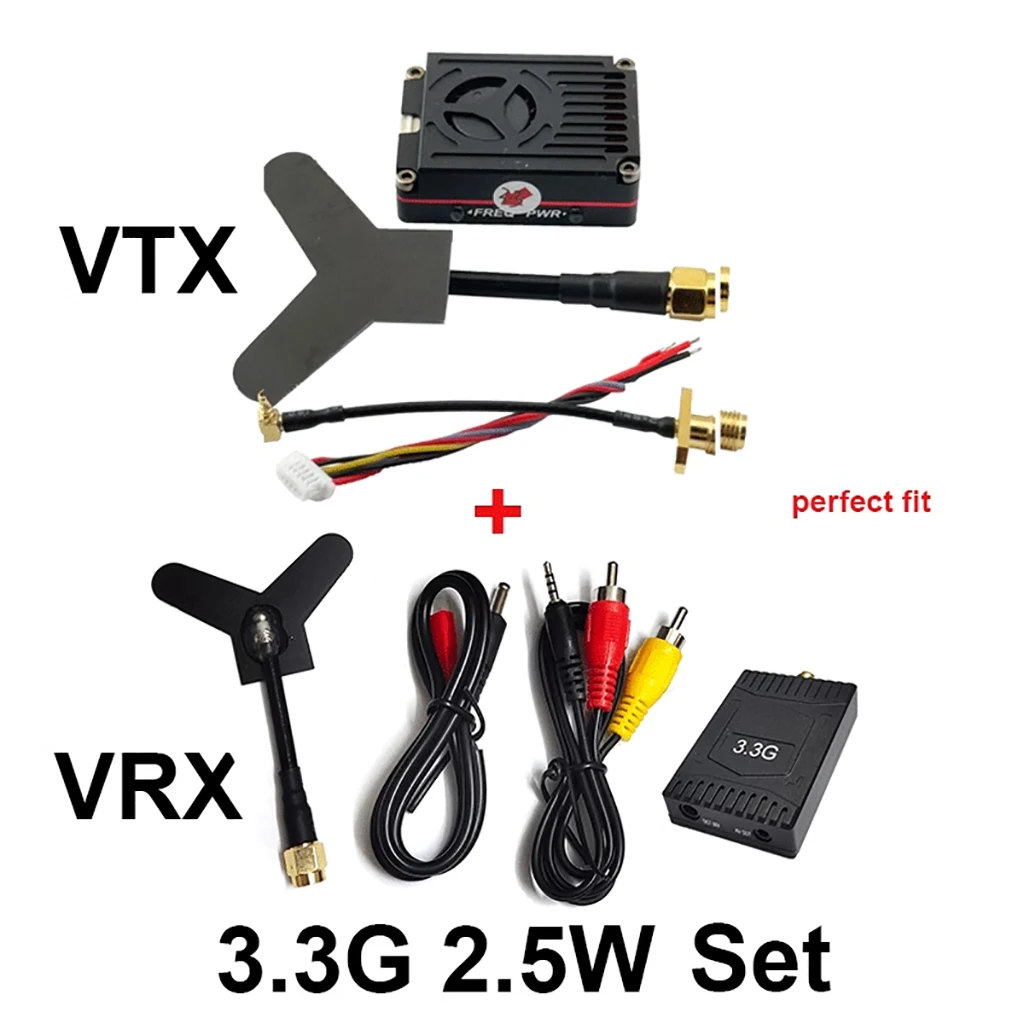

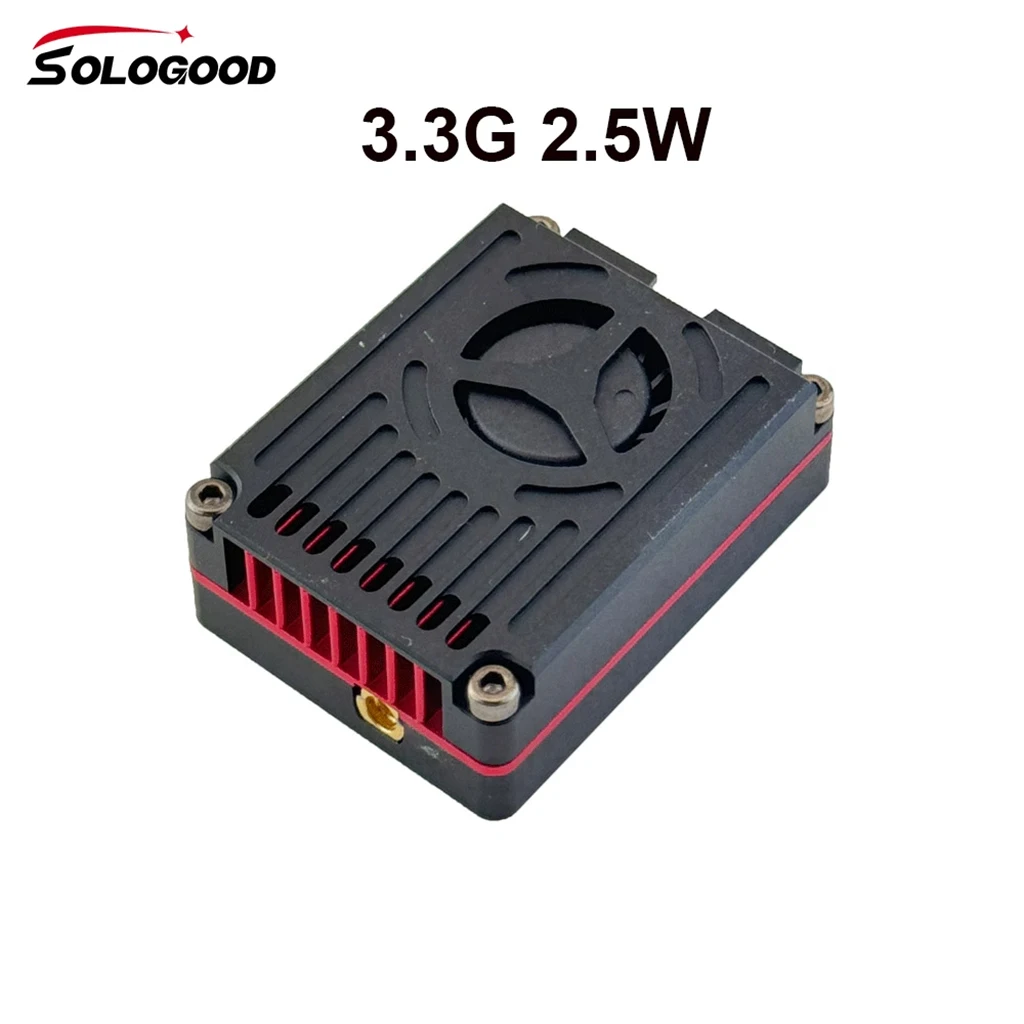

Sologood Long Range 3.3GHz 2.5W FPV Video Transmitter VTX 8CH 4000mW 3.3G VRX Receiver Kit for FPV RC Goggles Quadcopter Item NO.: 42981000

Write a Review

US$ 31.33

Color:
	US$ 37.82	Stock(500)	- +
	US$ 35.33	Stock(500)	- +
	US$ 68.53	Stock(500)	- +

Quantity: 0 , Subtotal 0

Product Name	Sologood Long Range 3.3GHz 2.5W FPV Video Transmitter VTX 8CH 4000mW 3.3G VRX Receiver Kit for FPV RC Goggles Quadcopter
Item NO.	42981000
Weight	0.1 kg = 0.2205 lb = 3.5274 oz
Category	FPV Drone and Part
Brand	Sologood
Creation Time	2024-08-25

Description:

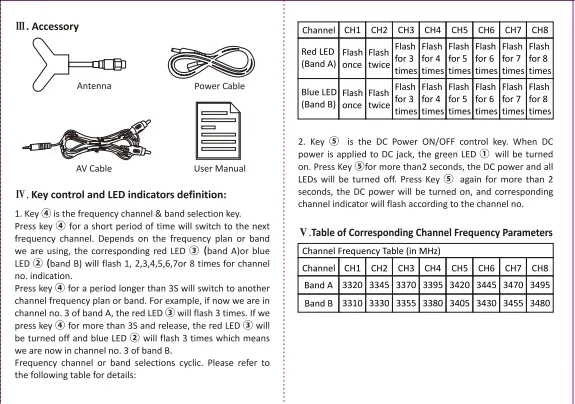

3.3G_2.5W Image Transmission Instruction Manual

Be sure to connect the antenna before powering it on, otherwise it will burn out!!

Basic parameters:

- Weight: 22g (without antenna)

- Size (L*W*D): 41*30*13mm (excluding button protrusion). Fixed hole 20*20mm spacing, M1.6 threaded hole.

-Working voltage: DC7V-36V(2s-8s)-

Operating current: 800MA ±100MA at 12v

- Maximum power consumption: 10 watts

- RF transmit power: greater than 34dBm (2.5 watts)

- 16 working channels, button to select settings

- 7 power levels, button selection settings

-3.3GHz video transmission transmitter (compatible with PAL and NTSC) compact structure, small size, high transmitting power

-Large-scale integrated circuits and automotive-grade components are used for high reliability

-Built-in frequency phase-locked loop, low harmonic radiation, high reliability, stability, digital phase-locked loop circuit is used, and there is no temperature drift

- Supports TBS OSD parameter tuning
