Home>FPV Drone and Part>TAROT-RC 5.8G 48CH 1.6W Image Transmission PAL/NTSC 7-36V DC MMCX Antenna For RC FPV Long Range Racing Drone Quadcopter TL300N6

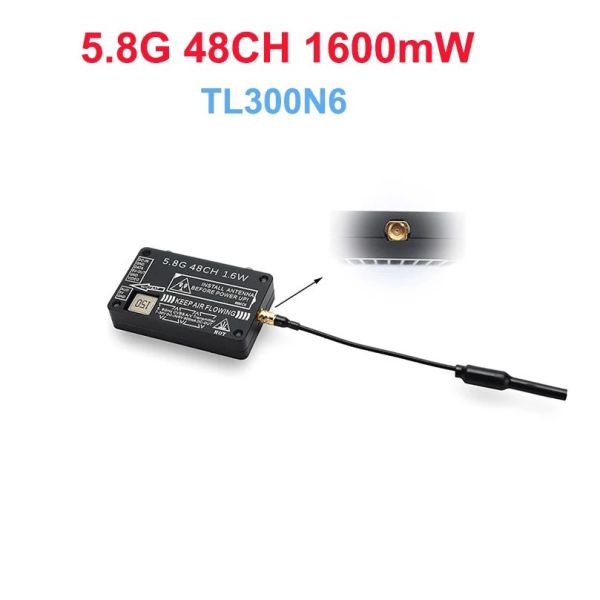

TAROT-RC 5.8G 48CH 1.6W Image Transmission PAL/NTSC 7-36V DC MMCX Antenna For RC FPV Long Range Racing Drone Quadcopter TL300N6 Item NO.: 40707480

Write a Review

US$ 57.35

Quantity: Stock ( 99 )

Estimate Shipping Cost

Product Name	TAROT-RC 5.8G 48CH 1.6W Image Transmission PAL/NTSC 7-36V DC MMCX Antenna For RC FPV Long Range Racing Drone Quadcopter TL300N6
Item NO.	40707480
Weight	0.048 kg = 0.1058 lb = 1.6932 oz
Category	FPV Drone and Part
Brand	Tarot
Creation Time	2024-03-13

Product Description:

　　Tarot's newly upgraded 48-channel, 1600mW 5.8G audio and video transmission system can be used with four power adjustments, with ultra-mini shape and ultra-light weight, and 6061T6 aluminum alloy shell for heat dissipation, especially suitable for multi-rotor drones and FPV long-distance use.

Features:

1.48 channel output, easy to switch with buttons, compatible with conventional frequency;

2. Provide 1 video signal, 1 audio signal input;

3. Provide 1 channel 5V/0.5A power output for conventional camera power supply (please confirm the voltage and current of related equipment first to avoid burning);

4. Compared with the previous generation of 600mW image transmission equipment, the transmission power is increased and adjusted by itself, which greatly increases the transmission distance and is more suitable for long-distance image transmission.

5.6061T6 aluminum alloy shell heat dissipation, more stable performance.

Specifications:

Transmitter (Air Terminal):

Input voltage: 7-36V DC (2-6S)

Output voltage: including one 5V/0.5A

Weight: 5.1g (without metal case and antenna), 14.3g (without case, without antenna)

Size (length, width and height): 41mm25mm*8.5mm

Video format: PAL/NTSC

Number of channels: 48 channels/37 channels (US region)

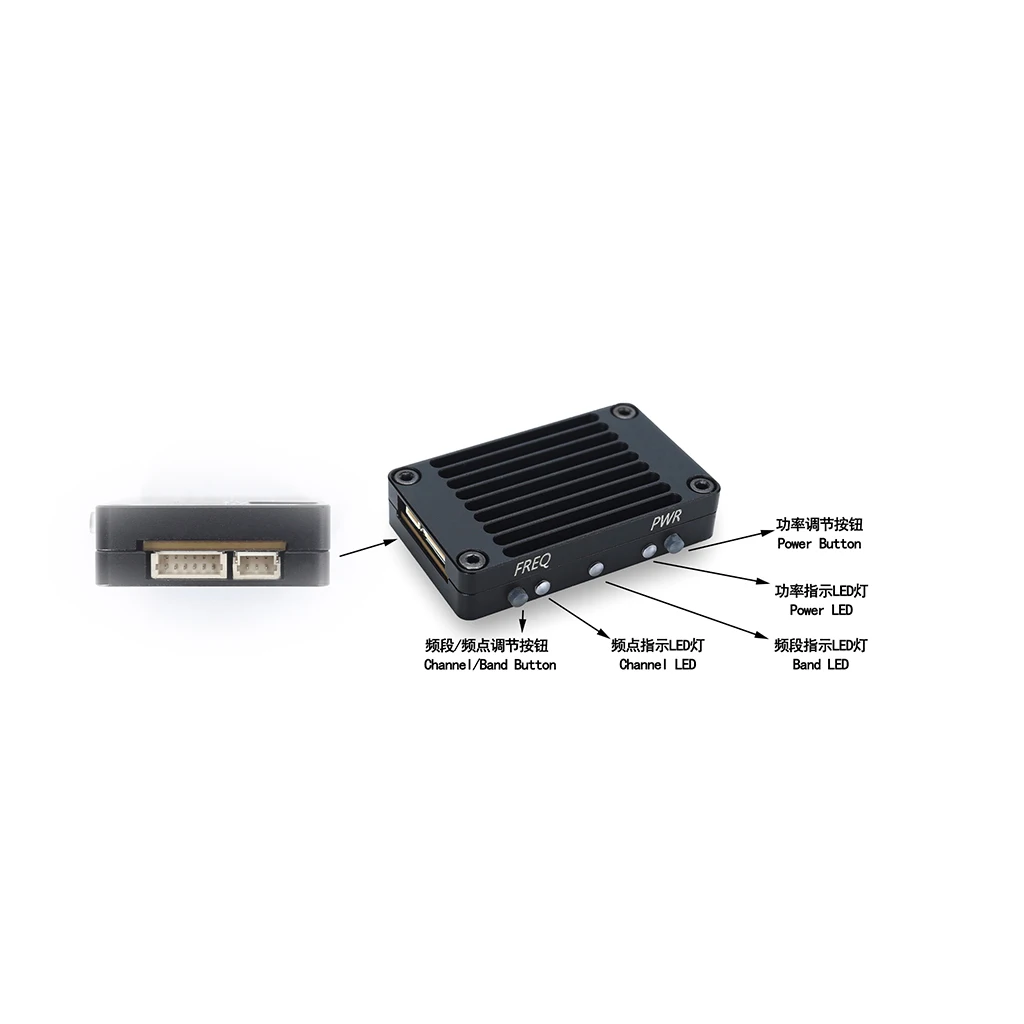

Channel selection: frequency band/frequency adjustment button: long press for 3 seconds to switch frequency band, short press to switch frequency point

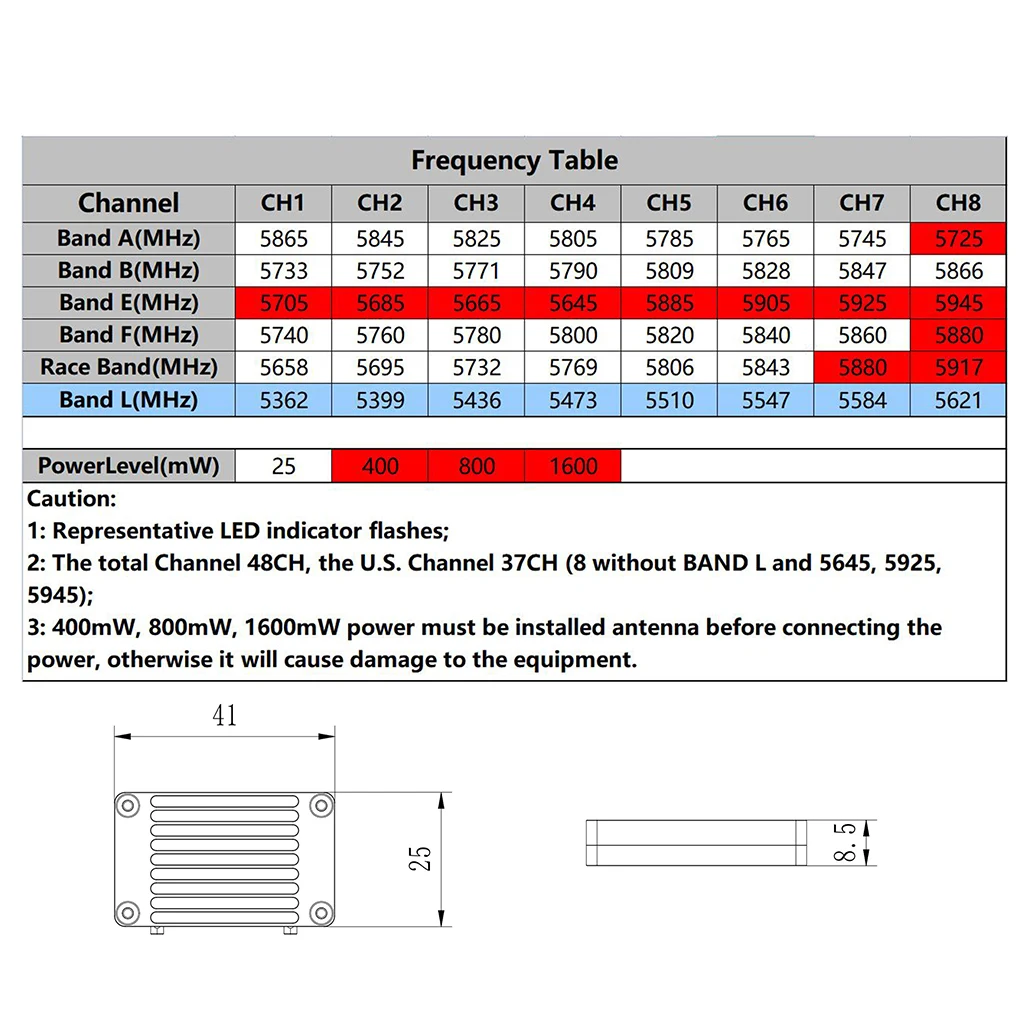

Transmission frequency: 48CH/37CH (US), see the frequency table for details

Transmit power: 32dBm±1dBm (1600mW)

Power adjustment: power adjustment button, short press to switch

Power: 4 gears, 25mW/400mW/800mW/1600mW

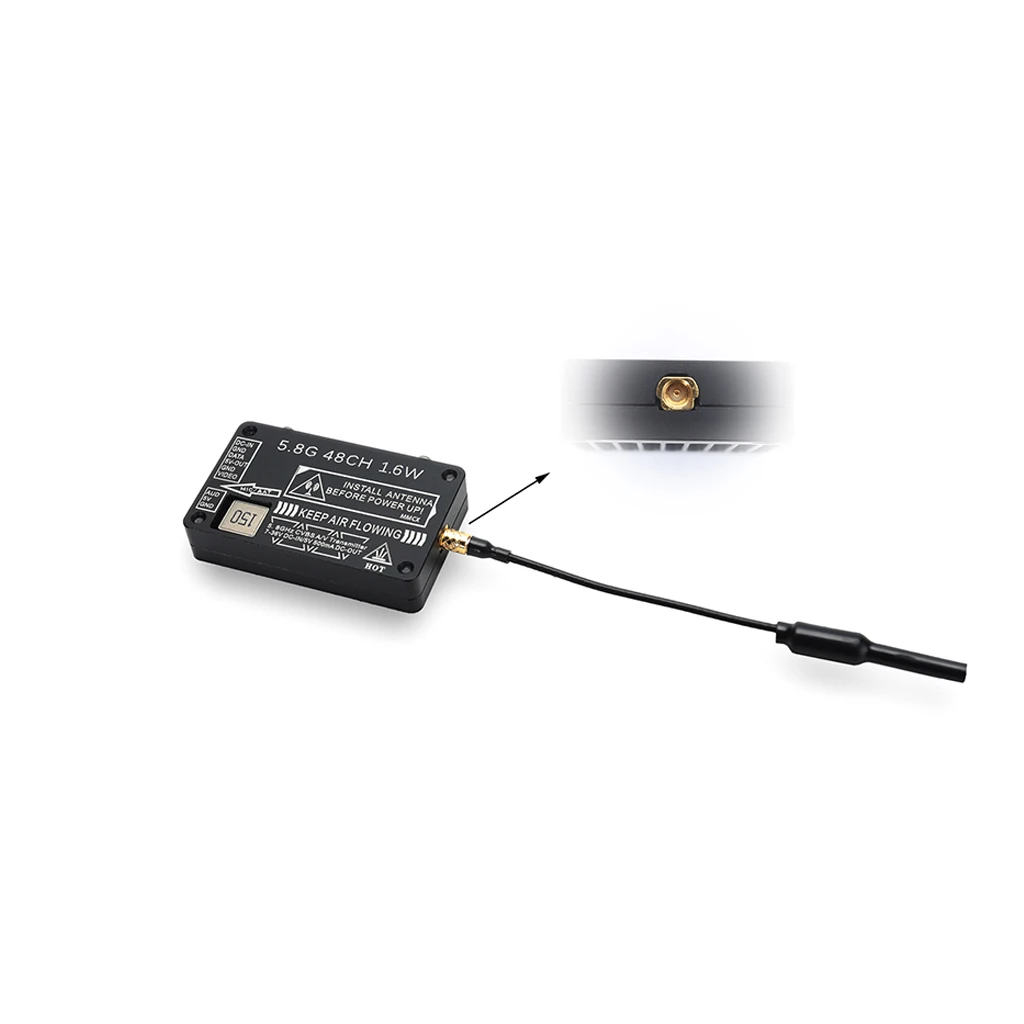

Antenna interface: MMCX

Modulation Type: FM

Notes:

1. Please install the antenna first and then turn on the power to avoid equipment failure;

2. Select the appropriate working frequency, and set the transmitter and receiver to the same frequency (see the frequency table for details);

3. The power of the transmitter is large, do not touch the shell with your hands to avoid burns when working (it is normal for the shell to be hot, please use it with confidence);

4. The product can also be used normally if the shell is removed for installation due to the need to reduce the weight, but the transmission power will decrease slightly due to the increase in the temperature of the transmitter;

5. The input voltage is 7-36V (2-6S), please do not use it beyond the voltage range;

6. The output voltage and current is 5V/0.5A, please pay attention to whether the camera is within the voltage and current range, if the current of the product is greater than the limit of 0.5A, please do not use the voltage output terminal of this product, otherwise it may cause damage to the power module of the transmitter;

SHOP ALL CATEGORIES

TAROT-RC 5.8G 48CH 1.6W Image Transmission PAL/NTSC 7-36V DC MMCX Antenna For RC FPV Long Range Racing Drone Quadcopter TL300N6 Item NO.: 40707480

Product Description:

Tarot's newly upgraded 48-channel, 1600mW 5.8G audio and video transmission system can be used with four power adjustments, with ultra-mini shape and ultra-light weight, and 6061T6 aluminum alloy shell for heat dissipation, especially suitable for multi-rotor drones and FPV long-distance use.

Features:

1.48 channel output, easy to switch with buttons, compatible with conventional frequency;

2. Provide 1 video signal, 1 audio signal input;

3. Provide 1 channel 5V/0.5A power output for conventional camera power supply (please confirm the voltage and current of related equipment first to avoid burning);

4. Compared with the previous generation of 600mW image transmission equipment, the transmission power is increased and adjusted by itself, which greatly increases the transmission distance and is more suitable for long-distance image transmission.

5.6061T6 aluminum alloy shell heat dissipation, more stable performance.

Transmitter (Air Terminal):

Input voltage: 7-36V DC (2-6S)

Output voltage: including one 5V/0.5A

Weight: 5.1g (without metal case and antenna), 14.3g (without case, without antenna)

Size (length, width and height): 41mm25mm*8.5mm

Video format: PAL/NTSC

Number of channels: 48 channels/37 channels (US region)

Channel selection: frequency band/frequency adjustment button: long press for 3 seconds to switch frequency band, short press to switch frequency point

Transmission frequency: 48CH/37CH (US), see the frequency table for details

Transmit power: 32dBm±1dBm (1600mW)

Power adjustment: power adjustment button, short press to switch

Power: 4 gears, 25mW/400mW/800mW/1600mW

Antenna interface: MMCX

Modulation Type: FM

Notes:

1. Please install the antenna first and then turn on the power to avoid equipment failure;

2. Select the appropriate working frequency, and set the transmitter and receiver to the same frequency (see the frequency table for details);

3. The power of the transmitter is large, do not touch the shell with your hands to avoid burns when working (it is normal for the shell to be hot, please use it with confidence);

4. The product can also be used normally if the shell is removed for installation due to the need to reduce the weight, but the transmission power will decrease slightly due to the increase in the temperature of the transmitter;

5. The input voltage is 7-36V (2-6S), please do not use it beyond the voltage range;

Both 7.5V and 5V-OUT are outputs, so do not connect to the power input or the battery, as this will cause damage.

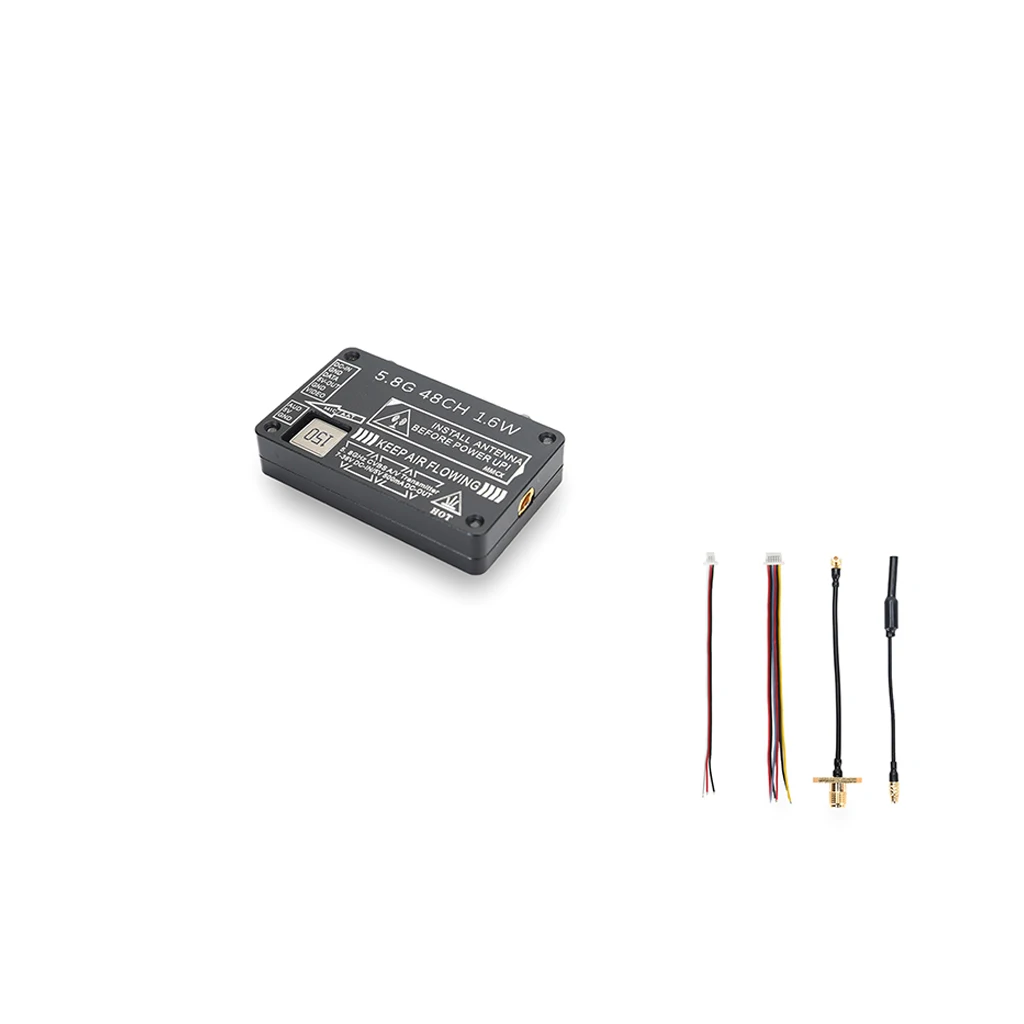

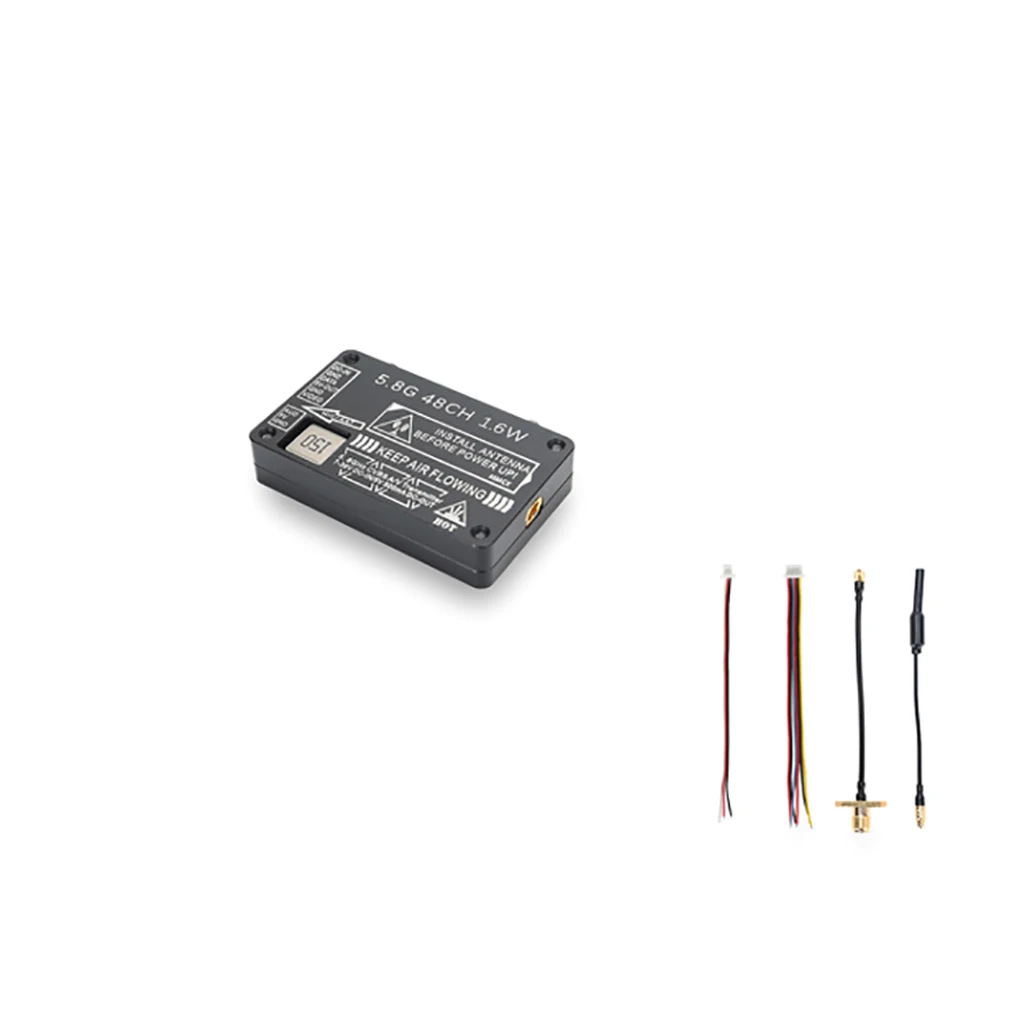

Package Listing:

5.8G 1600mW image transmission transmitter ×1

Transmitter cable/6P(100mm) ×1

Transmitter Cable/3P(100mm) ×1

5.8G antenna/MMCX ×1

5.8G Antenna Extension Cable/MMCX to SMA ×1
