Tarot Analog AV to compatible-HDMI HDModule/300mm/Open type TL3504 For Drone Quadcopter
Product Description:
·Tarot company produced 1080P compatible-HDMI to AV analog signal module;
·It is a video signal conversion accessory specially developed for drones;
·Adopting high-performance chip,it can keep the picture clear and smooth at all times;
·The product mini compact and lightweight, weight only 17g.
Product Parameters:
Product name: compatible-HDMI2AV module
Input voltage: 10-30V
Output HDMI cable length: 300mm
Operating ambient temperature: -20 to 50℃

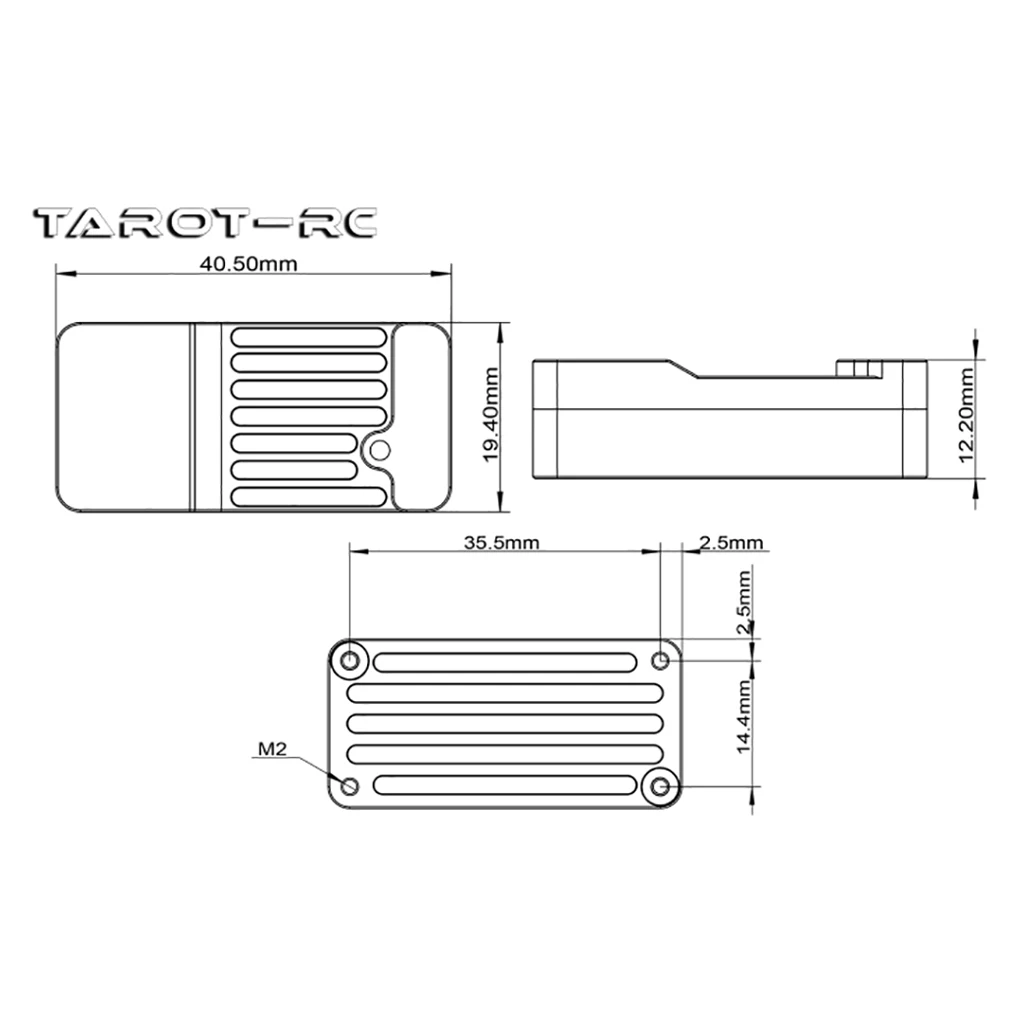

Sie: 40.5mm*19.4mm*12.2mm
Weight: 17g
Caution:
1.Only support compatible-HDMI to AV one-way conversion;
2.HDMI video source such as its own battery,power on:first power on the module power supply, and then power on the video source power supply; power off: first cut off the video source power supply, and then cut off the module power supply;

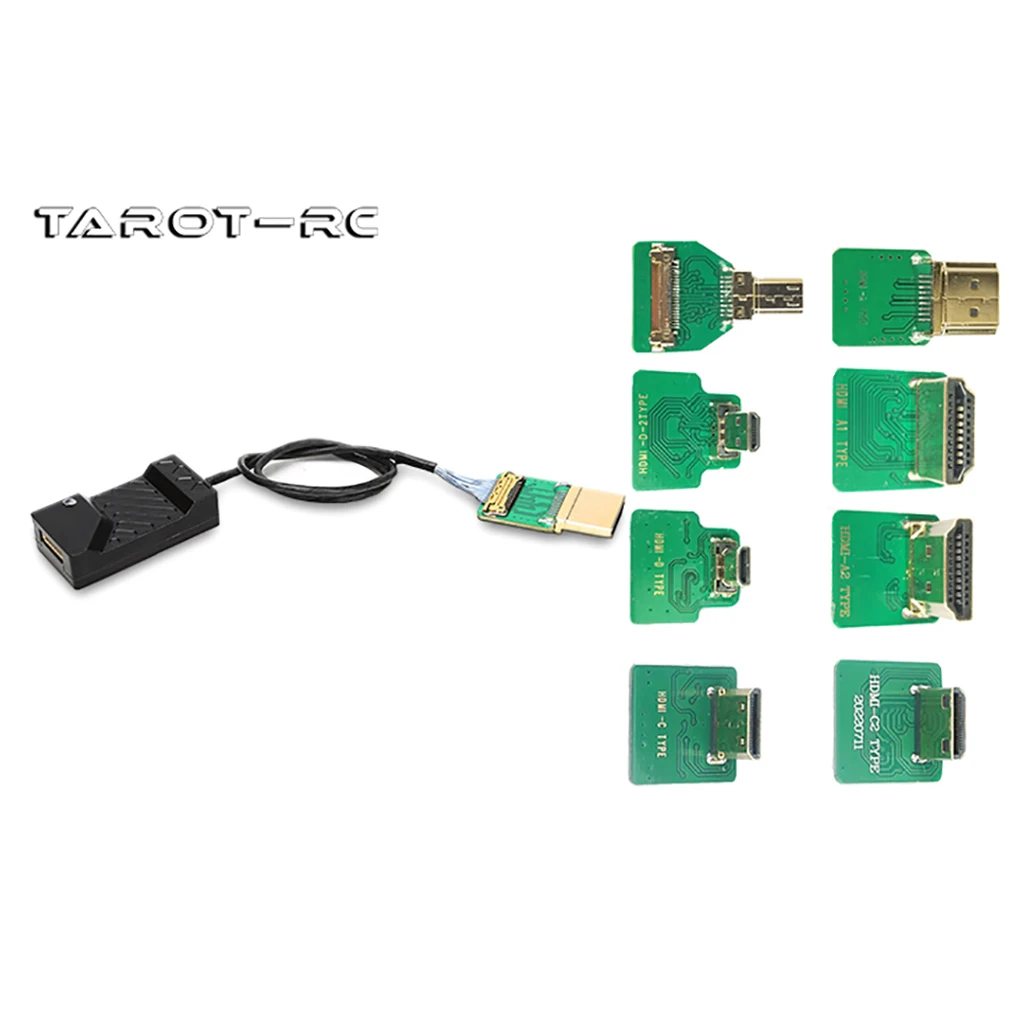

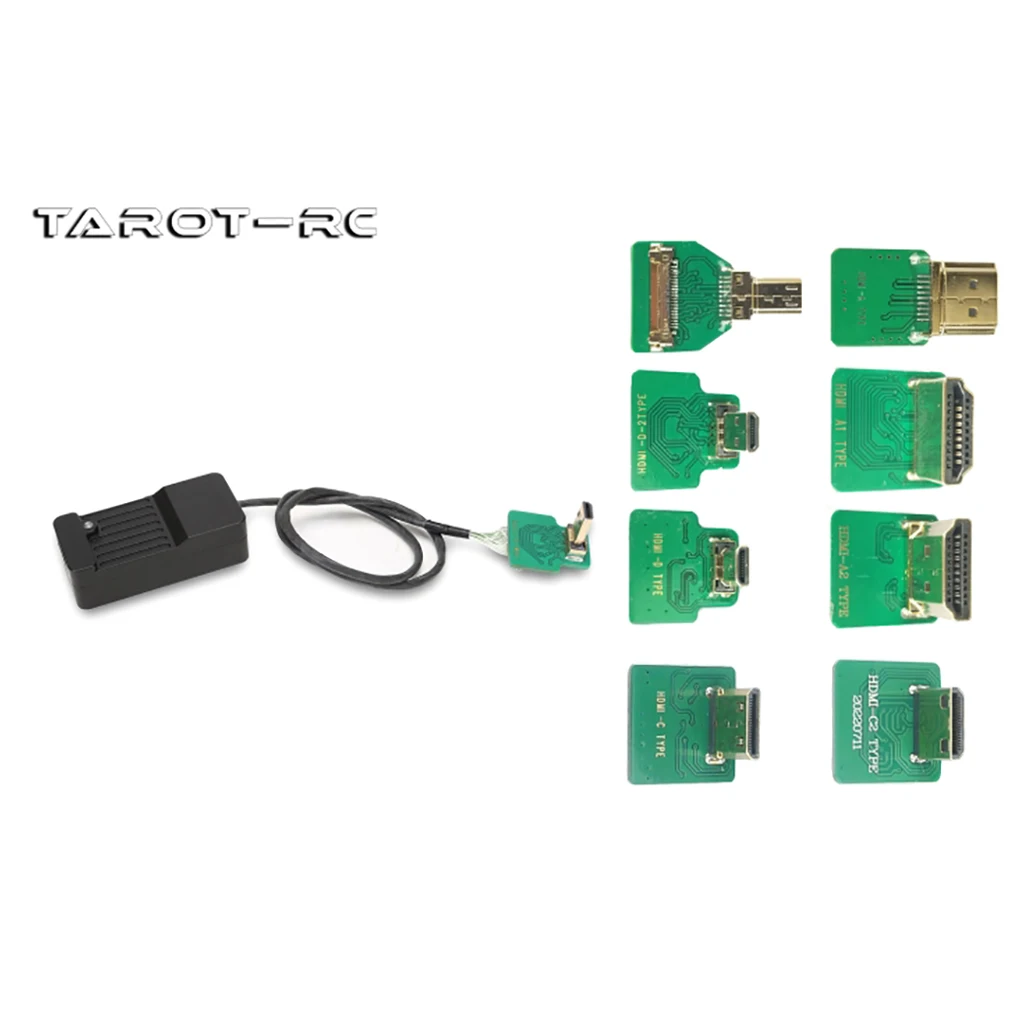

3.Default cable length 300mm, can replace the 500mm cable length, can also be customized to other lengths. Match with our TL10A11 series various adapters to use.
Packing List:
AV to compatible-HDMI module (cable length 300mm) ×1
1.0-8P single head cable/150mm ×1
Cup head screw(M2*6mm) ×2
Tarot HD compatible-HDMI to AV Analog Module/300mm/Open type TL3504 For Drone Quadcopter
Product Description:
The 1080P HD compatible-HDMI to AV analog signal module produced by the company is a video signal conversion accessory specially developed for model aircraft drones. Using high-performance chips, the picture can be kept clear and smooth at all times; The mini is compact and lightweight, weighing only 17g.
Specifications:
Product Name: compatible-HDMI2 to AV Module
Input voltage: 10-30V
Latency: 60 ms
Output HDMI cable length: 300mm
Operating ambient temperature: -20 to 50 degrees Celsius
Size: 40.5mm*19.4mm*12.2mm
Weight: 17g
Notes:
1. Only support compatible-HDMI to AV one-way conversion;
2. If the compatible-HDMI video source comes with its own battery, it will be powered on: first through the module power supply, and then through the video source power supply; Power off: first disconnect the power supply of the video source, and then disconnect the power supply of the module;
3. The default wire length is 300mm, and the 500mm wire length can be replaced, and other lengths can also be customized. It can be used with various adapters of our TL10A11 series.
Packing List:
compatible-HDMI to AV module (cable length 300mm) ×1
1.0-8P single head wire/150mm ×1
Cup head screw(M2*6mm) ×2
