Product Description:
Tarot's latest four-axis distribution board supports a wide voltage of 8-60V input, a continuous current of 100A, and supports the detection of voltage and current meters connected to the open source flight controller Pixhawk and Betaflight. It is suitable for power distribution of various types of models such as four-axle multi-rotor and FPV traversal aircraft.
Features:
· Support DC8-60V wide voltage input;
· Provide 1 Vbat voltage output self-solder joint;
· Provide 1 channel 5V/5A BEC output from solder joint (with LED indicator);
· Provide 2 channels of 12V/4A (total) BEC output from solder joints (with LED indicators);
· Vbat voltage output with integrated 1 model XT60PW plug;

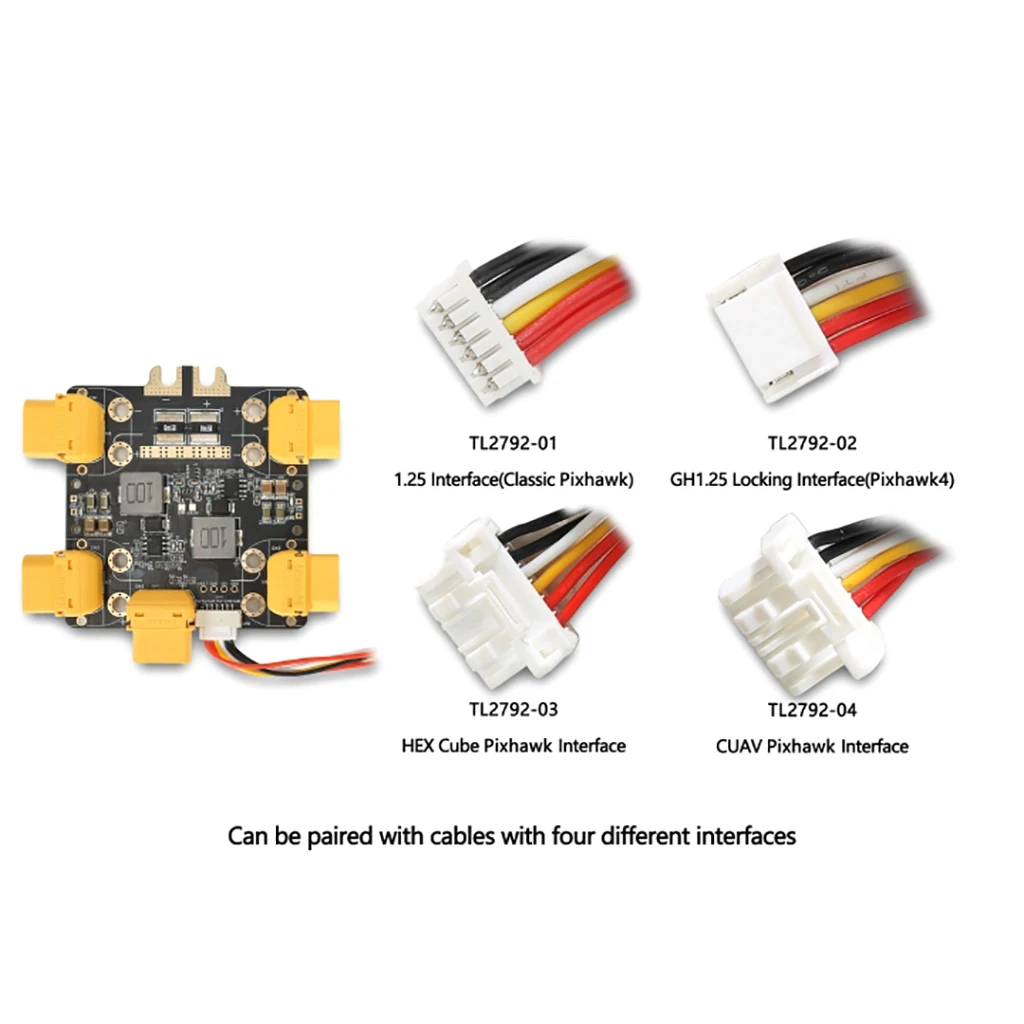

· Integrate 1 GH1.25-6P female connector, which can be directly connected to various types of flight control Power interfaces using the corresponding cable;

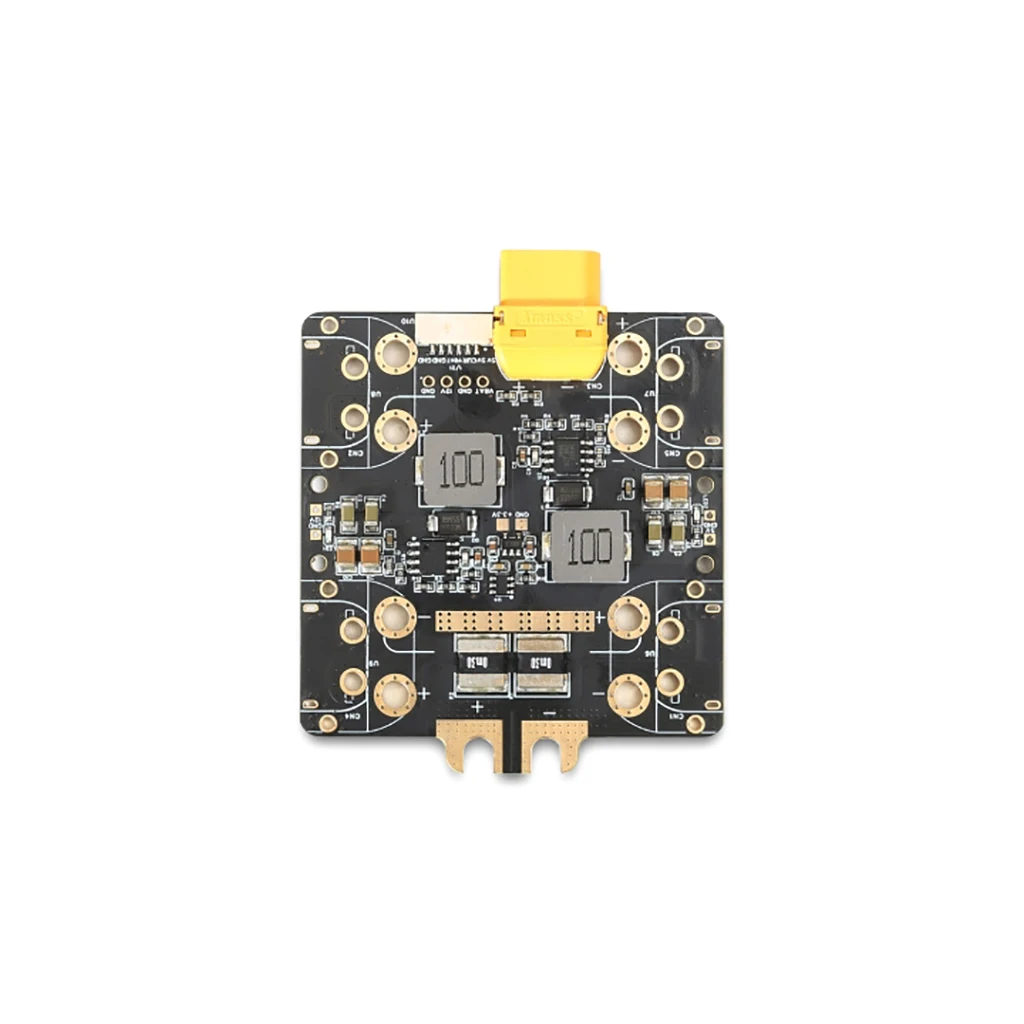

· Six-layer board, immersion gold process, 2oz copper thickness design overcurrent capacity is stronger;

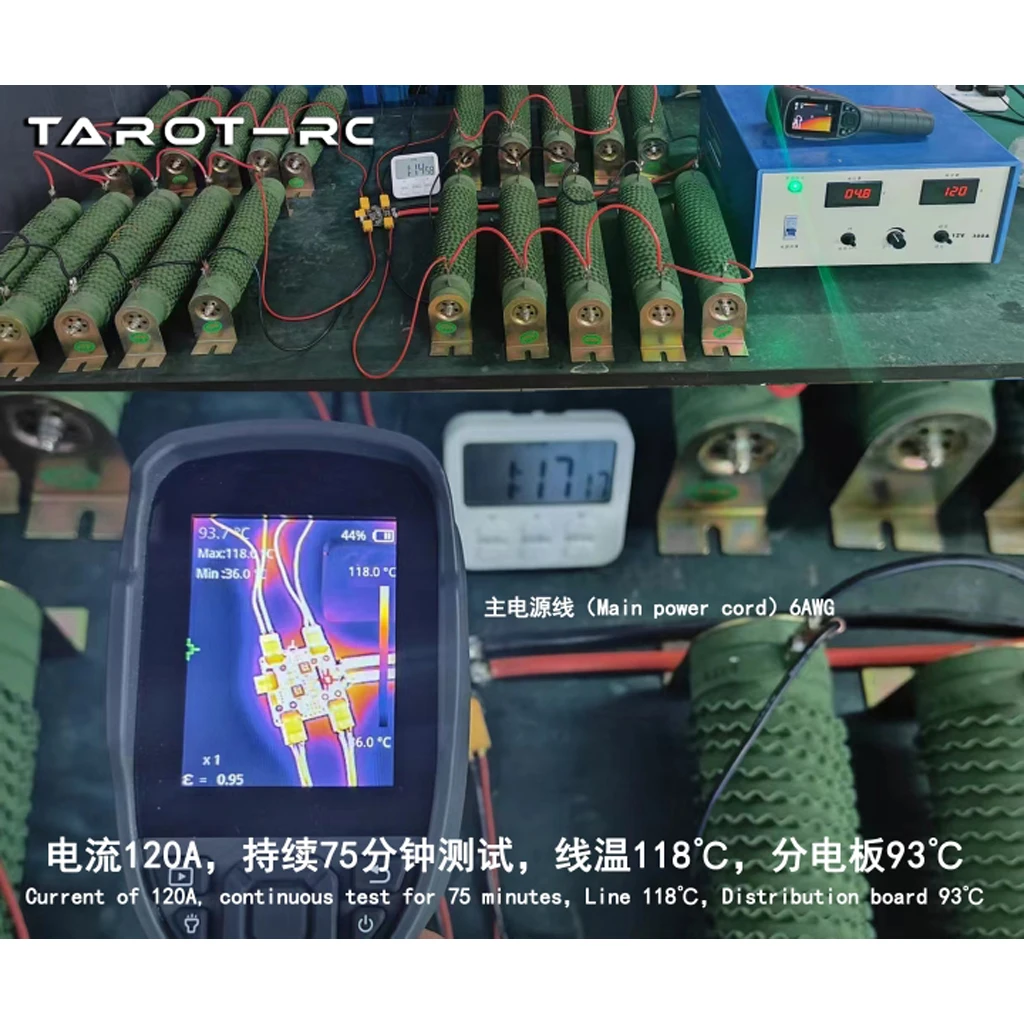

· Support continuous current 100A, instantaneous current 200A;

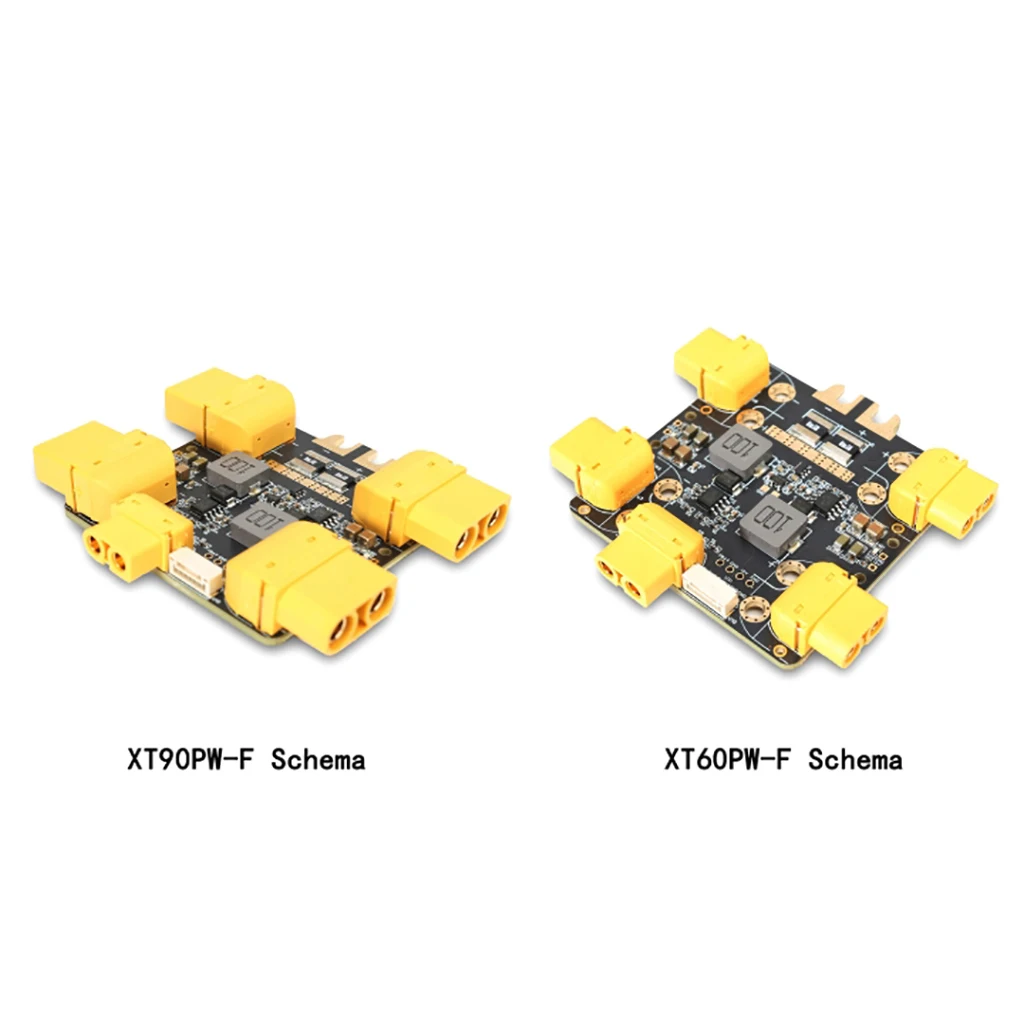

· The power output supports direct silicone wire welding, XT90PW-F welding, XT60PW-F welding self-selecting output pads, three wiring output modes can be selected at will;

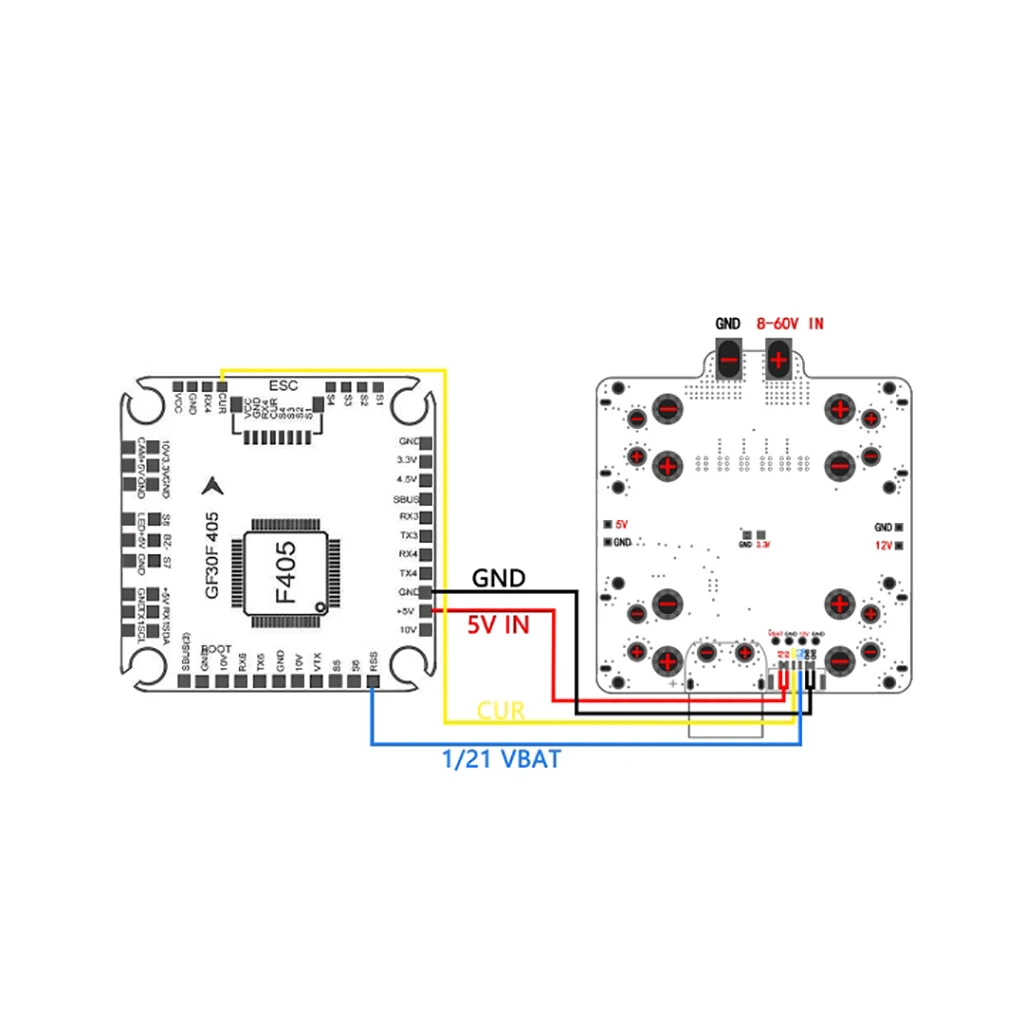

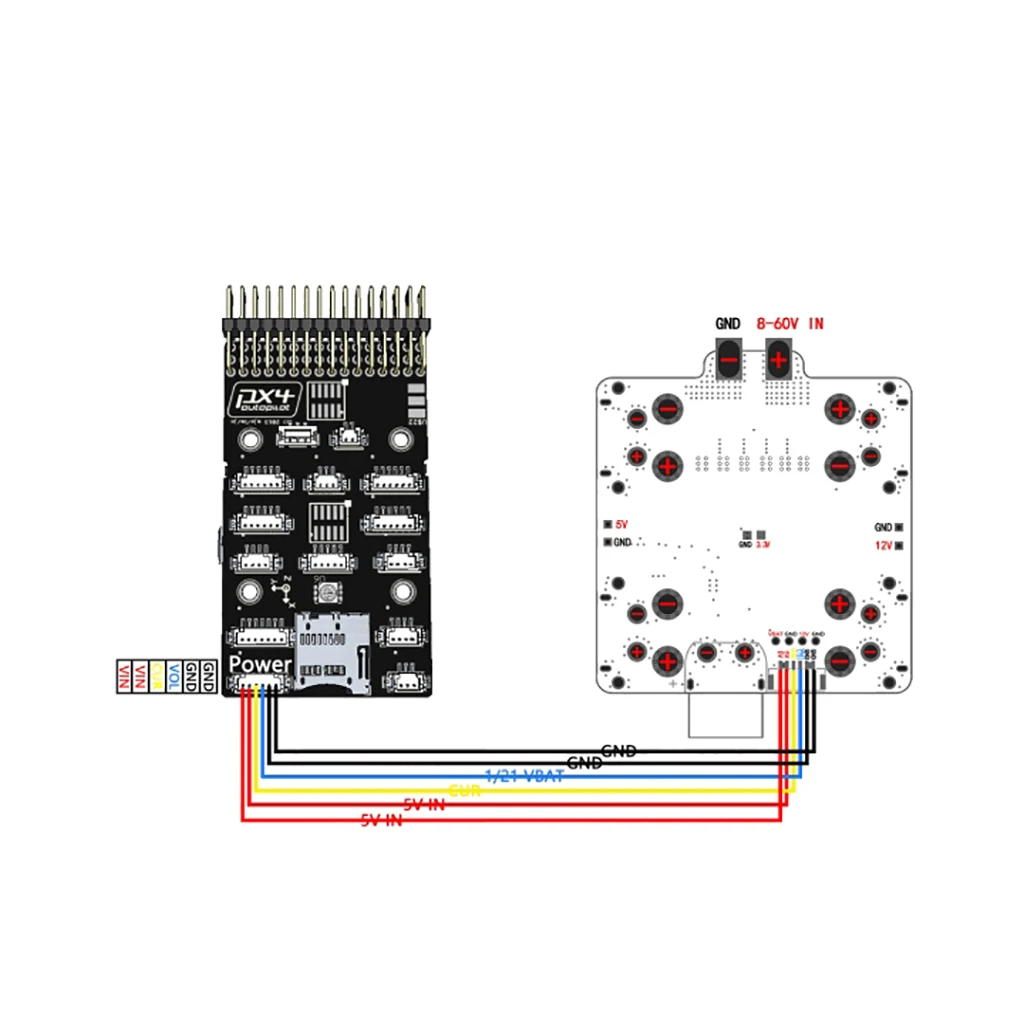

· Support Pixhawk2.4.8, Pixhawk4, Leixun, Hexing and various types of Pixhawk open source flight controller and Betaflight docking voltage and current meter detection;

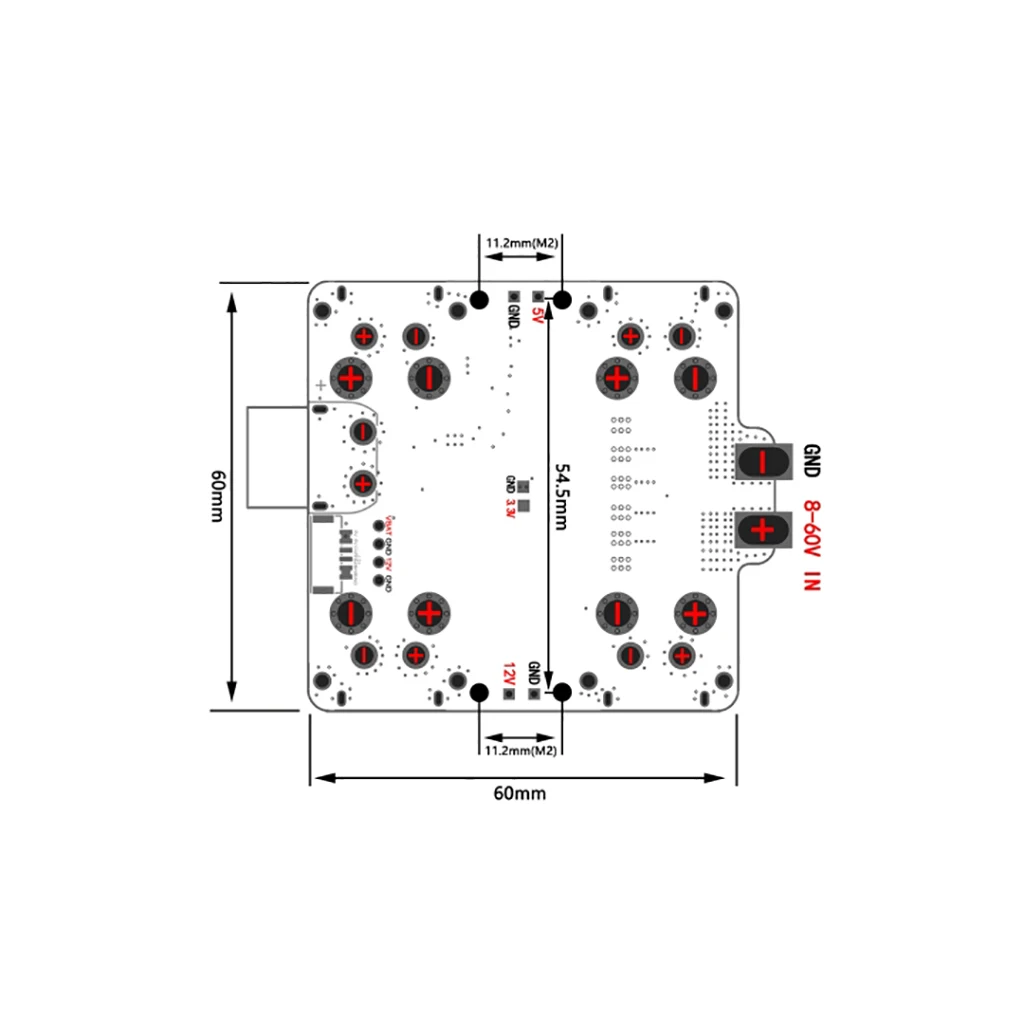

· Provide 11.2mm*54.5mm fixed hole installation;
· size: 60mm*60mm;

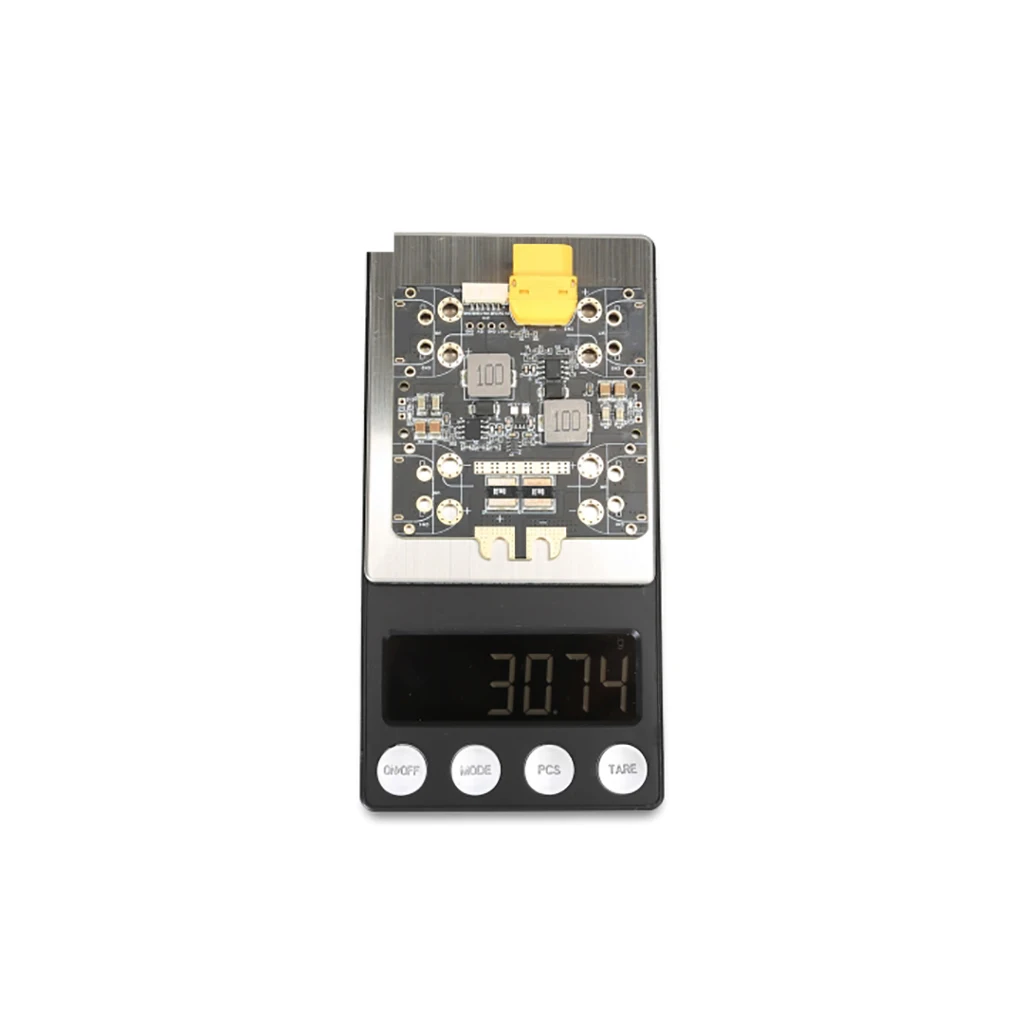

· weighs only 31g.

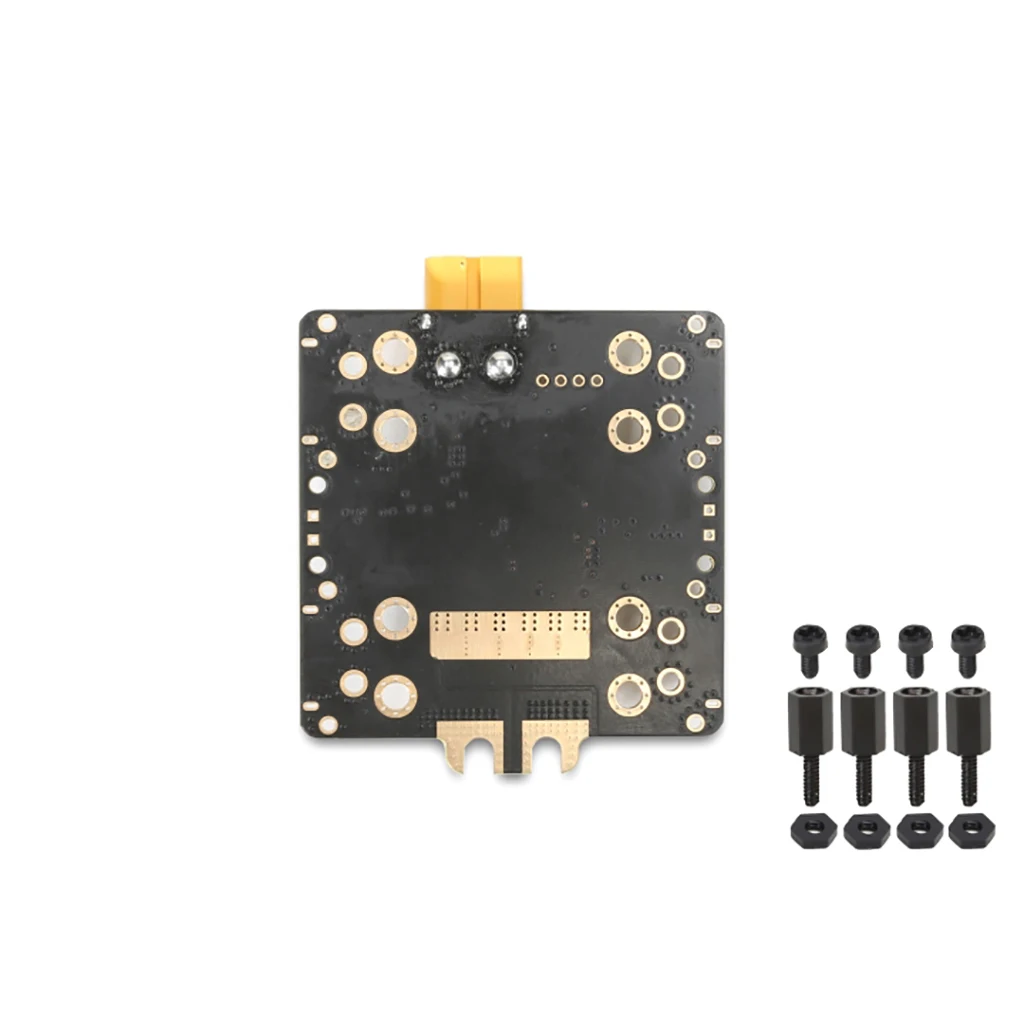

Packing List:
100A Distribution Board ×1
Plastic Screw Pack ×1
