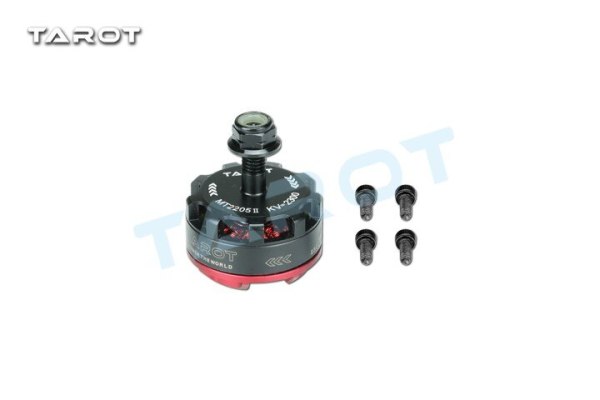

JMT Tarot MT2205 II 2300KV Motor CW W TL400H14 / CCW B TL400H15 for DIY RC Multicopter Quadcopter Drone 180/190/200/220
White and Black Motor Cap optional, Please choose the one you request
Package Included:
MT2205 III self locking motor /S x 1
M2.5 * 6MM cup head six angle screws * 4
Product manual:
Tarot MT2205Ⅱ-2300KV brushless fan motor suitable for multi-axis cross sections 180/190/200/220 and other machines. MT2205 brushless motor extremely low center of gravity, using 0.20mm ultra-thin high-efficiency silicon steel (primary propeller shaft folder structure) so that it can get the best concentricity guaranteed. Fan motor cover with high efficiency active bulk pad designed to achieve lower operating temperature means higher productivity.
MT2205Ⅱ brushless motor with excellent balancing performance, every single motor before shipping the whole system have been detected with high precision dynamic balancing test, to ensure the stability of the motor during operation. Motor base mounting holes 16MM / 19MM, compatible with mainstream rack-mount on the market today, retain the appearance and consistency of conventional motor, high floating coil protection.
Product parameters:
Support lithium section number: 3S-4S
Propeller shaft mounting diameter: 5MM
Propeller: 5 inch propeller
Stator diameter: 22MM
No load current: 0.4A-0.8A
Stator end thickness: 5.0
Stator end number: 12
Motor poles number: 14
Speed: 2300KV ± 5%
Motor external diameter: 28MM
Axis diameter: 3MM
Motor height: 35MM
Motor weight: 27G
