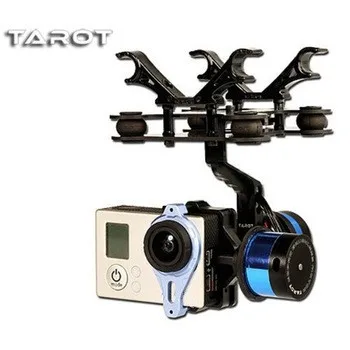

Tarot T-2D Brushless Gimbal Camera PTZ Mount FPV Rack TL68A08 for GoPro Hero 3 RC Multicopter Drone Aerial Photography
Package including:
- 1 x Tarot gimbal Frame (with motor and damping plate set,but without gyro OR any controller board)
Tarot T-2D Brushless Gimbal Gopro 3 Aerial Photography Beushless Camera Gimbal TL68A08
Description:
- Tarot T-2D gimbal is designed for the Gopro Hero3, which is widely usedinfilm,television productions, advertising aerial photography, etc. Using 6061T6 aluminum alloy full CNC precision machining and brushless motor driving,its overall framework is designed with the idea of compact, easy installation, high precision, lightweight, high stability and many other characteristics. Evenif the aircraft is in high-speed flight, it can still stabilize and control the Goprocamera precisely with the highest stability, so pictures or videos output can reach the best quality.
Tarot TL68A08 Related Part Number:
- Camera Mount hanging hook (SKU:25414) TL68A01
- GOPRO camera fasteners (SKU:25413)TL68A02
- GOPRO brushless PTZ camera frame assembly(SKU:25412) TL68A03
- GOPRO Camera Mount roll arm (SKU:25546) TL68A04
- GOPRO PTZ stand arm motor base (SKU:25545)TL68A05
- GOPRO brushless motor(SKU:25549) TL68A06 PTZ
- GOPRO two axle PTZ shock group(SKU:25758) TL68A07
- GOPRO Camera Mount roll axle brushless motor(SKU:25548) TL68A09
- GOPRO PTZ suspension ball TL68A11
- GOPRO two-axle gyroscope ZYX22 PTZ
Product Features:
- Support GOPRO Hero3 video auxiliary output
- Support the supply voltage polarity protection and voltage compensation
- Support the motor drive end short-circuit protection
- Support for custom initial pitch angle
- Support sensitivity parameter adjustment and software 3D pose show
- The support rocker rate mode and position mode
- Support Receiver: conventional receiver, S-BUS receiver, /DSMJ/-X receiver
- Support for remote devices: PPM/PCM/2.4G
- The working voltage: DC 7.4V ~ 14.8V (Recommended 12V, three lithium battery)
- Working current: 200mA-500mA (power supply voltage and the motor related)
- The working environment temperature: -15C ~ 65C
- The processor: Dual 32-bit high-speed ARM core processor
- The sensor: Three rotor MEMS gyroscope rotor MEMS accelerometers and the three
- The maximum angular rate: 2000C / sec
- The maximum acceleration: 16g
- The control frequency: 2000Hz
- The motor drive frequency: 20KHz (no noise smoothing driven)
- The control accuracy: 0.1C
- The control angle range: -45C ~ 45C (roll), -135C ~ 90C (tilt)
- Pose solver algorithms: PTZ dedicated brushless motor decoupled EKF algorithm
- For shooting equipment: GOPRO Hero
