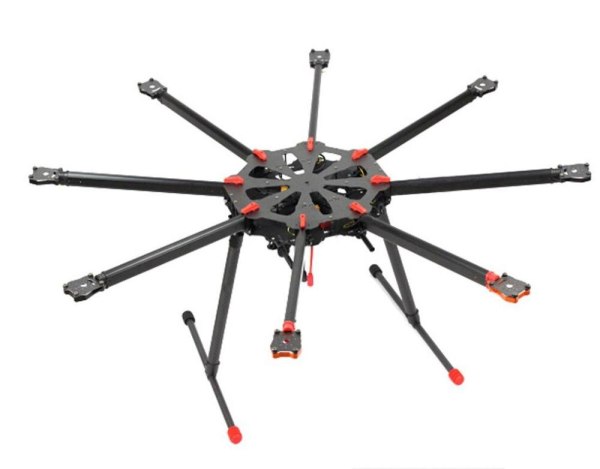

Tarot TL8X000 X8 8 axle Octacopter Umbrella Type Frame Kit Aircraft Drone UAV Electronic Retractable Landing Skid for DIY FPV
Effective picture only,product do not include the Motor.
Product Description:
8 Rotors Provide Sufficient Power, Even If One axle Unexpectedly Stop Working, But Also to Ensure That The Aircraft is In a Stable Condition. Whole Has Lightweight, Portable and Convenient. Maximum Take-off Weight of About 10kg, Easily Carrying 5d Level Aerial Equipment, with 15 Minutes of Battery Life, as Well as 12 Minutes of Effective Working Time.
Feature:
1. Black and Red Color Main Frame Design Has Strong Visual Effect. The Battery Hang Under The Frame Design Make The Gravity Center Lower, and It Provide More Installation Space.
2. The Tarot x8 Comes with High Strength PCB Board; The Power Plug Adopts The as150 Anti-Spark Connector. The User Could Get More Flight Time From The Light Frame.
3. The Electronic Retractable Landing Skid Has Reverse Power Protection and Failsafe Function. The Retractable Landing Skid Could Provide Broader Views for Aerial Photography.
4. The Tarot x8 Comes with Metal GPS Mount. It is Plug Type, Easy to Folding.
5. There is Air Deflector Groove On top; It Could Bring Good Heat Dissipation Effect.
Product Specifications:
Symmetric Motor Wheelbase: 1050mm
Folding Propeller Specifications: 15 Inch
Arm Length: 416mm
Arm Weight: 106g
Centre Plate Diameter: 338mm
Undercarriage Clearance Height: 391mm
Battery Specifications: 15c, 22.2v, 10000-2000mha
6s Brushless Esc: 40a
Maximum Power Consumption: 4000w
Hover Power: 1500w (9.5kg)
Hover Time: 15min
Weight: 2250kg
total Weight: 2.7kg
Accessories Reference Number:
Rotor Specifications: 1555 Folding Propeller Clamp Tl100d04
Brushless Motor: 4114 / 320kv Multi-axle Brushless Motor Tl100b08
Brushless Esc: Hobby Wing Hooray 40a, 6s
