Home>FPV Drone and Part>iFlight XING-E 2809 1250KV/ 800KV 4-6S / 3110 900KV 8S FPV Cinelifter Motor with 5mm Shaft for RC Multirotor 8inch 9inch Drone
iFlight XING-E 2809 1250KV/ 800KV 4-6S / 3110 900KV 8S FPV Cinelifter Motor with 5mm Shaft for RC Multirotor 8inch 9inch Drone

iFlight XING-E 2809 1250KV/ 800KV 4-6S / 3110 900KV 8S FPV Cinelifter Motor with 5mm Shaft for RC Multirotor 8inch 9inch Drone Item NO.: 40386550

Write a Review
US$ 20.99
Color:
2809 800KV US$ 20.99 Stock(100)
- +
2809 1250KV US$ 20.99 Stock(100)
- +
Quantity: 0 , Subtotal 0
Add to Cart

Adding to cart succeed

0 item(s) in cart, Subtotal: US$ 0

Continue Shopping View My Cart

Copy and share this link on social network or send it to your friends

Copy
Product Name iFlight XING-E 2809 1250KV/ 800KV 4-6S / 3110 900KV 8S FPV Cinelifter Motor with 5mm Shaft for RC Multirotor 8inch 9inch Drone
Item NO. 40386550
Weight 0.128 kg = 0.2822 lb = 4.5151 oz
Category FPV Drone and Part
Brand iFlight
Creation Time 2024-01-11

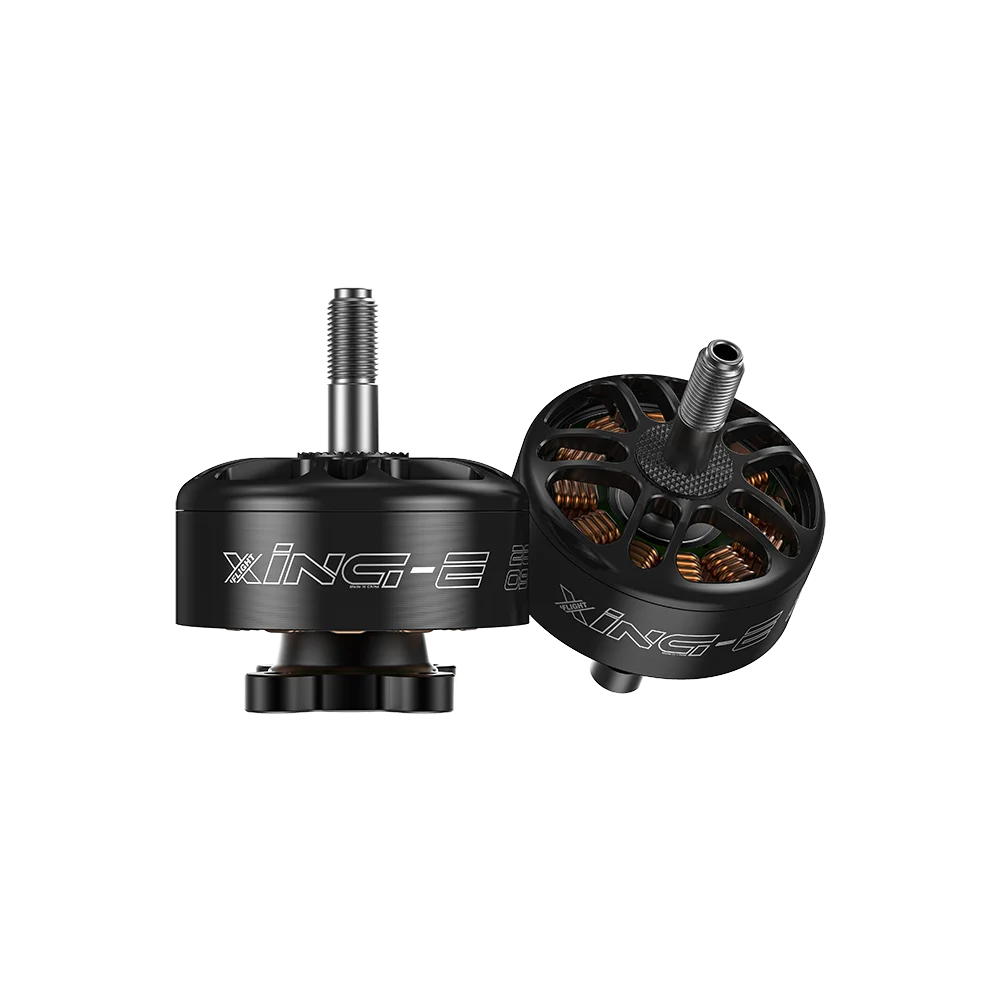

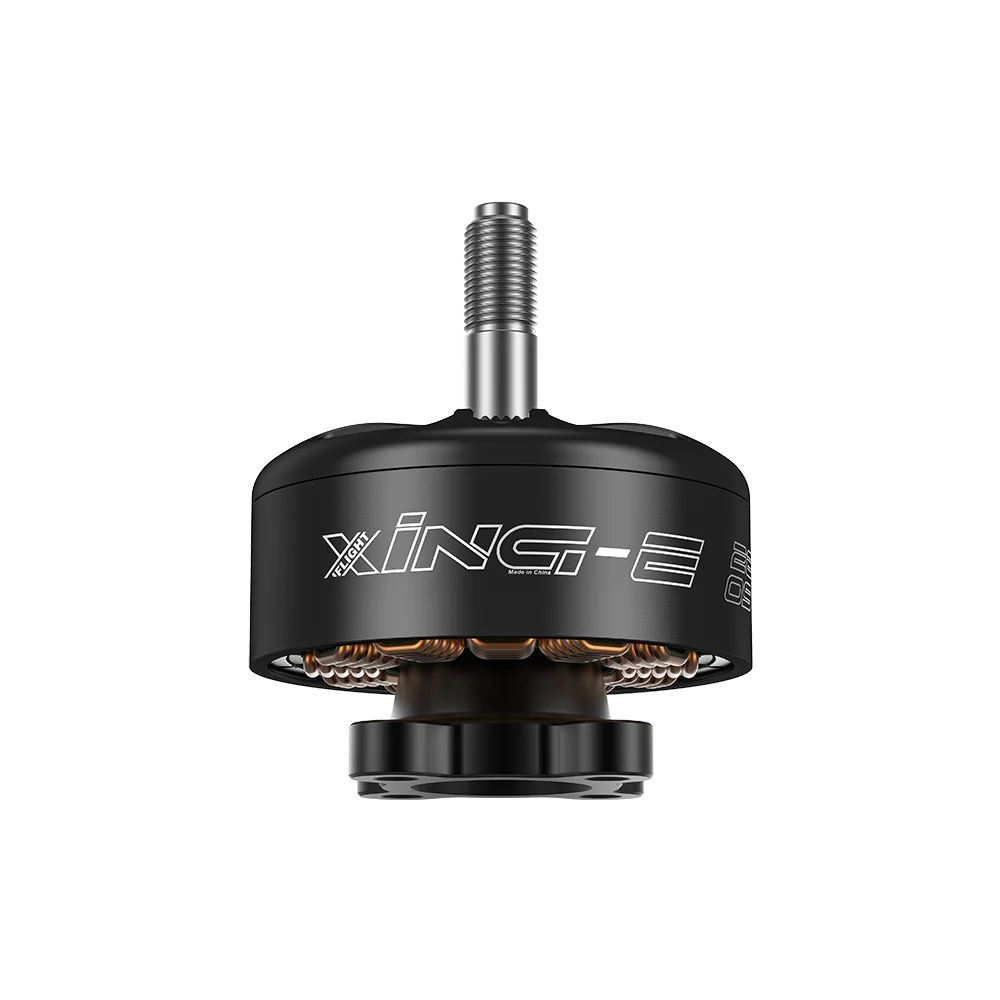

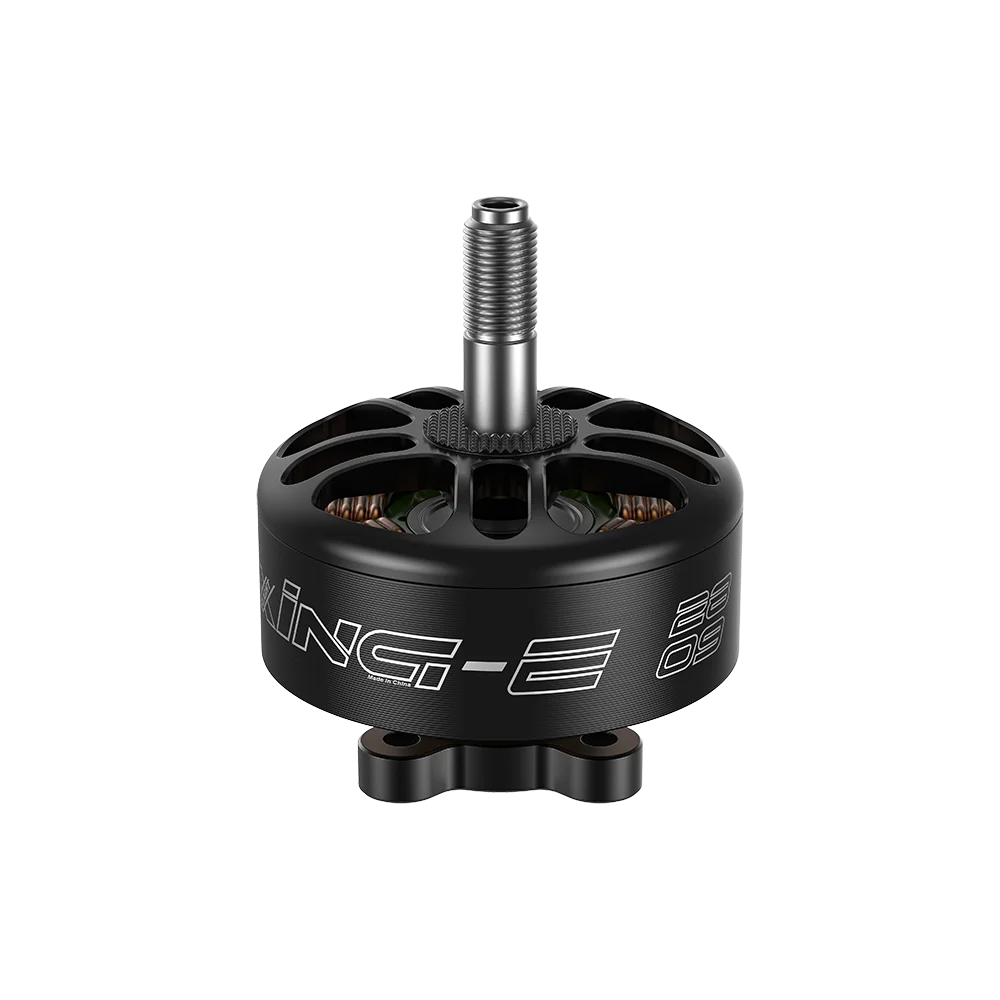

iFlight XING-E 2809 1250KV / 800KV 4-6S FPV Cinelifter Motor with 5mm Steel shaft for for RC Multirotor 8inch 9inch Drone

Features

High-strength 5mm Steel shaft

N52H High-temperature magnets

19x19mm hole pattern

Single strand copper winding Specifications

Model: XING-E 2809 Motor

KV: 800KV/1250KV

Weight(included wire): 61g/60.4g

Dimension: φ33.2*23.8mm

Interphase Resistance: 129.3mΩ/65mΩ

Input Volts: 24V

Peak Current: 25.63A/42.23A

Max Watt: 610.3W/1147.1W

Mounting Holes: 19*19 φ3mm

Rotor Specifications:  Segmented bell

Shaft Diameter: 5mm

Shaft Protruding Length: 15mm

Lead: 260mm/18AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Specification: φ11*φ5*5

Winding: Single Strand copper winding

Packing List

1 x XING-E 2809 Brushless Motor

4 x M3x10 screws

1 x M5 Flange Nut
