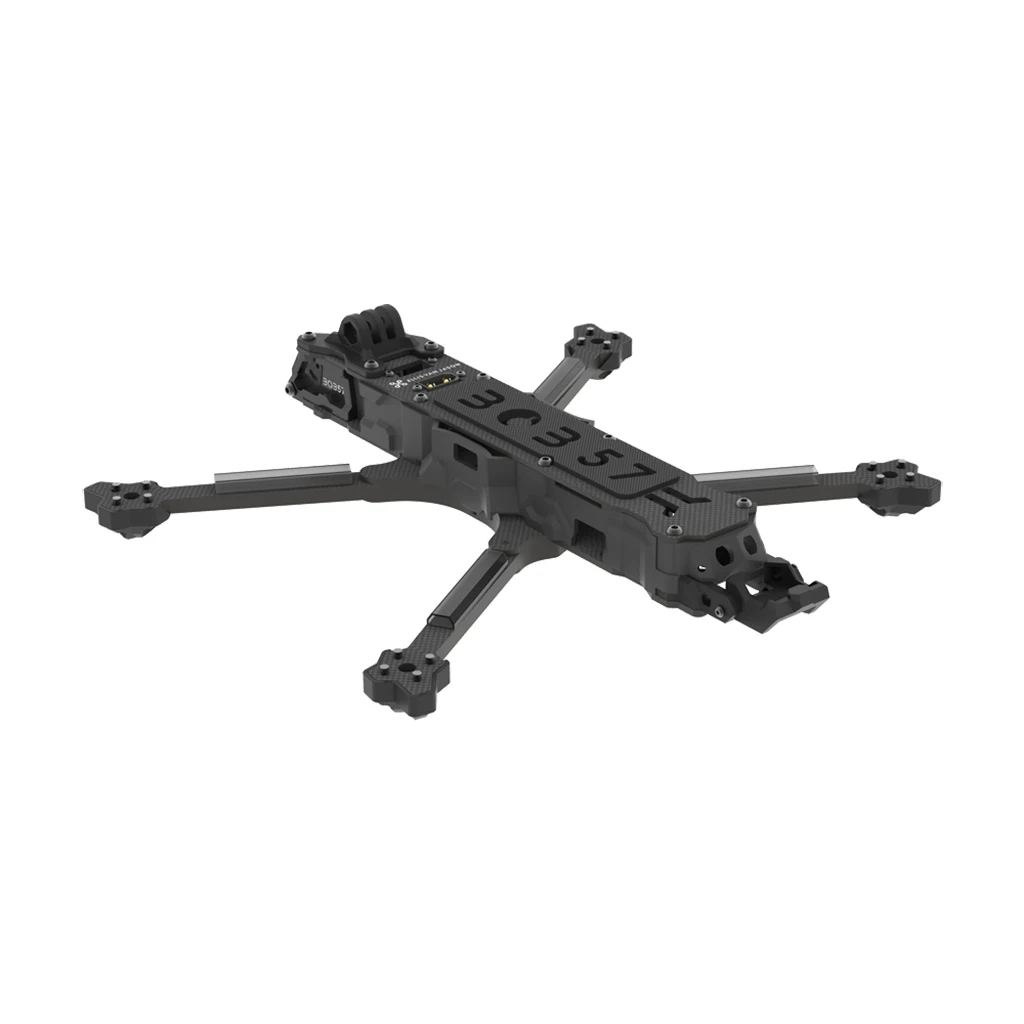

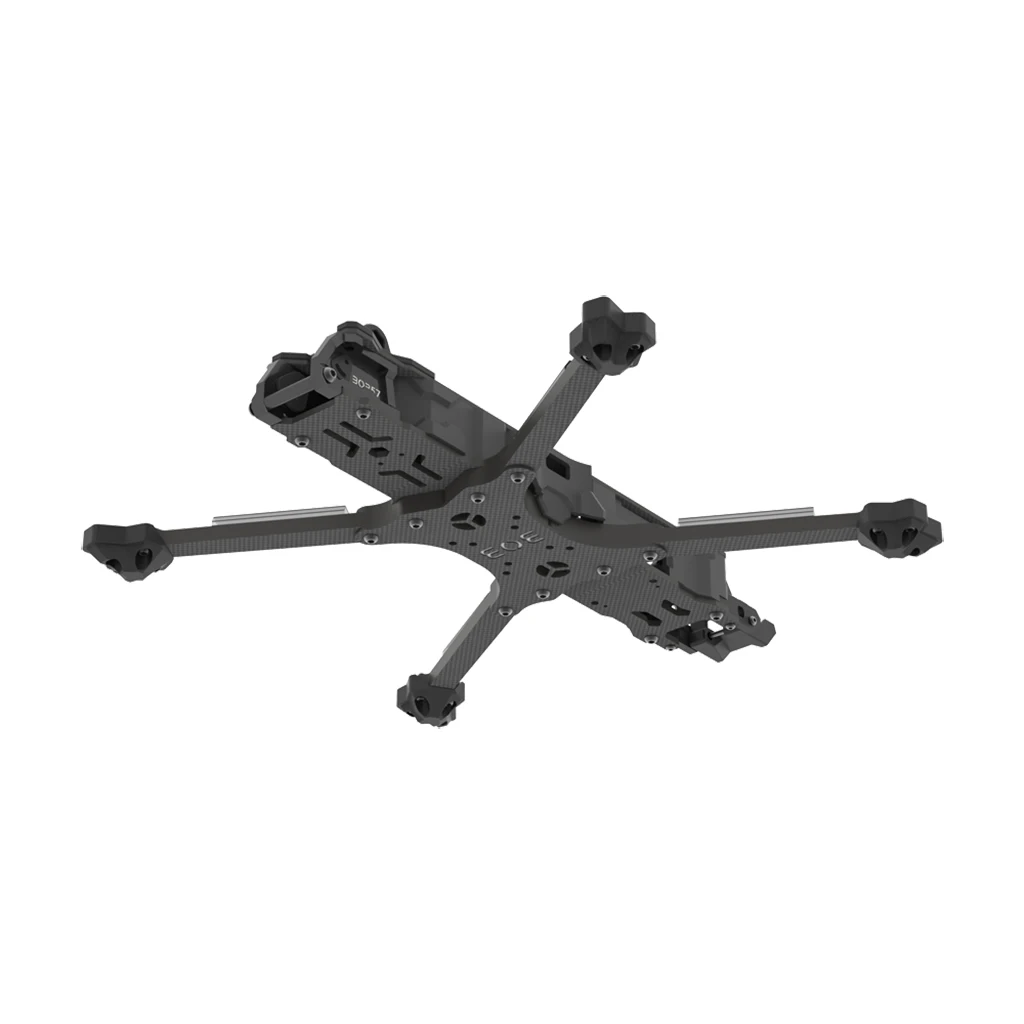

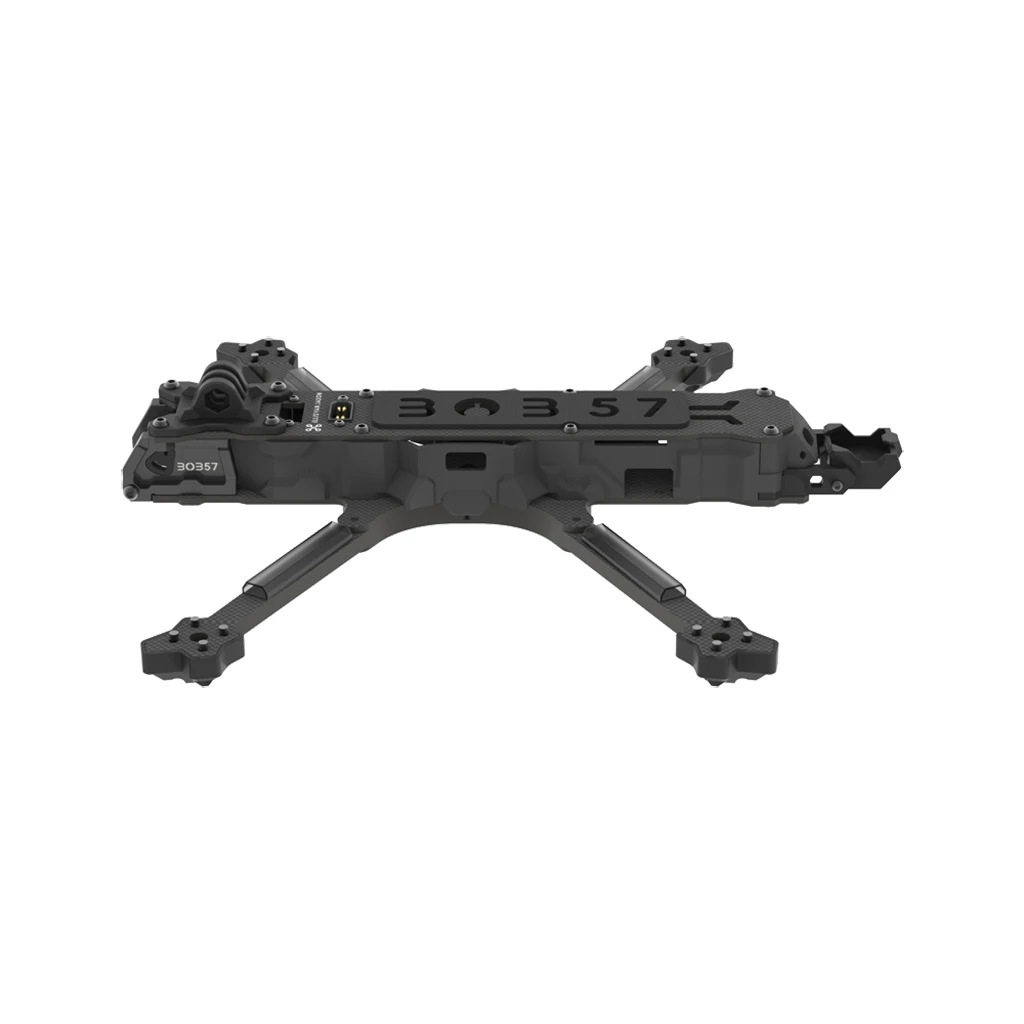

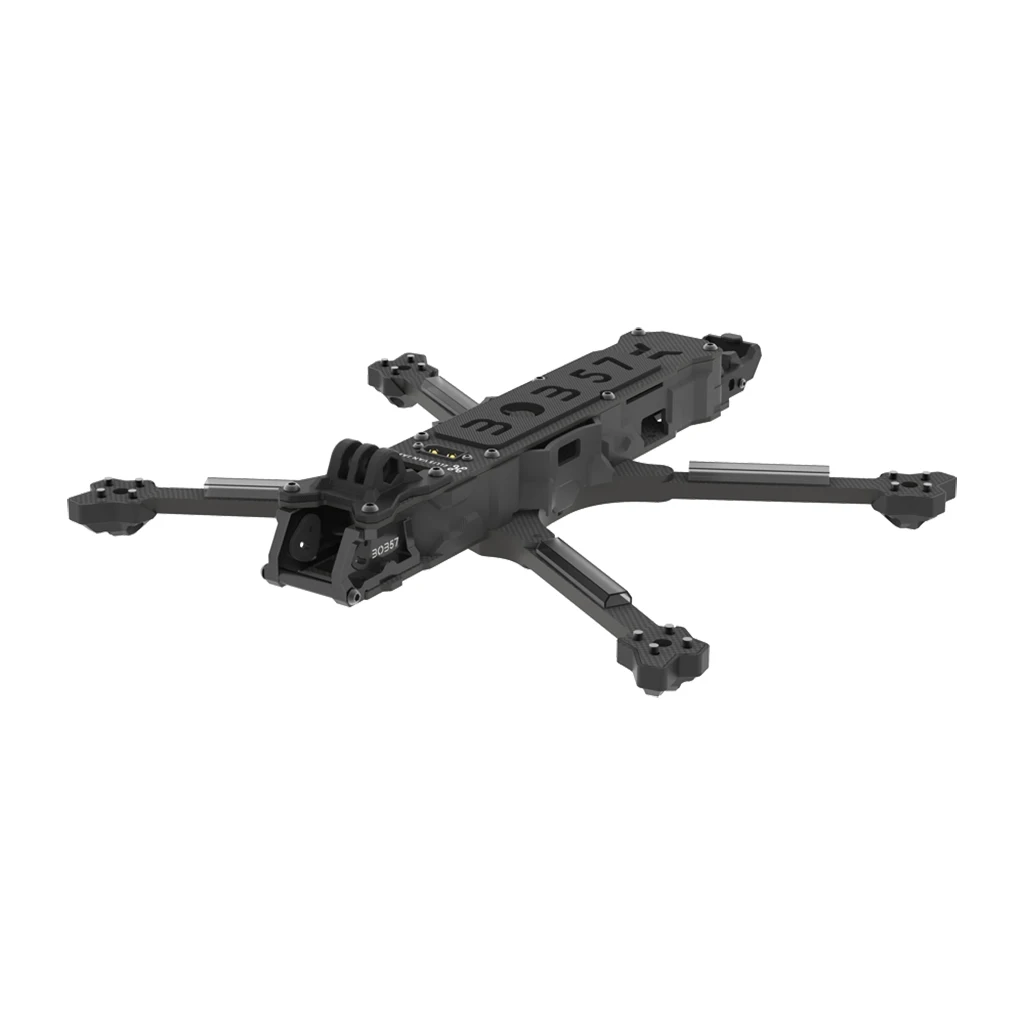

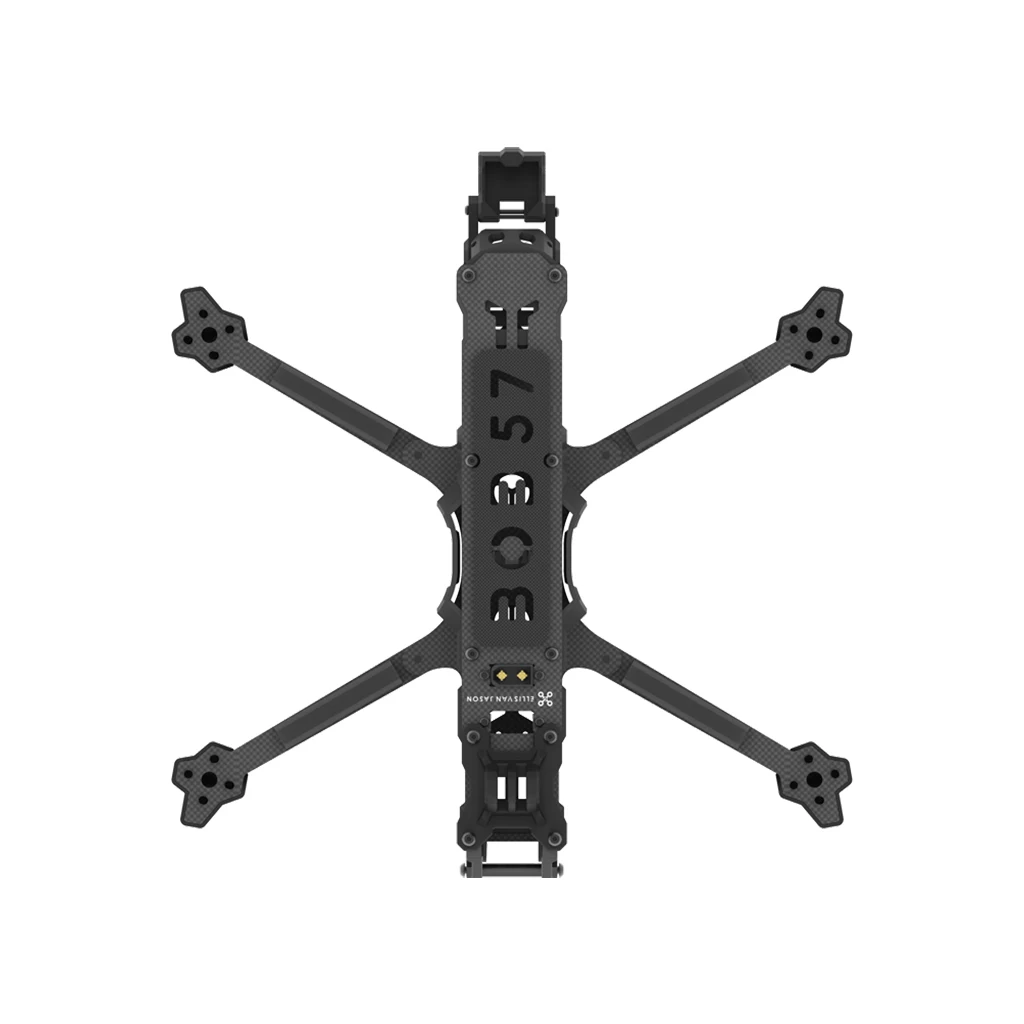

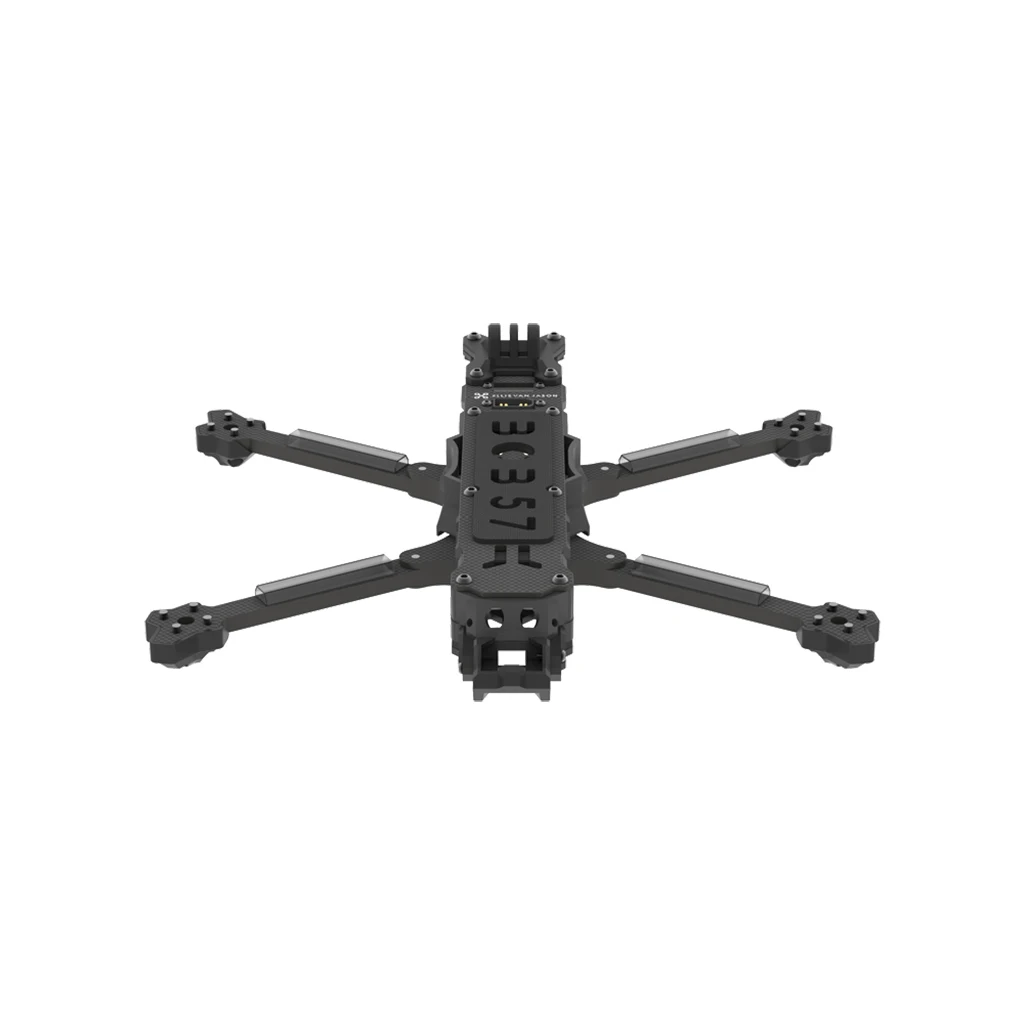

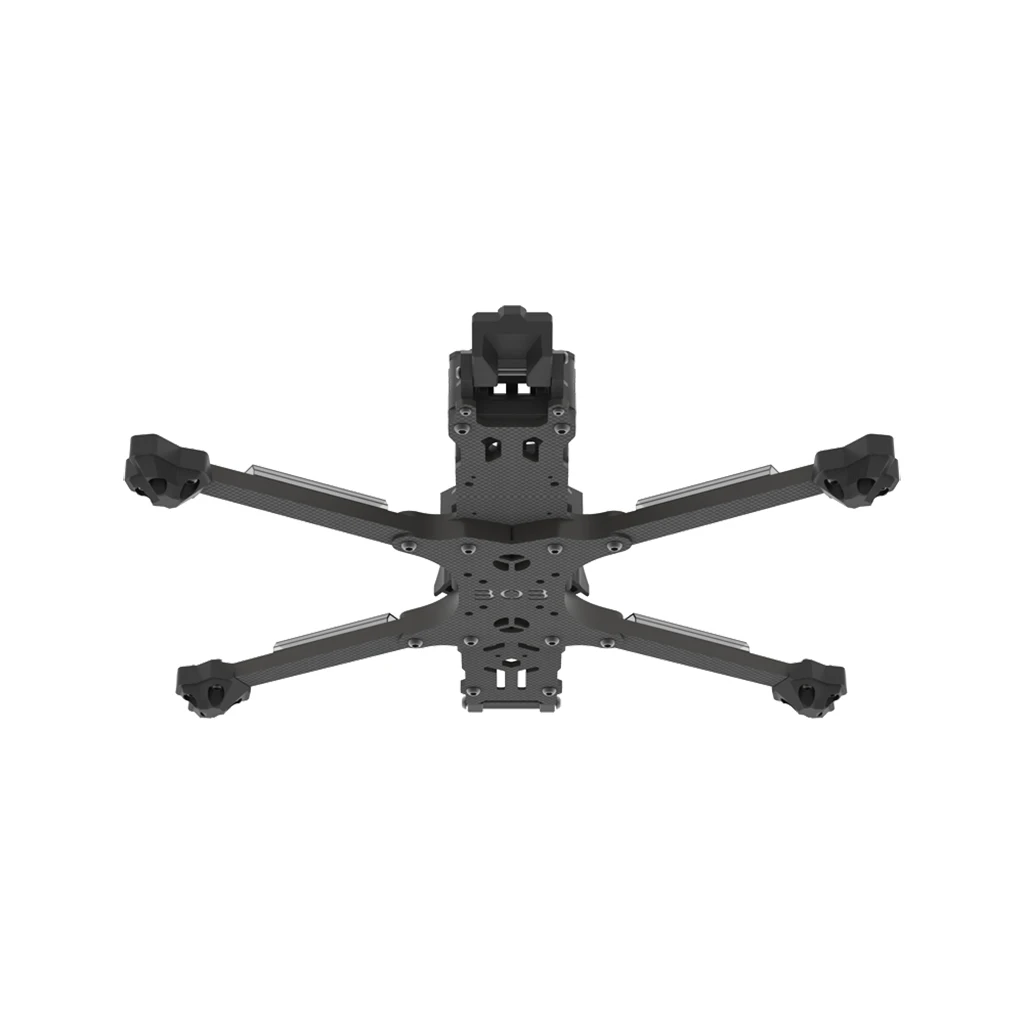

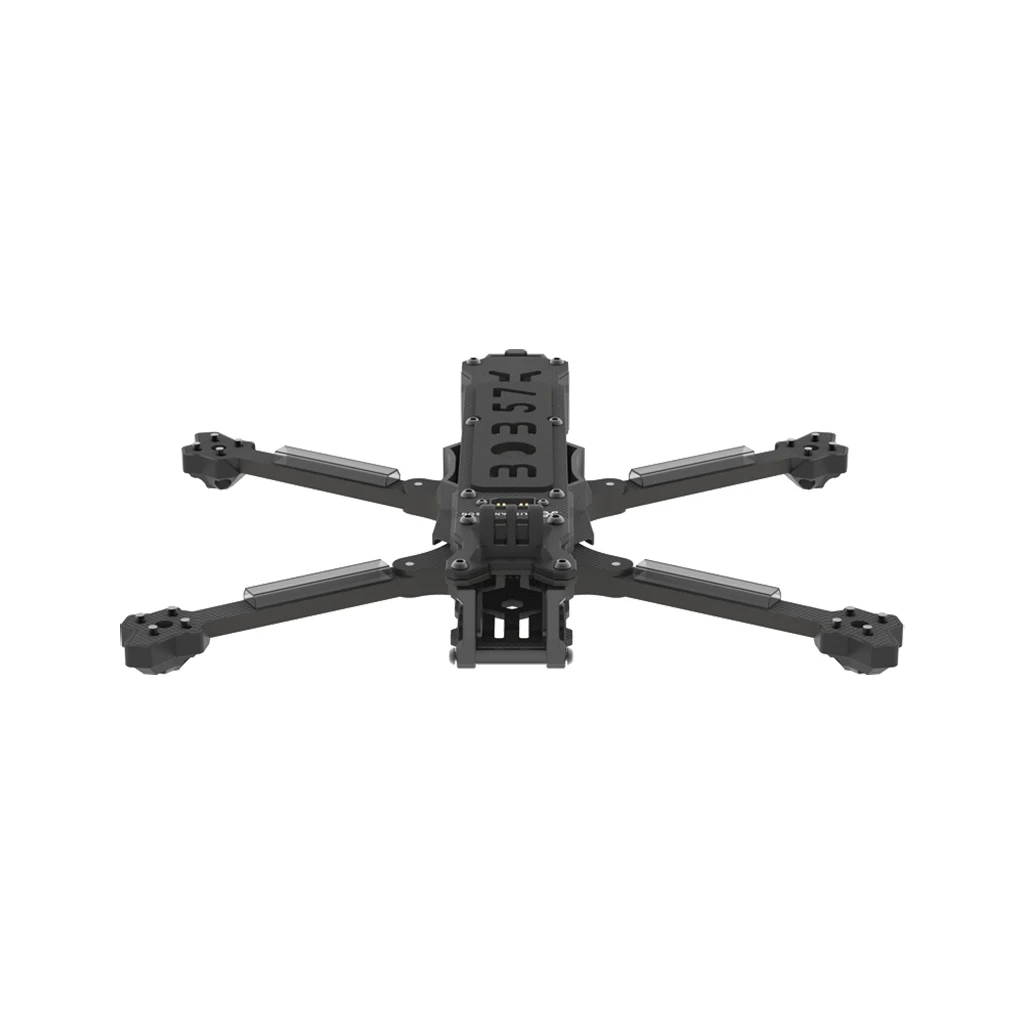

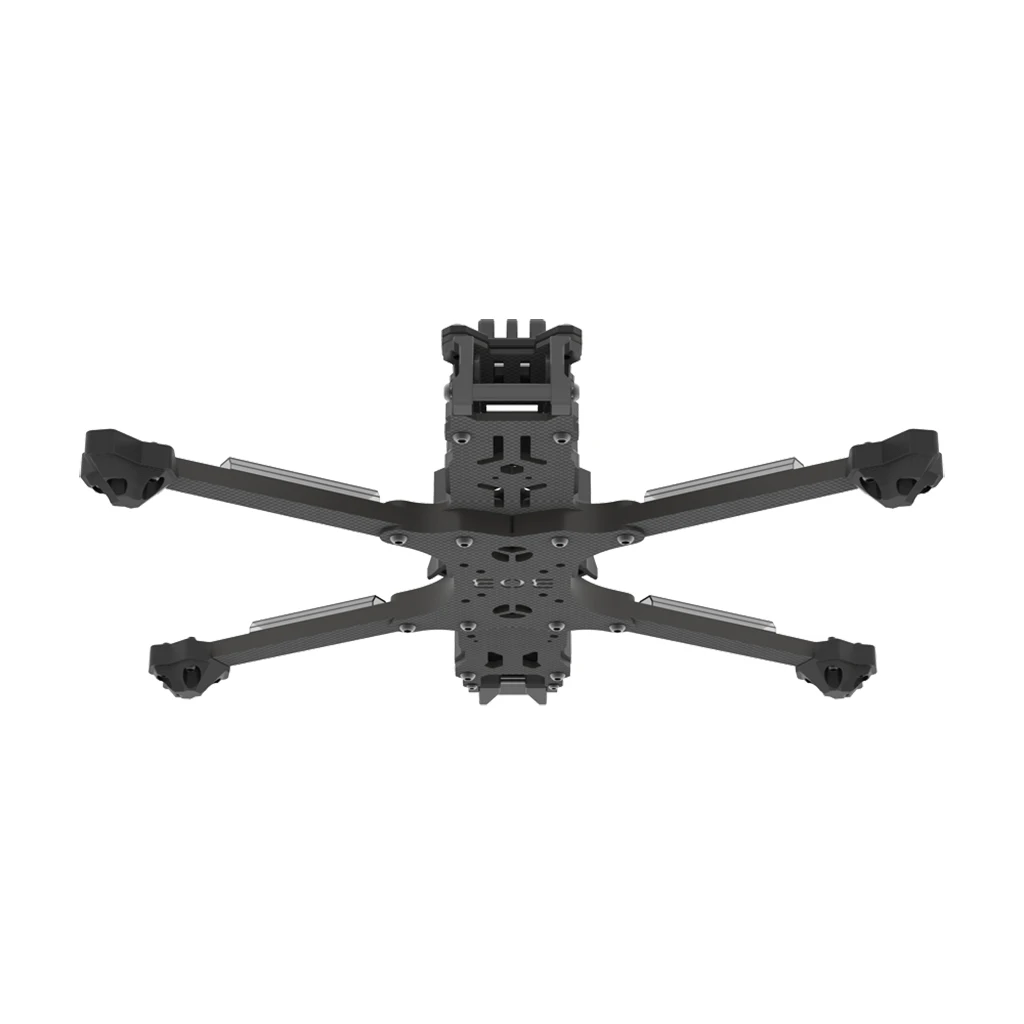

BOB57 O3 Frame Kit with 6mm arm for FPV Drone Quadcopter Parts

BOB57 O3 Frame Kit with 6mm arm for FPV Drone Quadcopter Parts Item NO.: 42932560

Write a Review
US$ 82.99
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name BOB57 O3 Frame Kit with 6mm arm for FPV Drone Quadcopter Parts
Item NO. 42932560
Weight 0.51 kg = 1.1244 lb = 17.9897 oz
Category FPV Drone and Part
Brand iFlight
Creation Time 2024-08-14

Description

The iFlight BOB57 is a long-range HD drone that was designed in collaboration with pilot & videographer Ellis van Jason. The team crafted this cinematic 6-inch drone that ensures agility and flight time while combining the advantages of both 5-inch and 7-inch drones for both cinematic and freestyle flights.


Features

Hybrid motor design optimized for  that can be used with both bi-blade and tri-blade 6" propellers

Solid antenna mount for less ocillations when using long antennas

H-shaped frame with robust middle section for less props in view

Gladiator shell protects from dust and water droplets

Front-mounting XT-60

Compatible with for DJI O3 Air Unit and Vista


Specifications

Product Name:BOB57 O3 Frame Kit

Frame wheelbase: 278mm

Frame Dimension: L165*W225*H34 mm

Frame Body Dimension: 34mm

Arm Thickness: 6mm

Bottom Plate Thickness: 1.5mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 2.5mm

Motor Mounting: 16x16mm

VTX Mounting: 25.5*25.5/Φ1.6mm, 20*20/Φ2mm


Packing List

1 x BOB57 O3 Frame Kit

1 x BOB57 TPU Parts

2 x 215mm MIPI Video Cable for DJI O3 Air Unit

4 x Motor Wire Shield Tube

1 x Battery Anti-Slip Pad

2 x Battery Strap

1 x Screw Bag
