RC HexaCopter ARF Electronic:30A ESC 920KV Motor KKMulticopter V2.3 Control Board Propeller Radiolink T8FB RX&RX

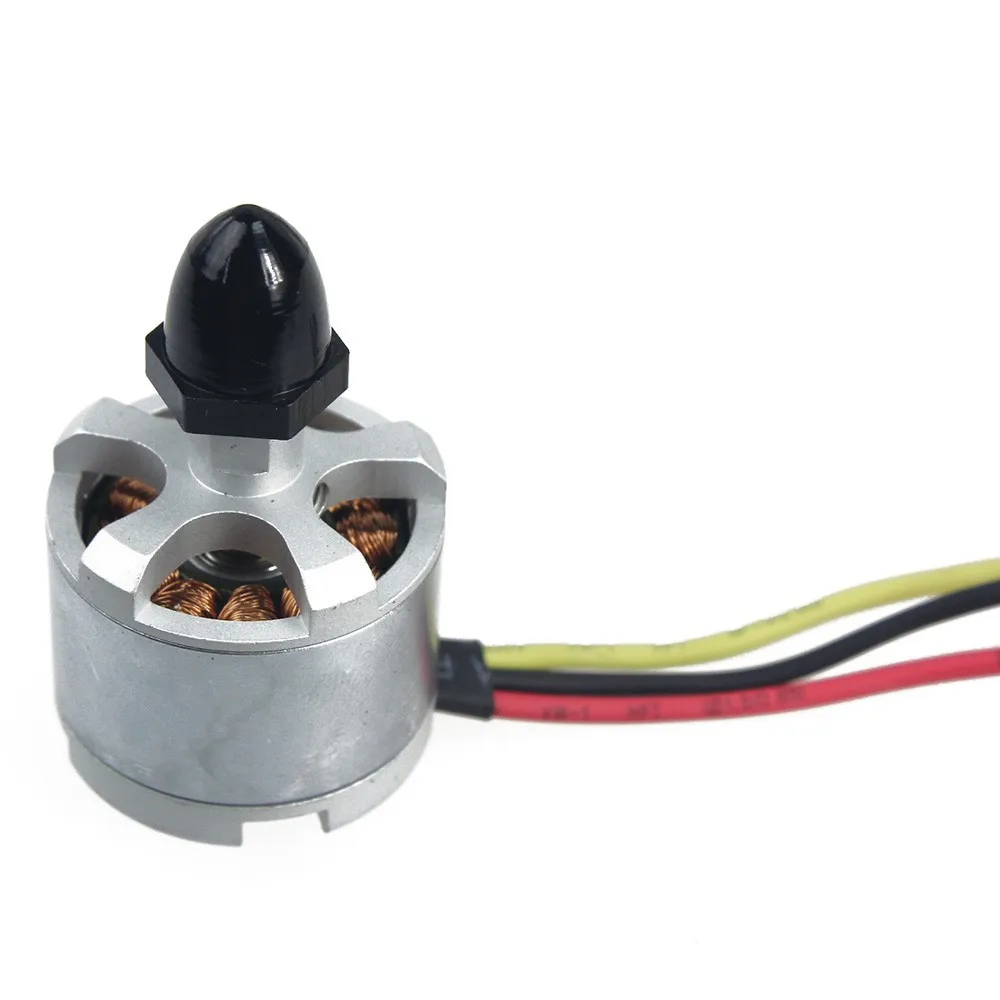

Motor Description:
Outer diameter: 28.0 mm
Height: 24.0 mm (Without Shaft)
K V: 920kv
Fit for DJI Phantom F330 F450 F550 X525

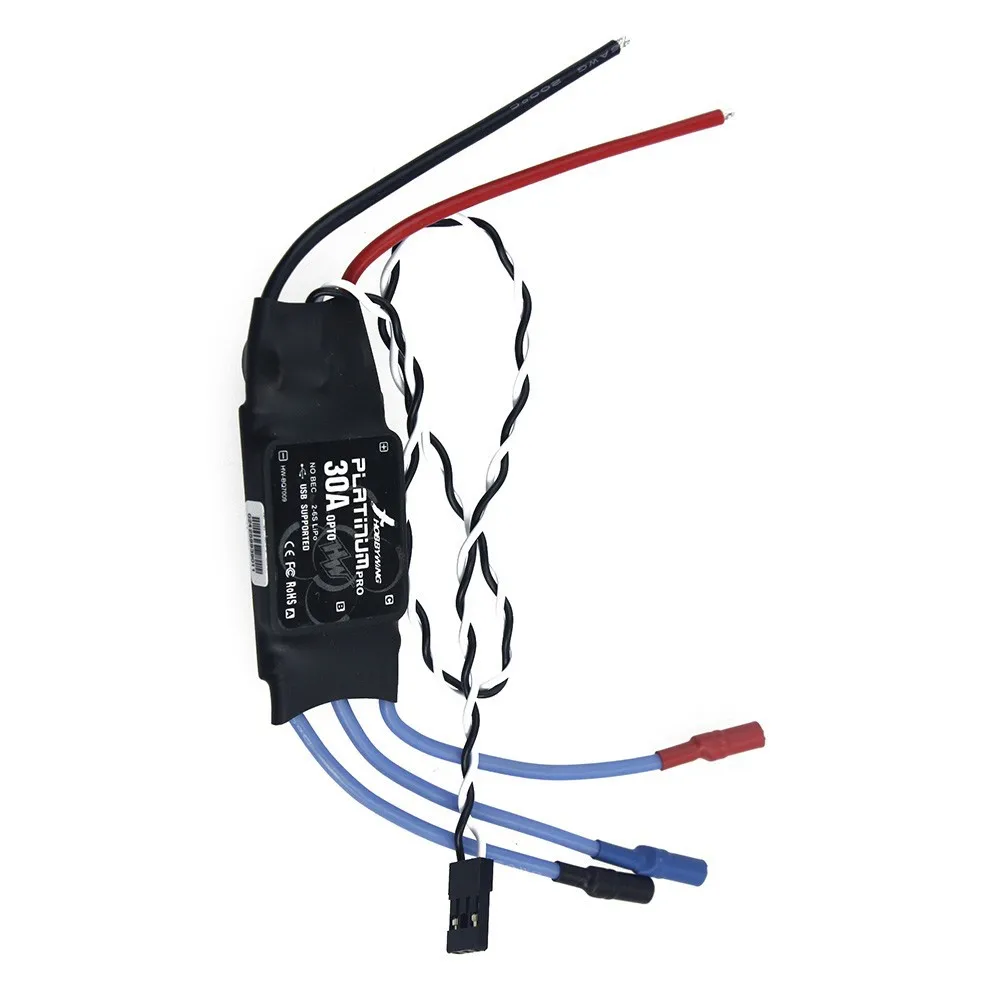

ESC:
This ESC is specially designed for multi-copter application, support up to 6S Lipo.
This Version Without Motor Wires, Connectors are Welded Directly To The PCB Board.
Specifications:
30A-Pro 2-6S Electric Speed Controller (ESC) OPTO - Specially for Multi-rotor Aircraft.
Output: Continuous 30A, burst 45A up to 10 seconds.
Input Voltage: 2-6 cells lithium battery or 5-18 cells NiMH battery.
BEC: NO
Parameter programming function: Yes
Size: 56.5mm (L) * 25.6mm (W) * 8mm (H).
Transmitter:
Digital 2.4GHz 6-Channel RC system T6EHP adopted FHSS 2.4GHz technology, it is applied for 3D helicopter. Owing to the most advanced 2.4GHz radio control technology, it is needless to fit crystals for both transmitter and receiver, meanwhile RC system can avoid the interaction problem best up to the advanced code matching mechanism.
Standard Programming Functions :
Model Select six model memory.
Model Type helicopter programming. (for airplane is another version)
Servo Reversing on all six channels.
Dual Rate/Exponential for ailerons, elevator and rudder.
End Point Adjustment fine-tunes servo throws on all six channels.
Digital Trim stores trim settings for each model for aileron, elevator, rudder and throttle.
Fail Safe a safety throttle setting in case of loss of transmitter signal.
Battery Fail Safe moves the throttle to a preset position when the airborne pack reaches 3.8V.
Stick Mode choose from Mode 1 through 4.
Range Checking Power Down reduces transmitter output power for up to one minute, allowing range checking from 50 paces away.
Changeable Throttle Stick select ratchet for airplanes or smooth for helis.
Adjustable Stick Length choose the length that suits your flying style.
Helicopter-Specific Programming Functions:
5-Point Normal and Idle Up Throttle/Pitch Curves.
Throttle Hold for autorotation.
Revo (Revolution Mixing) mixes rudder and pitch together.
Gyro Mixing two gyro gain settings can be programmed and selected during flight.
Swash to Throttle Mixing corrects slowing of the engine's speed caused by the swashplate.
Swashplate Types choose from 1S (independent aileron, pitch and elevator servos linked to the swashplate), 3S (120° CCPM), or 3E (90° CCPM).
Swash AFR Adjustable Function Rate, for use with 1S, 3S or 3E swash types

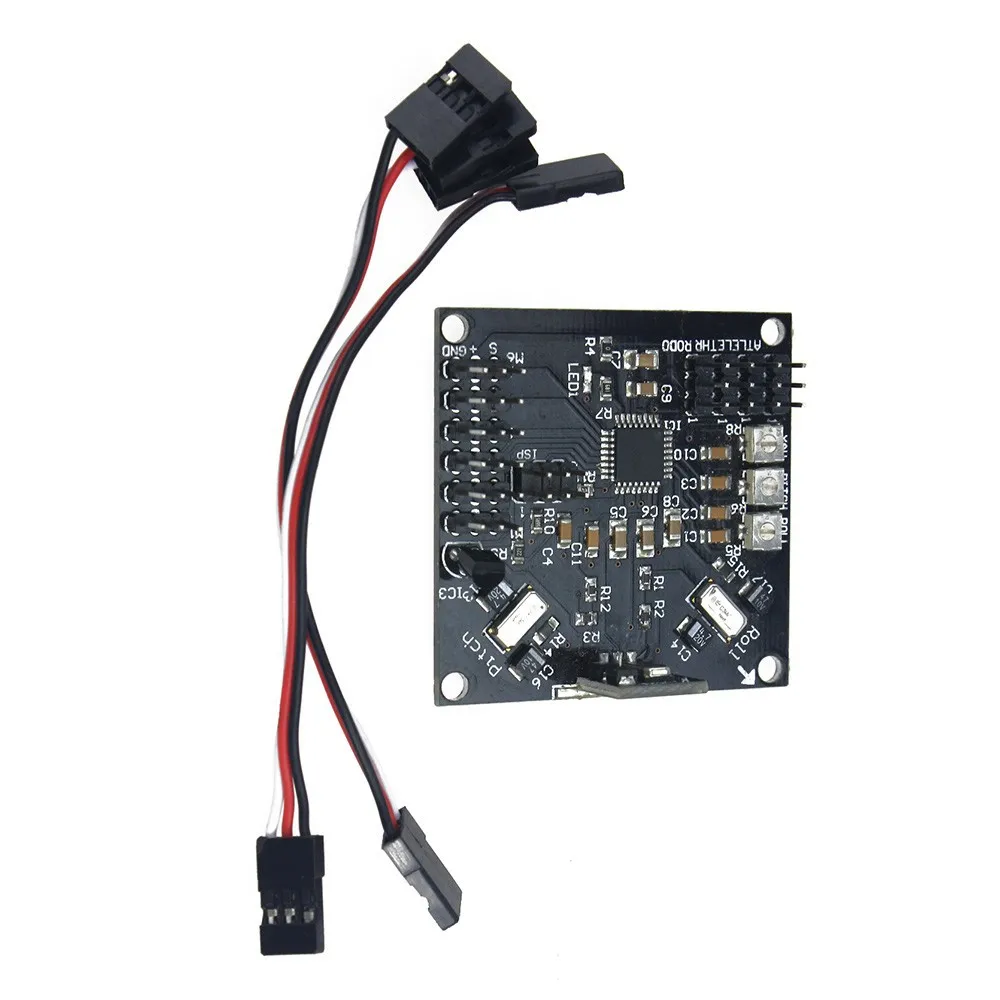

KK board:
Latest KKmulticopter controller V5.5 Board,V2.3 program
1. Simple structure, Easy to Maintain and Debug Control
2. Relying on potentiometer adjust gyro sensitivity.
3. Full servo signal output, support normal ESC / analog servo
4. Support for single-axis / UFO, Y3 3-axis, Y4-type 3-axis, 4 axis, 6 axis, V22 flight mode
5. Supports 4-axis "+" and "X" flight mode, support for six-axis "HEXA6" and "Y6" flight mode.

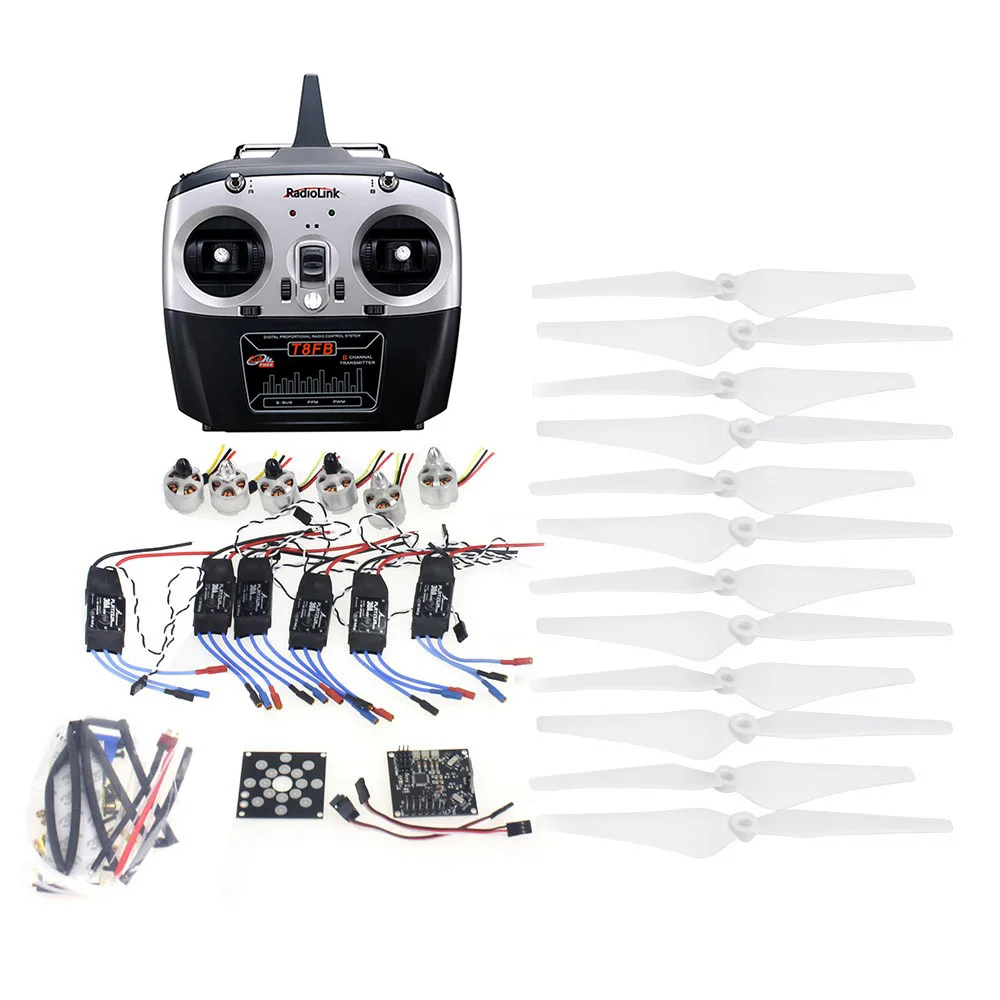

Quantity:
3 pcs 920KV CW motor
3 pcs 920KV CCW motor
6 pcs 30A ESC
6 pairs 9443 propellers
1 pcs Power Battery to 8 ESC Connection Board
1 PCS KKMulticopter V2.3 Circuit board Flight Controller V5.5
1 set Radiolink T8FB 2.4G 8Ch Transmitter and R8EF Receiver
1 tool set
