FEICHAO Assembled HJ 450 450F 4-Aix RFT Full Kit with APM 2.8 Flight Controller GPS Compass No Gimbal / Battery /Charger FS Item NO.: F02192-W

Write a Review

US$ 249.90

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

Product Name	FEICHAO Assembled HJ 450 450F 4-Aix RFT Full Kit with APM 2.8 Flight Controller GPS Compass No Gimbal / Battery /Charger FS
Item NO.	F02192-W
Weight	4.9 kg = 10.8027 lb = 172.8424 oz
Category	FPV Drone and Part > RC Parts
Brand	FEICHAO
Creation Time	2020-10-14

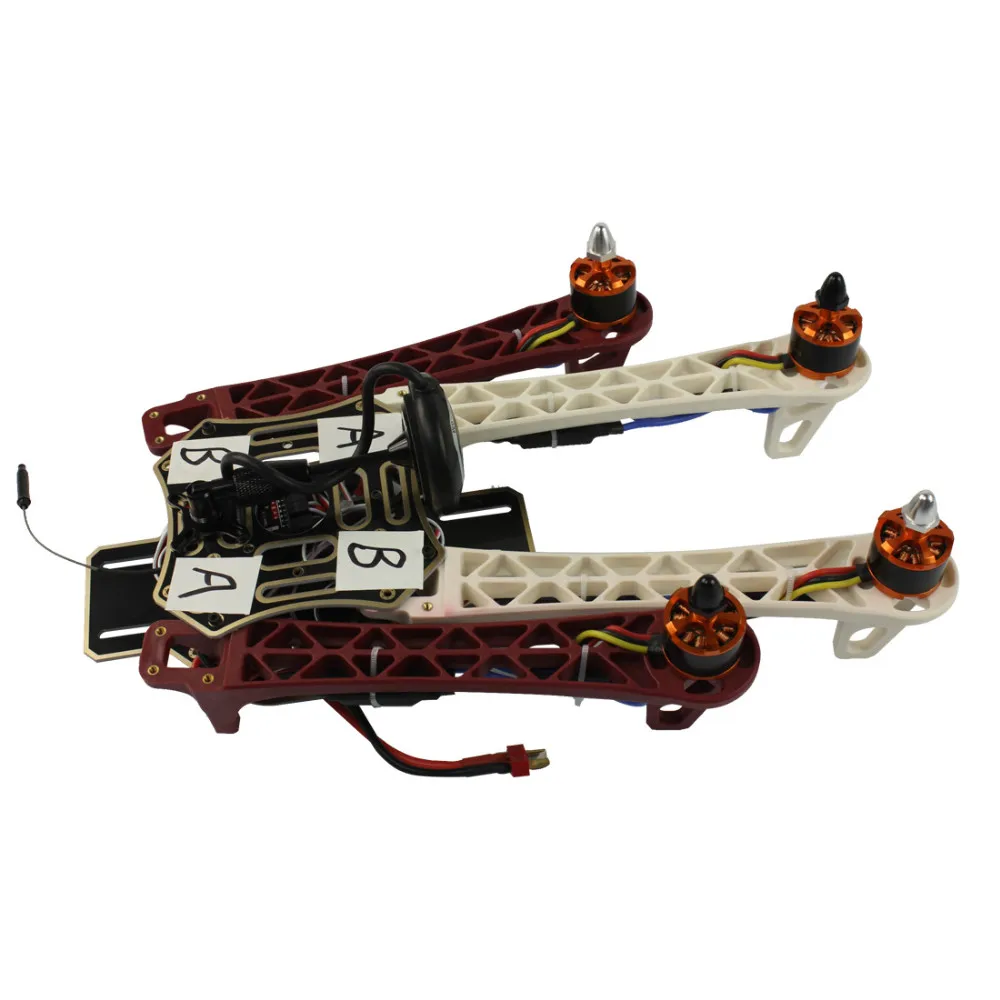

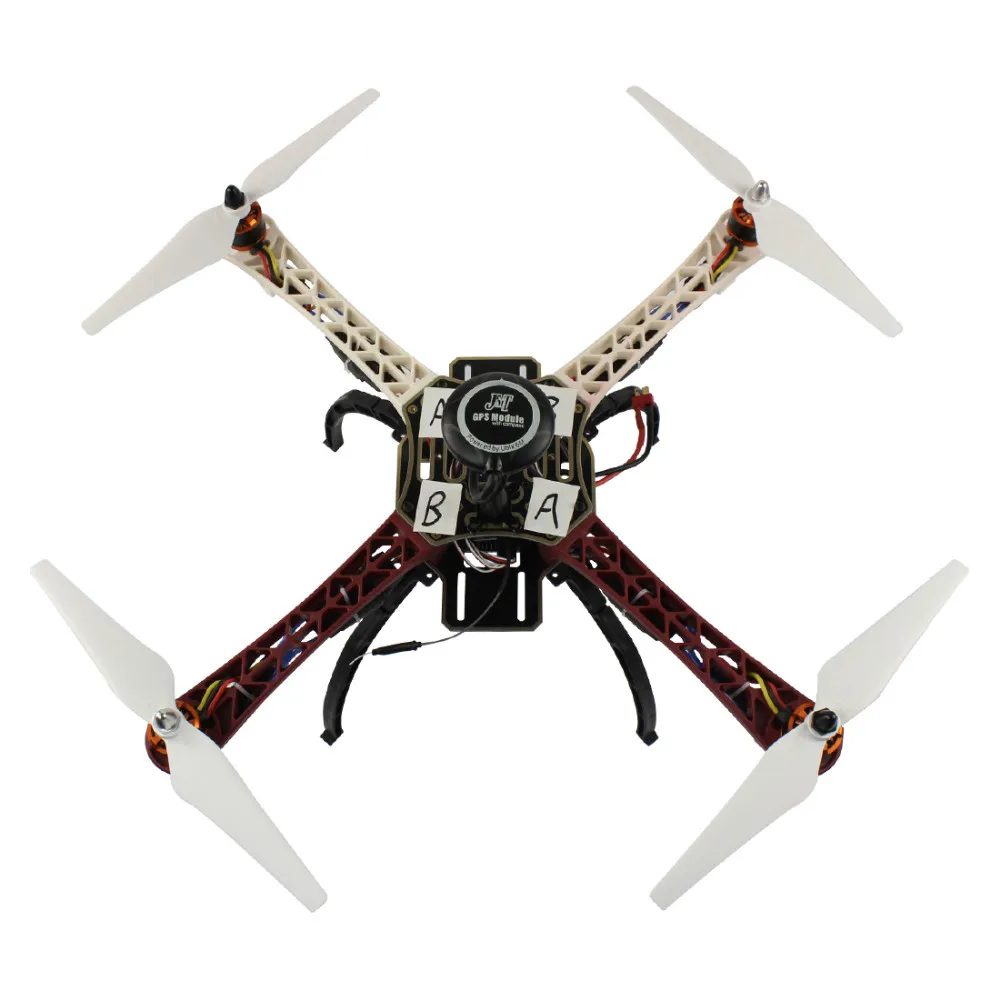

Assembled HJ 450 450F 4-Aix RFT Full Kit with APM 2.8 Flight Controller GPS Compass No Gimbal Battery Charger

aeProduct.getSubject()

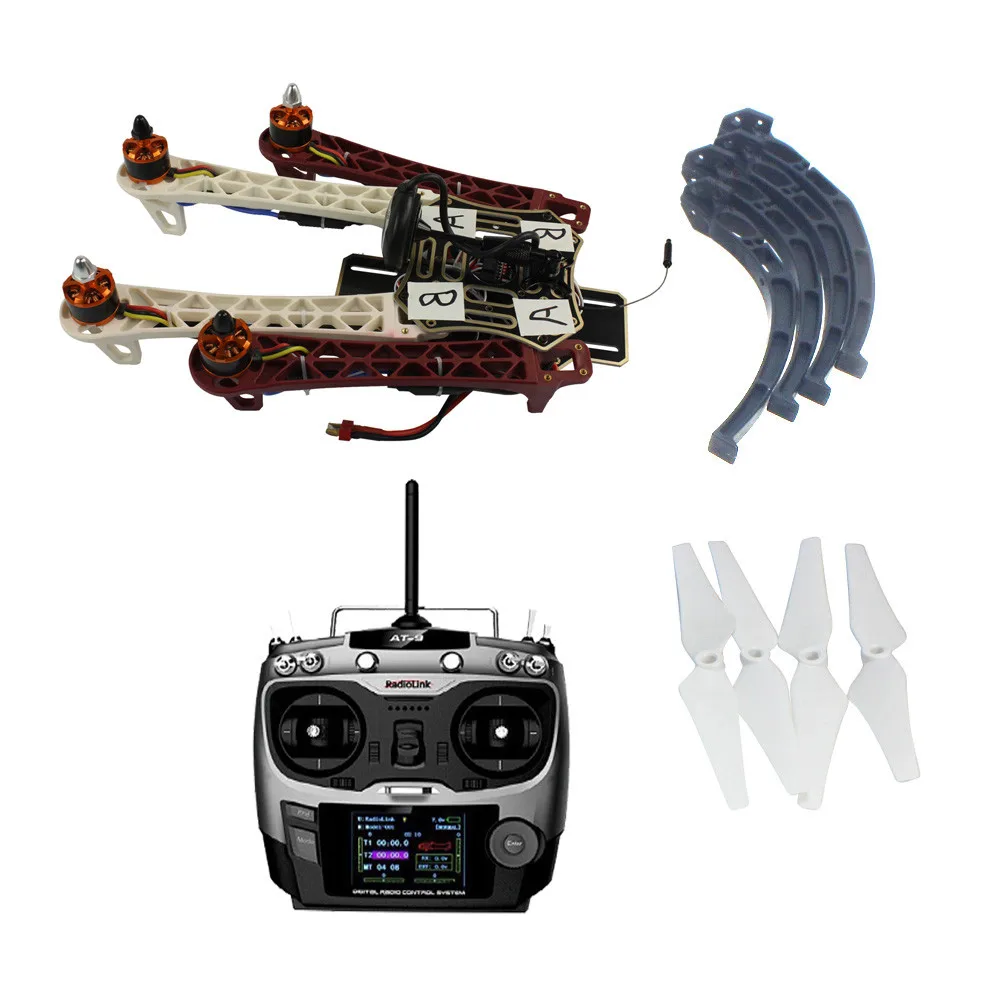

Packing including :

1 X HJ 450 450F Nylon Fiber Flamewheel

2 X 920KV Clockwise Brushless Motor

2 X 920KV Counter-clockwise Brushless Motor

4 X 30A Brushless ESC

2 X 9443 propellers

1 X APM 2.8 Multicopter Flight Controller

1 X GPS with Compass

1 X Radiolink AT9 2.4GHz 9 Channel Transmitter Radio & Receiver

1 X 140MM High Landing Gear Skid

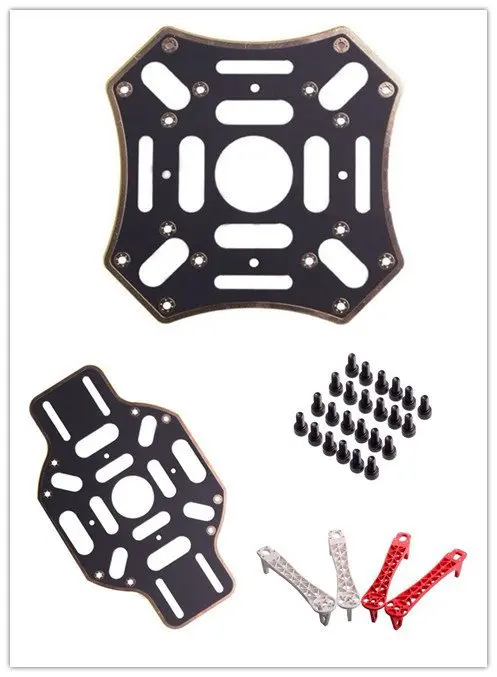

HJ 450 450F Nylon Fiber Flamewheel Frame Airframe kit HJ450

This is a very popular machine, it has a strong rack, beautiful appearance, and a stable system of flight for smooth flight. It is very suitable for both beginners and senior .

Notes:

This product only includes the airframe, no other config is included.

Shaft distance: 17.7in/450mm

- Net weight: 0.65lb/282g - by advanced engineering material,super strong & smooth

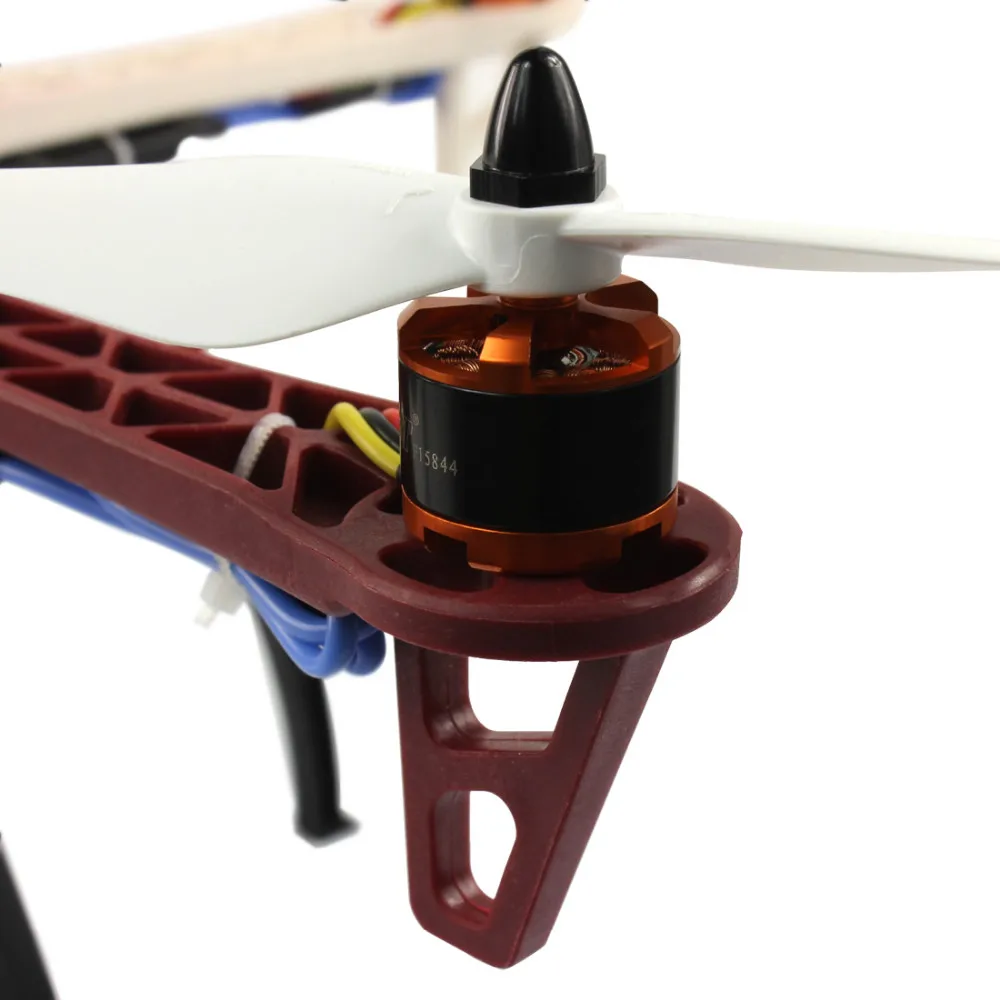

920KV Clockwise Counter-clockwise CW CCW Brushless Motor

Outer diameter: 28.0 mm

Height: 24.0 mm (Without Shaft)

K V: 920kv

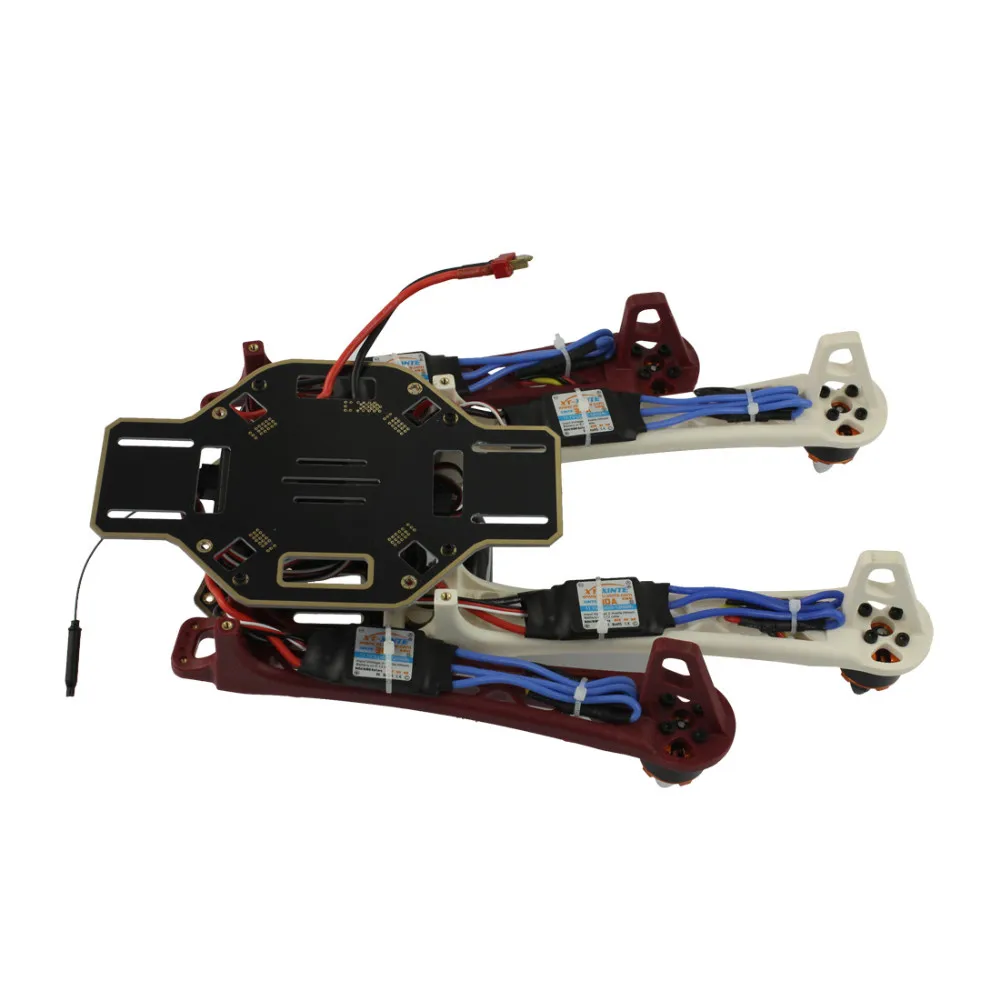

30A Brushless ESC Speed Controller

aeProduct.getSubject()

1.1 Output: Continuous 25A, Burst 40A up to 10 Secs.
1.2 Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
1.3 BEC: 3A
1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
1.5 Size: 45mm (L) * 25mm (W) * 11mm (H).
1.6 Weight: about 25g.

propeller 9443

Length: 9.4 inches Product Pitch: 4.3 inches Color: White

APM2.8 ArduPilot Mega APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded

Size: 70*45*13.5

Weight: 28G

APM is an open source flight control, can you play APM well depend on individual ability.

Player must have ability of basic understanding of monolithic integrated circuit, c-language, knowledge of electrical,mechanical, and also needs a certain degree of mental capacity, financialand material resources, energy support.If you're not ready, then We recommend that you prepare some introductory information first.

Introduction: Eliminate V2.52 Version Old 1.0mm 6P SM06B GPS interface , changed to the DF13-4P compass external I2C interface, Place the DF13-5P GPS interface with external interfaces of the compass, more convenient to connections GPS with external compass.

Replaced the V2.52 I2C interface to multi-purpose MUX interfaces, which can be used by the users themselves through the Pad of Back Board freely configurable function output, UART0,UART2,I2C,OSD optional, defaults OSD interface, avoiding 2.52 version when you want to use both Data Transmission and OSD, you need to use Y-line separating the interface programme.

Improved OSD interface when used in conjunction with Data Transmission, because of the isolation resistance, more effective to avoid the interference of Data Transmission.

New V2.8.0 use United States semi-LP2985-3.3, pressure-resistant up to 16V, increased reliability, reduced probability of Bad Gyro health due to voltage problems.

GPS with Compass

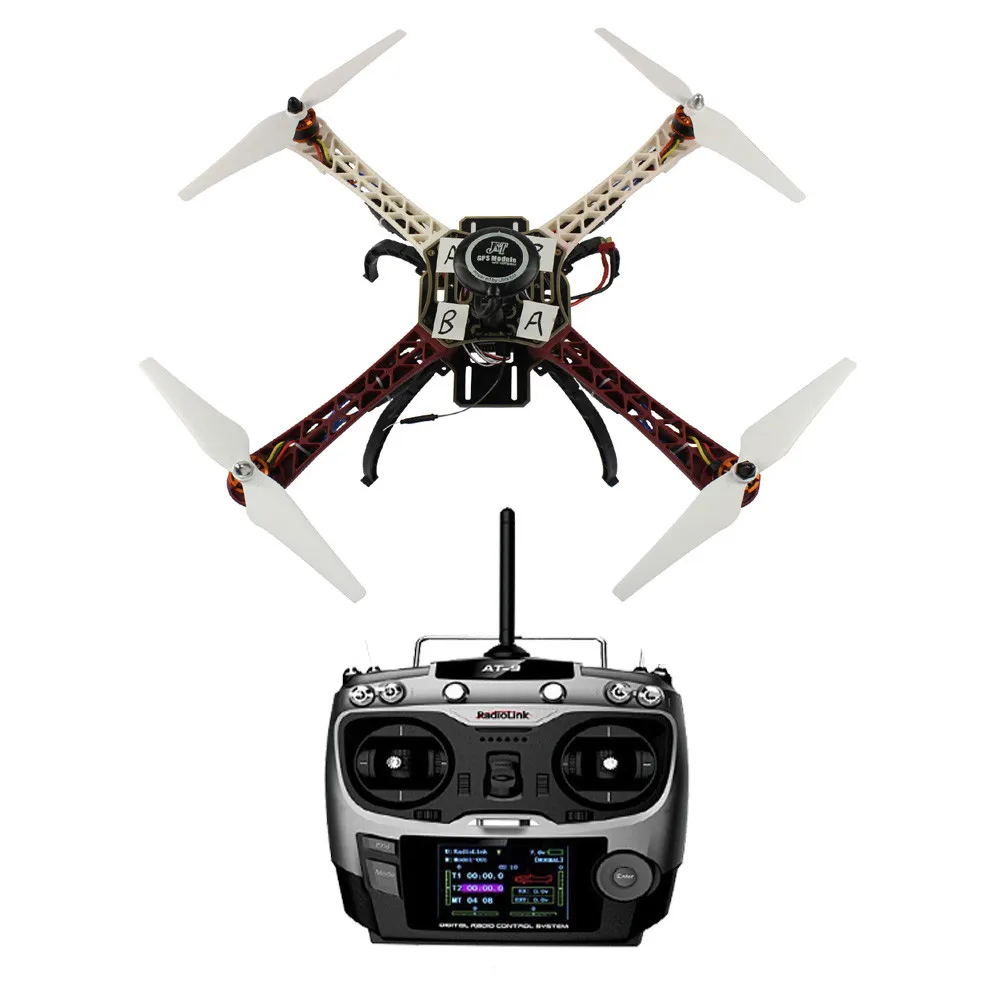

Radiolink AT9 2.4GHz 9 Channel Transmitter Radio & Receiver

1 Size: 183*193*100mm

2 Weight: 0.88kg

3 Frequency: 2.4GHz ISM band (2400MHz to 2485MHz)

4 Modulation mode: QPSK

5 Channel bandwidth: 5.0MHz

6 Spread spectrum: DSSS

7 Adjacent channel rejection: >38dbm

8 Transmitter power: <100mW(PCB testing), <20dbm(3 meter air testing)

9 Operating Current: <105mA

10 Operating Voltage: 7.4~15V

11 Control distance: more than 900 meters ground, 1.5kms air

12 Channel: 9 channels, 5~9 channels are customizable

13 Simulator model: under the simulator model the transmitter action turn off, change to power saving model

14 Screen: 2.8 inches 16 colorful screen , 240*320 pixels

15 Compatible model: Include all 120 degree and 90 degree swashplate helicopter, all fix wing and glider, five flying model and aircraft

Features

FULL TYPES AND FUNCTIONS

Suit for all airplanes including helicopter 8 swash plate models, fixed wing 2 airfoils 3 rears,

gliders 4 airfoils 2 rears and aircraft.

FAST RESPONSE

It takes 3ms only for 9 channels to response parallel, which is less than the average time 20ms.

SUPER STABLE AND LONG DISTANCE OPERATING

DSSS spread spectrum mode supplies better performance in anti-interference .

QPSK modulation mode.

Actual measurement: 900 meters ground and 1.5kms air.

140MM High Landing Gear Skid Wheels Tripod

aeProduct.getSubject()

Features:

universal Tall Landing gear skids for DJI F450 F550 SK480 FPV aerial photo.

Specifications: Easy for install on the DJI F450 F550 or similar frame Come with 4pcs for one full set. Come with M3*8 Screws for assembling High(LxWxH): 140mm (Single) Weight: about 12g (Single)
