FEICHAO APM2.8 2.6 2.5 Power Module Current Module with 5.3V DC BEC XT60 to T Connector for Flight Control for Battery & Charger
APM2.6 2.5 2.52 Power Module Current Module APM with 5.3V DC BEC for APM 2.8 PIX PIXHAWK Flight Control

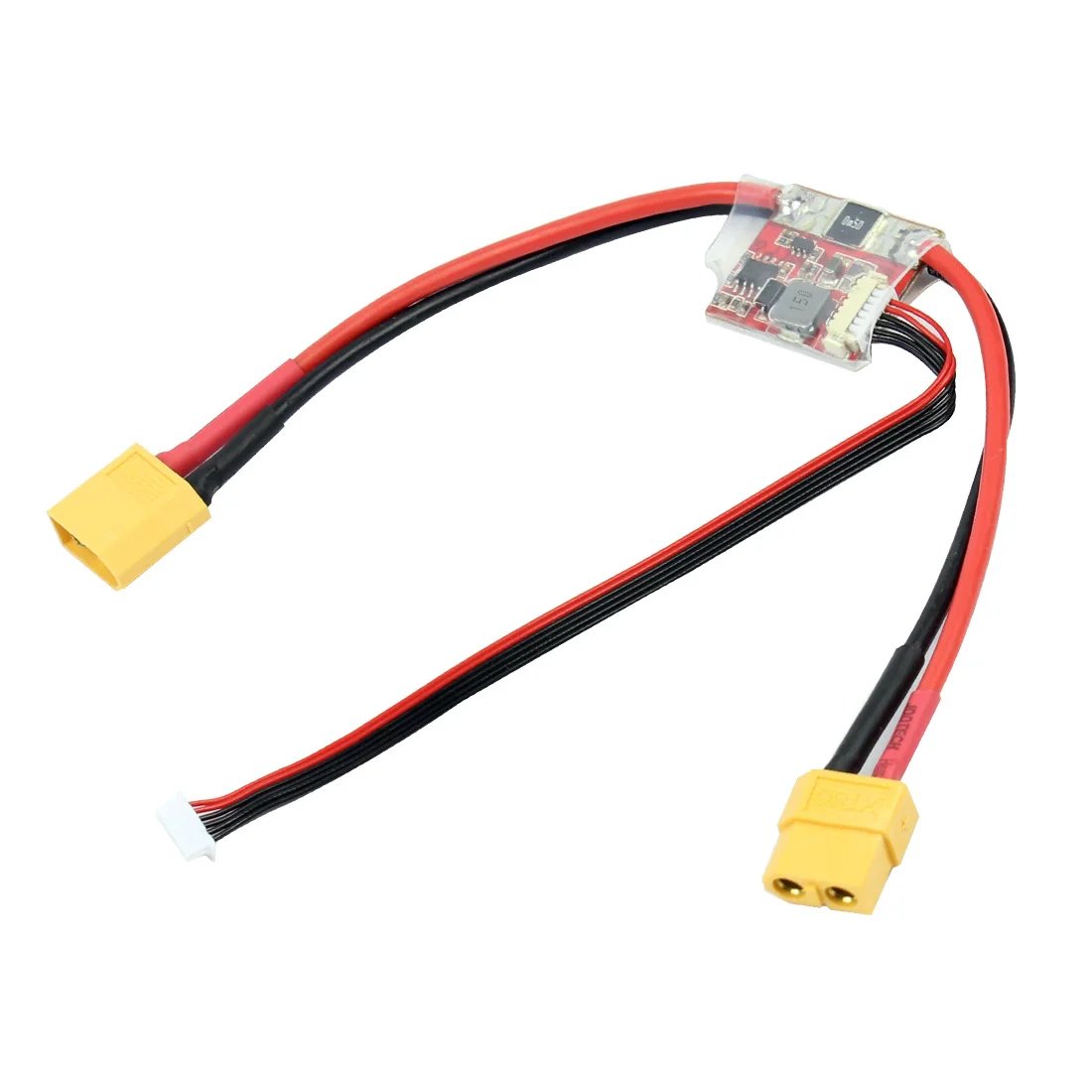

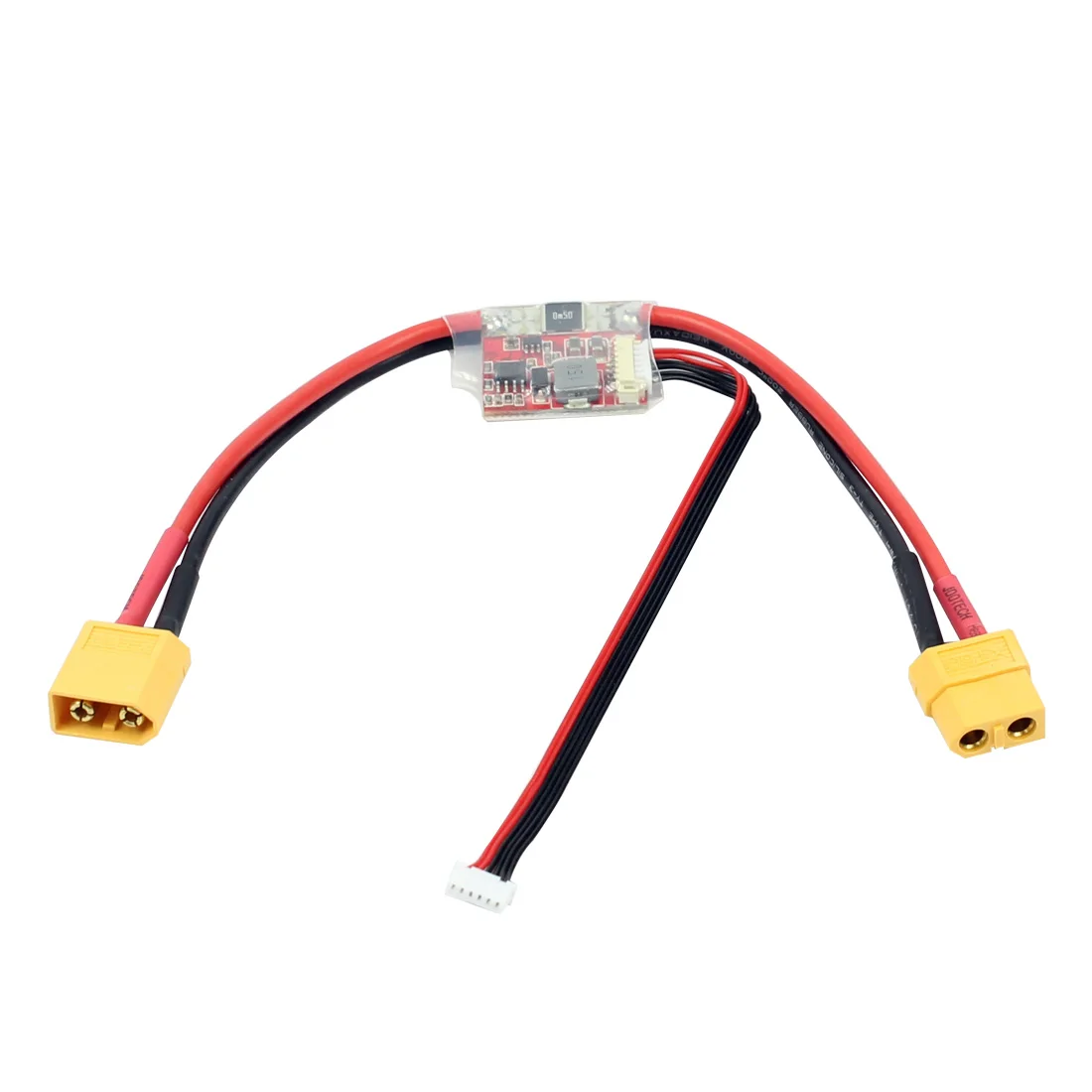

The APM 2.5 Power Module is a simple way of providing your APM 2.5 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with connectors, and wrapped in shrink tubing for protection.
Note: The Power Module is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio). It is not designed to power servos. Use your aircraft's own ESC/BEC for that.
Specifications:
Voltage and current measurement configured for 5V ADC
Switching regulator outputs 5.3V and 2.25A max
6-pos DF13 cable plugs directly to APM 2.5's 'PM' connecto

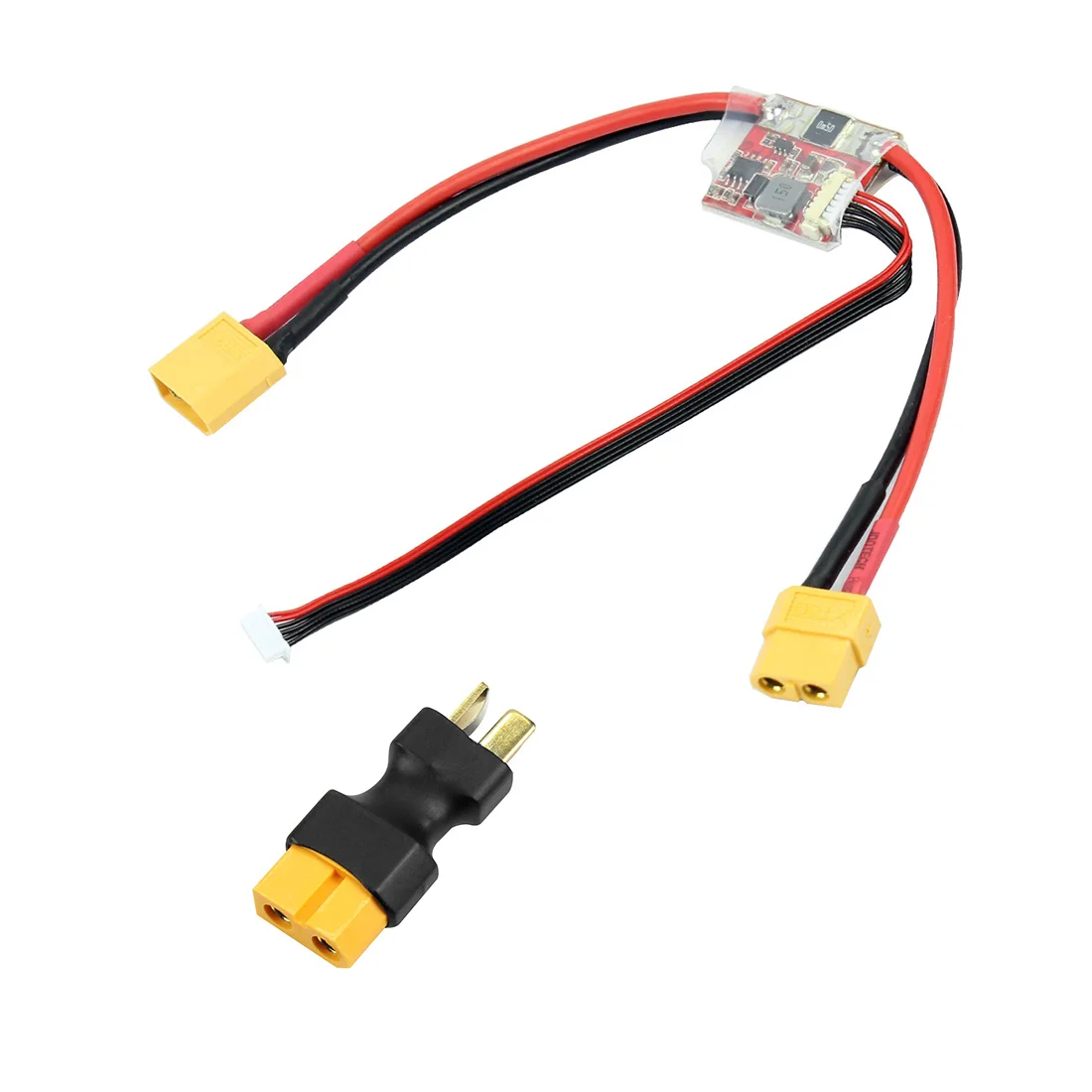

Optional 1:

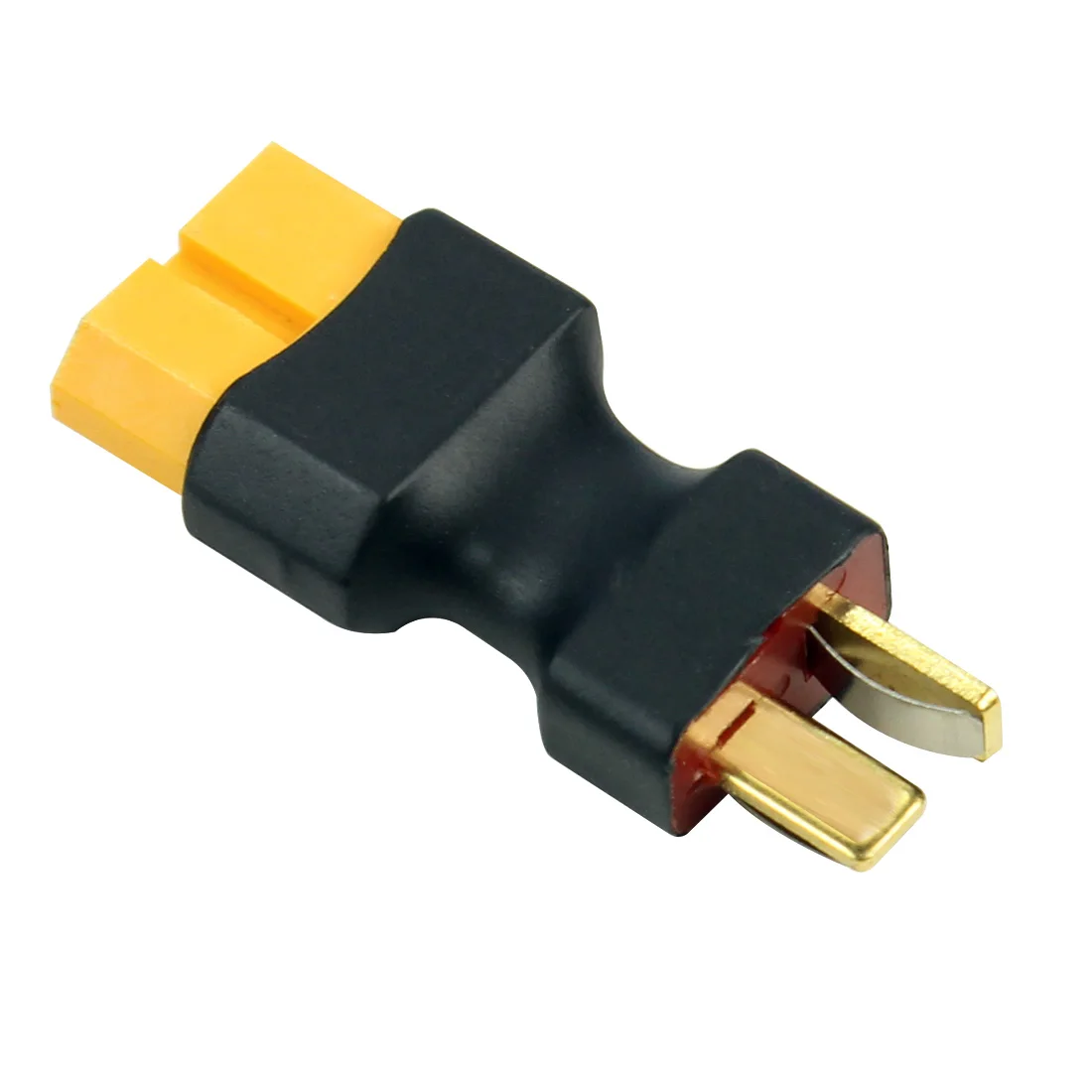

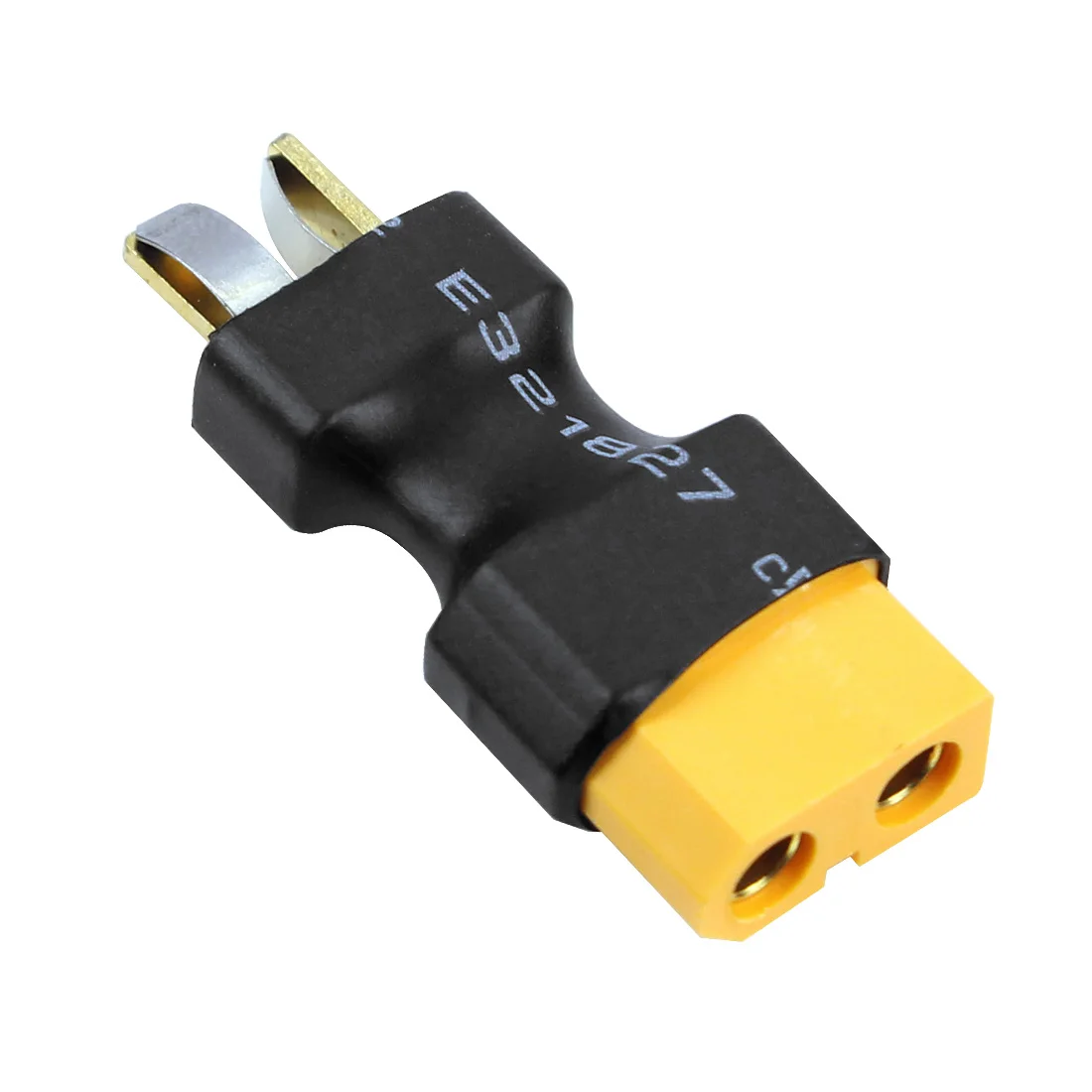

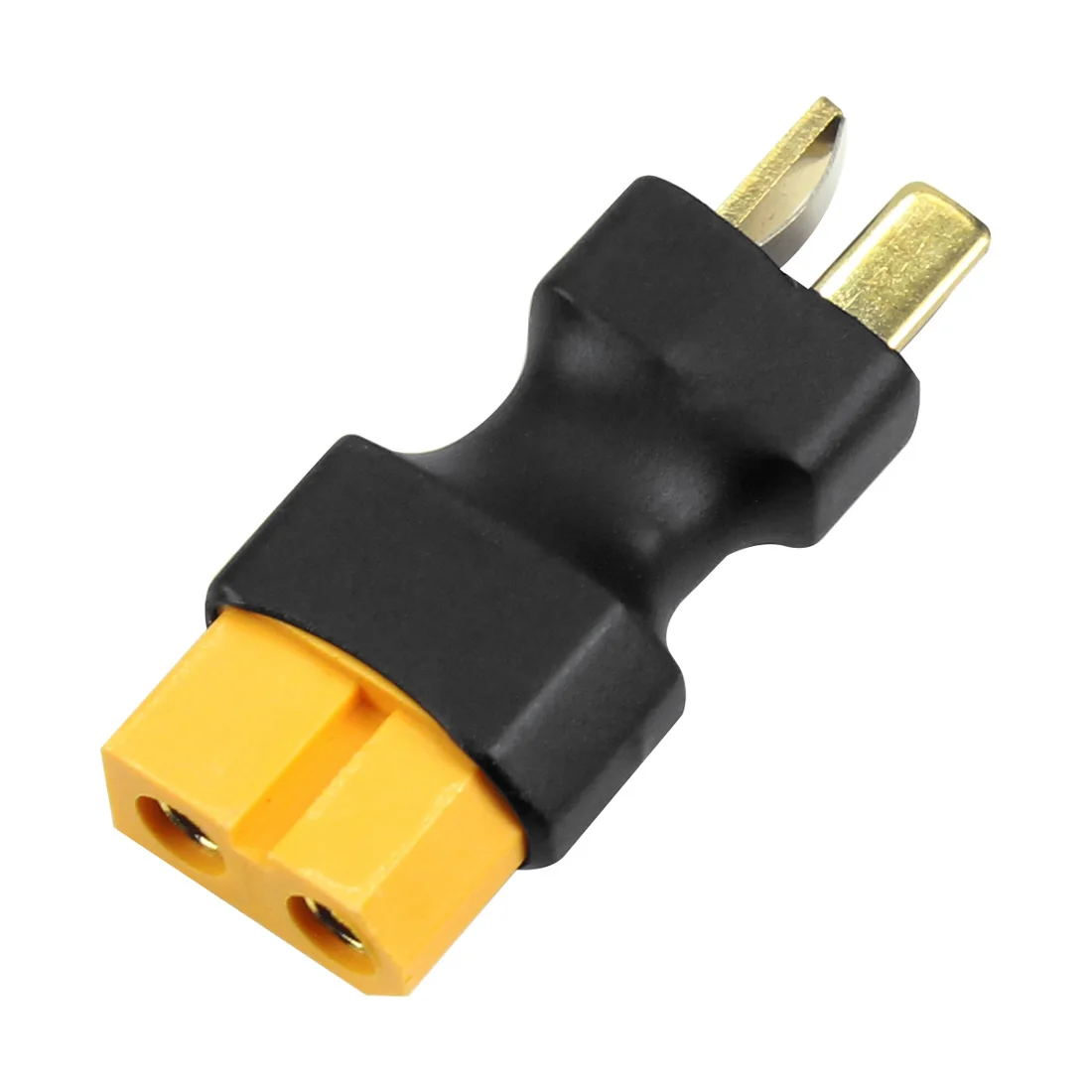

-XT60 Female to T Male Plug Conversion Connector For Battery & Charger
1. Device is T connector,but the battery is XT60 connector,it need to transform to T battery'
2. Charger just has T Plug,but need to charge the battery with XT60 Plug.

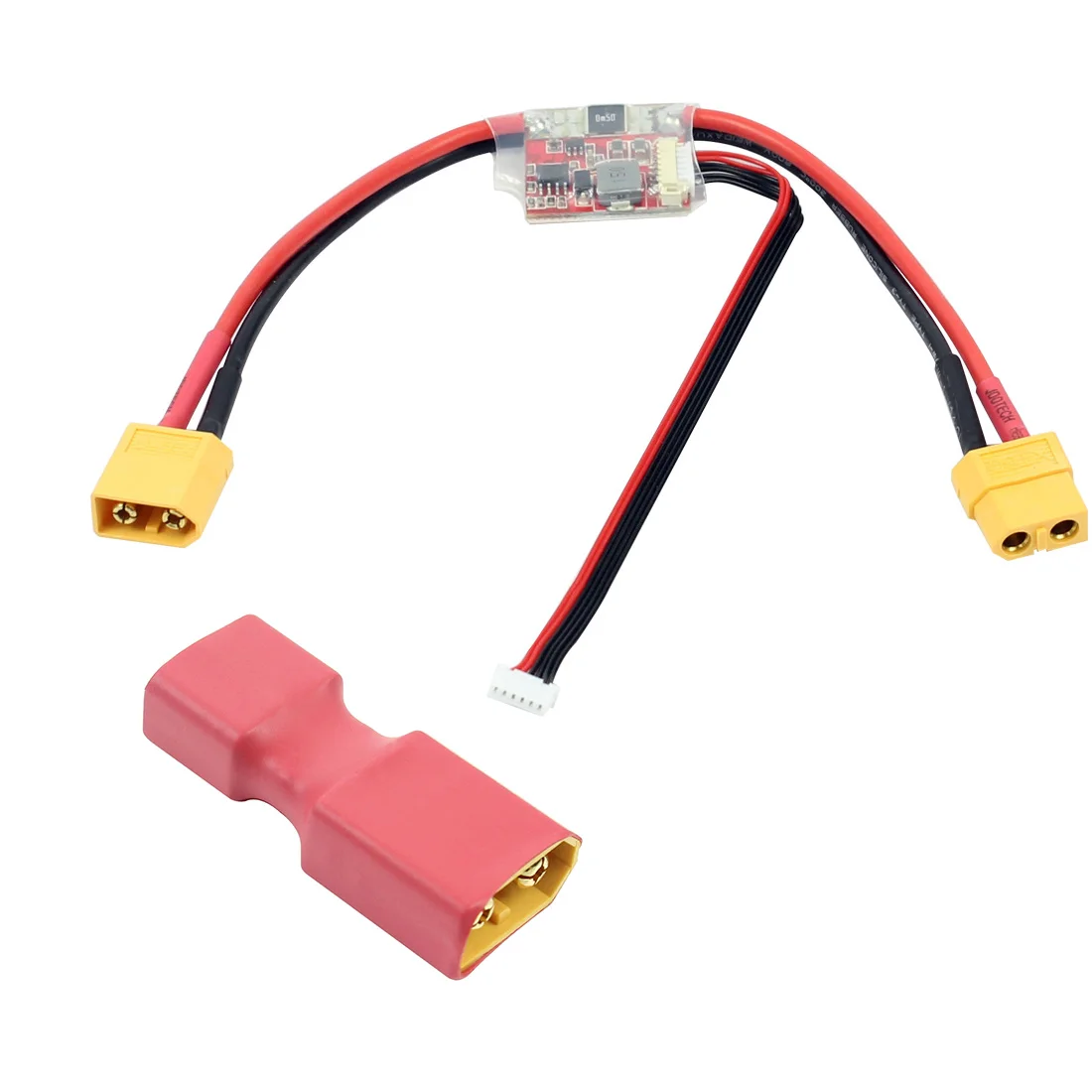

Optional 2:
-XT60 Male to T Female Plug Conversion Connector For Battery & Charger
1,Device Is XT60 Connector,But The Battery Is T Connector,It Need To Transform To XT60 Battery'
2,Charger Just Has XT60 Plug,But Need To Charge The Battery With T Plug.
